Falcon Eyes Background Support B-4W for 4 Rolls

Universal Background Hanging System

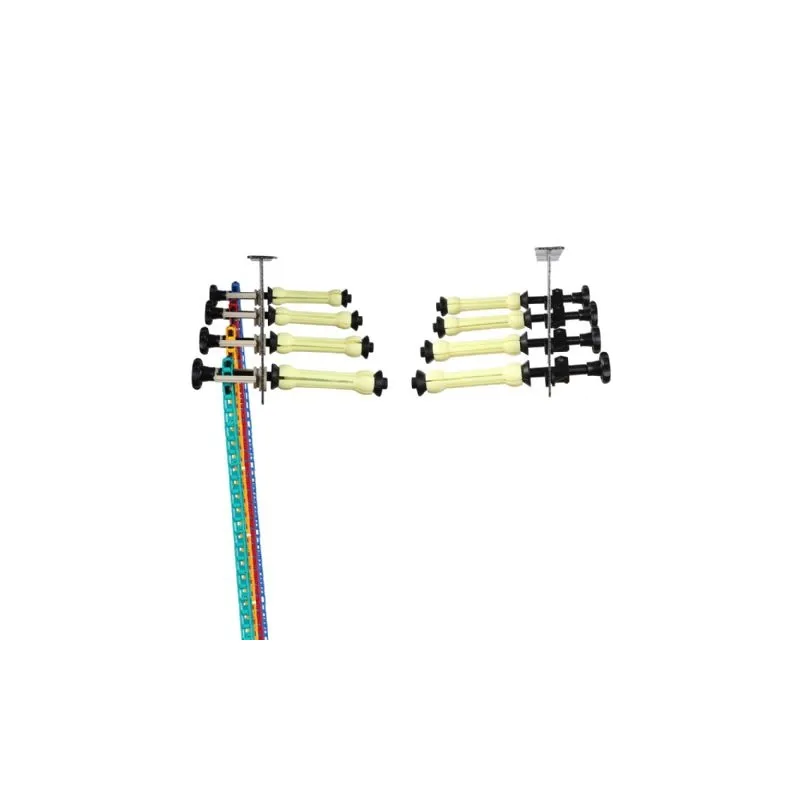

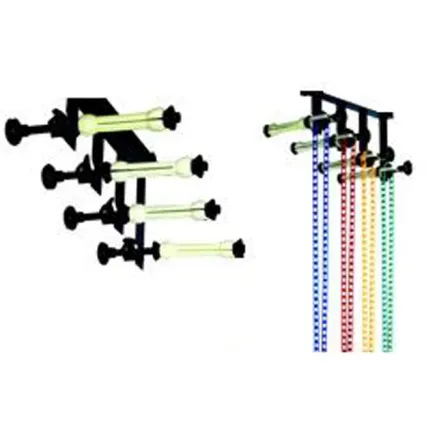

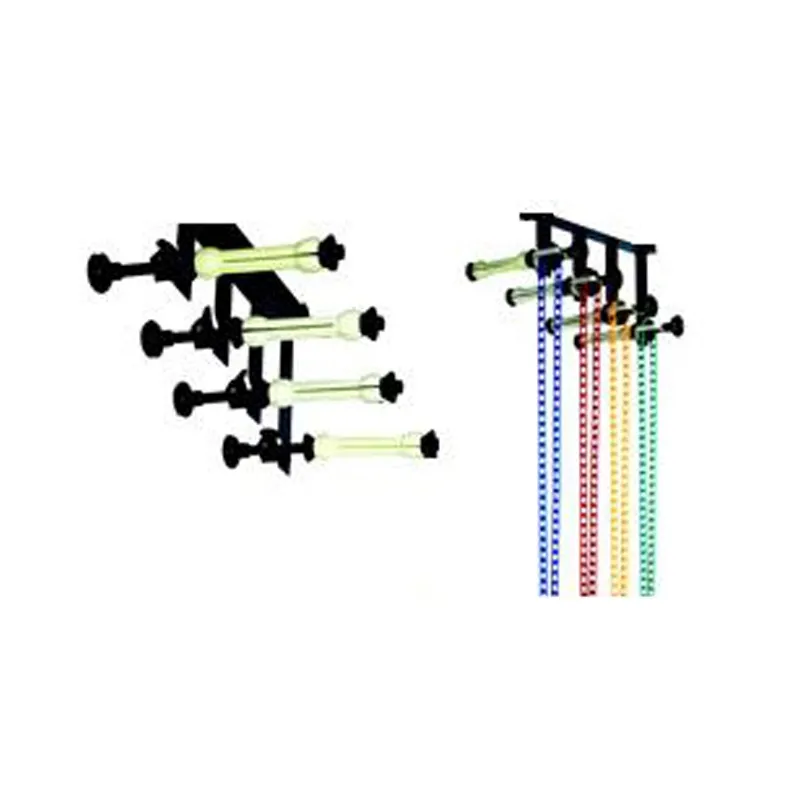

The Falcon Eyes Background Support B-4W is designed to hold and easily switch up to four background rolls. It can be mounted on walls or ceilings, providing flexible installation options to suit various studio setups.

Mounting and Installation

• Can be fixed to the wall or ceiling with a minimum mounting distance of 10 cm from the ceiling.
• Width between brackets is adjustable according to user preference.
• Brackets measure 40 cm in height and up to 24 cm in depth, with a diameter of 7 cm.
• Optional mounting on light stands is possible using 4 x CL22 accessories (sold separately) and the Stand Mounting Kit.

Background Roll Holders and Operation

• Includes 8 rod holders; two are supplied with the system.

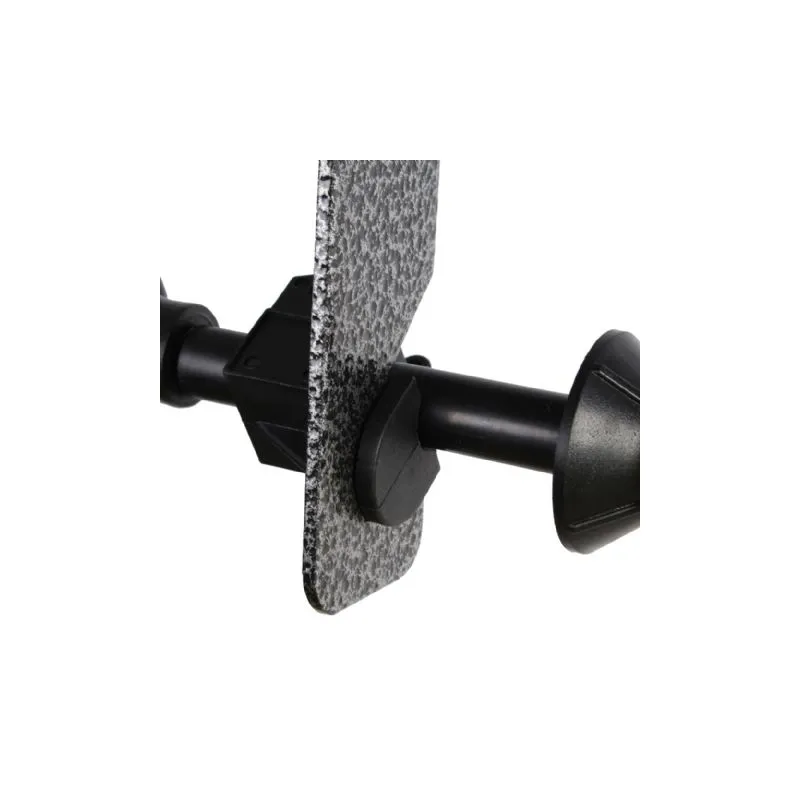

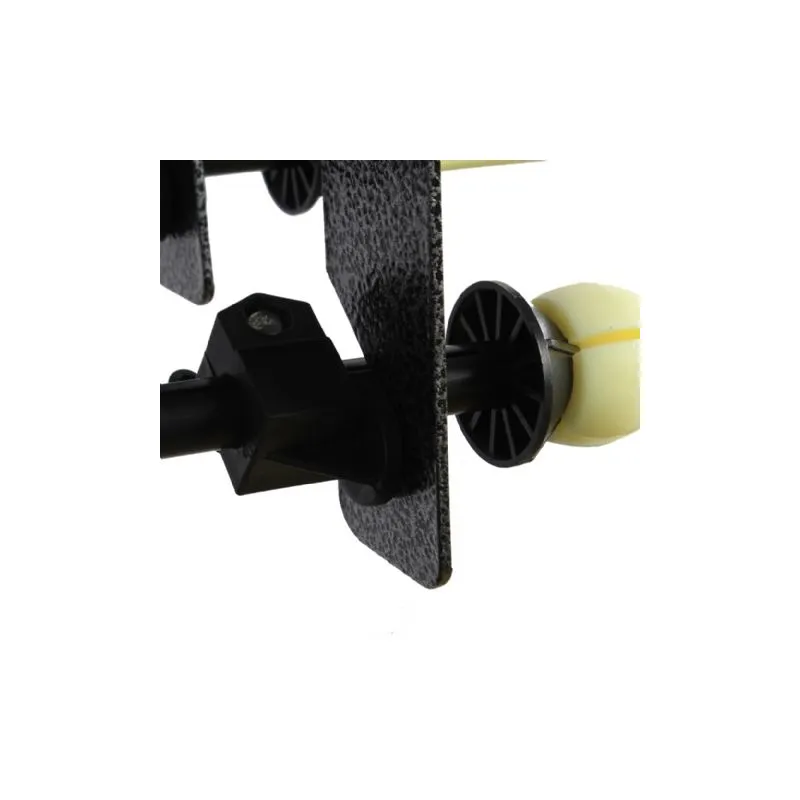

• Rod holders are inserted into the tube or core of the background roll and tightened to expand and secure the roll firmly.
• One rod holder features a rotary knob to adjust the tension, controlling how easily the paper rolls off.
• Rod holders protrude approximately 12 cm beyond the roll.

Chain System for Easy Background Switching

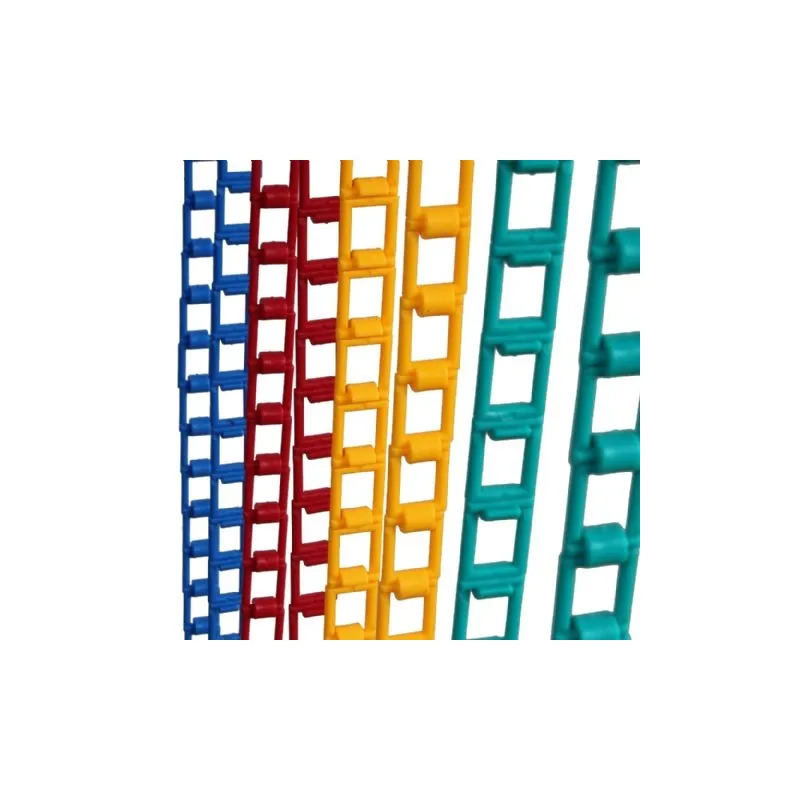

• Four chains approximately 1.70 m long are included to facilitate smooth rolling of the background paper up and down.

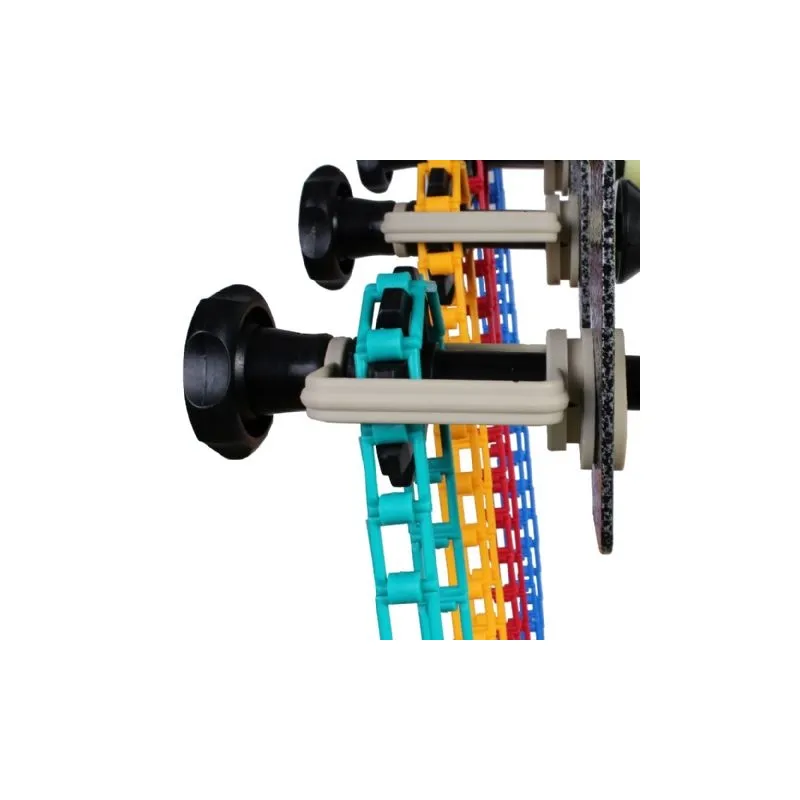

• Chain guides keep the chains neatly in place, preventing tangling or loose hanging.

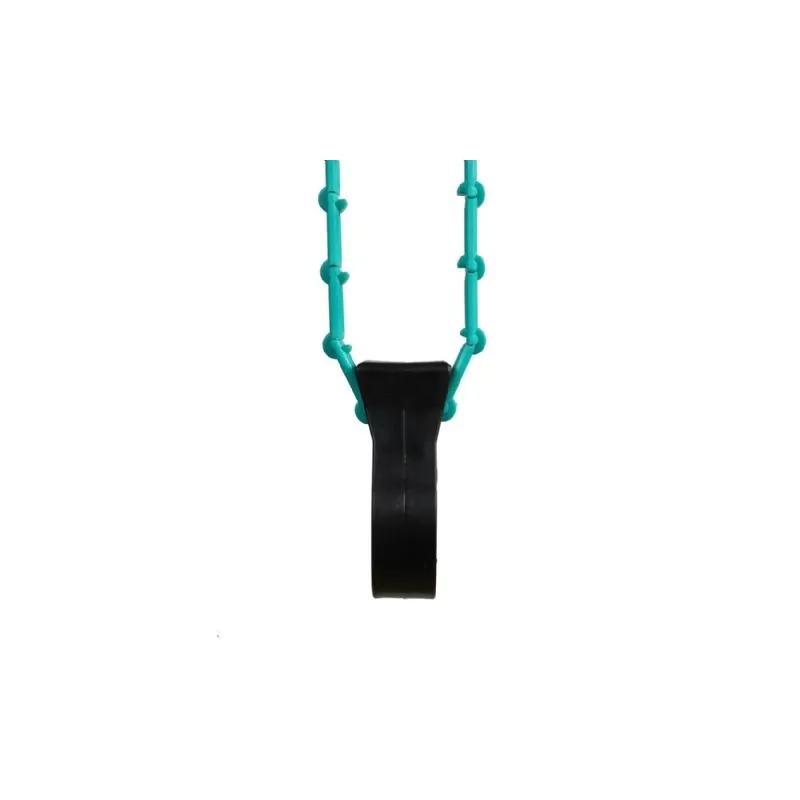

• Four counterweights are included to maintain chain tension and smooth operation.

Compatibility and Limitations

• Not suitable for background rolls measuring 3.56 m in length.
• For larger rolls, alternative systems are recommended.

Included Items

• 2 x Wall/Ceiling brackets
• 8 x Rod holders
• 4 x Chains
• 4 x Chain guides
• 4 x Counterweights
