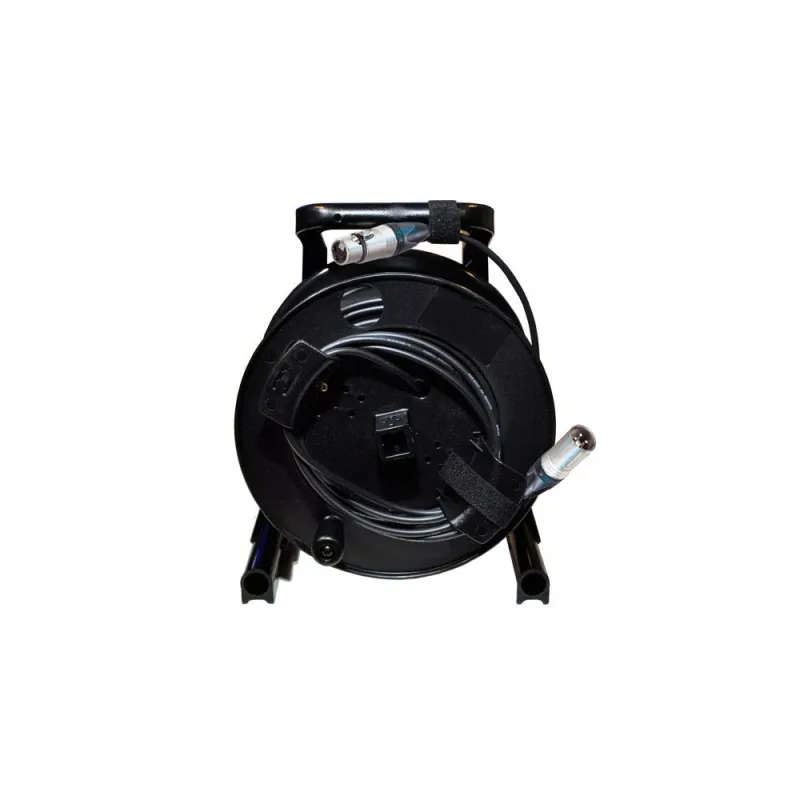

Infinitek XLR cable 35m Schill reel

Canare L-2T2S microphone cable with Neutrik XLR connectors on Schill GT 235.RM cable reel.

Canare L-2T2S is a high-quality 2-conductor flexible microphone cable suitable for various applications. It features high-density stranded copper shielding and two AWG 23 (0.57mm) diameter inner conductors made of 60 thin strands of copper wire, ensuring maximum flexibility and reduced handling noise. The special PVC compound outer sheath is resistant to cracking even in extremely cold environments.

Usage

• Microphones
• Stages, concerts
• Studios
• Fixed installations
• Audio rack cabling
• Amplifiers
• Audio patch cables

Features

• Copper braided shielding
• Flexible even in extremely cold weather
• Minimized handling noise
• EMI and RFI suppressed

Specifications

• Standard manufactured lengths in (m): 100/200
• Cable weight in kg/100m: 4.6
• Sheath diameter in mm: 6.0
• AWG: 23
• Material and thickness of outer insulation in (mm): PVC (1.00)
• Breaking point in (C): -49
• Number and colour of conductors: 2 / 1 x blue, 1 x white
• Number and diameter of cores per conductor in mm: 60/0.08
• Shielding factor: >94
• Conductor resistance in /100m: <6.4
• Shielding resistance in /100m: <3.1
• Capacitance between blue and white conductors in pF/m: 70
• Capacitance between conductors and shield in pF/m: 106
• Impedance: 88

Schill GT 235.RM

Usage

• Universal - for different cable types
• Plastic holder for cable attachment
• Capacity in (m) according to cable diameter: 5mm - 109m, 6mm - 79m, 7mm - 61m

Specifications

• Handle for easy winding
• Integrated brake
• Width x depth x height in mm: 208 x 206 x 295
• Weight (empty drum) in kg: 1.00
