Flexible 3G/HD-SDI coaxial cable, 100 m length, ideal for mobile HD use.
Infinitek 3G/HD-SDI on reel with cable holder 100 m
Product ID: 17183
SKU: 17183
Model: I-5W-M/M-BLK-100-38R
Ean: 8586027490854
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 100 |
| Weight, gr | 8100 |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

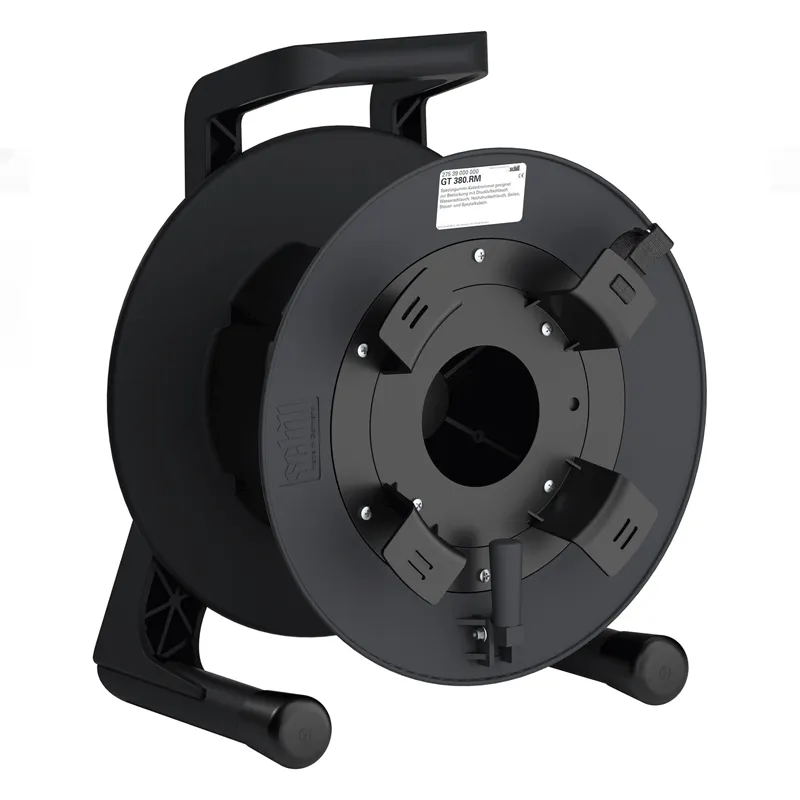

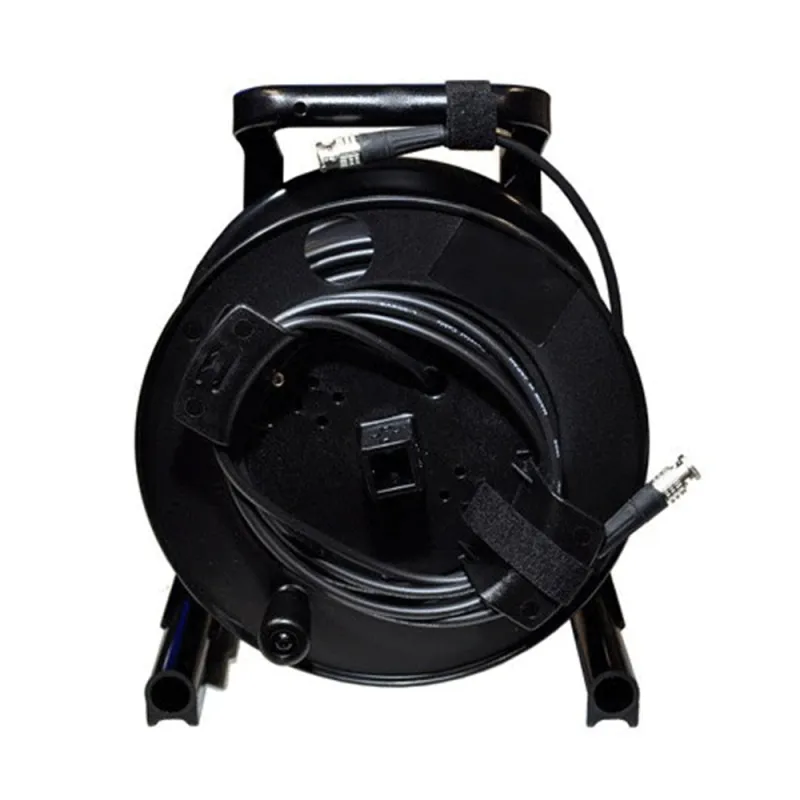

Canare L-5CFW BNC (M-male) / BNC (M-male) is a flexible and durable 3G/HD/SD-SDI 75 ohm coaxial cable with a 7.7 mm outer diameter, featuring BNC (M) terminations wound on a SCHILL reel. The cable is wound on a Schill GT 380.RM reel, with a total length of 100 m including connectors.
Its high flexibility makes it ideal for mobile HD use, providing excellent resistance to repeated bending. The cable features a braided medium conductor and a high-density double shield with thick foam insulation.
Maximum transmission distance depending on video format
- Distance in (m): 535m, 483m, 384m, 333m, 267m, 103m, 105m
- Transmission speed: 143 Mbps, 177 Mbps, 270 Mbps, 360 Mbps, 540 Mbps, 1.5 Gbps, 3.0 Gbps
- Specifications: SMPTE 259M, ITU-R BT.601, SMPTE 344M, SMPTE ST-292, SMPTE ST-424
- Use: NTSC composite, PAL composite, HD-SDI 1080i, HD-SDI 1080p
L-5CFW Cable Specifications
- Standard manufactured lengths: 100/200 m
- Sheath diameter: 7.7 mm
- Cable weight: 8.1 kg/100 m
- Medium conductor: 1/1.05 mm
- Foam dielectric diameter: 5.00 mm
- Resistance of the middle conductor: 2.3 Ω/100 m
- Resistance of outer conductor: 0.5 Ω/100 m
- Temperature range: -30°C to +60°C
- Static capacitance: 55 pF/m
- Attenuation: 19.4 dB/100 m
