Durable 80m HD/SD-SDI coaxial cable with excellent flexibility and low loss performance.

Infinitek 3G/HD-SDI on reel with cable holder 80m

Product ID: 17184
€ 419,95 tax incl.
20-30
SKU: 17184
Model: I-45W-M/M-BLK-80-3R
Ean: 8586027490847
Condition: New product
Manufacturer: Infinitek
419.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductWires, cables for video
ConnectionsBNC to BNC
Lenght, m80
Weight, gr6600
Weight, gr6.6
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek 3G/HD-SDI on reel with cable holder 80m

Infinitek 3G/HD-SDI on reel with cable holder 80m

Durable 80m HD/SD-SDI coaxial cable with excellent flexibility and low loss performance.

Write a review

Product details

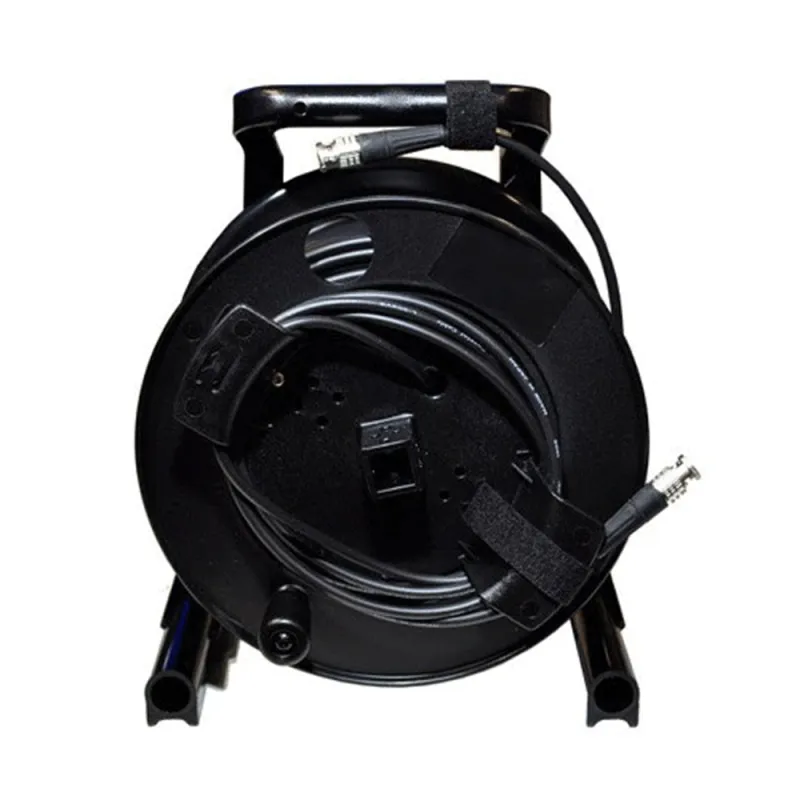

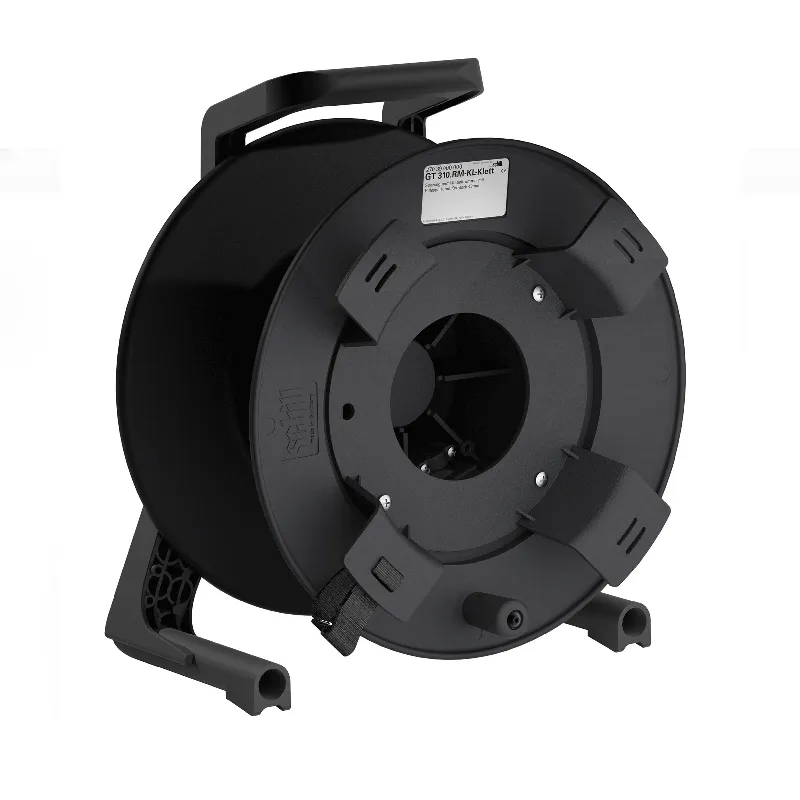

Canare L-4.5CHWS BNC (M-male) / BNC (M-male) is a Low Loss flexible and durable 75 ohm HD/SD-SDI coaxial cable, 7.2 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. 30-40 m long cables are wound on a Schill GT 235.RM drum, 50-80 m long cables are wound on a larger Schill GT 310.RM drum.

Its great flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and High-density double braided shielding with high density and thick foam insulation.

Features of Canare L-4.5CHWS cable

  • compliant with SMPTE 424M & 292M specification
  • HDTV
  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Canare L-4.5CHWS cable parameters

  • Standard manufactured lengths 100/200m
  • Sheath diameter (overall diameter) in mm 7.2
  • Cable weight in kg/100m 6.6
  • Central conductor - number and diameter of cable cores in mm 7/0.34
  • Total diameter of central conductor in mm 1.02
  • Foam dielectric - diameter in mm 4.57
  • Resistance of central conductor in /100m 3.3
  • Resistance of outer conductor in /100m 0.8
  • Temperature range -30C +60C
  • Static capacitance in pF/m 53
  • Attenuation in dB/100m at 750MHz 22.8


BCP-B45HW connector features

  • True 75 ohm design with crimp pin and sleeve
  • High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
  • Extended body for better handling
  • Position mark on the body allows the connector to be easily inspected.
  • Excellent cable grip
  • Gold plated central pin
  • Connector body is die-cast - achieving lower cost at high performance
  • Easy assembly using the Canare crimp tool


BCP-B45HW connector parameters

  • Insulation resistance at 500V DC in >1000M
  • Rated voltage for 1min 1500V AC (rms)
  • Central contact resistance <6m ohm
  • Resistance of outer contact <3m ohm
  • Impedance in 75
  • Connector body - material/surface Brass / Nickel
  • Central contact - material/surface Beryllium Copper / Gold
  • Flange - material/surface Die Cast AL / Nickel
  • Dielectric - material PTFE polytetrafluoroethylene
