Flexible 40m HD/SD-SDI cable with BNC connectors, ideal for mobile applications.
Infinitek 12G/3G/HD-SDI cable 40m
Product ID: 17129
SKU: 17129
Model: I-45W-M/M-BLK-40-2R
Ean: 8586027490908
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 40 |
| Weight, gr | 6600 |
| Weight, gr | 6.6 |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

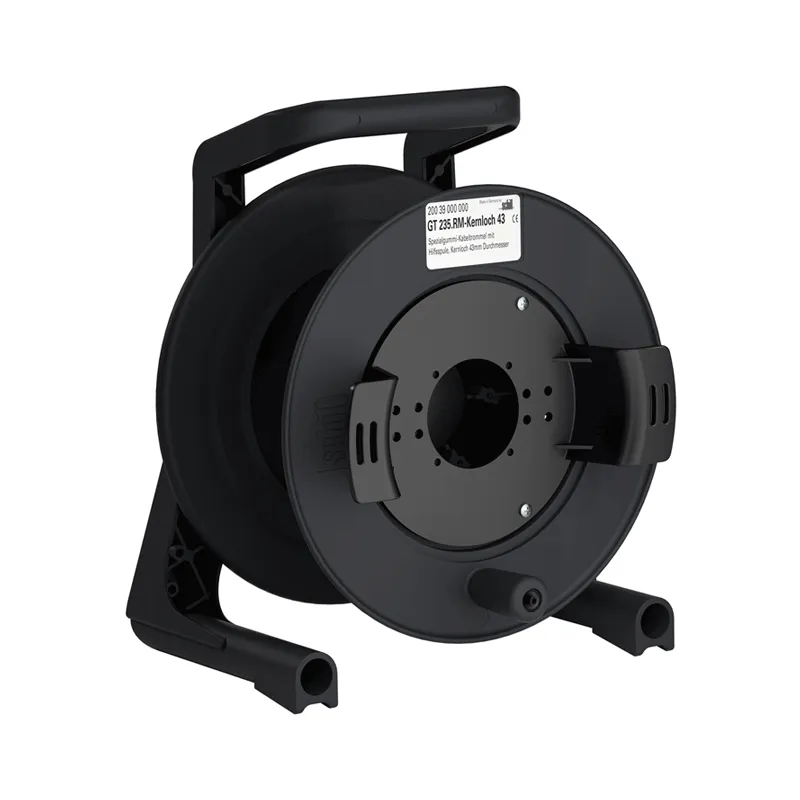

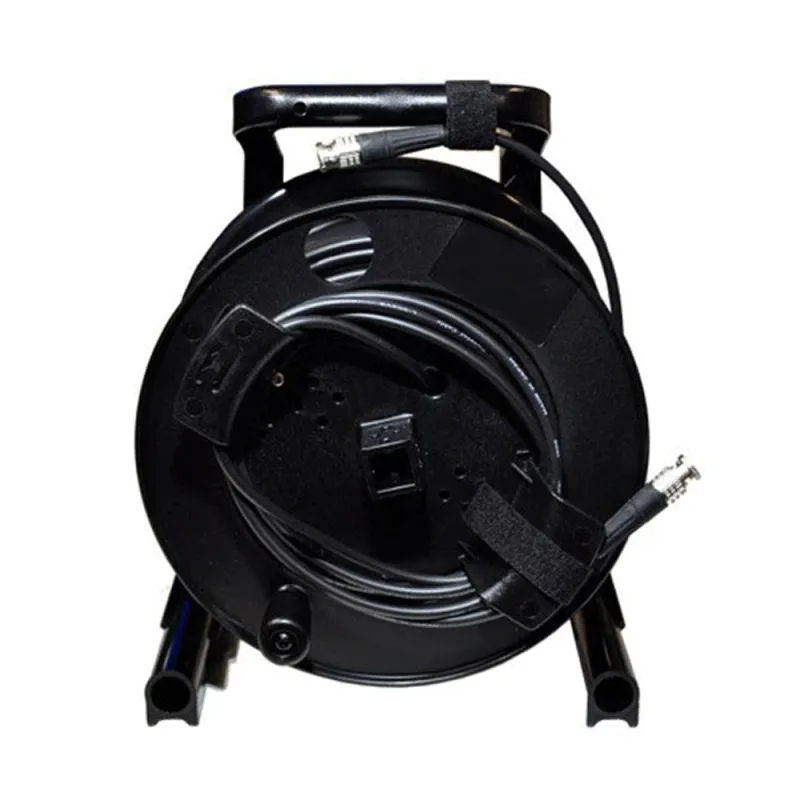

Canare L-4.5CHWS BNC (M-M) is a low loss flexible and durable 75 ohm HD/SD-SDI coaxial cable with an outer diameter of 7.2 mm, equipped with BNC (M) connectors, wound on a SCHILL reel. Cables of lengths 30-40 m are wound on the Schill GT 235.RM reel, while cables of 50-80 m are wound on the larger Schill GT 310.RM reel.
Due to its high flexibility, it is ideal for mobile HD applications with excellent resistance to repeated bending. The cable features a stranded central conductor and double braided high-density shielding with strong foam insulation.
Features
- Compliant with SMPTE 424M & 292M specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Testing equipment
Parameters
- Outer diameter (overall diameter) in mm: 7.2
- Cable weight in kg/100m: 6.6
- Central conductor - number and diameter of strands in mm: 7/0.34
- Total diameter of the central conductor in mm: 1.02
- Foam dielectric - diameter in mm: 4.57
- Resistance of the central conductor in ohms/100m: 3.3
- Resistance of the outer conductor in ohms/100m: 0.8
- Static capacitance in pF/m: 53
- Attenuation in dB/100m: 22.8
Connector BCP-B45HW Features
- True 75 ohm design with crimp pin and sleeve
- High performance 1.1 or less VSWR (Voltage Standing Wave Ratio) up to 3GHz.
- Extended body for better handling
- Position mark on the body allows for easy connector inspection.
- Excellent cable retention
- Gold-plated central pin
- Connector body is die-cast - achieving lower cost at high performance
- Easy assembly using Canare crimping tool
Connector BCP-B45HW Parameters
- Insulation resistance at 500V DC >1000M
- Rated voltage for 1 min 1500V AC (rms)
- Resistance of central contact <6m ohm
- Resistance of outer contact <3m ohm
- Impedance: 75
- Connector body - material/surface: Brass / Nickel
- Central contact - material/surface: Beryllium copper / Gold
- Flange - material/surface: Die Cast AL / Nickel
- Dielectric - material: PTFE polytetrafluoroethylene
