Flexible 75 ohm HD/SD-SDI coaxial cable, 50m length, ideal for mobile HD use.
Important information!
From 19 November the store is moving to new premises at 151 Dzirnavu Street, Riga!
- 14 November - the last working day at 39 F.Sadovņikova street.
- The store will be closed on 16 and 17 November due to the move.
- From 19 November, we look forward to welcoming you at our new address.

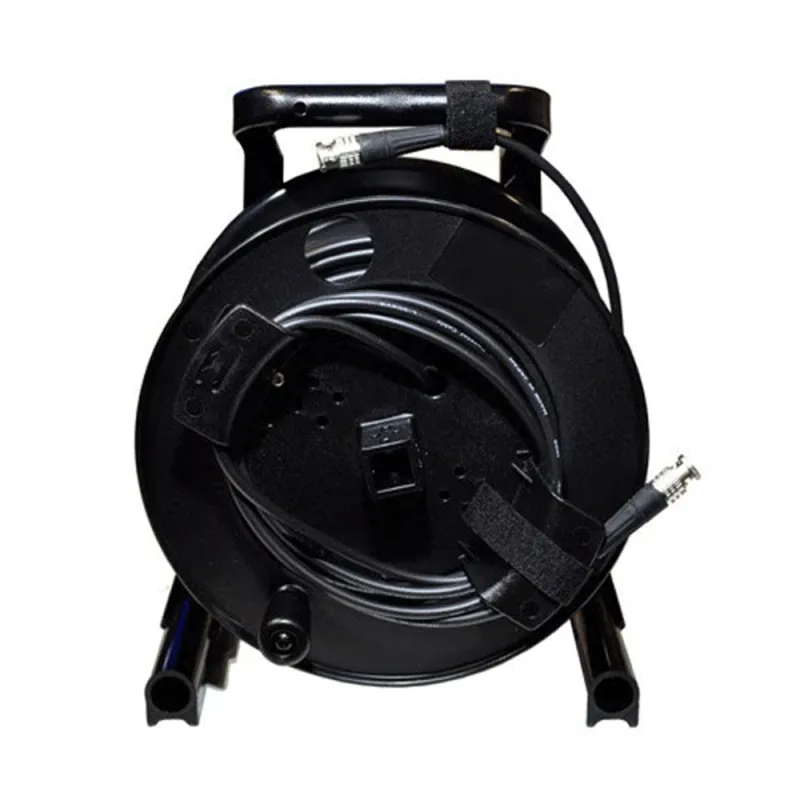

Infinitek 6G/3G/HD-SDI cable 50m
Product ID: 17186
SKU: 17186
Model: I-45W-M/M-BLK-50-3R
Ean: 8586027490892
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Type of Product | Cables |
| Connections | BNC to BNC |
| Lenght, m | 50 |
| Weight, gr | 6600 |
| Weight, gr | 6.6 |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Canare L-4.5CHWS BNC (M-male) / BNC (M-male) is a
Its great flexibility makes it ideal for mobile HD use, providing excellent resistance to repeated bending. The cable features a stranded central conductor and
Canare L-4.5CHWS Cable Features
- Compliant with SMPTE 424M & 292M specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Canare L-4.5CHWS cable parameters
- Standard manufactured lengths: 100/200m
- Sheath diameter: 7.2 mm
- Cable weight: 6.6 kg/100m
- Central conductor: 7/0.34 mm
- Total diameter of central conductor: 1.02 mm
- Foam dielectric diameter: 4.57 mm
- Resistance of central conductor: 3.3 Ω/100m
- Resistance of outer conductor: 0.8 Ω/100m
- Temperature range: -30°C to +60°C
- Static capacitance: 53 pF/m
- Attenuation at 750MHz: 22.8 dB/100m
BCP-B45HW connector features
- True 75 ohm design with crimp pin and sleeve
- High performance 1.1 or less VSWR (Voltage Standing Wave Ratio) up to 3GHz
- Extended body for better handling
- Position mark for easy inspection
- Excellent cable grip
- Gold plated central pin
- Die-cast connector body for high performance at lower cost
- Easy assembly with Canare crimp tool
BCP-B45HW connector parameters
- Insulation resistance at 500V DC: >1000M
- Rated voltage for 1min: 1500V AC (rms)
- Resistance of central contact: < 6m Ω
- Resistance of outer contact: < 3m Ω
- Impedance: 75 Ω
- Connector body material: Brass / Nickel
- Central contact material: Beryllium Copper / Gold
- Flange material: Die Cast AL / Nickel
- Dielectric material: PTFE polytetrafluoroethylene
