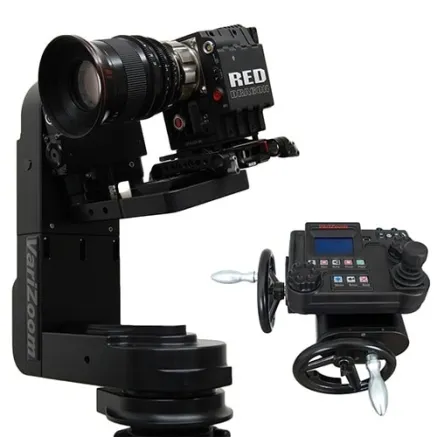

VariZoom VZCINEMAPRO-K1 Cinema Pro Remote Head
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Studio Accessories |
| Type of Product | Accessories for stabilizers |
| Stabilizer | Accessories for stabilizers |
| Material | Metal and plastic parts |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

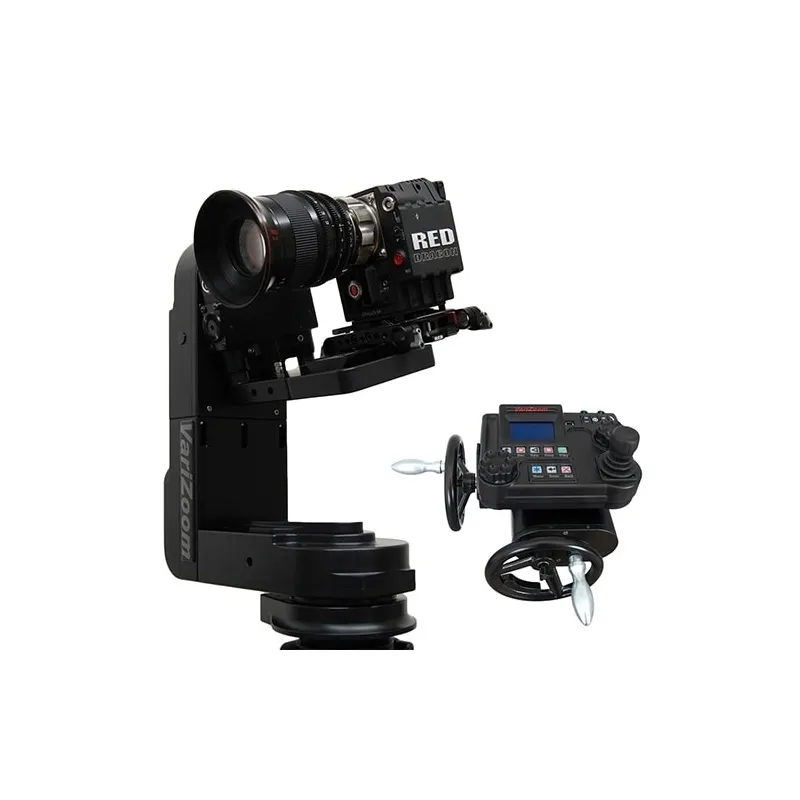

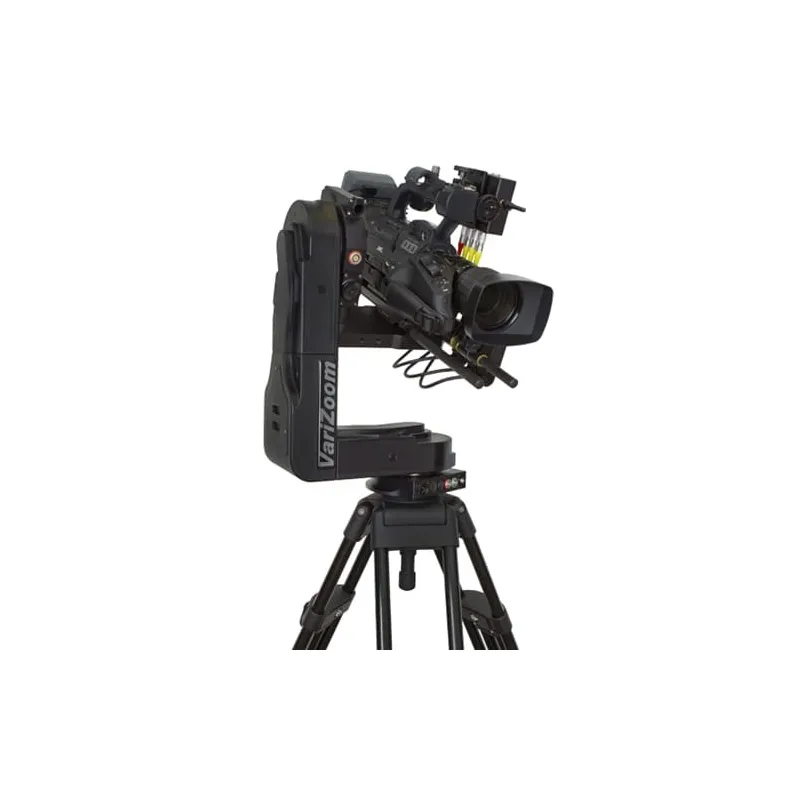

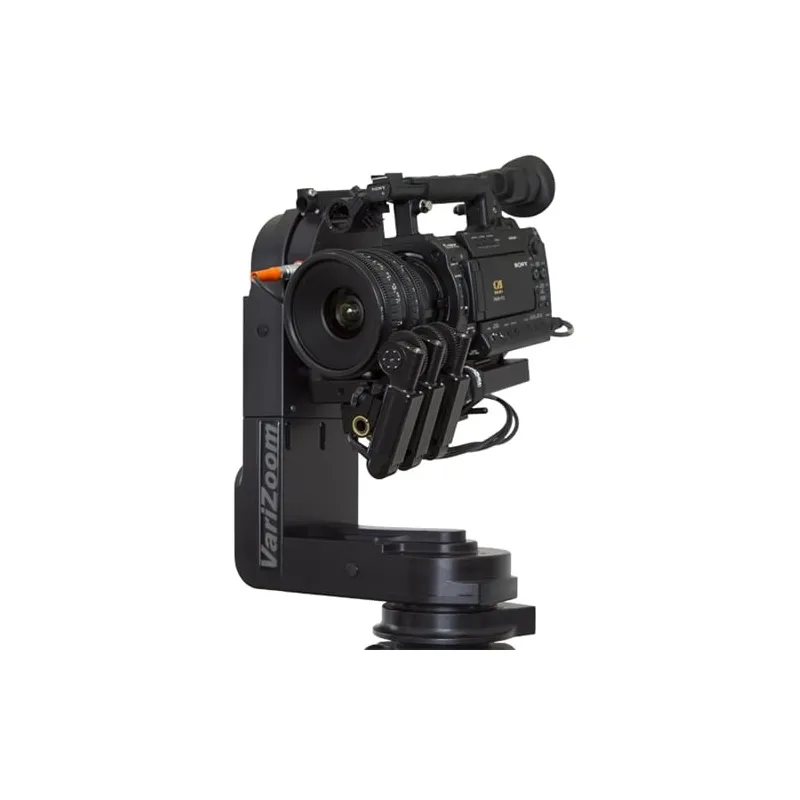

The VariZoom VZCINEMAPRO-K1 Cinema Pro Remote Head with Hand Wheels delivers true cinema-style motion control with exceptional smoothness, stability, and repeatability. Featuring encoded hand wheels, full slip rings, and advanced 5-axis motion control, it is a compact yet powerful solution for professional film, broadcast, and motion-control applications.

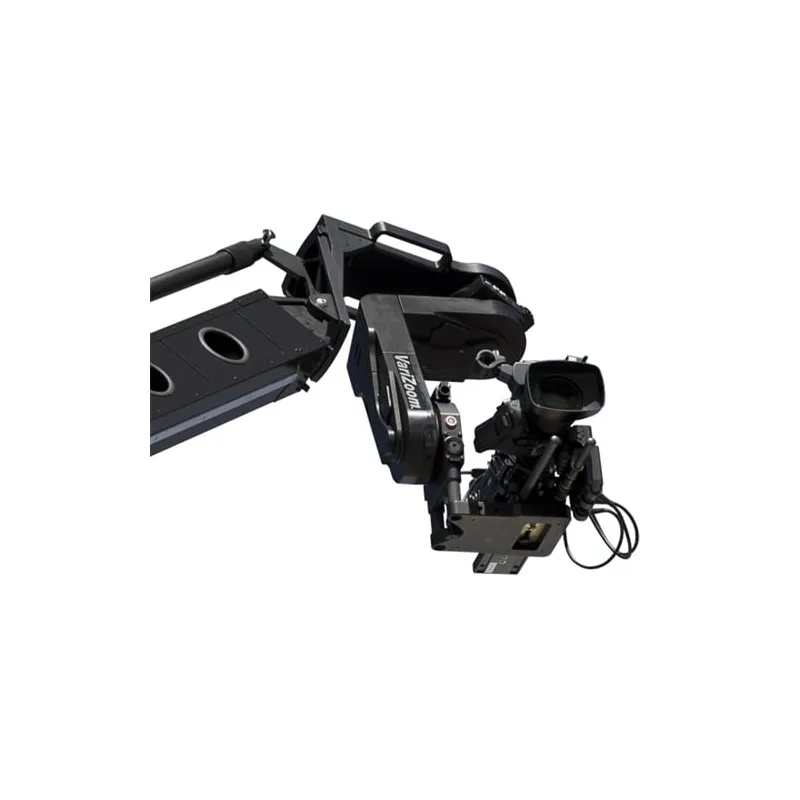

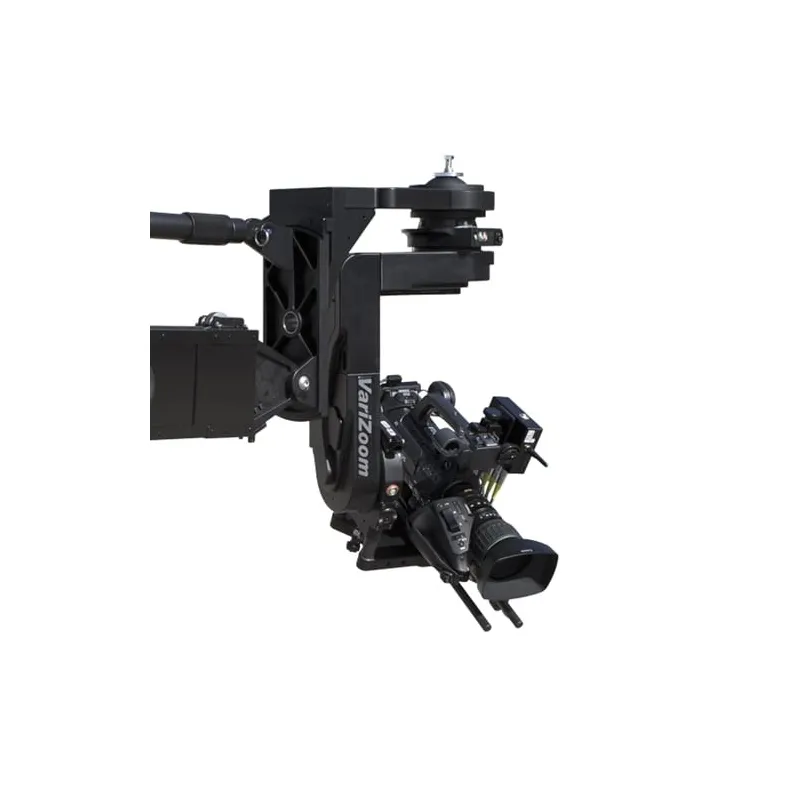

The VariZoom VZCINEMAPRO-K1 is designed and built in the USA by Academy Award-winning motion picture engineers. It provides classic gear-head-style pan and tilt control with modern digital accuracy, making it ideal for feature films, live events, visual effects, sports broadcasting, and crane or jib operation.
Equipped with powerful yet quiet drivetrains and full slip rings, the Cinema Pro allows unlimited 360 rotation on all axes while maintaining rock-solid stability. The system supports frame-accurate, recordable 5-axis motion control, enabling repeatable moves ranging from imperceptibly slow to lightning fast without sacrificing smoothness. Built-in lens control, programmable motion limits, advanced intervalometer modes, and camera synchronization features further expand its creative capabilities.

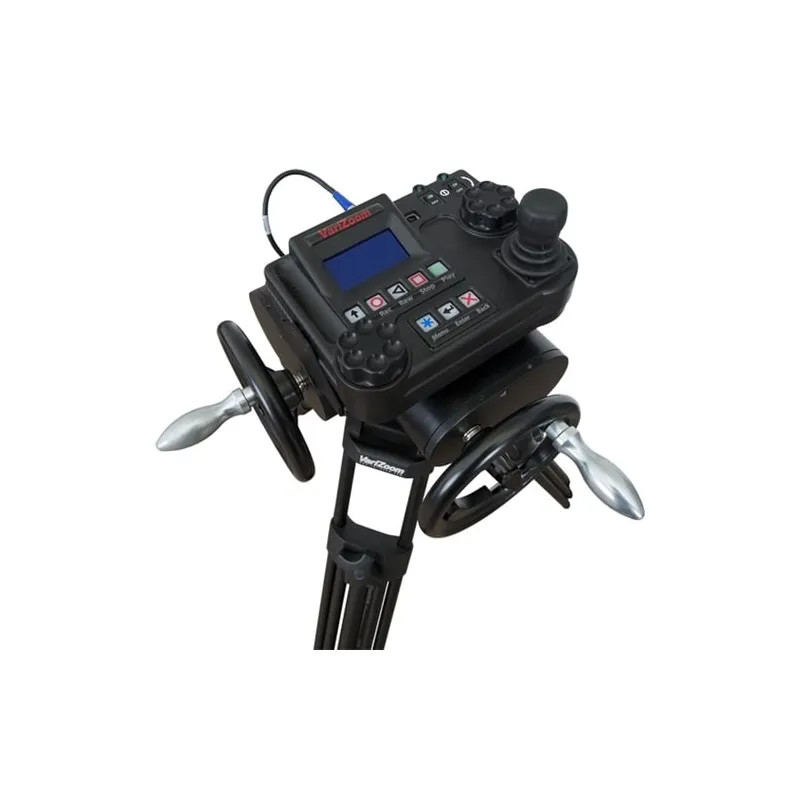

The advanced control console includes a highly responsive 3-axis joystick with customizable response curves, dedicated focus and menu knobs, a backlit keypad, and extensive parametric settings. The Cinema Pro integrates directly with servo lenses or external lens motor systems and supports motion data import/export for virtual sets and VFX workflows. Known for its reliability and flexibility, the Cinema Pro has earned a trusted reputation among DPs, producers, and motion-control professionals worldwide.
Key Features
- Cinema-style encoded hand wheels for precise pan and tilt control
- True 5-axis, frame-accurate motion control
- Full slip rings for unlimited 360 rotation
- Powerful, quiet motorized drivetrains
- Record and recall up to 2,000 marked positions
- Record/playback up to 1 hour and 2,000 takes
- Advanced intervalometer with multiple time-stretch modes
- Joystick control for pan/tilt/zoom with separate focus control
- Programmable motor speeds, smoothing, and motion limits
- Camera synchronization for precise repeatable shots
- Built-in lens control (Canon, Fujinon, Preston serial & analog)
- Wireless control option available (up to 1 mile)
- Designed and manufactured in the USA
Included Components
- Cinema Pro-K1 Remote Head
- Advanced Control Console
- Encoded Hand Wheels
- 50 ft Control Cable
- 30 ft Power Cable
- Power Supply
- Rolling Hard Case
Physical Specifications
- Head Weight: 21 lbs
- System Weight: 90 lbs
- Dimensions (System): 33 x 21 x 16 in
- Head Dimensions: Height 19.5 in, Width 12 in, Depth 6 in
Camera Capacity
- Camera Weight Capacity: 35 lbs standard, 50 lbs with support bearings, up to 85 lbs with optional outrigger cradle + support bearings
Camera Clearance
- Vertical (straight up/down): 11 in (standard)
- Horizontal (underslung): 15.5 in min / 17.5 in max
- With 2" head extension: Vertical 13 in / Horizontal up to 19.5 in
- With 5" head extension: Vertical 16 in / Horizontal up to 22.5 in
Performance
- Pan/Tilt Speed: Up to 210 degrees per second
- Mechanical Travel: Unlimited rotation on each axis
Power Requirements
- Power Requirements: 24VDC regulated
- Current: 10A max
- Voltage Range: 20-28VDC
