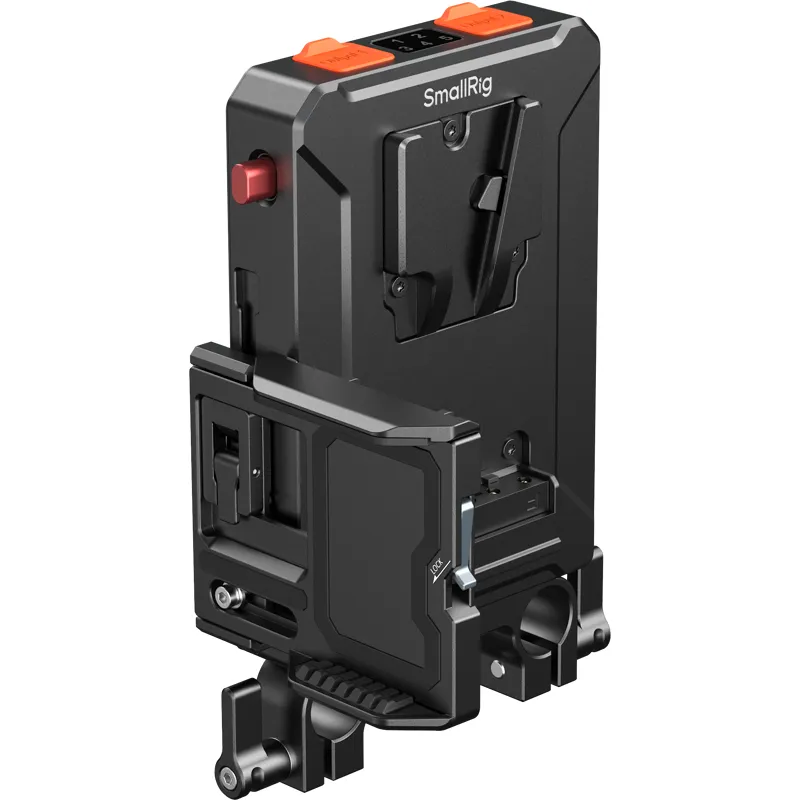

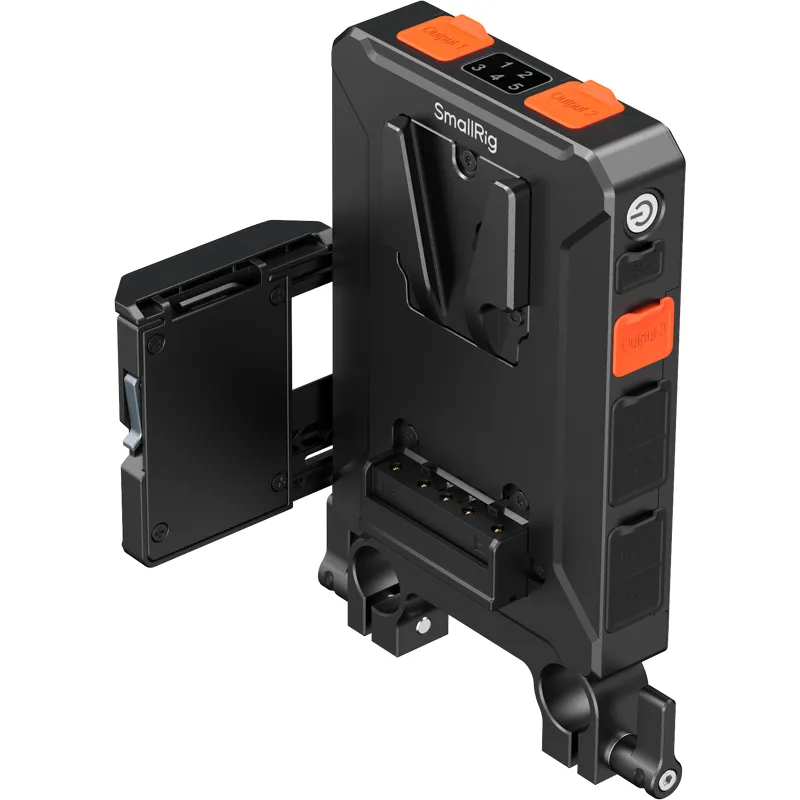

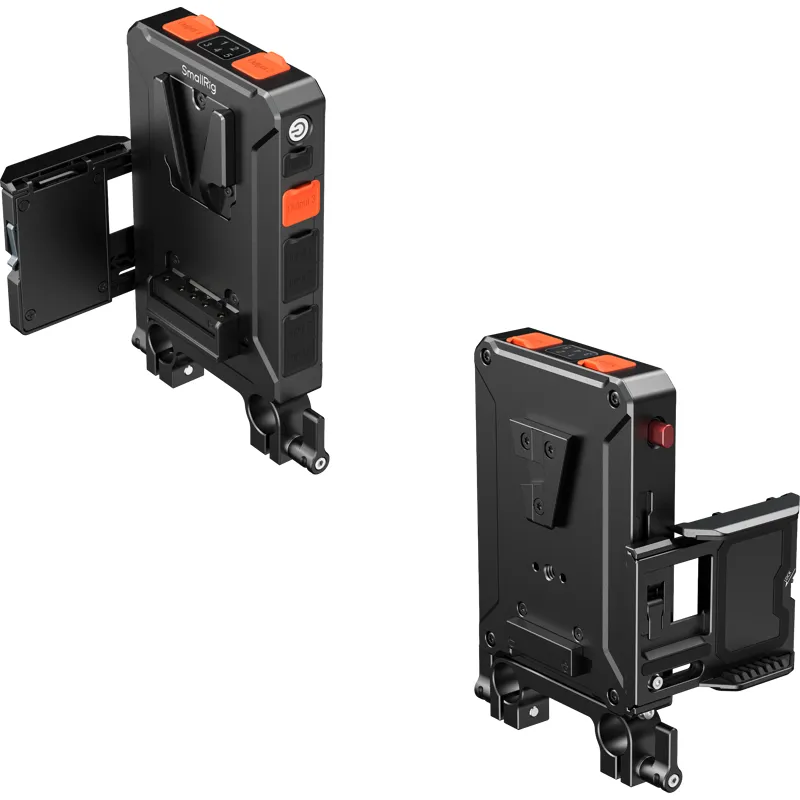

SmallRig 5881 Intelligent V-Mount Battery Adapter Plate with 15mm Dual Rod Clamp
AI ASSISTANT CHAT
Or ask about:
| Type of Product | V-Mount Adapter Plate |
| Battery type | V-mount battery |
| Barošana | USB-C |
| Barošana | USB-C power output |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Intelligent Dual-Mode Power Management
- Combined discharge mode allows simultaneous use of multiple V-mount batteries, significantly extending total runtime.
- Sequential discharge mode powers batteries one after another, simplifying battery cycle management.
Quickly switch between modes by double-pressing the side button, optimizing power management for long recording sessions or workflows involving multiple batteries.
Multi-Port Input and True Hot-Swap for Continuous Operation
The device integrates 4 D-Tap and 1 BP input ports compatible with standard V-mount batteries. The BP port serves as a backup input.
Using the included D-Tap to D-Tap cable for additional input connections, the system maintains stable output power up to 100 W, allowing safe removal and replacement of depleted batteries without interrupting power supply.
The top digital display clearly shows the status of all five inputs (1–4 D-Tap, 5 BP), making the replacement process intuitive and enabling true hot-swap operation to ensure uninterrupted filming.
Powerful and Stable Multi-Device Power Supply
To power multiple devices such as monitors, video transmitters, cinema cameras, and lighting, the adapter plate provides 3 D-Tap and 1 BP output ports, each capable of delivering up to 100 W continuous power.
An integrated 12 V auxiliary switching circuit ensures a stable 15 V output voltage, maintaining critical connected equipment operation even when input voltage is low.
Additionally, a bidirectional USB-C port on the side supports up to 65 W input and output, enabling fast charging of the plate itself or emergency power supply for phones, tablets, or cameras.
Compact Design and Easy Expandability for Various Filming Scenarios
Thanks to SmallRig's precise engineering, this plate is compact and lightweight yet highly versatile.
A standard 1/4" threaded hole on the bottom is compatible with the included 15 mm dual rod clamp, allowing precise lateral adjustments to fit different sizes of V-mount batteries and optimize the placement of the screen protector bracket.
This facilitates easy integration into 15 mm rod systems for smooth accessory expansion.
The included screen protector bracket provides reliable protection and can be removed if necessary.

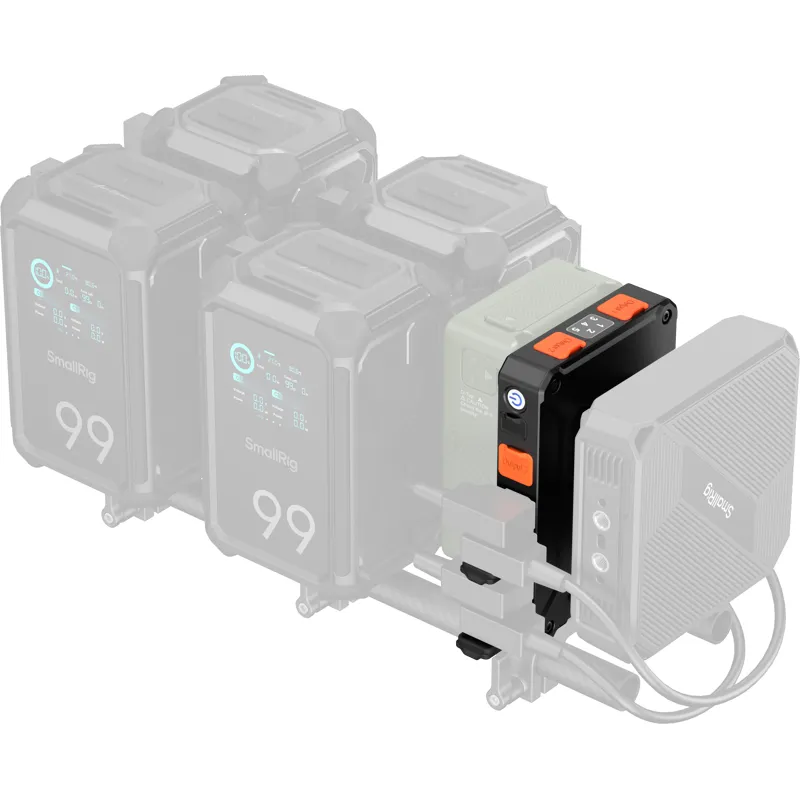

Professional Continuous Power System Setup
This V-Mount battery plate seamlessly works with other SmallRig accessories, such as the wireless connection hub for cameras (5566) and the rotating V-Mount battery plate with dual V-Locks and 15 mm dual rod clamp (6273), to create a reliable power system for demanding scenarios like remote outdoor or unattended shoots.
Compatibility
- Universal standard V-Mount batteries
- Standard D-Tap interfaces
- Standard BP interfaces
- Standard 15 mm LWS rods
- Each D-Tap and BP output port supports up to 100 W maximum. Exceeding this limit triggers a warning light and automatic output shutdown.
Note: Under continuous 100 W load, the external housing temperature may exceed a comfortable touch level.

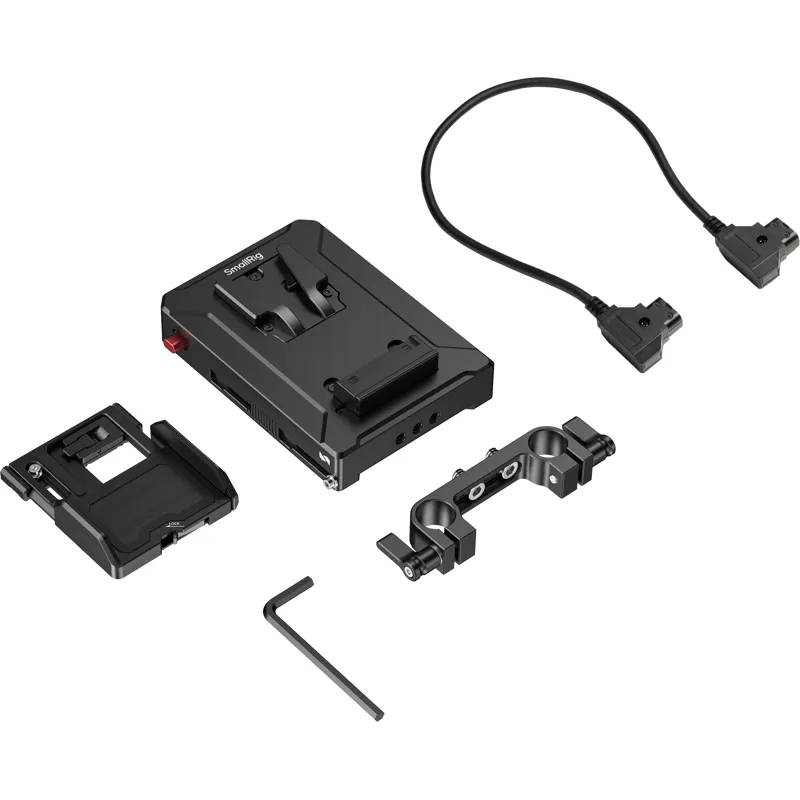

Package Includes
- V-Mount battery plate
- D-Tap power cable
- 15 mm dual rod clamp mount
- Universal LCD mount
- User manual
