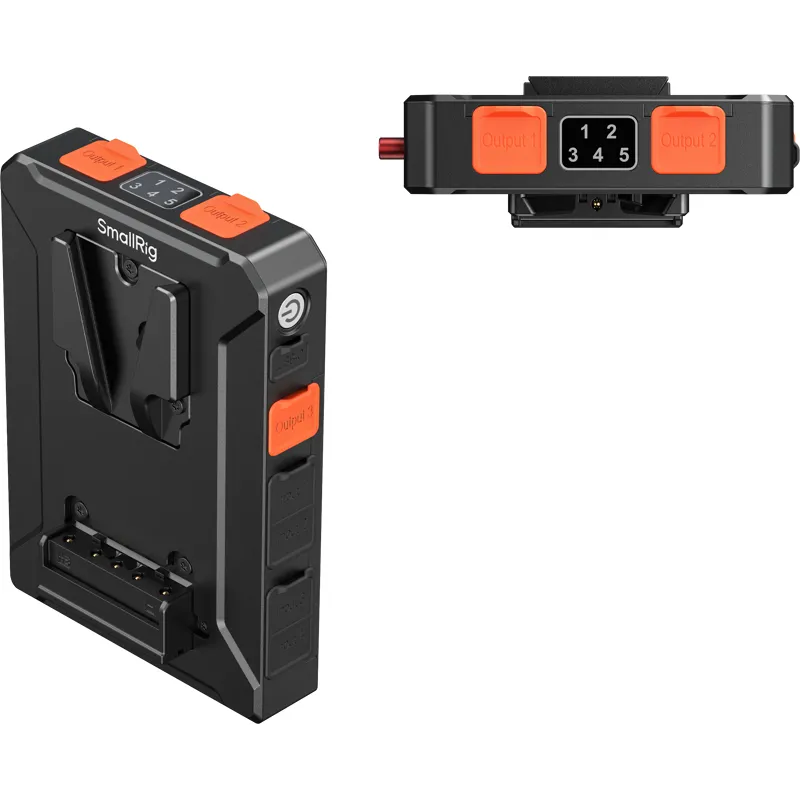

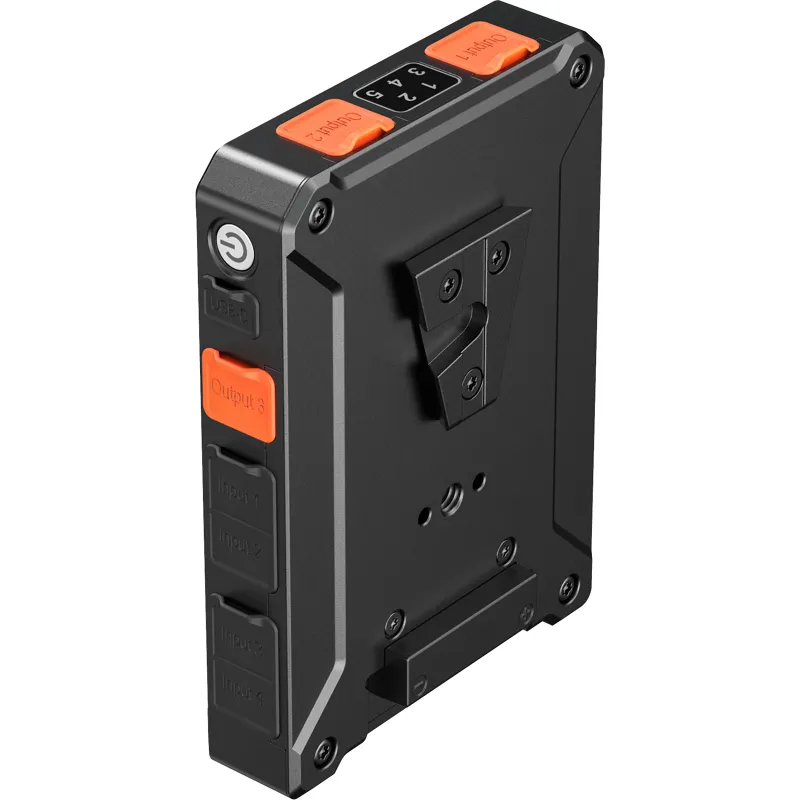

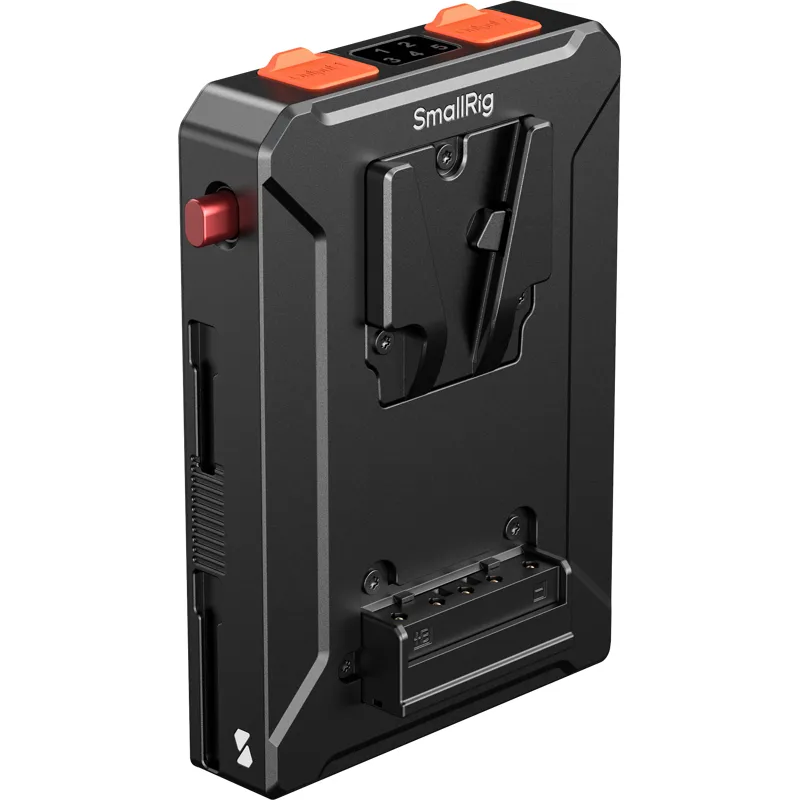

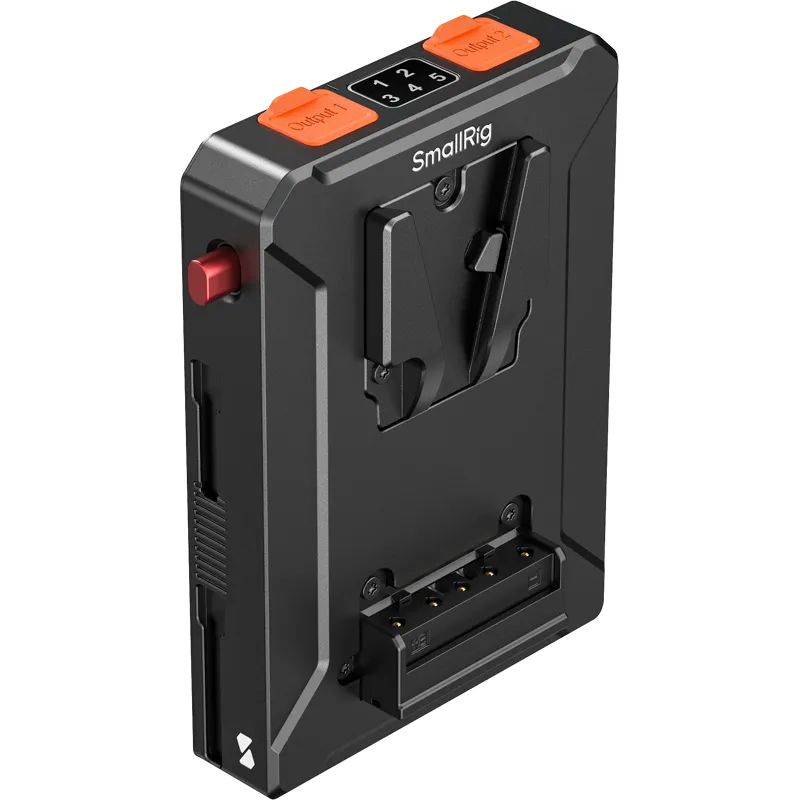

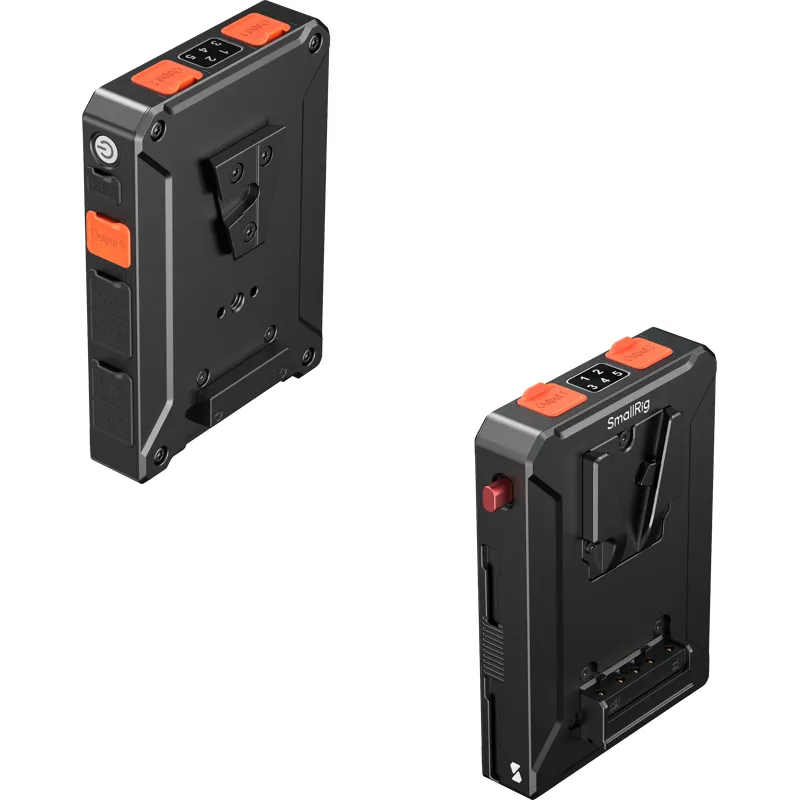

SmallRig 5653 Intelligent V-Mount Battery Adapter Plate (Basic Edition)

Intelligent Dual-Mode Power Management

• Combined Discharge Mode: Allows simultaneous use of multiple V-Mount batteries, significantly extending total runtime.
• Sequential Discharge Mode: Powers batteries one after another, simplifying battery cycle management.

Quickly switch between modes by double-pressing the side button, optimizing power management for long recording sessions or workflows involving multiple batteries.

Multi-Port Input and True Hot-Swap Function for Continuous Operation

• Equipped with 4 D-Tap and 1 BP input ports compatible with standard V-Mount batteries.
• BP port serves as a backup input.
• Using the included D-Tap to D-Tap cable to connect additional inputs, the system maintains stable output power up to 100 W, allowing safe removal and replacement of depleted batteries without interrupting power supply.

The top digital display clearly shows the status of all five inputs (1–4 D-Tap, 5 BP), making battery replacement intuitive and enabling true hot-swapping to ensure uninterrupted filming.

Powerful and Stable Multi-Device Power Supply

• Provides power to multiple devices including monitors, video transmitters, cinema cameras, and lighting.
• Features 3 D-Tap and 1 BP output ports, each capable of delivering up to 100 W continuous power.
• Built-in 12 V auxiliary switching circuit ensures stable 15 V output voltage, maintaining critical equipment operation even when input voltage is low.
• Side bi-directional USB-C port supports up to 65 W input and output for fast charging of the plate itself or emergency power for phones, tablets, or cameras.

Compact Design and Easy Expandability for Various Filming Scenarios

• Compact and lightweight design with precise engineering.
• Standard 1/4"-20 threaded hole at the bottom for easy integration into 15 mm rod systems.
• Special interface on the side for mounting additional screen protector brackets.

Professional Continuous Power System Setup

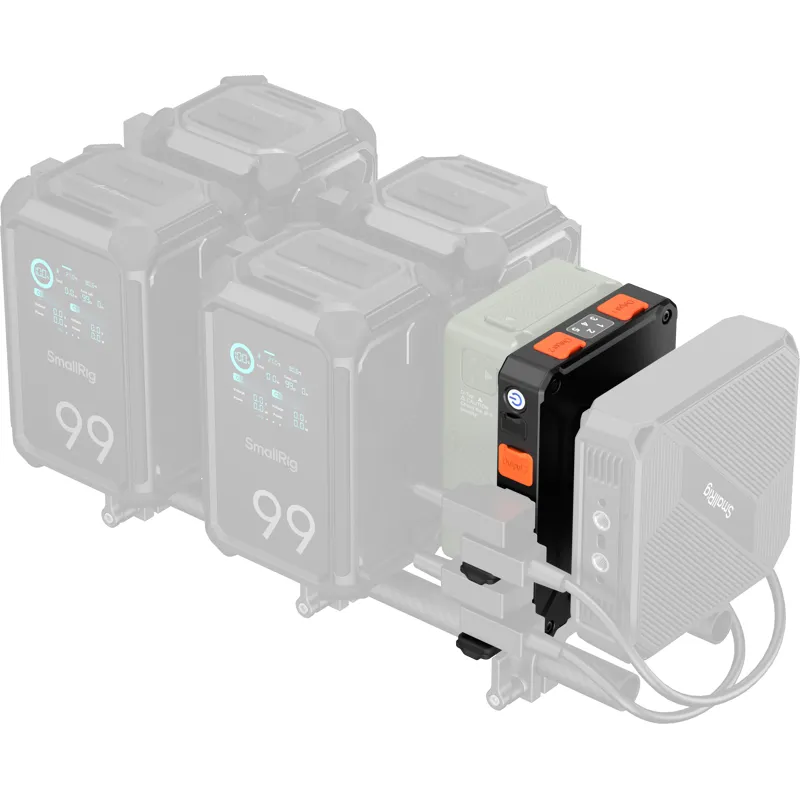

This V-Mount battery plate seamlessly integrates with other SmallRig accessories such as the wireless connection hub for cameras (5566) and the rotating V-Mount battery plate with dual V-locks and 15 mm double rod clamp (6273) to create a reliable power system for demanding scenarios like remote outdoor or unattended shoots.

For additional configurations, consider the SmallRig intelligent power management V-Mount battery adapter plate with 15 mm double rod clamp (5881) or the version compatible with Arca-Swiss quick release plate (5899).

Compatibility:

• Universal standard V-Mount batteries
• Standard D-Tap interfaces
• Standard BP interfaces
• Each D-Tap and BP output port supports up to 100 W maximum; exceeding this limit triggers a warning light and automatic output shutdown.

Note:

Continuous 100 W load may cause the external housing temperature to exceed a comfortable touch level.

Package Includes:

• V-Mount battery adapter plate
• D-Tap power cable
• User manual
