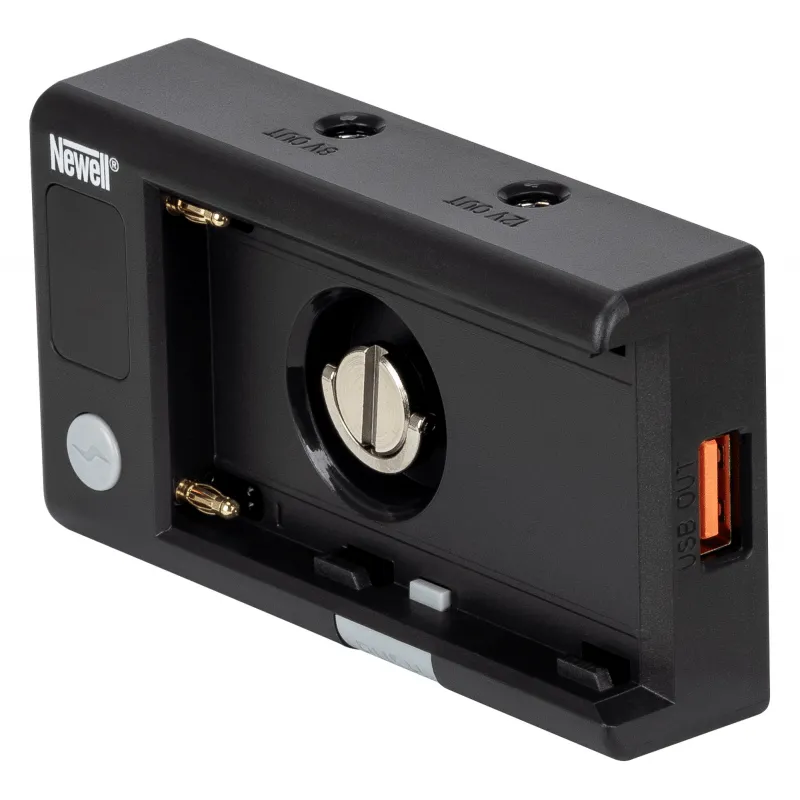

Newell DC-USB universal adapter for NP-F batteries

Multifunctional Power Source for NP-F Batteries

The Newell DC-USB adapter converts popular Sony NP-F batteries into a versatile mobile power source suitable for photo and video equipment as well as mobile devices. It features multiple output options including three DC outputs, a USB-A port with Quick Charge technology, and a USB-C port with Power Delivery (PD) that functions both as an input and output.

Power Outputs and Compatibility

• Two DC 8 V outputs at 5 A each, with connectors in 5.5 x 2.1 mm and 5.5 x 2.5 mm sizes
• One DC 12 V output at 2 A with a 5.5 x 2.5 mm connector
• USB-A port supporting Quick Charge for fast device charging
• USB-C port with Power Delivery for fast charging and bidirectional power flow (charging the battery or powering devices)
• Compatible with all Sony NP-F series batteries (F550, F750, F770, F960, F970, F980) and compatible replacements

Applications

• Power supply for monitors, LED lamps, cameras, audio recorders, video transmitters, streaming routers, video mixers, and other film accessories
• Can be used as a power bank to charge smartphones, tablets, and other USB-powered devices
• Ideal for filmmakers, photographers, live broadcasters, and streaming setups, especially in locations without access to mains power

Design and Features

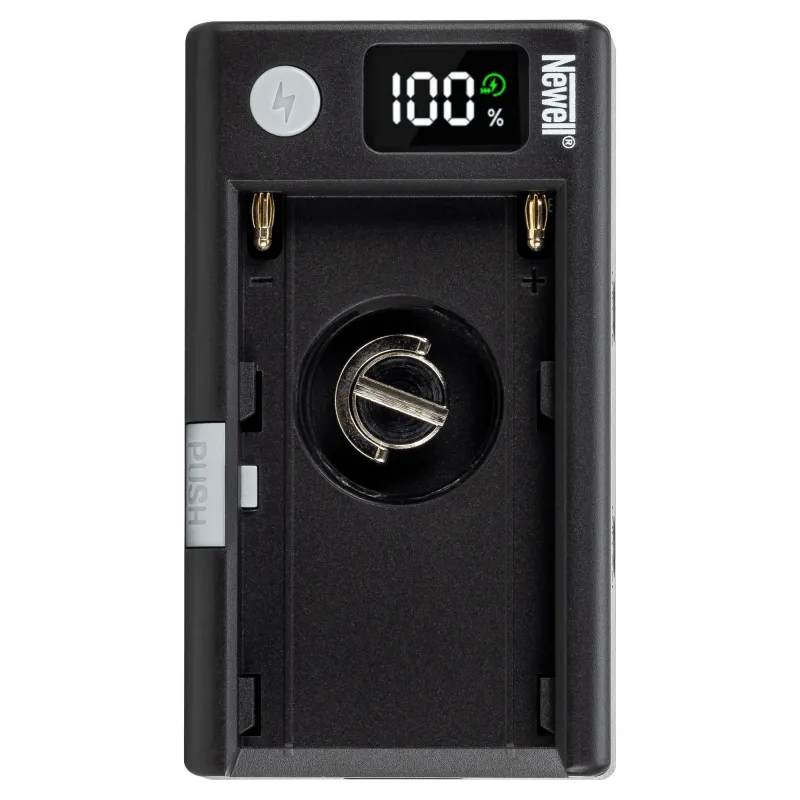

• Clear LCD screen displays battery charge level as a percentage for easy monitoring in the field
• Built-in LED torch provides convenient illumination for working in low-light conditions
• Rubber finish enhances grip and stability, protecting against scratches and unwanted movement
• 1/4" mounting thread allows attachment to camera cages, rigs, or tripods for flexible setup
• Safety lock prevents accidental battery removal during dynamic movements
• Compact and lightweight design (90 g, dimensions 92 x 52 x 23 mm) suitable for mobile use

Technical Specifications

• USB-C (PD) input: 5 V / 3 A, 9 V / 2 A, 12 V / 2 A
• USB-C (PD) output: 5 V / 3 A, 9 V / 2 A, 12 V / 2 A
• USB-A (QC) output: 5 V / 2.6 A, 9 V / 2 A
• DC output (5.5 x 2.1 mm port): 8 V / 5 A
• DC output (5.5 x 2.5 mm port): 8 V / 5 A and 12 V / 2 A
• Display: LCD screen showing battery charge percentage
• Mounting: 1/4" thread
• Weight: 90 g
• Dimensions: 92 x 52 x 23 mm

Additional Information

The Newell DC-USB adapter is an excellent solution for extending the functionality of NP-F batteries, enabling creators to power multiple devices with a single battery and reduce reliance on multiple chargers or power outlets. It is designed for intensive field use, providing reliable power and convenience for photo and video professionals.
