KUPO KS-270 V-LOCK WEDGE KS-270

KS-270 / V-LOCK WEDGE

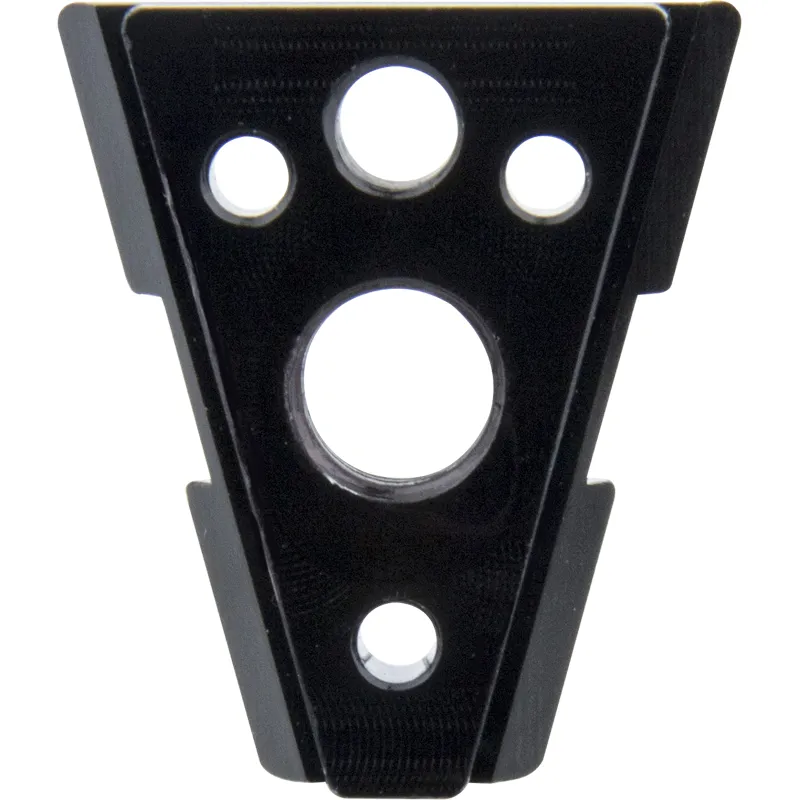

Kupo V-lock Wedge is precisely machined from black anodized aluminum with tight tolerances and minimized wiggles. It comes with three M3 holes and screws designed to firmly fix the wedge on any standard V-mount battery. This allows you to easily attach the battery to any mounting equipment that comes with the Kupo V-lock base (KS-271).

Features

• 3/8-16 central tapped hole for mounting on any equipment with a 3/8-16 female thread, using the supplied 3/8-16 screw.
• 1/4-20 tapped hole on the wedge with a supplied 1/4-20 screw to prevent twisting while the wedge is fastened with the screw on the 3/8-16 tapped hole.

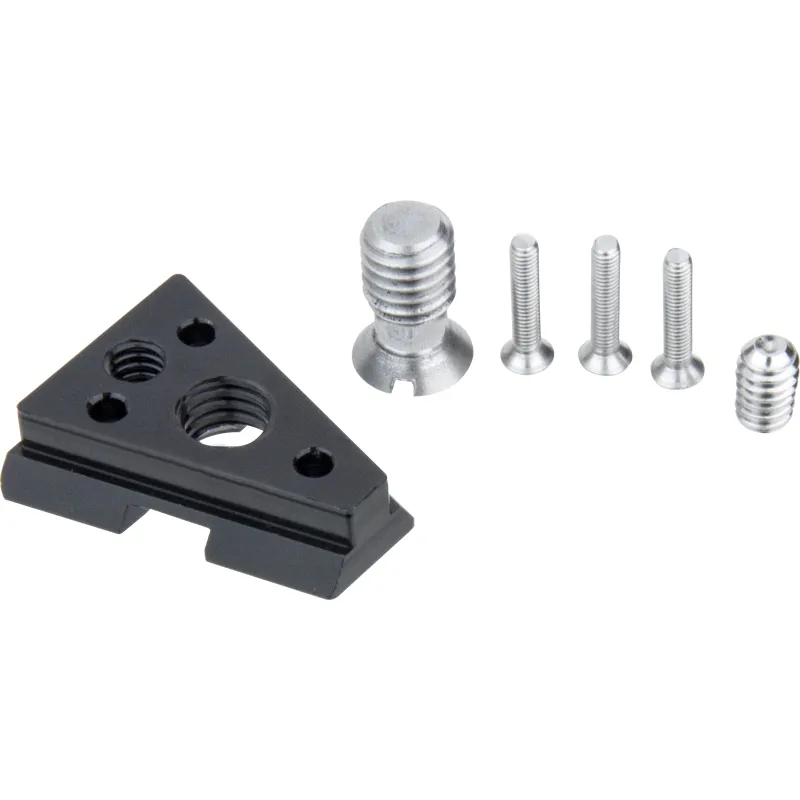

Included Components

• (1) 6061 aluminum wedge x 1pc
• (2) M3 x 15 Phillips flat head screws x 3 pcs
• (3) 3/8-16 slotted countersunk head screw x 1pc
• (4) 1/4-20 set screw x 1pc

Weight: 25g
