Blackmagic Design Web Presenter HD
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Converter |
| Connector | HDMI |
| Connector | USB |
| Video Interface | 12G-SDI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Streaming Solution with Broadcast Quality Encoding
The Blackmagic Design Web Presenter HD is a self-contained streaming device featuring a professional hardware H.264 encoder designed for direct streaming to platforms such as YouTube, Facebook, Twitter, and more. It supports full 1080p video streaming by converting HD or Ultra HD inputs via its 12G-SDI input with down conversion.
Key Features
- Complete streaming solution with built-in hardware encoder for professional broadcast quality.
- Supports streaming via Ethernet or tethered 5G/4G phones through USB for mobile data redundancy.
- USB output functions as a webcam source compatible with all video software including Zoom, Skype, Microsoft Teams, Open Broadcaster, and XSplit Broadcaster.
- Technical monitoring output with video preview, audio meters, trend graphs, and detailed SDI technical data available via SDI and HDMI outputs.
- Includes Web Presenter Utility software for Mac and Windows to manage multiple units and update settings remotely.
- Compact 1/3 rack width design allows mounting three units in a single rack space.
- Dual power inputs (AC and DC) for redundant power options including broadcast battery packs.
Connectivity and Compatibility

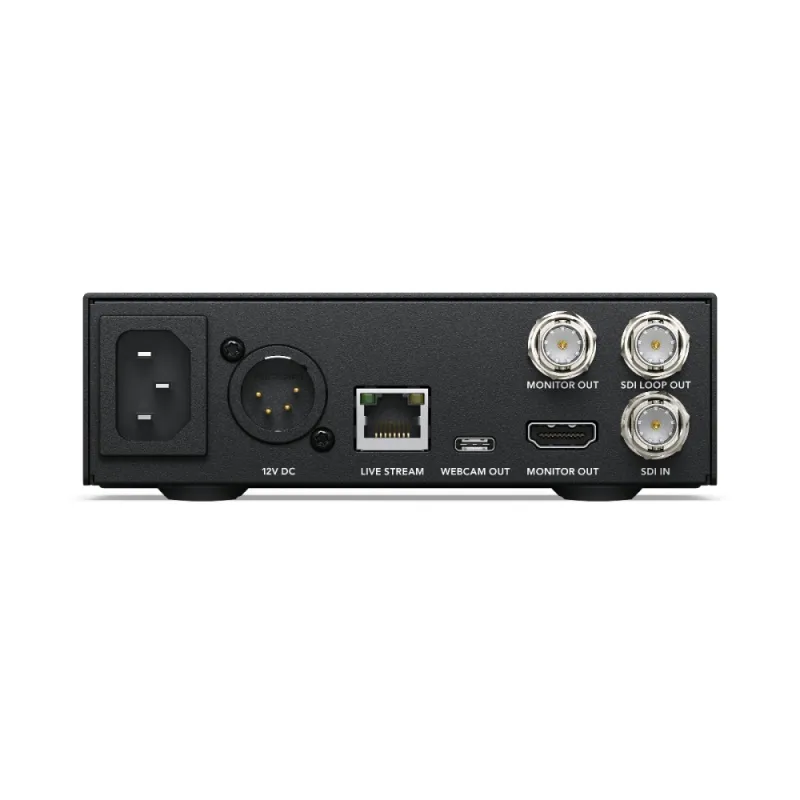

The device features a 12G-SDI input supporting all HD and Ultra HD formats up to 2160p60, with a 12G-SDI loop output for chaining multiple units to stream to multiple services simultaneously. Teranex conversion technology ensures clean video quality by automatically down converting Ultra HD inputs to 1080p HD for streaming and USB webcam output.
For internet connectivity, the Web Presenter HD offers a built-in Ethernet port and two USB ports for tethering mobile phones, automatically switching between connections to maintain uninterrupted streaming. Users can prioritize Ethernet or phone connections for automatic failover.
Monitoring and Control
The technical monitoring output provides a comprehensive graphical interface including video preview, accurate audio meters, codec data rate trend graphs, cache fill status, streaming settings summary, and detailed SDI technical information. This output is available in full 1080p HD via both SDI and HDMI, allowing flexible monitoring options.

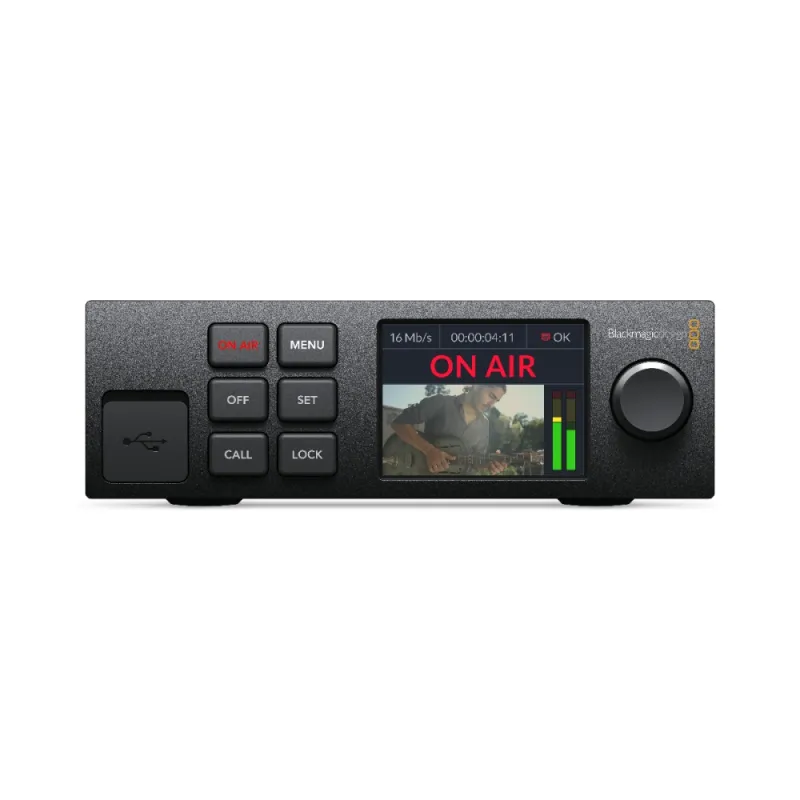

The included Web Presenter Utility software enables centralized management of multiple Web Presenter units, facilitating remote configuration and software updates. The front panel LCD and menus provide intuitive local control with the same settings and options.
Additional Applications
Besides streaming to public platforms, the Web Presenter HD can be used as a private broadcast SDI video link between studios when paired with the ATEM Streaming Bridge, which decodes the H.264 stream back to SDI video for local or global distribution over Ethernet or the internet.
Physical Design

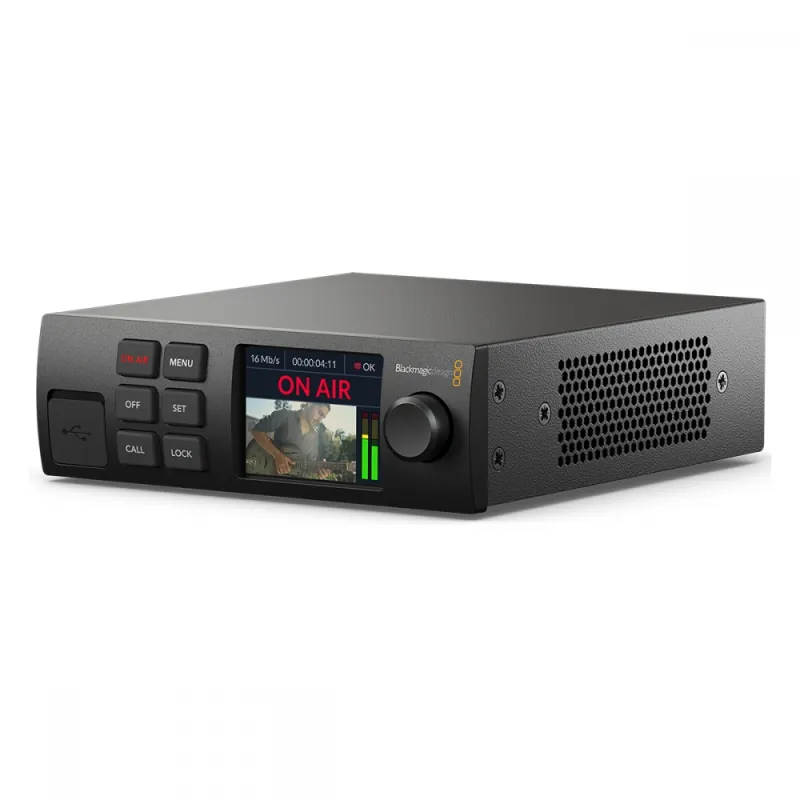

Based on the modular Teranex Mini design, the Web Presenter HD is compact and portable, measuring only 140 mm (5.5 inches) wide, allowing three units to fit in a single rack unit. This makes it ideal for multi-stream setups or integration with other live production equipment such as the ATEM Television Studio HD switcher.
