Blackmagic OpenGear HDMI to SDI Converter converts non-copy protected HDMI signals to SDI with embedded audio, supporting multiple video formats and USB control.

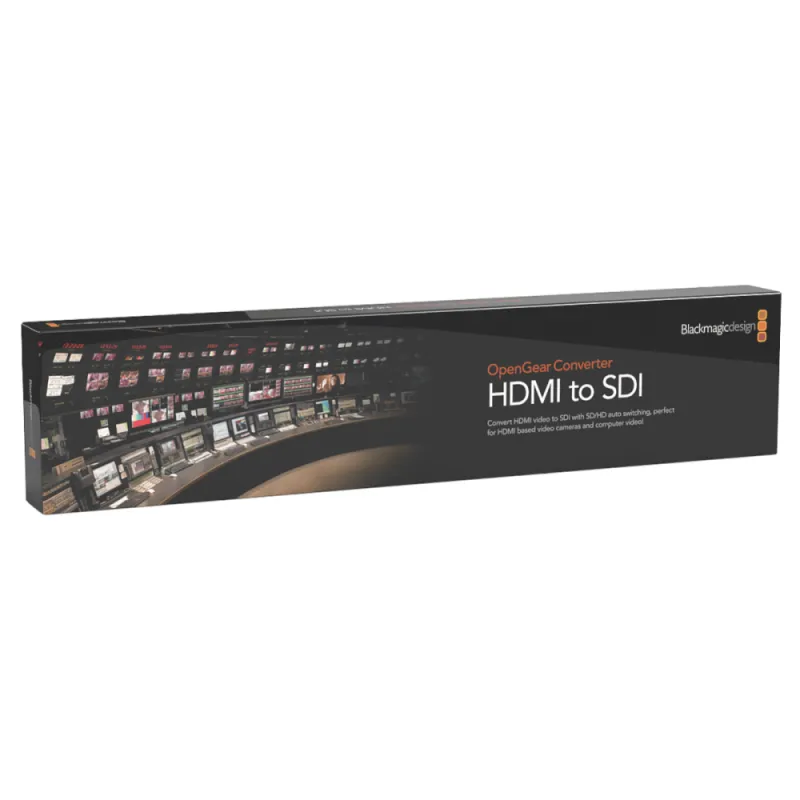

Blackmagic Design Blackmagic OpenGear Converter HDMI - SDI (BM-CONVOPENGBHS)

Product ID: 60773
€ 535,45 tax incl.

Delivery in 13 - 24 business days

SKU: 60773
Ean: 9338716000696
Condition: New product
Manufacturer: Blackmagic Design
535.45
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductConverter
ConnectorHDMI
ConnectorUSB 2.0
Video InterfaceUSB 2.0
Video Interface3G-SDI
Video InterfaceHDMI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Blackmagic Design Blackmagic OpenGear Converter HDMI - SDI (BM-CONVOPENGBHS)

Blackmagic Design Blackmagic OpenGear Converter HDMI - SDI (BM-CONVOPENGBHS)

Blackmagic OpenGear HDMI to SDI Converter converts non-copy protected HDMI signals to SDI with embedded audio, supporting multiple video formats and USB control.

Write a review

Product details

Functionality

The Blackmagic OpenGear Converter HDMI to SDI (BM-CONVOPENGBHS) is designed to convert video signals from non-copy protected HDMI sources to SDI output with embedded SDI audio. This device enables conversion of HDMI video devices to SDI or adds SDI outputs to computers with HDMI compatibility.

Included in Delivery

  • OpenGear Converter HDMI to SDI
  • Software CD
  • 3 Year Limited Manufacturer's Warranty

Connections

  • SDI Video Output: Automatically matches SD, HD, and 3 Gb/s SDI video input formats.
  • HDMI Input: HDMI Type A connector.
  • Multi Rate Support: Auto detection of SD, HD, and Level B 3 Gb/s SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed (480 Mb/s).
  • Reclocking: Supported to maintain signal integrity.

Standards and Format Support

  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60.
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601.
  • SDI Video Rates: Switchable between standard definition and high definition.
  • SDI Video Sampling: 4:2:2 color sampling.
  • SDI Audio Sampling: Television standard 48 kHz sample rate, 24-bit depth.
  • SDI Color Precision: 4:2:2.
  • SDI Color Space: YUV.
  • SDI Auto Switching: Automatically selects between SD, HD, and Level B 3 Gb/s SDI.
  • HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50, and 720p59.94/60.
  • HDMI Color Space: YUV and RGB.
  • HDMI Color Precision: 4:2:2.
  • Copy Protection: HDMI input does not support capture from copy protected HDMI sources. Users must confirm copyright ownership before capture or distribution.

Software and Control

  • Software Control: Compatible with Mac OS X and Windows for software upgrades via USB.
  • Internal Software Upgrade: Via included updater application.
  • Operating Systems Supported: Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later, Windows 7, and Windows 8.
  • Settings Control: OpenGear DashBoard network control software or USB software.

Physical Specifications

  • Weight: 140 grams
  • Width: 7.7 cm
  • Overall Depth (including connectors): 35.6 cm

Environmental Specifications

  • Operating Temperature: 0° to 40° C
  • Storage Temperature: -20° to 45° C
  • Relative Humidity: 0% to 90% non-condensing
