Camera Talkback and Connectivity
The Blackmagic ATEM Talkback Converter 4K supports up to 8 cameras for SDI talkback using embedded audio channels 15 and 16, compatible with Blackmagic Studio Cameras and ATEM Camera Converter. It supports 12G-SDI for all SD, HD, and Ultra HD formats up to 2160p60, providing BNC connections for each camera and an optical fiber socket for adding an SFP module to extend camera distances.
Key Features
- Push-to-talk buttons for communication
- Support for robust aviation and common headsets
- Loop-through capability for more than 8 cameras
- Built-in speaker and front panel microphone input
ATEM Studio and Camera Converters
These converters enable positioning cameras at long distances from the switcher using low-cost optical fiber, allowing connections up to 45 kilometers (28 miles) away with full bi-directional video, audio, talkback, and tally signals.
Live Camera Connections
Ideal for live music and sporting events, the converters allow remote camera placement such as race tracks or stages. Up to 4 ATEM Camera Converters can connect to each ATEM Studio Converter, enabling multiple camera talkback embedded in channels 15 and 16 of the optical fiber SDI connection.
Design and Construction
The ATEM Camera Converter converts SDI or HDMI camera output to optical fiber with embedded audio and talkback. It features a lightweight, machined aluminum design with an internal long-life battery for portability. The ATEM Studio Converter is rack-mountable with 4 bi-directional optical fiber connections, converting optical fiber input to SDI and de-embedding audio via XLR connectors.
Optical Fiber Link
Utilizes industry-standard single-mode optical fiber cable with LC connectors, supporting distances up to 45 km (28 miles) at 1310 nm wavelength, exceeding traditional copper cable limits.
Talkback and Tally
- Talkback uses embedded audio channels 15 and 16 for communication with camera operators.
- ATEM Camera Converter supports PC or iPhone style headsets; ATEM Studio Converter supports aviation headsets and includes a built-in microphone and speaker.
- Tally support includes red LED indicators on the camera converter and red tally borders on SDI and HDMI monitoring outputs to indicate on-air status.
Premium Quality Design
Constructed from solid aluminum for durability in live production environments. The ATEM Camera Converter includes an integrated belt clip. The ATEM Studio Converter features a machined aluminum front panel with microphone and headset connections, backlit push-to-talk buttons, built-in speaker, and volume control. Power supply supports 110-240V AC.
High-Quality Connections
- ATEM Camera Converter offers professional SDI and consumer HDMI inputs, plus 1/4" stereo jack mic/line inputs for external audio.
- ATEM Studio Converter provides 4 bi-directional fiber converters, balanced analog audio outputs on XLR, loop program SDI input, and AES/EBU microphone and headphone loops for linking multiple units.
Software and Firmware
Blackmagic Design’s Converter Utility Software allows configuration of camera numbers, audio levels, and firmware updates via USB. Compatible with Mac OS X and Windows.
Specifications

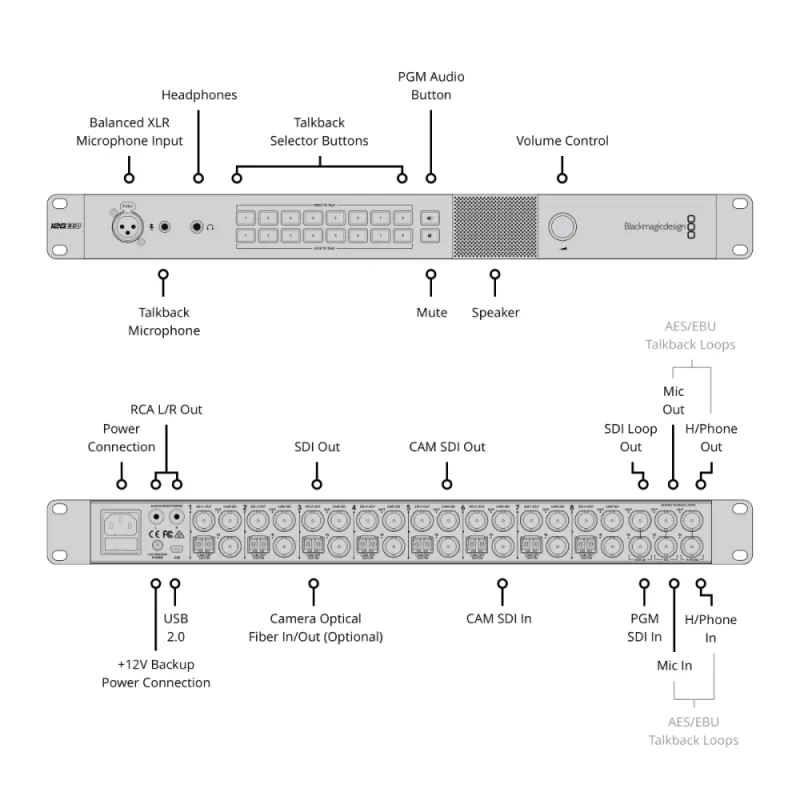

Connections
- SDI Program Input: 1 × 10-bit SD/HD/Ultra HD 4K auto-switching with tally and 16-channel embedded audio
- SDI Program Output: 1 × 10-bit SD/HD/Ultra HD 4K auto-switching loop-through
- Talkback Audio: Aviation headset connectors (0.25" TRS headset, 0.206" TRS mic), front balanced XLR mic input
- Analog Audio: 1 × stereo RCA monitoring output
- SDI Camera Input/Output: 8 × 10-bit SD/HD/Ultra HD 4K auto-switching with 16-channel embedded audio
- Optical Fiber Video Input/Output (Optional): 8 × single-mode SD/HD/Ultra HD 4K auto-switching with LC connectors
- Optical Fiber Audio Input/Output: 8 × single-mode with LC connectors; channels 1-2 camera audio, 15-16 intercom audio
- Computer Interface: 1 × mini-B USB for firmware updates
Standards Supported
- SD: 525/29.97 NTSC, 625/25 PAL
- HD: 720p50/59.94/60, 1080i50/59.94/60, 1080PsF23.98/24/25/29.97/30, 1080p23.98/24/25/29.97/30/50/59.94/60
- 2K: 2048×1080p23.98/24/25, 2048×1080PsF23.98/24/25
- 4K: 3840×2160p23.98/24/25/29.97/30/50/60, 4096×2160p23.98/24/25/29.97/30/50/60
- SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
- Audio Sampling: 48 kHz, 24-bit A/D
- Video Sampling: 4:2:2, 4:4:4; 10-bit color precision; REC 601, REC 709 color spaces
Power and Physical
- Power Usage: 60 Watts
- Power Supply: 110-240V AC input with redundant 12-31V DC input

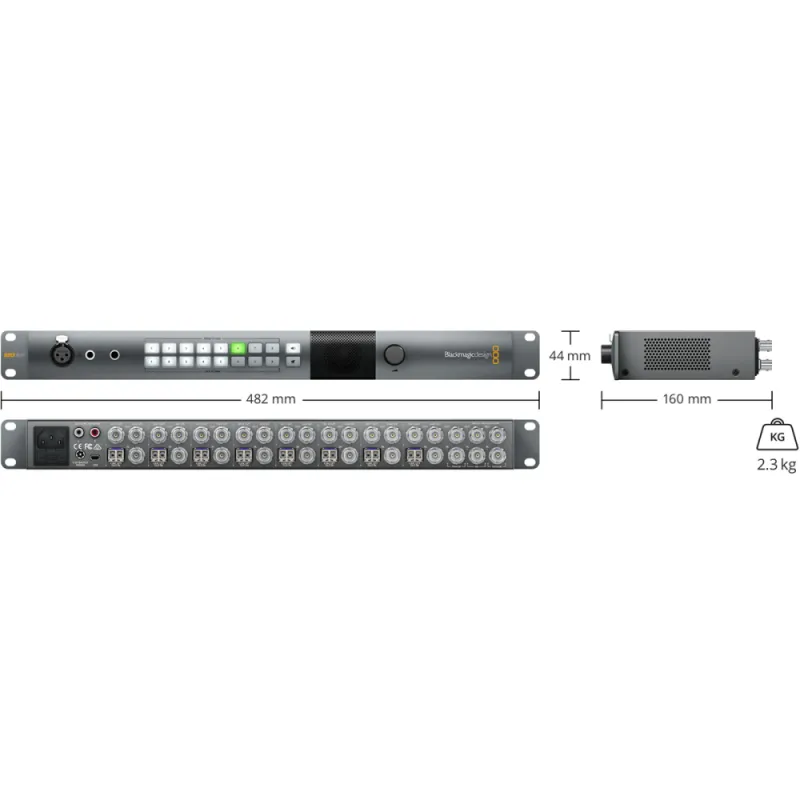

- Physical Size: 1 rack unit, less than 15 cm deep
Environmental
- Operating Temperature: 0° to 40° C
- Storage Temperature: -20° to 45° C
- Relative Humidity: 0% to 90% non-condensing
Warranty
- 3 Year Limited Manufacturer's Warranty
- 12 months warranty on connectors, cables, cooling fans, fiber optic modules, fuses, and keyboards
