5485 Turbo Charging Kit for LP-E6P Camera Batteries

SmallRig 5485 Turbo Charging Kit for LP-E6P Camera Batteries

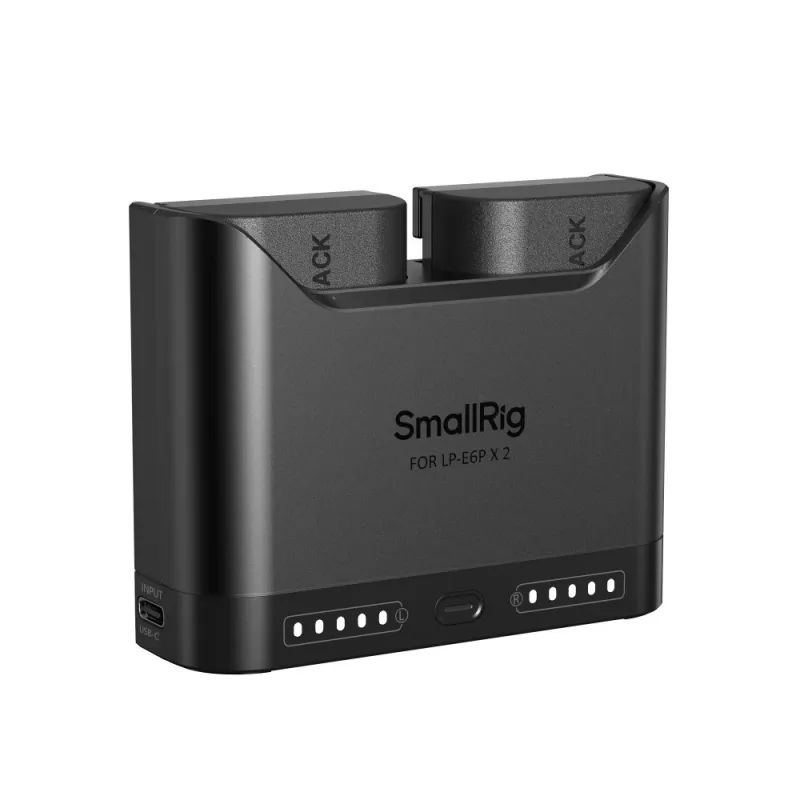

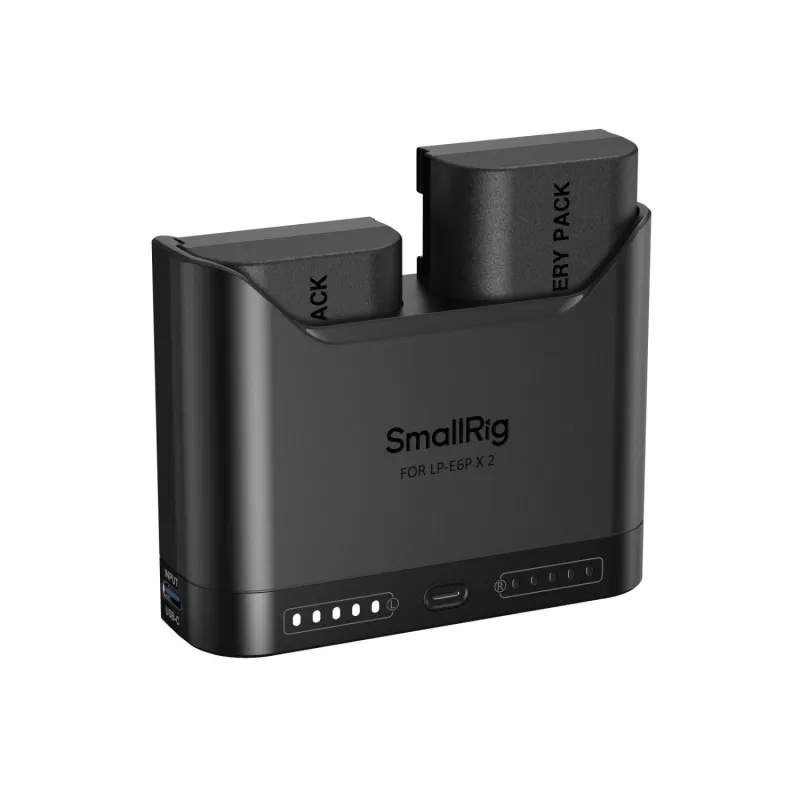

This kit includes a dual-channel charger and two LP-E6P camera batteries. The charger has an intelligent circuit with temperature and overvoltage protection. It monitors temperature and voltage, automatically reduces charging speed if it overheats, and cuts power in the event of overvoltage to help protect battery health.

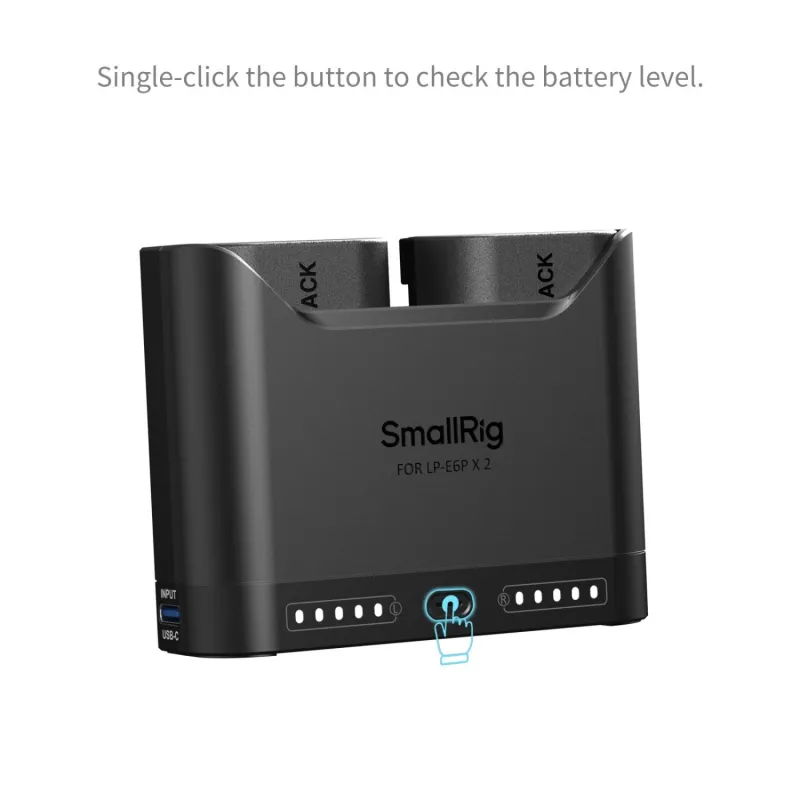

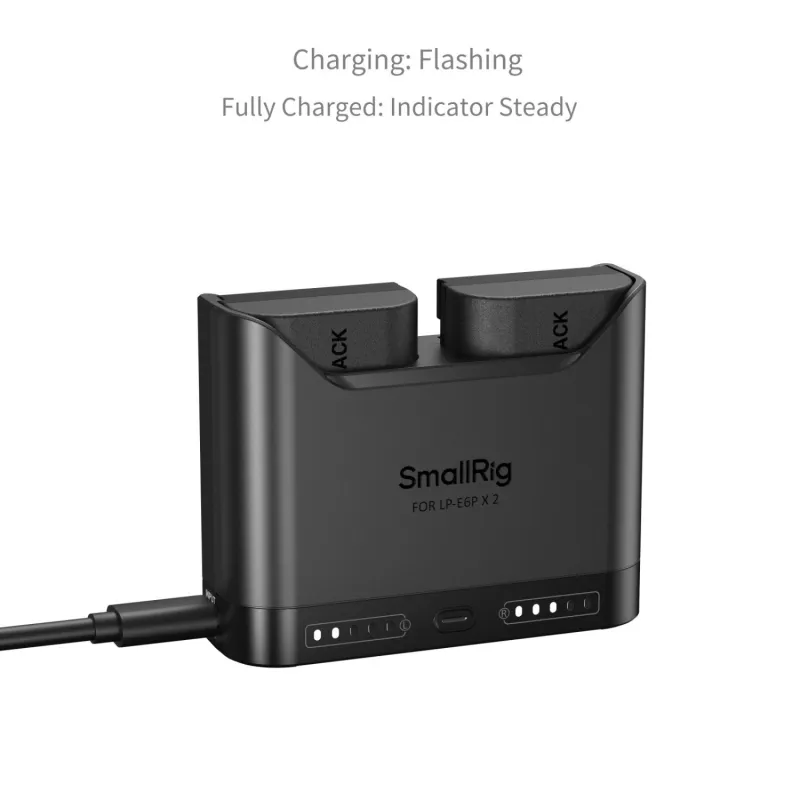

Each charging channel has five LED indicators that display the battery level in 20% increments, even when the charger is not connected to external power. A red warning light activates when the battery level is critically low.

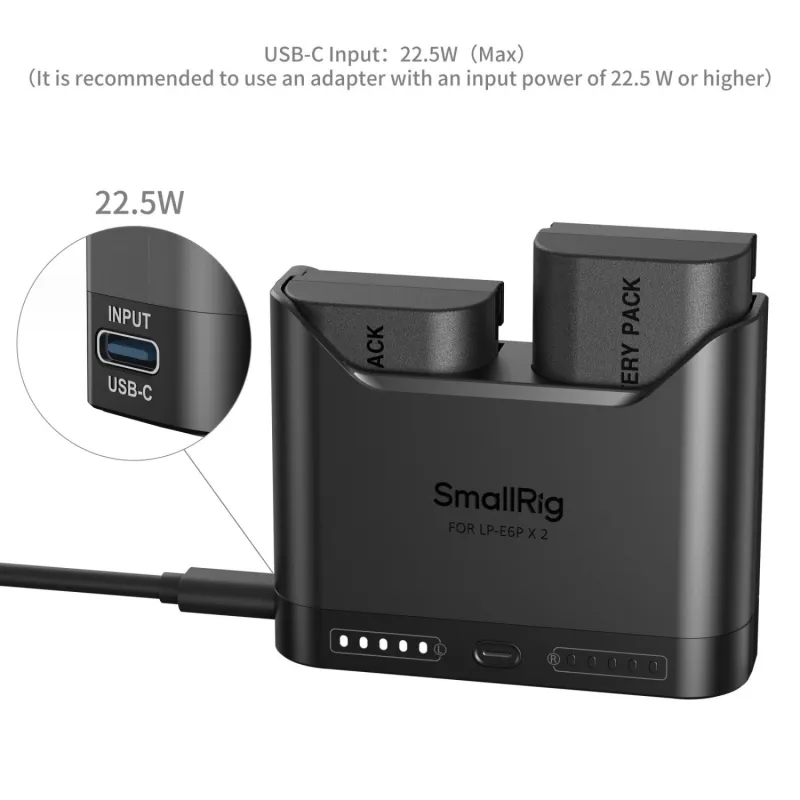

The charger features a 22.5 W USB-C fast-charging port and is supplied with a fast-charging cable. It can be powered by compatible wall adapters, car chargers and power banks. A power adapter rated at 22.5 W or higher is recommended. With a 5 V / 2.4 A adapter, the charger operates in slow-charging mode, prioritising the battery in channel 1 and switching to channel 2 once the first battery is fully charged.

LP-E6NH and LP-E6P batteries can be charged using the same charger.

Charger specifications

• Material: PC + ABS
• USB-C input: 5 V / 2.4 A, 9 V / 2 A, 12 V / 1.75 A, 15 V / 1.5 A; 22.5 W maximum
• USB-C protocols: PD 3.0, QC 2.0, QC 3.0
• Output per channel: 8.4 V / 1 A
• Operating temperature: 0°C to 45°C

Battery specifications

• Battery type: Lithium-ion
• Nominal voltage: 7.2 V
• Capacity: 2520 mAh
• Rated energy: 18.144 Wh
• Charging limit voltage (Li-ion battery interface): 8.4 V
• Charging current (Li-ion battery interface): standard charge, 0.2C (520 mA); fast charge, 0.7C (1820 mA)
• Maximum discharge current: 6 A
• Discharge cut-off voltage: 5.0 V
• Charging temperature: 0°C to 45°C
• Discharging temperature: -20°C to 60°C

Compatibility

Canon EOS 5D Mark II, 5D Mark III, 5D Mark IV, 6D, 6D Mark II, 7D, 7D Mark II, 60D, 60Da, 70D, 80D, 90D, XC10, XC15, 5DS, 5DSR, R, R5, R6, R5C, R7, R6 Mark II and R5 Mark II.

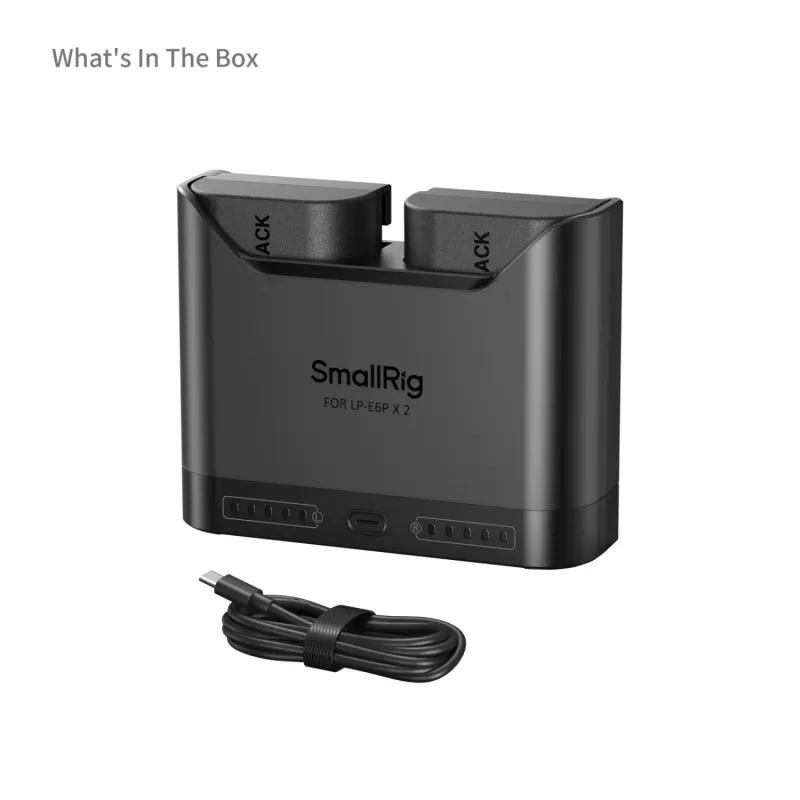

Package contents

• LP-E6P camera battery charger
• 2 × LP-E6P camera batteries
• 2 × battery covers
• 60 W USB-C to USB-C cable, 1 m

Certifications: FCC, CE, RoHS, ISED and KC.
