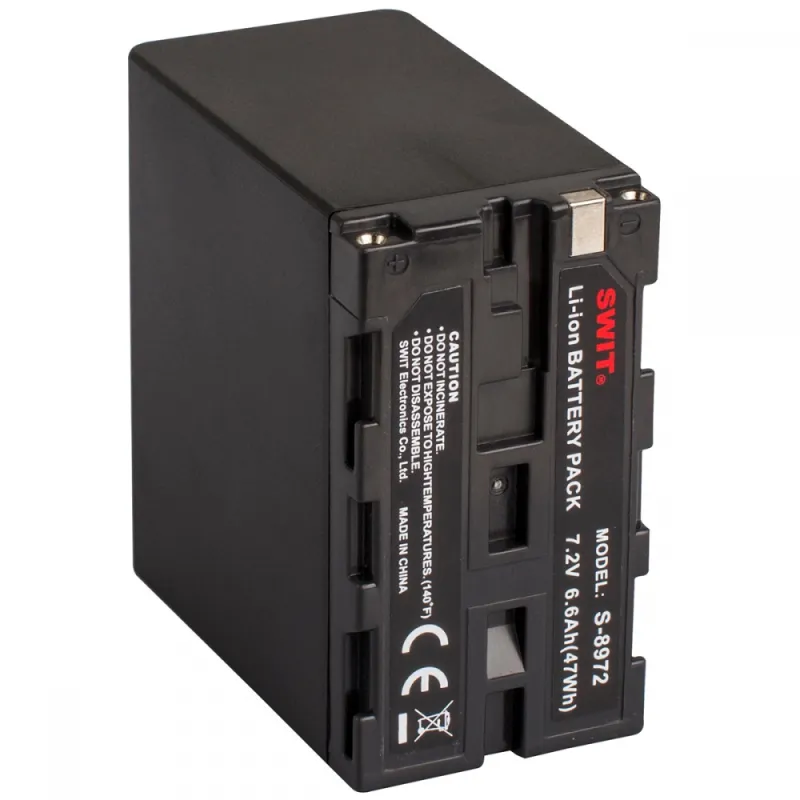

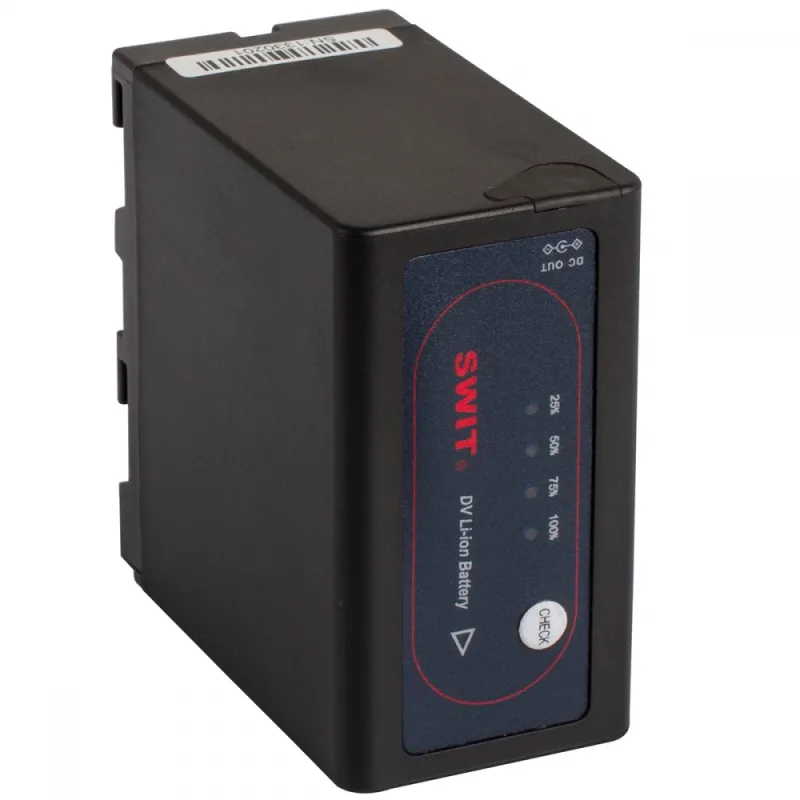

Swit S-8972 Sony L Series DV Battery with DC Output

Swit S-8972 DV Camcorder Battery Pack for Sony L Series

Replacement battery compatible with Sony L series DV batteries, including models such as SONY NP-F970, HVR-V1/Z1/Z7, DSR-PD190, HD1000E, and others. The battery exchanges digital information with compatible cameras to display remaining power info on the camera viewfinder.

Features

• Li-ion battery pack with 7.2 V nominal voltage
• Capacity: 47 Wh / 6.6 Ah

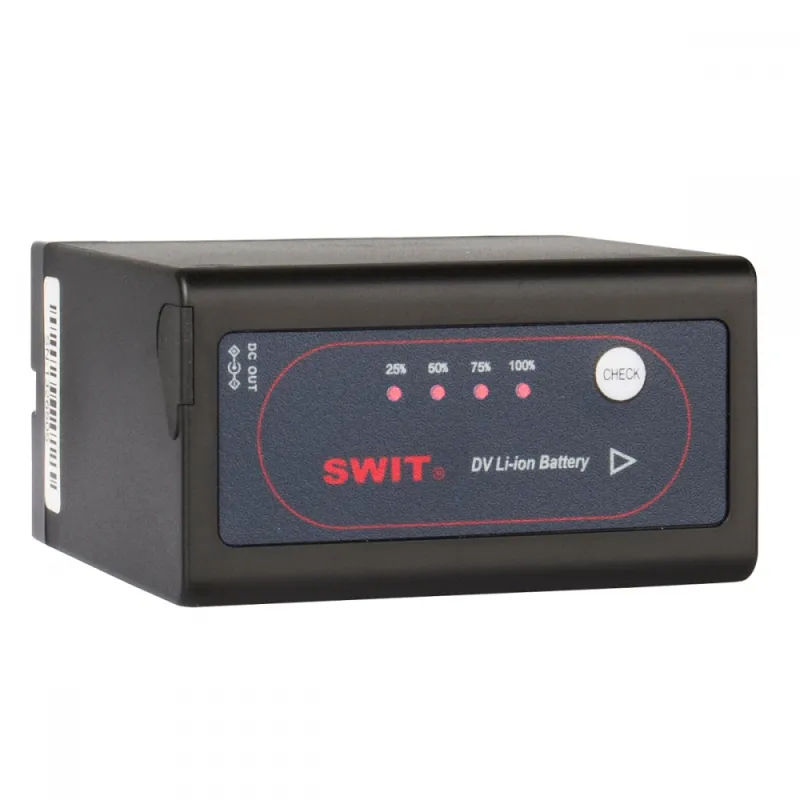

• 4-level LED power indicator for quick capacity check
• 7.2 V Pole-tap DC output socket (5.5/2.1 mm) for powering accessories
• Multiple circuit protections including over-voltage, under-voltage, over-current, and temperature safeguards
• Compatible with SONY L series NP-F770/970/960/950 batteries

High Capacity and Performance

The S-8972 battery provides approximately 5.5 hours of operation on a SONY HVR-Z1 camcorder with the LCD monitor on. It delivers a maximum total output power of 45 W (6 A), with the pole-tap DC output supporting up to 30 W (4 A) at 7.2 V nominal voltage.

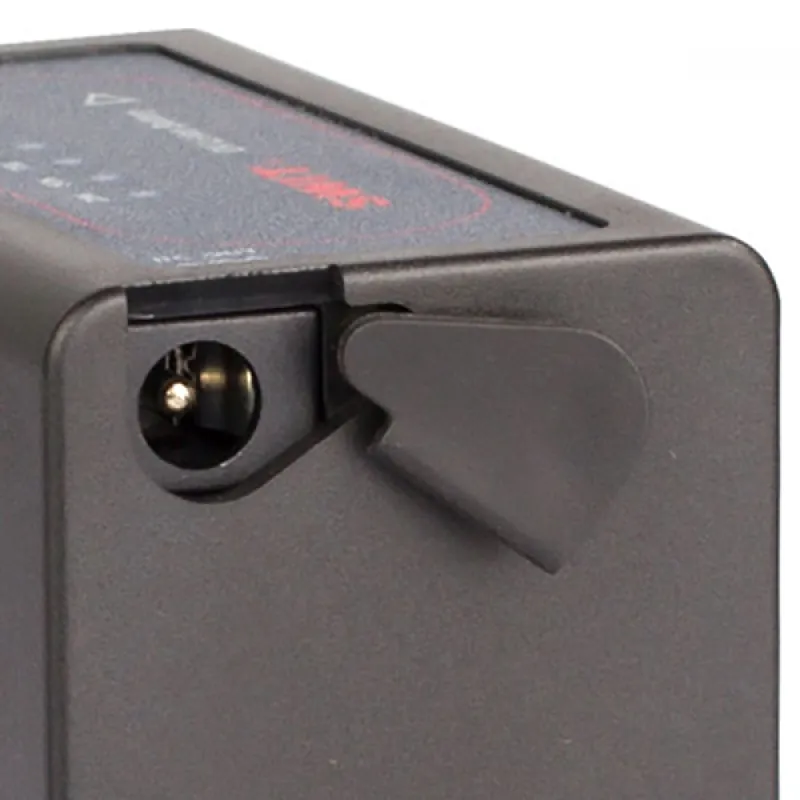

Built-in Pole-tap DC Output Socket

The side-mounted pole-tap DC output socket allows simultaneous powering of on-camera LED lights, monitors, or wireless transmitters while the camera is running. This socket can also serve as a charging input when used with the SWIT portable charger S-3010D.

Charging

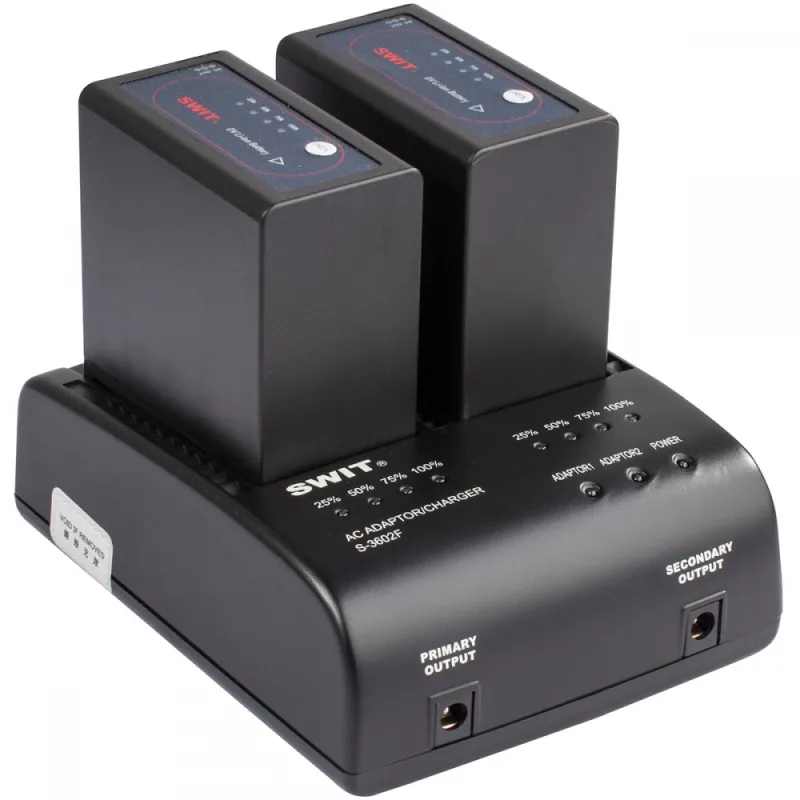

• Compatible with SWIT Dual channel charger S-3602F, SWIT 4-channel charger LC-D421, and SONY original chargers
• Charging time: approximately 4 hours 30 minutes from empty to full charge
• Also chargeable via SWIT S-3010D Portable Pole-tap Charger (approx. 7 hours full charge)

Technical Description

• High-quality lithium cells ensure long life, durability, safety, and consistent performance with smooth voltage discharge curves
• Strong and durable housing made of high-impact ABS material with advanced plastic welding for structural integrity
• Multiple safety protections managed by an MCU to monitor real-time data and cut off power under unsafe conditions
• Cell balance adjustment circuit optimizes voltage differences among cells to prolong battery life

Technical Specifications

• Nominal Voltage: 7.2 V
• Capacity: 47 Wh, 6.6 Ah
• Max Output Power: Total 45 W (6 A); Pins 30 W (4 A); Pole-tap 30 W (4 A)
• Max Output Current: 2 A
• Over Current Protection: 6 A
• Compatible Cameras: SONY HVR-Z1/Z5/Z7/V1; DSR-PD150/170/190; NEX-FS100/700/EA50; NXR-MC2000/HD1000
• Dimensions: 71 × 39 × 70 mm
• Net Weight: Approx. 0.3 kg
• Charging Temperature Range: 0–40 °C
• Discharging Temperature Range: -20–50 °C (capacity and max load may decrease below 0 °C)
