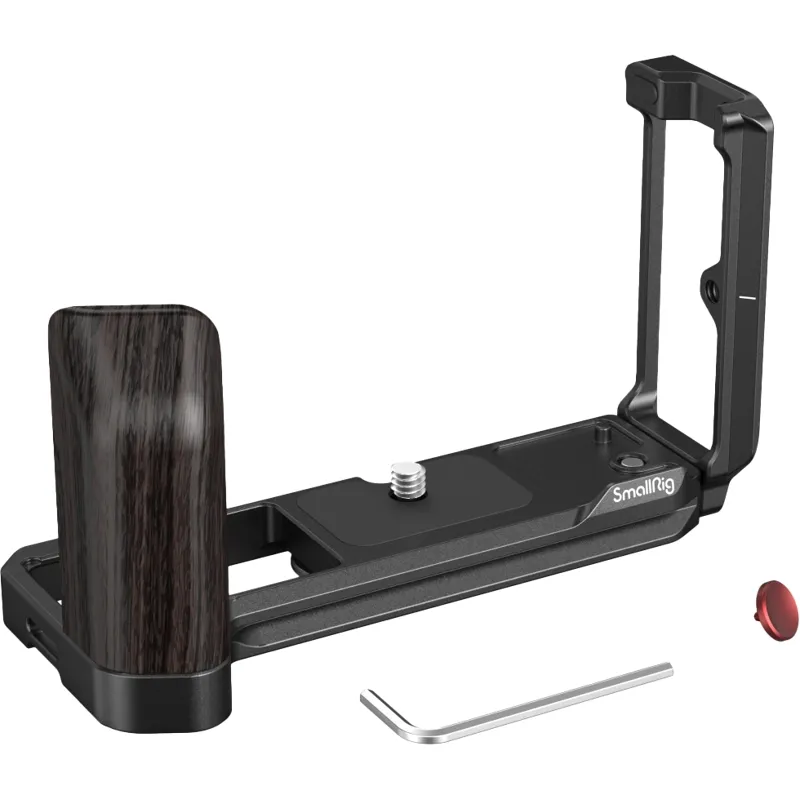

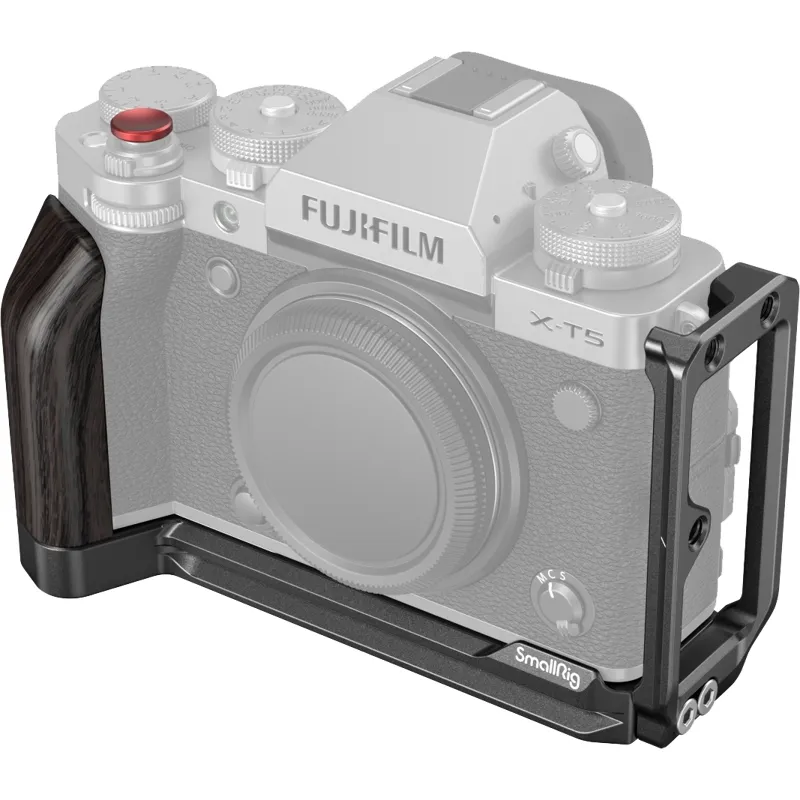

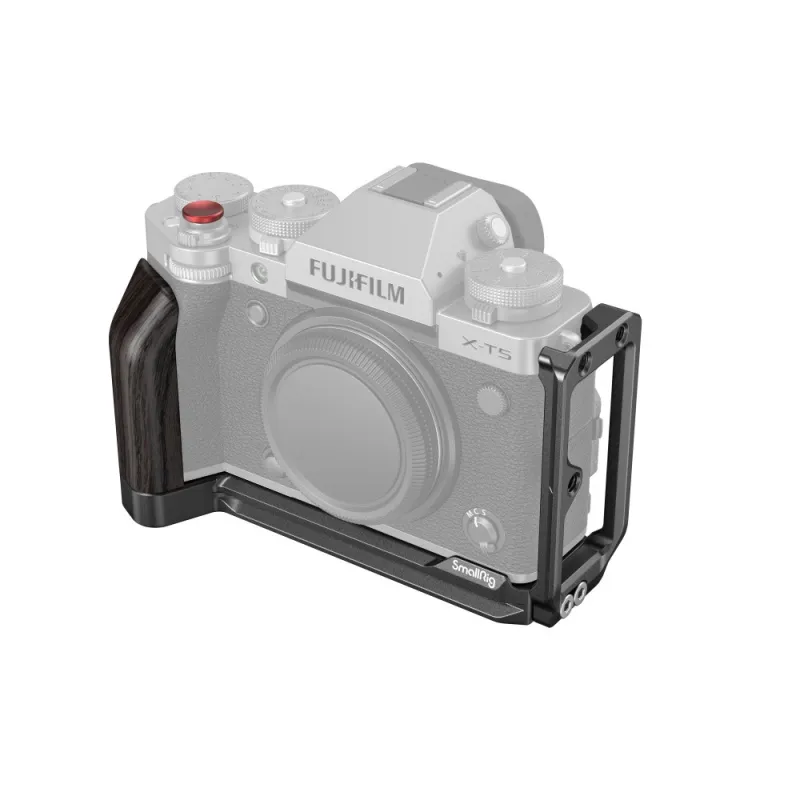

SmallRig 4137 L-Bracket for FUJIFILM X-T5

Compatibility

• Designed specifically for the FUJIFILM X-T5 camera.

Design and Functionality

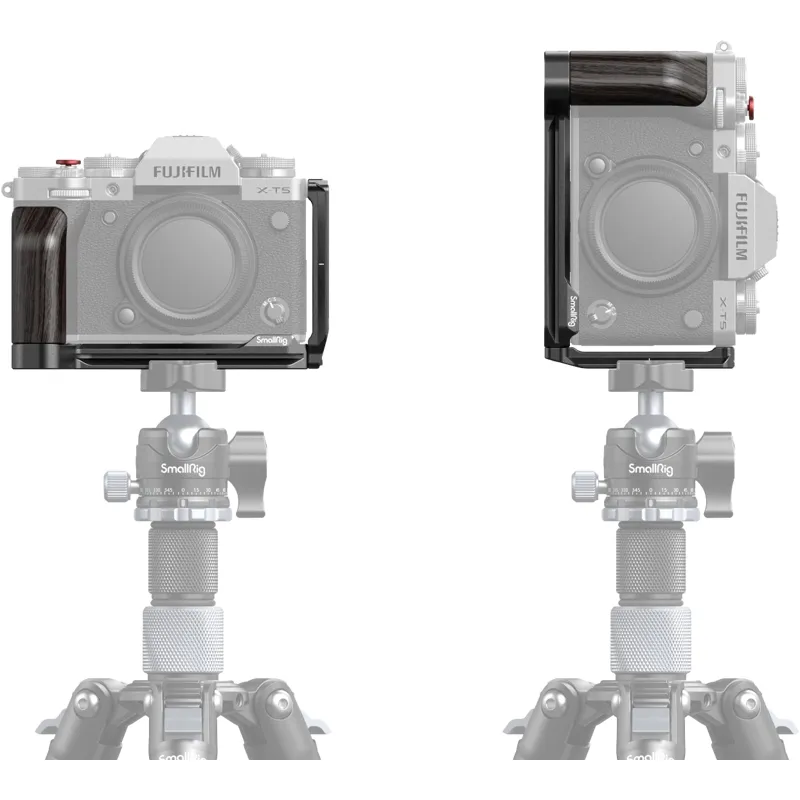

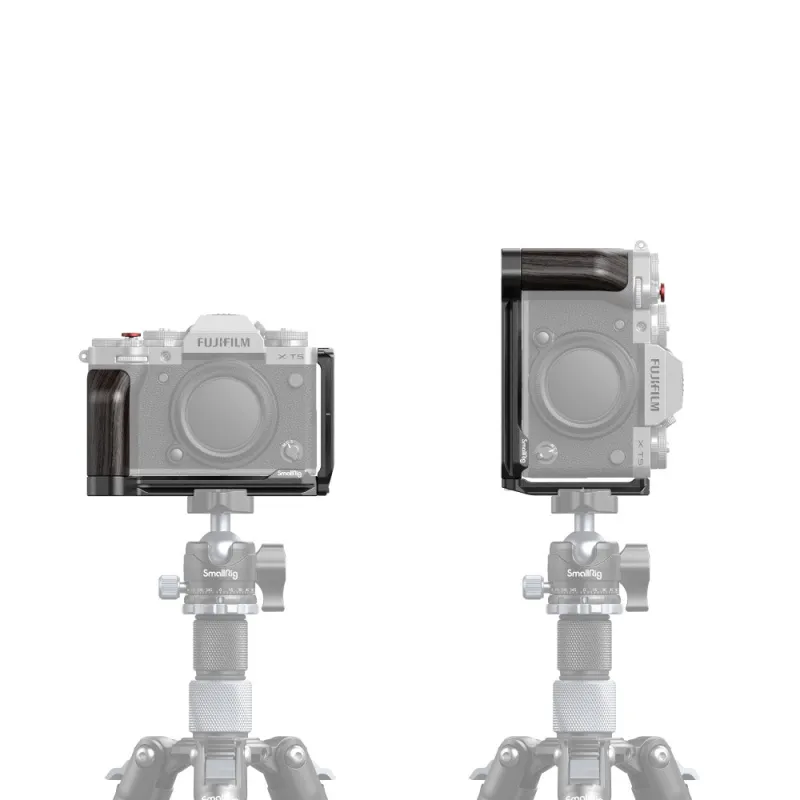

The SmallRig 4137 L-Bracket facilitates quick switching between horizontal and vertical shooting modes while enhancing the grip experience. It securely locks the camera using one 1/4"-20 screw and one locating pin at the bottom, with rubber pads to prevent scratches. The design ensures full access to all camera buttons, card slots, battery door, and flip screen.

Grip and Material

• Features an ergonomic built-in blackwood grip for improved handling comfort.
• Constructed from durable aluminum alloy combined with blackwood.

Mounting and Compatibility

• Equipped with an Arca-Swiss quick-release plate on the bottom and side for seamless switching between horizontal and vertical orientations.

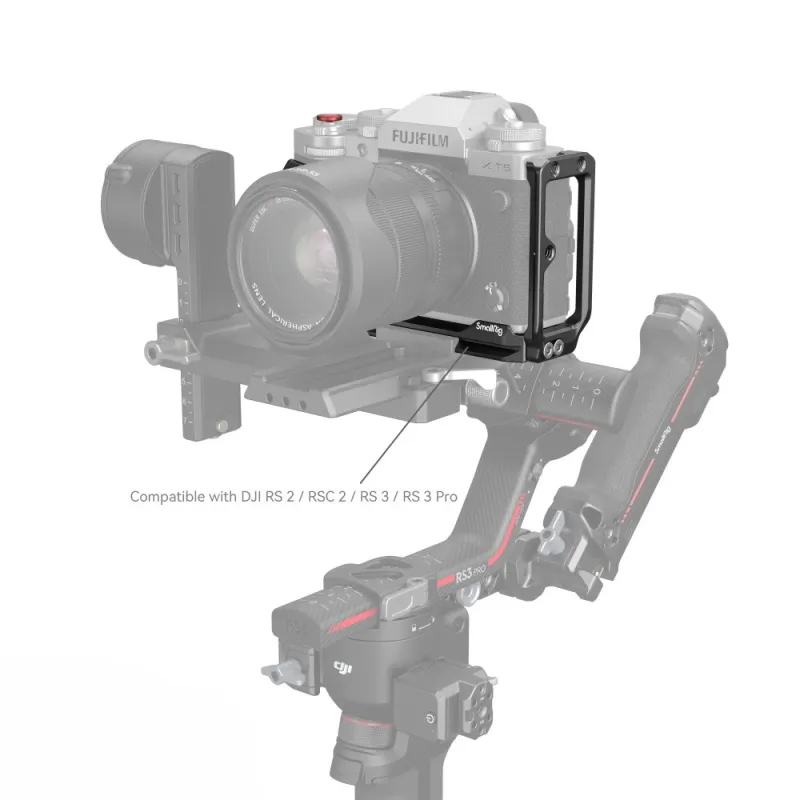

• Compatible with Arca-Swiss tripods and DJI RS 2, RSC 2, RS 3, and RS 3 Pro gimbals.

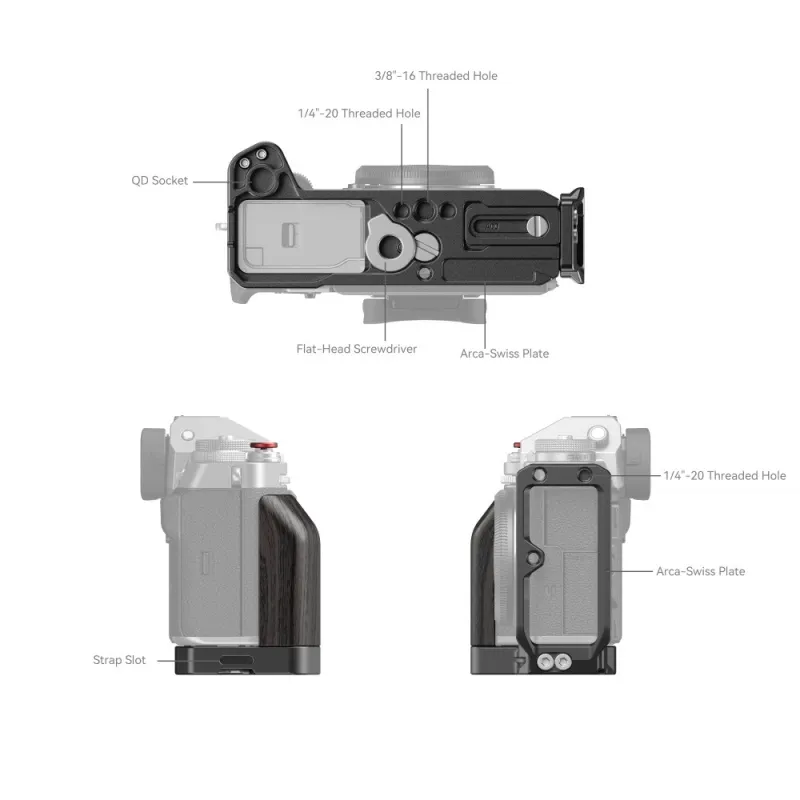

• Includes 1/4"-20 and 3/8"-16 threaded holes supporting Manfrotto-type plate 1280 or Side Handle 2093 for handheld vertical shooting.
• Side plate features 1/4"-20 threaded holes for mounting accessories such as the Cold Shoe Mount BUC2736 for microphones.

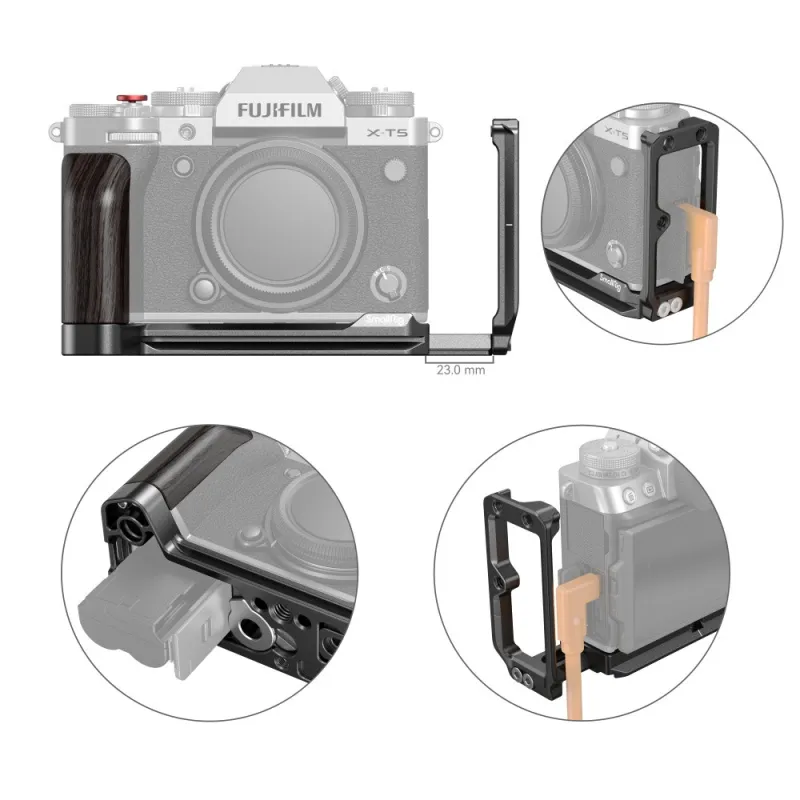

• Stretchable side plate design allows cables to pass through when in vertical mode.

Additional Features

• Strap slot and quick-release (QD) port available for attaching hand straps or shoulder buckles.
• Includes a magnetic slotted screwdriver for easy assembly and disassembly.
• Comes with a complimentary shutter button to enhance tactile control.

Package Contents

• 1 x L-Bracket
• 1 x Allen Wrench

Dimensions and Weight

• Product Dimensions: 140.3 x 58.2 x 84.2 mm
• Package Dimensions: 184 x 101 x 57 mm
• Product Weight: 120 g ± 5 g
• Package Weight: 181.2 g ± 5 g
