Enlaps Tikee Camera Mounting Kit 1000014789

Enlaps Mounting Kit

A set of brackets to facilitate the installation of your Tikee camera. Expand your Tikee fixing options with this mounting set.

Plugs and screws allow the arm to be fixed in concrete, and in general, hollow or solid walls. For this it will be necessary to have a drill/drill and a drill bit of 6mm diameter (not supplied).

The screws also allow fixing to wooden structures. The screws are pozidriv screws so a cross-head or pozi screwdriver is required (not supplied).

The metal clamps are adjustable and are used to hold the arm on round, rectangular, triangular structures, any polygon in fact within a perimeter of 1099 mm max or diameter 350 mm. They can be tightened with a flat or cross-headed screwdriver or a 7 mm spanner. Then the excess length can be cut off with a pair of pliers. The rubber bands are to protect the support on which the clamps will be placed. They can also be cut to length with a cutter/scissors… (not included)

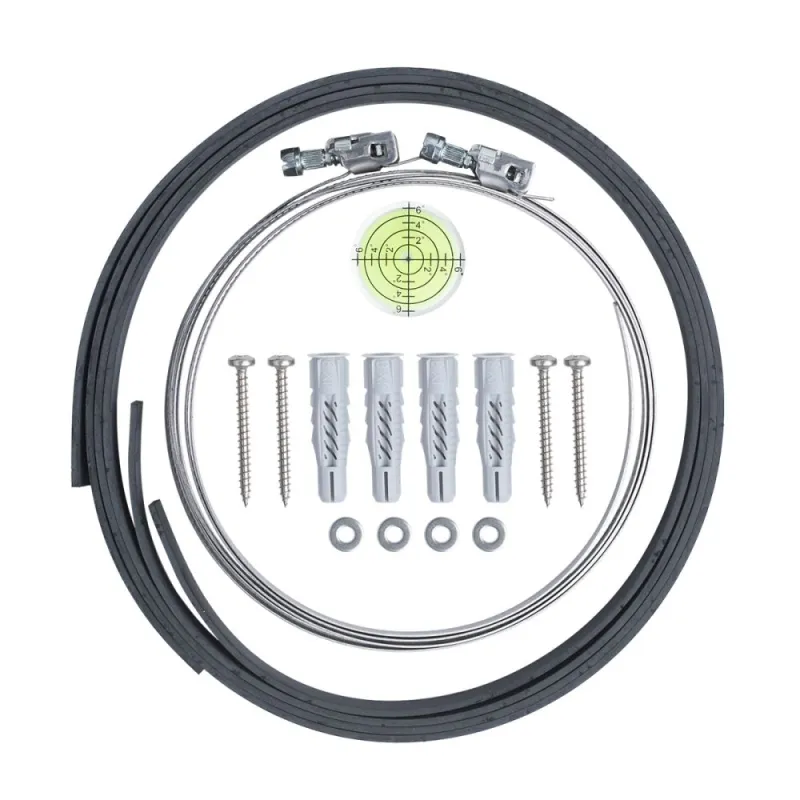

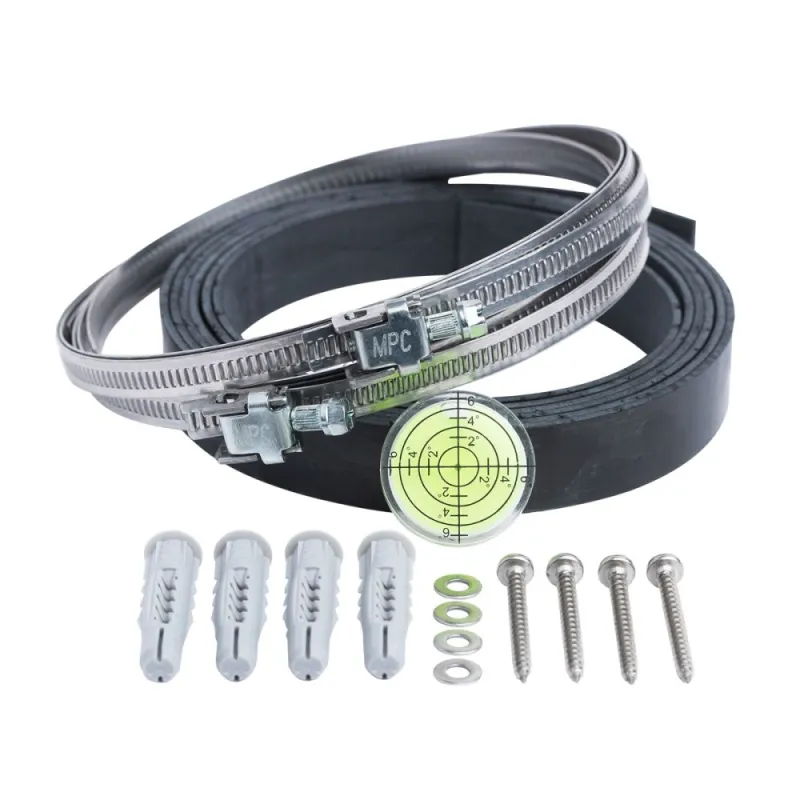

In the Box
4× pegs UX 6x35,
4× M4 washers,
4× wood screws M4x40,
1× level
2× metal collars with a maximum diameter of 350mm
2× rubber strips, thickness 2mm, length 1099mm, width 20mm.

Specifications

Weight

0,4 kg

Dimensions

19 × 17 × 3,5 cm
