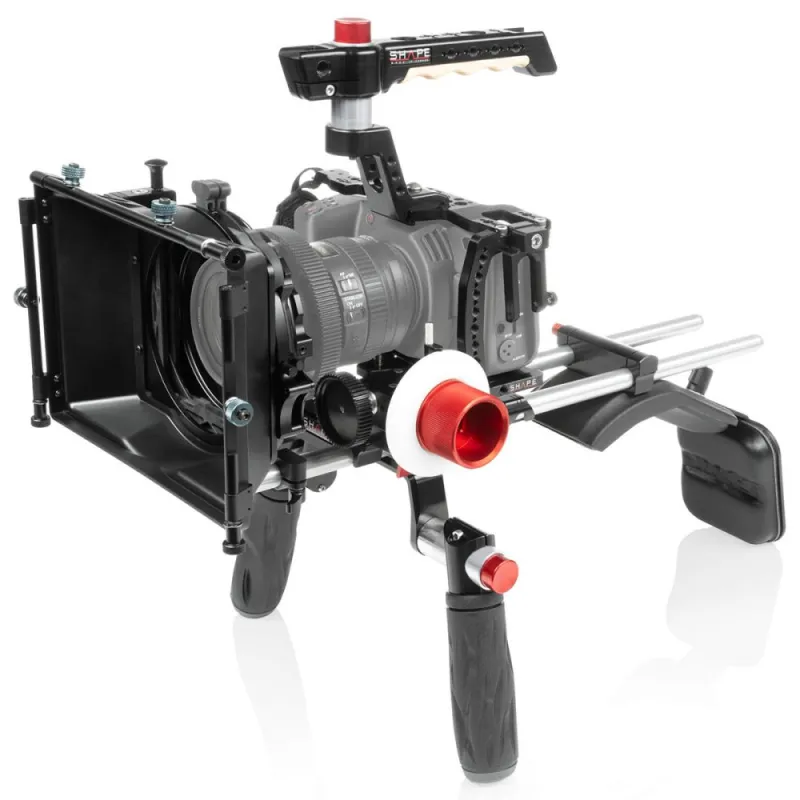

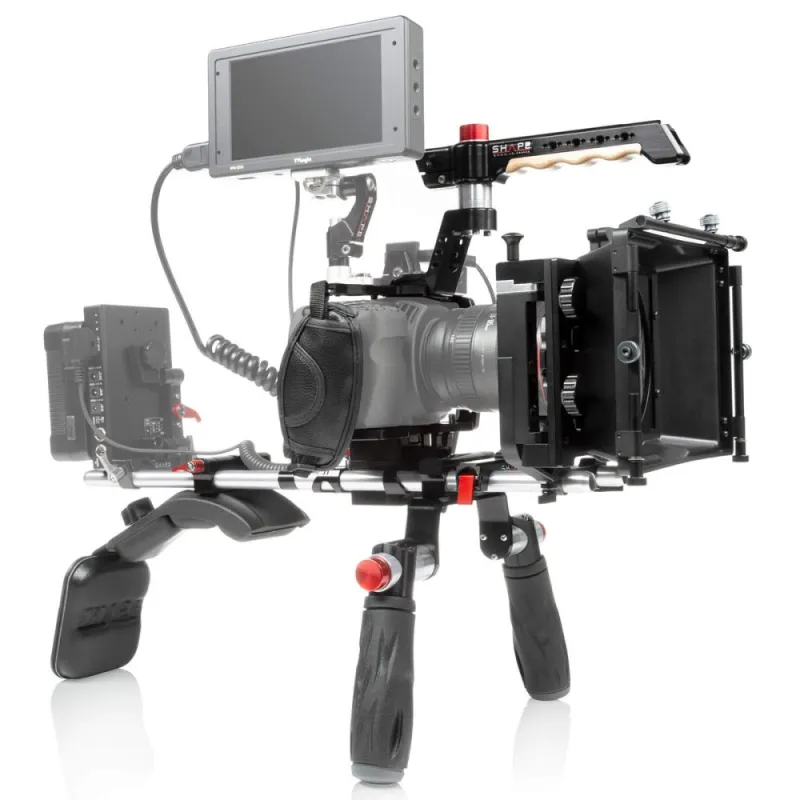

Shape Blackmagic Pocket Cinema 4K 6K Shoulder Rig (BM4SMKIT)

Camera Cage for Blackmagic Pocket Cinema 4K/6K

• CNC machined aluminum cage with 1/4"-20 threaded holes on top and bottom to securely mount the Blackmagic Pocket Cinema 4K camera.
• Provides a form-fitting base for attaching accessories, handles, or grips while maintaining full access to all camera controls, ports, memory card slot, battery door, and lens release button.
• Includes one cold shoe on top for mounting accessories such as microphones, magic arms, LEDs, or top handles.
• Multiple 1/4"-20 and 3/8"-16 threaded holes with ARRI anti-twist threads ensure strong attachment of camera and accessories.
• Left-side clamp prevents accidental HDMI cable disconnection.
• Padded hand strap on the right side adds comfort when holding the camera.

Removable Top Handle

• Constructed from CNC machined aluminum and genuine Canadian maple wood for a solid, comfortable grip.
• Features patented Push-Button technology for fast 360-degree rotation adjustment and secure locking.
• Attaches firmly to the camera cage via cold shoe system.
• Offers multiple mounting options including EVF mount, fifteen 1/4"-20 threaded holes with stoppers, and two cold shoe brackets at front and back for additional accessories.

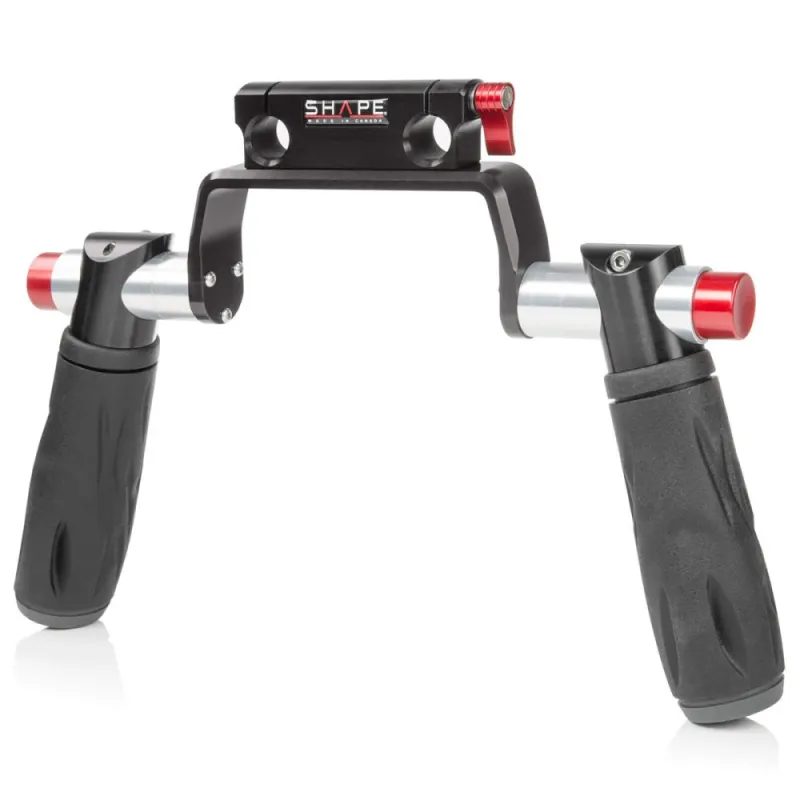

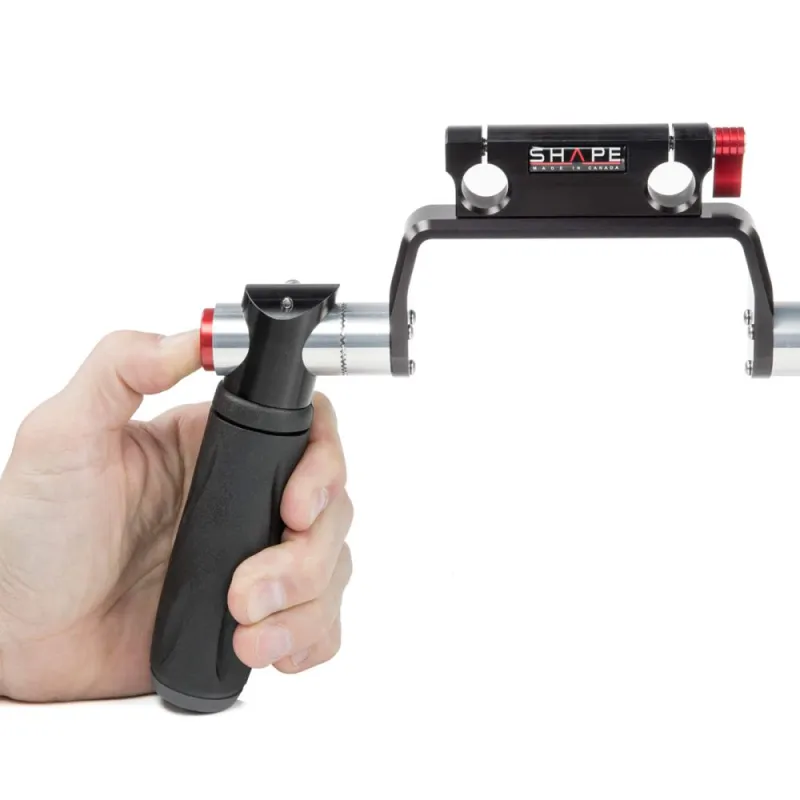

Quick Handle Rod Bloc

• Professional video stabilization accessory with two camera handle grips, each rotating 360° independently.
• Attaches to camera platform with a screw knob and features a Push-Button for easy attachment and removal.
• Compatible with all 15 mm rods, allowing precise positioning by sliding along rods and tightening with a red knob.
• Rod bloc includes two screw-threaded holes for mounting the quick handle.
• Utilizes patented Push-Button handle technology for quick and easy adjustment.

Composite Mini Shoulder Pad

• Padded, slip-resistant material for superior comfort during shoulder mounting.
• Includes a 15 mm rod block on top for attaching rods and accessories.
• Screw knob allows attachment of SHAPE counterweights; additional rods can be added for counterweight placement behind the shoulder pad.
• Enables easy weight distribution to the body and allows rapid switching between shoulder and tripod setups without removing the shoulder pad.

Back Pad

• Features a powder-coated anodized aluminum plate and arm attached to thick padding for user comfort.
• Compatible with SHAPE Mini Composite Shoulder Pads and attaches/removes easily via 1/4-20 camera screw knob.
• Position adjustable vertically up to 5 cm and rotates 360° horizontally for user preference.
• Bottom includes two 1/4-20 threaded holes for mounting additional accessories or counterweights.

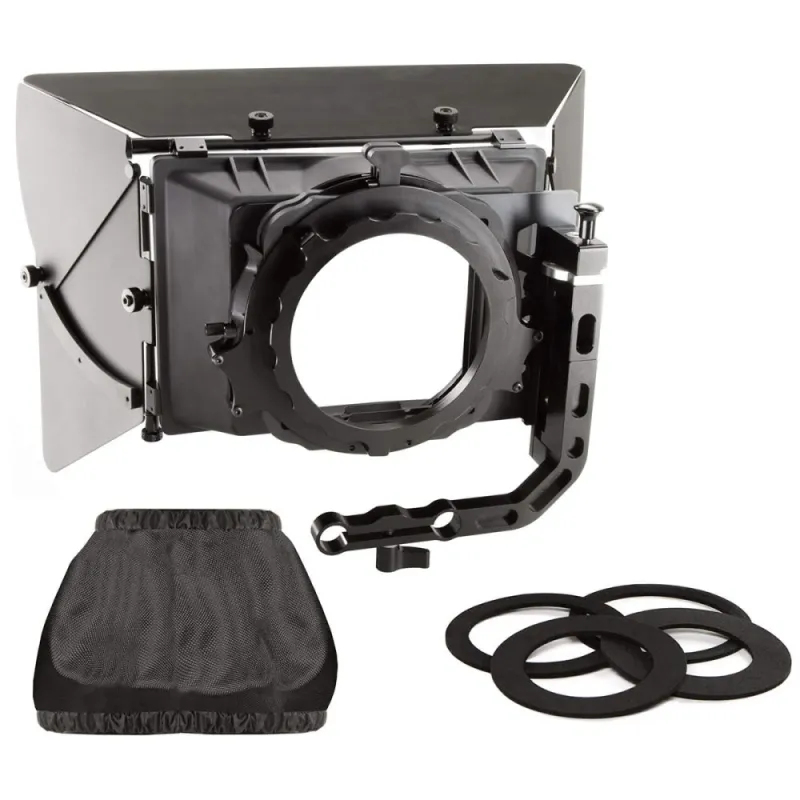

2-Stage 4 x 4" Matte Box

• Accepts lenses with up to 105 mm front outside diameter.
• Main frame constructed from carbon fiber for lightweight durability.
• Mounts to 15 mm LWS rods with a swing-away design for quick lens changes without removing the matte box.
• Height adjustable relative to rods to accommodate varying lens center heights.
• Two rotating filter stages support 4x4" filters.
• Includes top flag (eyebrow), side flags with safety hook design, six matte box donuts (65, 77, 85, 88, 100, 105 mm), and an elastic donut for lenses between 65 and 105 mm diameter.
• Rear opening of 100 mm for lenses; anti-reflection donuts prevent light reflection behind the camera.
• Side flags feature a hook design to prevent accidental detachment if thumbscrews loosen.
• Swing-away bracket allows vertical height compensation of 1.65 cm to fit various camera/rod setups.

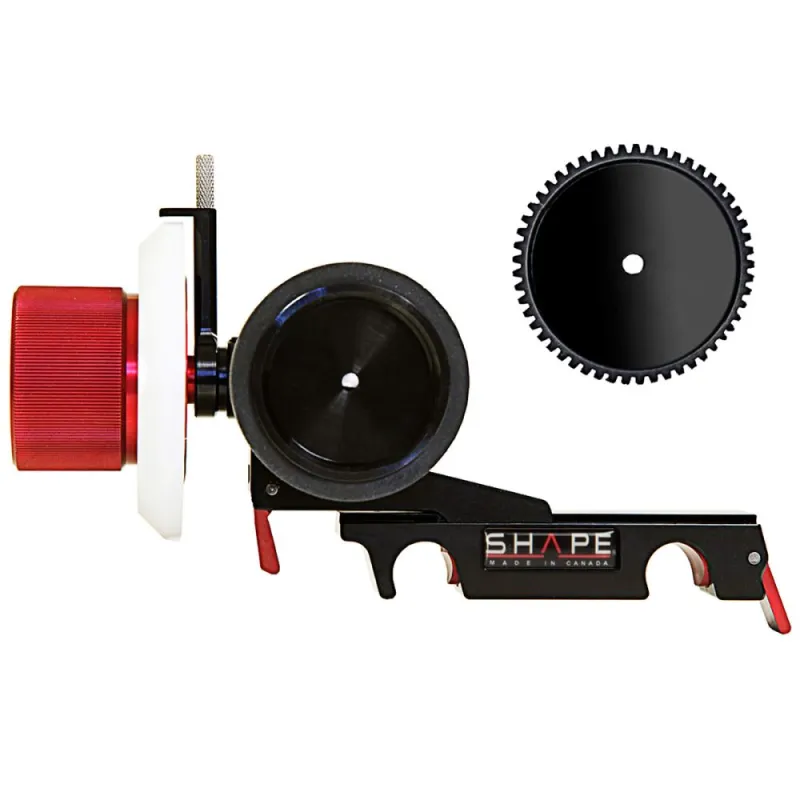

Follow Focus Friction & Gear Clic (FFCLIC)

• Made of lightweight anodized CNC aluminum for strength and durability.
• Attaches to standard 15 mm rods via a clamp system with a patented lever clamp for secure locking.
• Focus mechanism can be loosened and moved horizontally to adjust proximity to the lens.
• Includes interchangeable focus disks: friction wheel with high-quality rubber surface for slip-free focusing, and gear wheel with 0.8 pitch gears for lenses with teeth on focusing rings.
• Focus disk can be positioned in front or behind the focus mechanism to accommodate various lens lengths.
• White mark disk made of durable Delrin thermoplastic allows marking focus measurements with non-permanent markers; interchangeable for multiple presets.
• Includes slide-adjustable aluminum marker for precise focus marking.

Pitch Aluminum Gear for FFCLIC

• 0.8 pitch aluminum gear compatible with geared cine lenses and lens gears.
• Included with all Follow Focus Friction and Gear Clic units.
• Constructed from aluminum for durability and strength.

Delivery Contents

• 1 x Cage for Blackmagic Pocket Cinema Camera 4K (CBM4K)
• 1 x Push-Button Wooden Top Handle
• 1 x 15 mm LW Quick Release Rod Base System
• 2 x 15 mm Rods, 46 cm length (15TUBE18)
• 1 x Pair of Quick Handles with Push-Button (HAND5)
• 1 x Shoulder Mount (SHPAD3)
• 1 x Follow Focus Friction & Gear CLIC (FFCLIC)
• 1 x Matte Box 4 x 4 (MATT44)

Specifications

• Weight: 4.02 kg
• Dimensions: 44.96 x 29.79 x 68.78 cm
