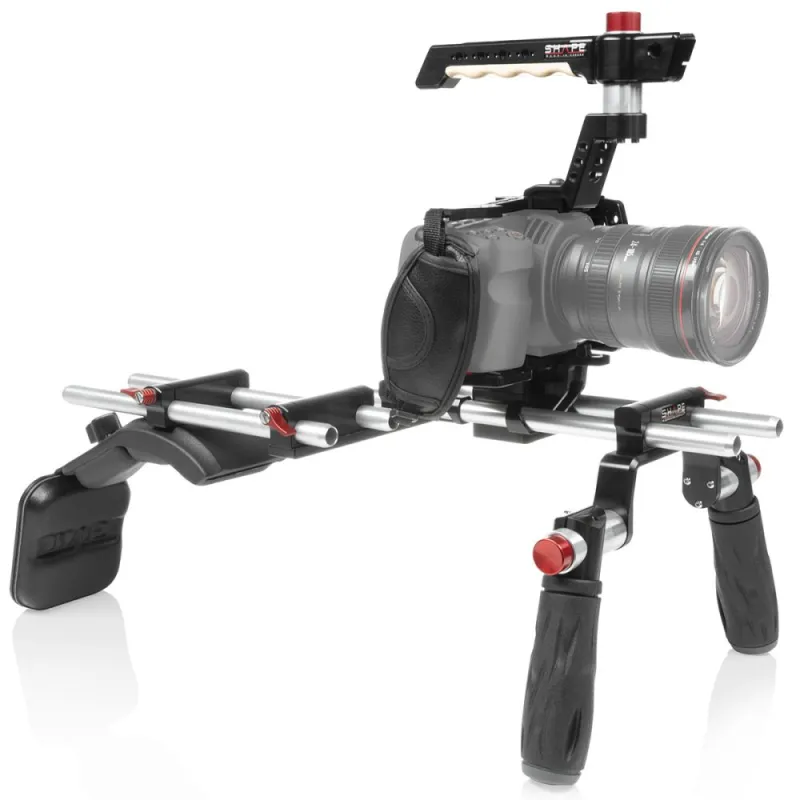

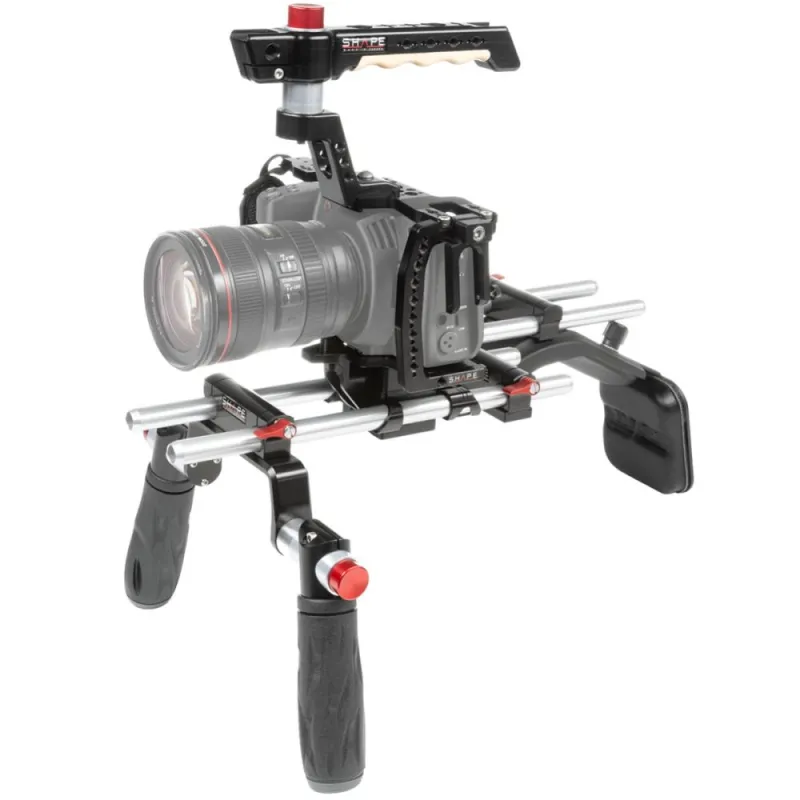

Shape Blackmagic Pocket Cinema 4K 6K Offset Shoulder Mount (BM4KSMOF)

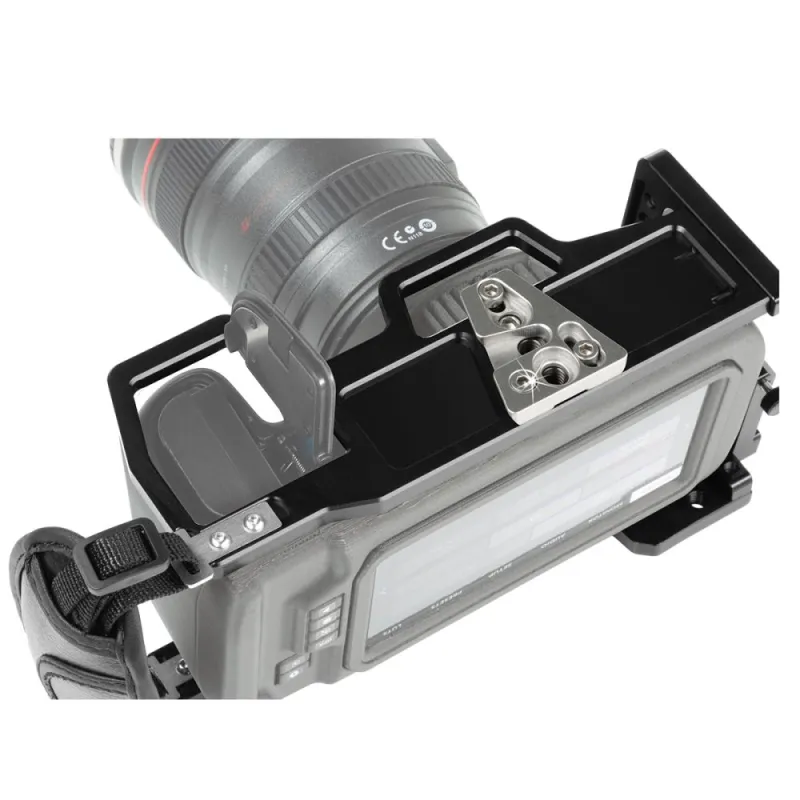

Cage Construction and Features

• Constructed from CNC machined aluminum for durability and lightweight handling.
• Top and bottom feature ¼-20 threaded holes with anti-rotating pins to securely fix the camera position.
• Additional ¼-20 threaded holes allow easy attachment of tripod plates.
• Design provides easy access to memory card slot, battery door, lens release button, and all camera controls and outputs.
• Includes a full-sized HDMI cable protector lock on the side to secure HDMI 4K cable connection.
• Right side ergonomically designed for comfortable grip, complemented by an included strap to firmly secure the hand to the camera.
• Lightweight, robust, and easy to assemble or disassemble.

Cage Mounting Options

• One cold shoe mount on top for accessories such as microphones, Magic Arm (RPB2AHS), or LED lights.
• Multiple ¼-20 and 3/8-16 threaded holes with anti-rotating pins for versatile accessory mounting.

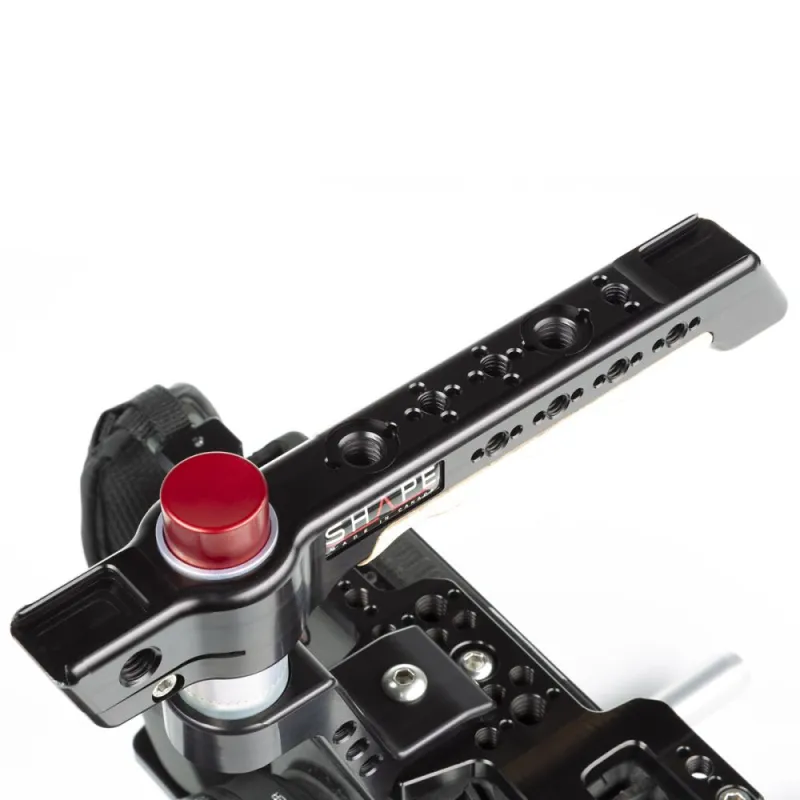

REVOLT Top Handle

• Removable, ergonomic, and robust handle made from CNC machined aluminum and genuine Canadian maple wood for comfort.
• Attaches quickly and securely to the cage via cold shoe system.
• Provides a solid and comfortable grip for handheld shooting.

Top Handle Mounting Options

• One EVF mount compatible with 15 mm Rod Clamp (15CTH) and Push Button Arm View Finder Bracket.
• Fifteen ¼-20 threaded holes with stoppers for secure attachment of additional accessories.
• Two cold shoe brackets located at front and back of the handle.

Quick Release Base Plate

• Functions as a table stand or can be mounted on a tripod for versatile support.

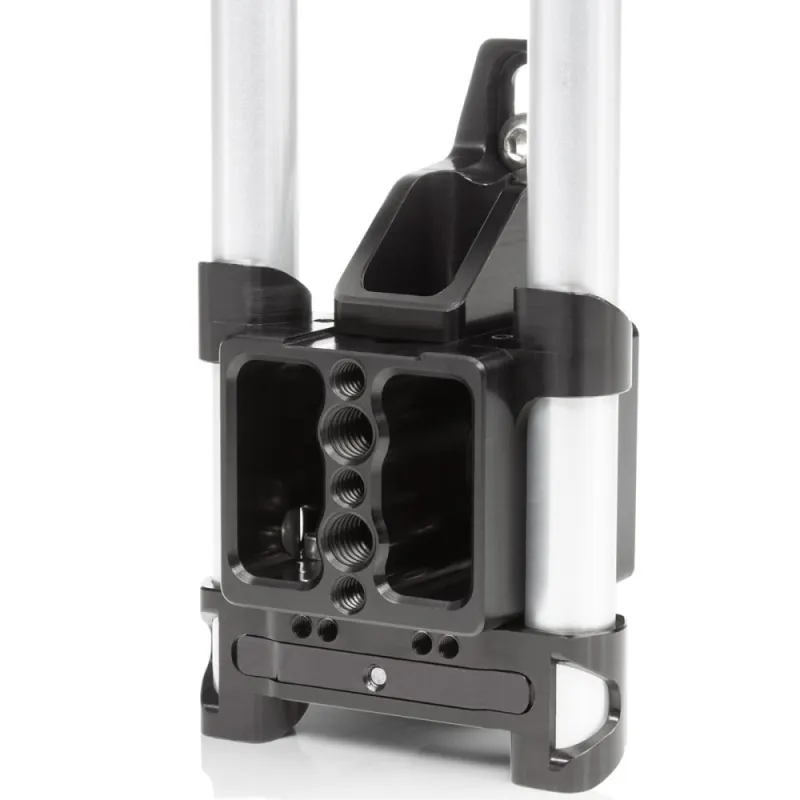

Adjustable Rod Bloc System

• Allows height adjustment of rod bloc travel with an Allen key for optimal alignment of camera optical center, matte box, and follow focus.

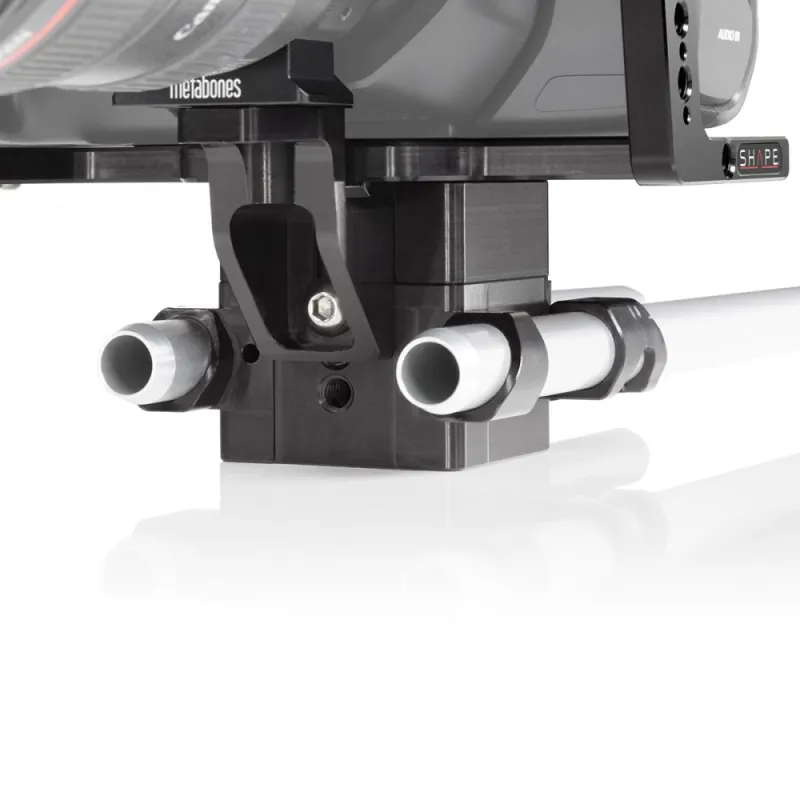

• Base block includes a removable Metabones support bracket to support heavier lenses; bracket can be removed if not using Metabones adapter.

Offset Rail Rod Bloc (BMOFBRAC)

• Made of aluminum, features two rod blocs enabling lateral sliding adjustment of rods from left to right up to 44 mm (1 3/4 inches).

SHAPE 15mm Rods

• Includes two 15mm rods of 254 mm (10 inches) length and two 15mm rods of 305 mm (12 inches) length.
• Rods are hollow, non-threaded, made of reliable aluminum with clear finish.
• Enable mounting of various SHAPE and third-party 15mm rod-compatible accessories.

Quick Handle Rod Bloc System with Push Button

• Constructed from CNC machined parts and hard anodized aluminum for durability.
• Compatible with 15mm rods.
• Single red knob allows fast and easy adjustment.
• Supports quick release handgrips with three points of adjustment.
• Ergonomic handles with rubber grips provide stability and precision.
• Patented push-button technology enables rapid adjustment.
• Individual rotation on a 360° axis.
• Stainless steel locking mechanism ensures long-lasting durability.
• Note: BMPCC6K is not compatible with the Metabones bracket of the cage.

Padded Shoulder Mount

• Constructed with CNC machined parts, stainless steel screws, and black powder coat paint for durability.
• Includes mini composite shoulder pad and padded back pad for comfortable and stable shooting position.
• Helps distribute the weight of the camera and accessories to the body.
• Sliding rod block on top holds 15mm rods.
• Single red knob for quick and easy adjustment.
• Threaded hole at the back (¼-20) allows attachment of a base counterweight to the rear rods.

Delivery Contents

• 1x Cage for Blackmagic Pocket Cinema Camera 4K (CBM4K)
• 1x Top Handle with Push-Button
• 1x 15mm Long Quick Release Rod Base System
• 1x Offset Rail 15mm Rod Bloc (BMOFBRAC)
• 2x 15mm Rods 254 mm (10") (15TUBE10)
• 2x 15mm Rods 305 mm (12") (15TUBE12)
• 1x Pair of Quick Handles with Push-Button (HAND5)
• 1x Shoulder Mount (SHPAD3)
• 1x Back Pad (PAD1)
