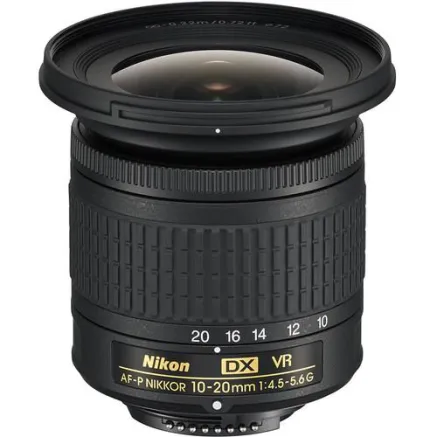

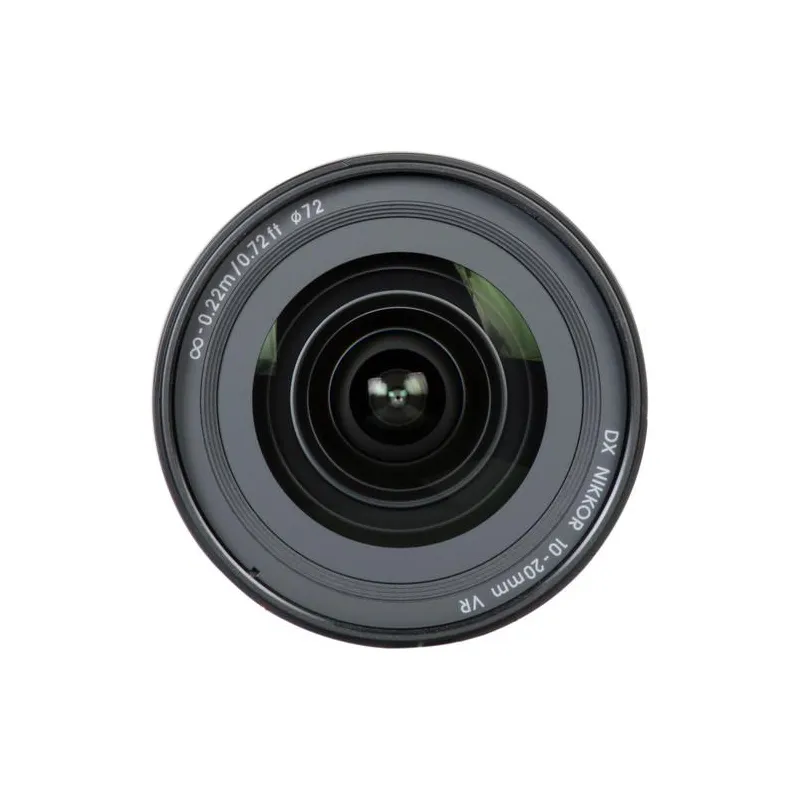

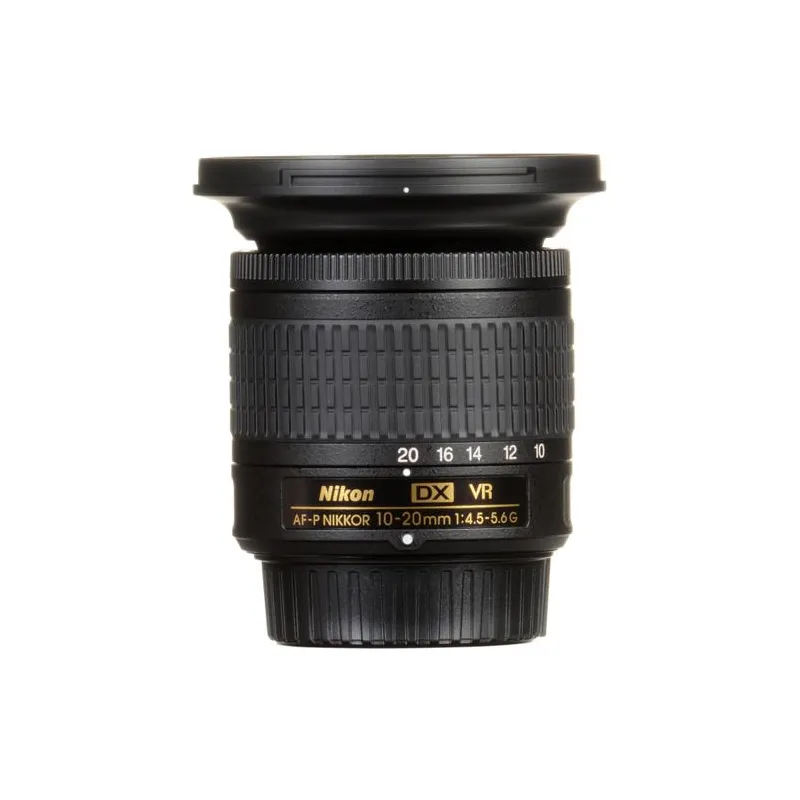

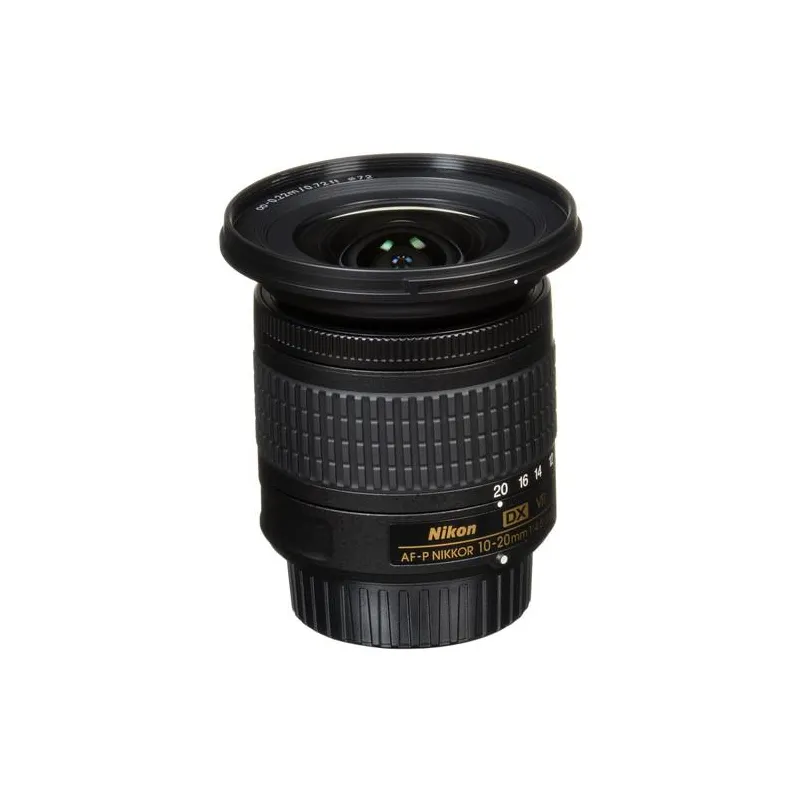

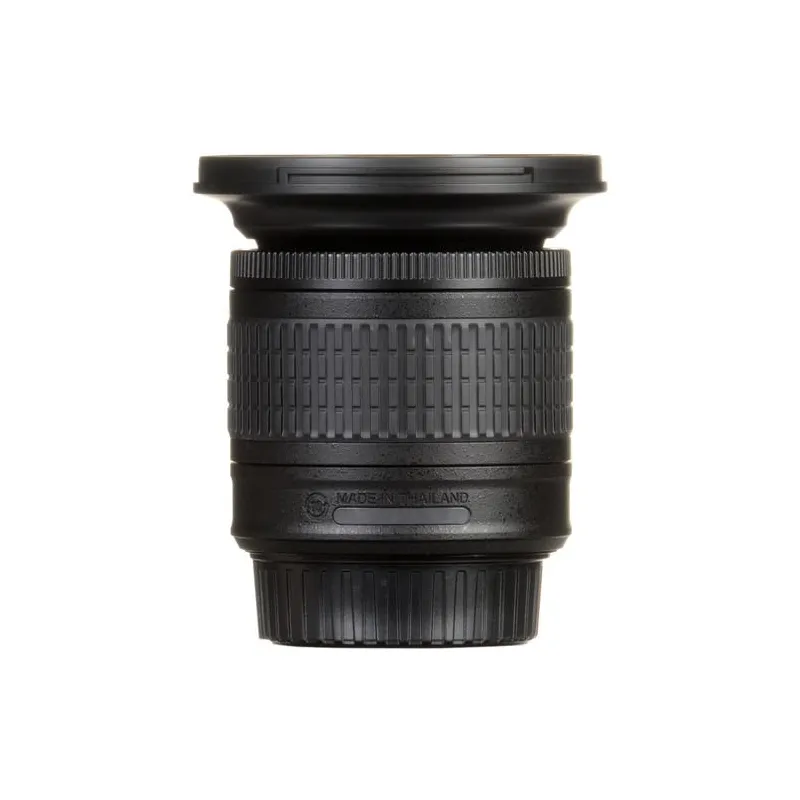

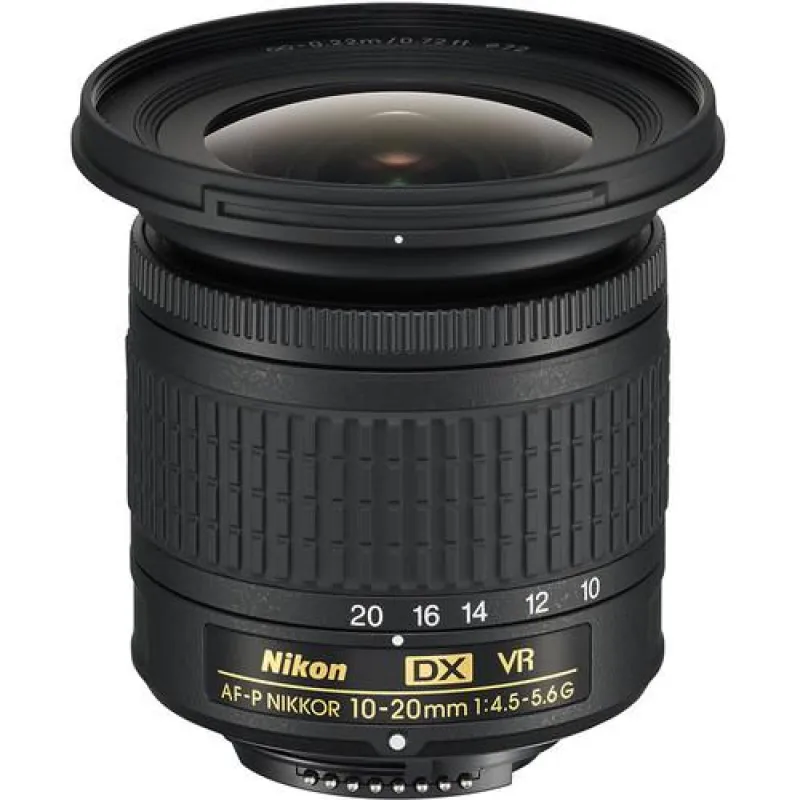

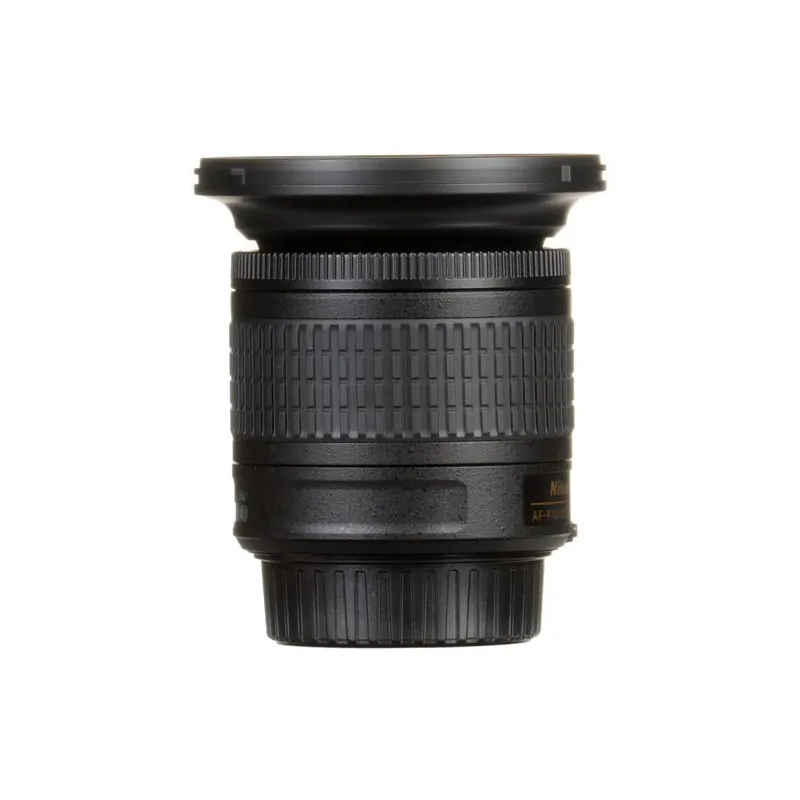

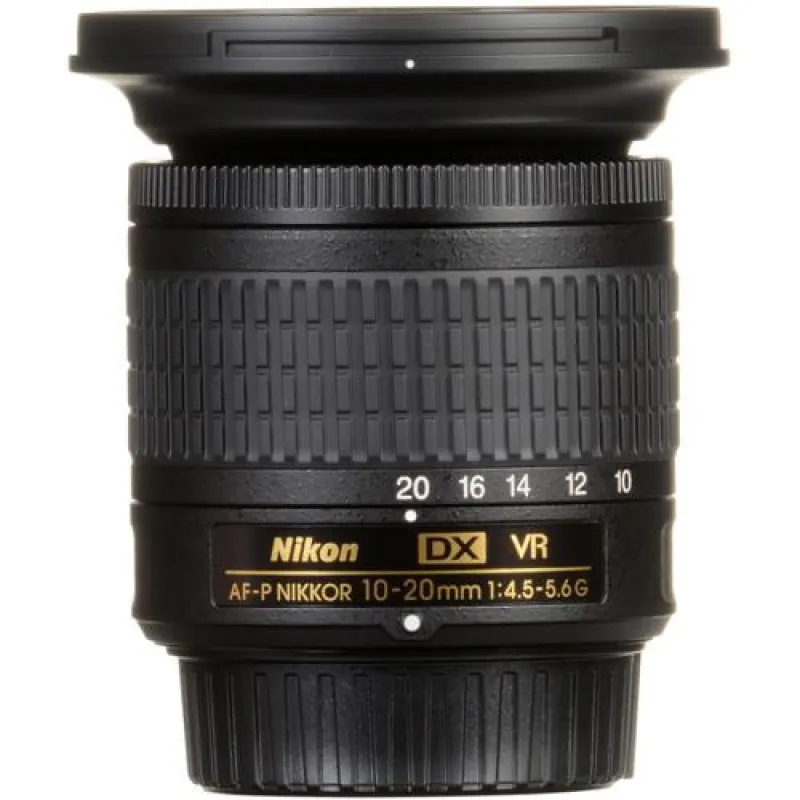

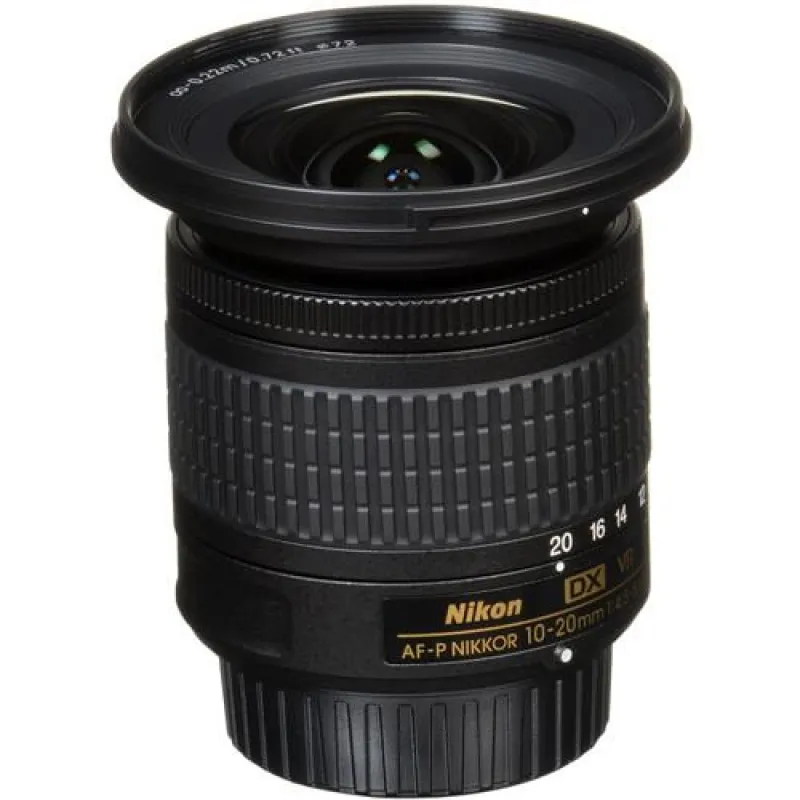

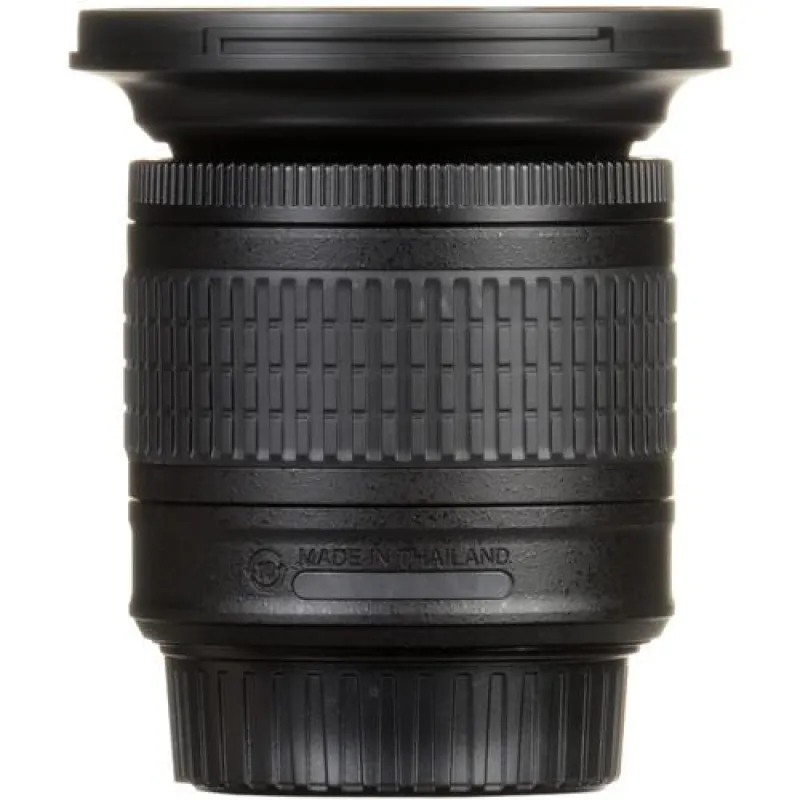

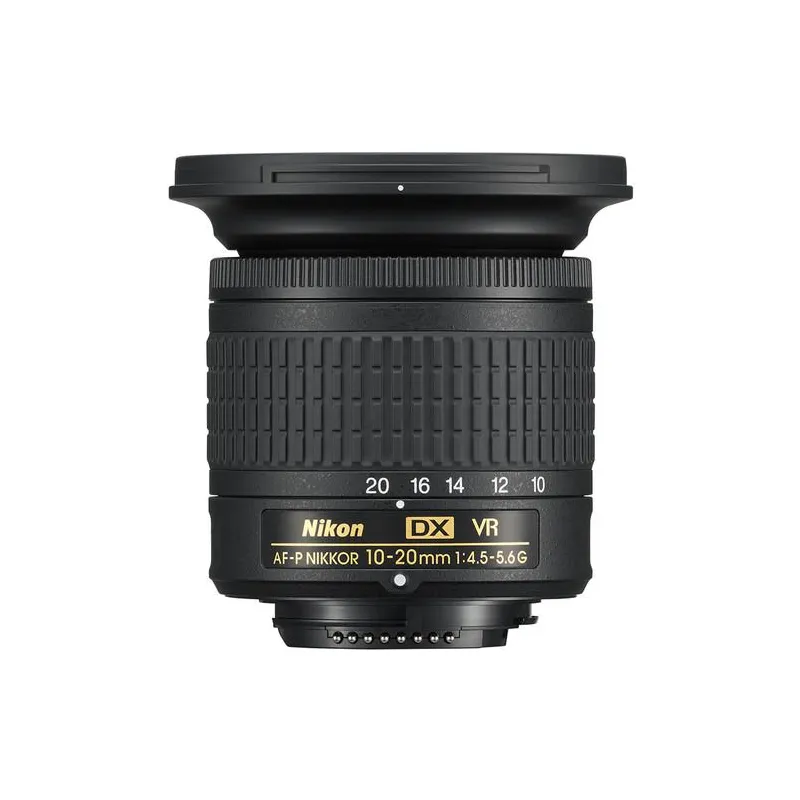

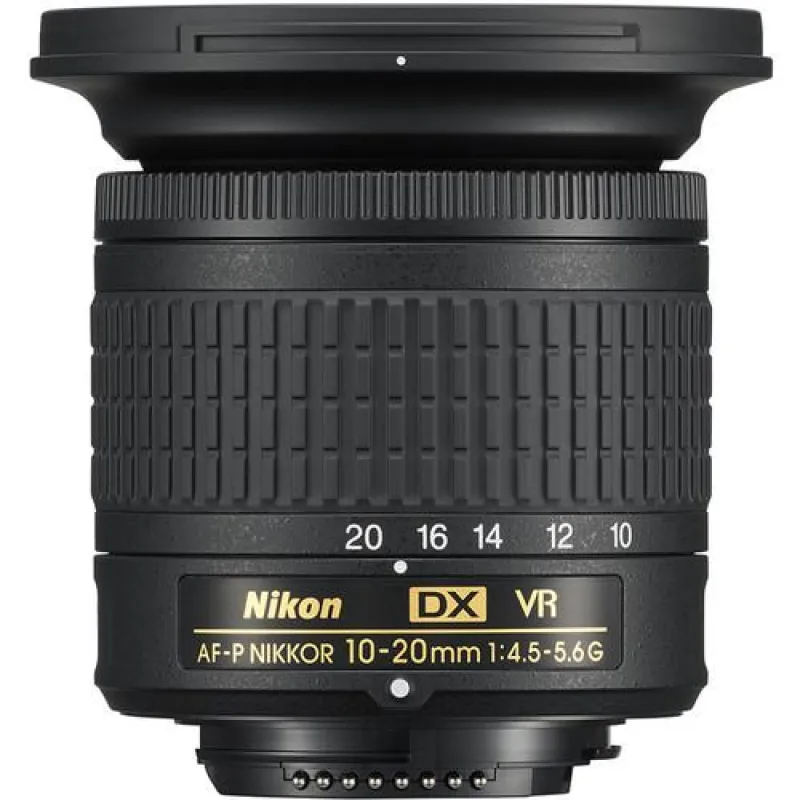

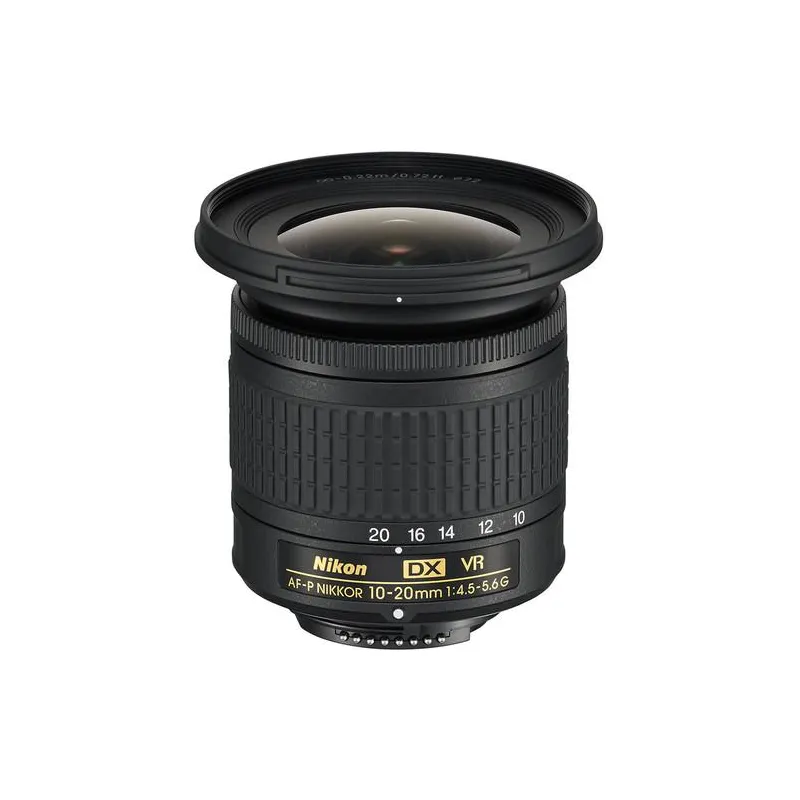

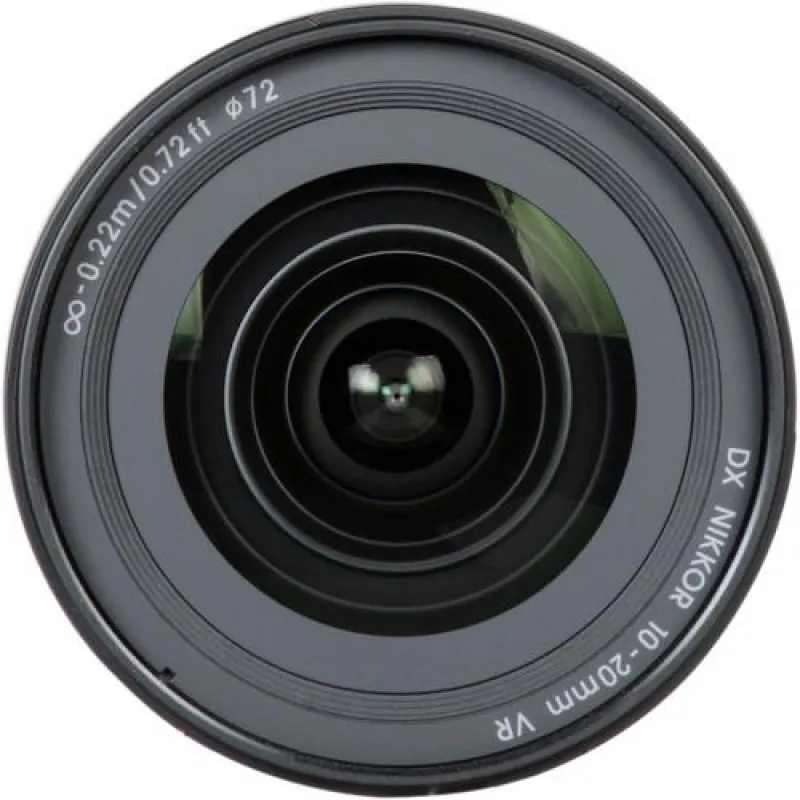

Nikon AF-P DX 10-20mm f/4.5-5.6G VR Wide Angle Lens
| Type of Product | Lenses |
| Lens mount | Nikon F |
| Lens Design | Zoom Lenses |
| Lens focus length, mm | 10-20 |
| Lens type | wideangle |
Compatibility
- Designed for Nikon DX-format (APS-C) DSLR cameras including D500, D7500, D5600, D5500, D3500, and others.
- Compatible with Nikon Z-series mirrorless cameras using the FTZ adapter.
- Limited functionality on some older Nikon DSLR models and 1-series mirrorless cameras with FT1 adapter; firmware update may be required.
Key Features
- F-Mount Lens with DX Format
- Aperture Range: f/4.5 to f/29
- Three Aspherical Lens Elements to reduce spherical aberrations and distortion
- Super Integrated Coating to minimize flare and ghosting
- Pulse Stepping Motor (AF-P) for fast, quiet, and smooth autofocus
- Vibration Reduction (VR) image stabilization for sharper handheld shots
- Rounded 7-Blade Diaphragm for pleasing bokeh
Optical and Mechanical Design
The lens offers a versatile ultra-wide to wide-angle zoom range equivalent to 15-30mm on a 35mm full-frame camera, ideal for landscapes, architecture, cityscapes, and interiors. Its optical design includes 14 elements in 11 groups, incorporating three aspherical elements to maintain sharpness and clarity throughout the zoom range. The Super Integrated Coating enhances contrast and color accuracy by suppressing internal reflections.
The internal focusing mechanism moves only internal lens groups, maintaining the lens length during focusing and enabling faster autofocus performance. Full-time manual focus override is supported.
Image Stabilization and Autofocus
Vibration Reduction (VR) technology compensates for camera shake, allowing sharper images during handheld shooting. The AF-P pulse stepping motor provides smooth, quiet, and rapid autofocus suitable for both still photography and video recording.
Specifications
- Focal Length: 10-20mm (equivalent to 15-30mm on 35mm format)
- Maximum Aperture: f/4.5-5.6
- Minimum Aperture: f/29
- Lens Mount: Nikon F
- Format Compatibility: APS-C (DX)
- Angle of View: 109° to 70°
- Minimum Focus Distance: 22 cm
- Maximum Magnification: 0.17x
- Optical Construction: 14 elements in 11 groups
- Diaphragm Blades: 7, rounded
- Focus Type: Autofocus with full-time manual override
- Image Stabilization: Yes (Vibration Reduction)
- Filter Size: 72 mm (front)
- Dimensions (Diameter x Length): 77 x 73 mm
- Weight: 230 g
