Laowa Probe Cine 24mm f/14 Macro 2:1 Lens for Canon EF, Sony E, MFT

Compatibility and Mount

• Canon EF mount lens with optional adapters available for Sony E and Micro Four Thirds (MFT) cameras, compatible with Canon, Panasonic, Blackmagic, and Sony systems.

Key Features

• Full-frame format with EF mount
• Aperture range from f/14 to f/40
• Two extra-low dispersion elements to reduce chromatic aberrations
• One extra refractive index element to minimize spherical aberrations and distortion
• Magnification ratio from 2:1 macro to infinity focus
• Minimum focus distance of 47 cm (1.5 feet) from the image plane
• Working distance of 2 cm (0.8 inches) from the subject

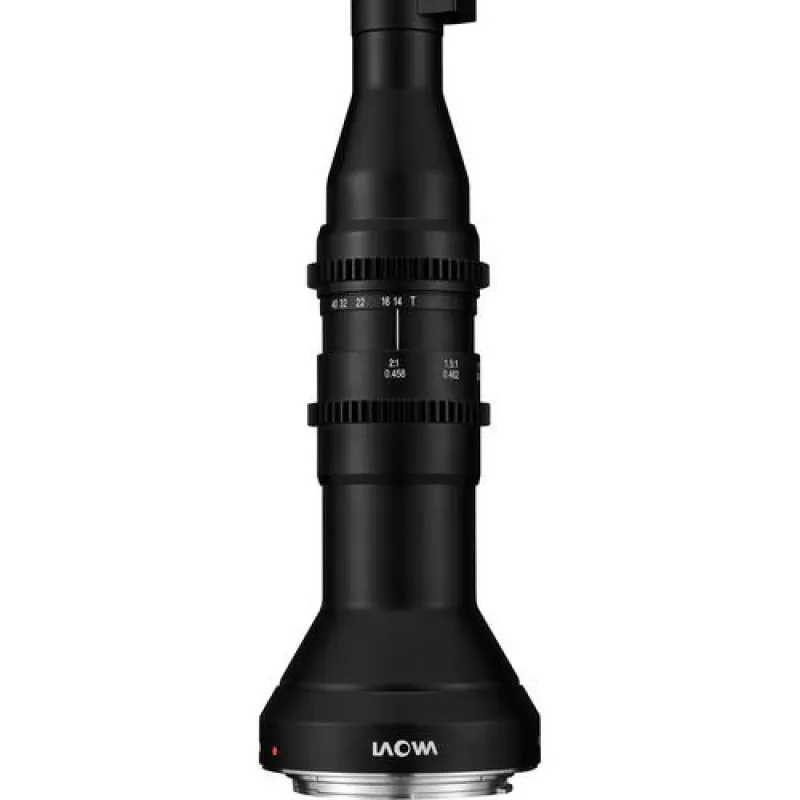

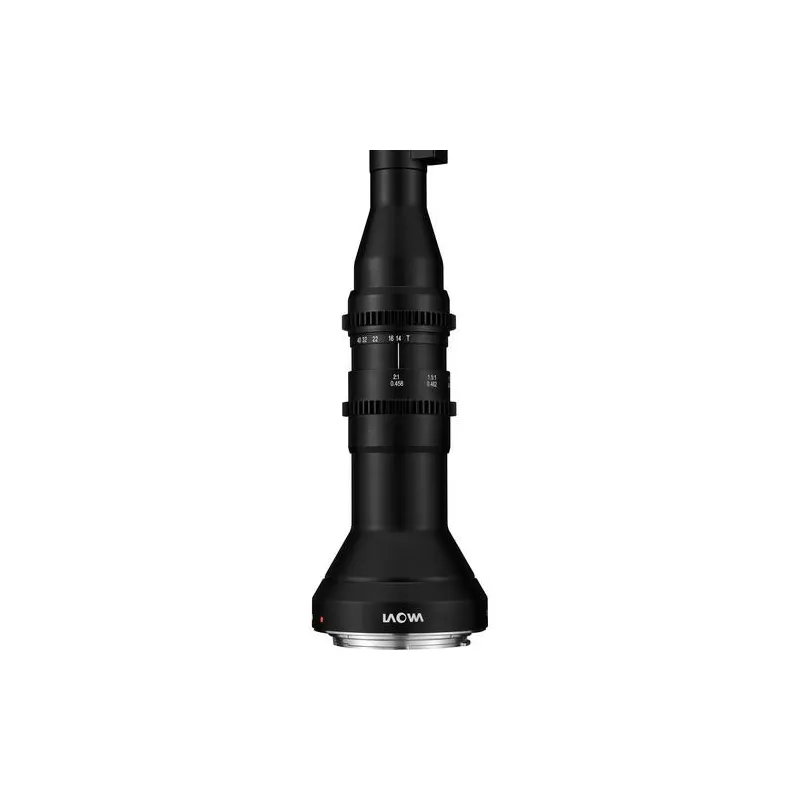

• Integrated focus and aperture gears for cine-style iris and focus pulls
• Long, slender lens barrel with a small 20 mm front diameter

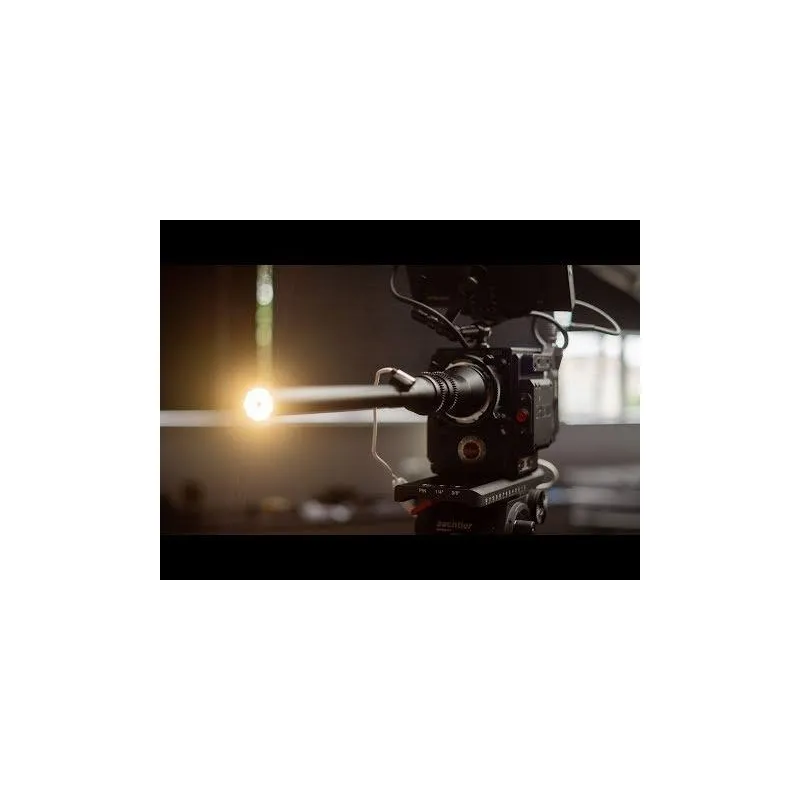

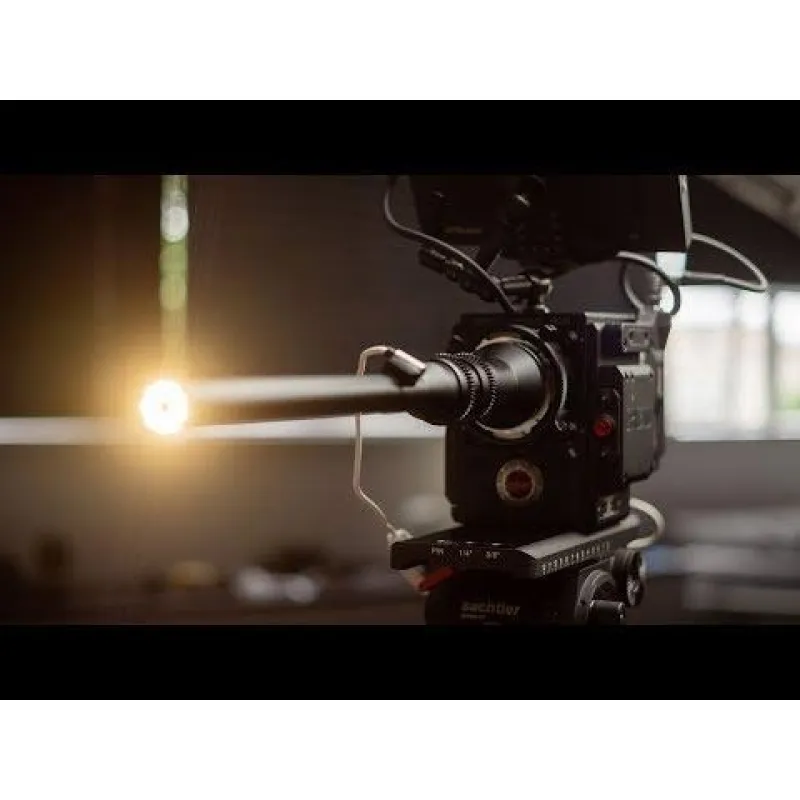

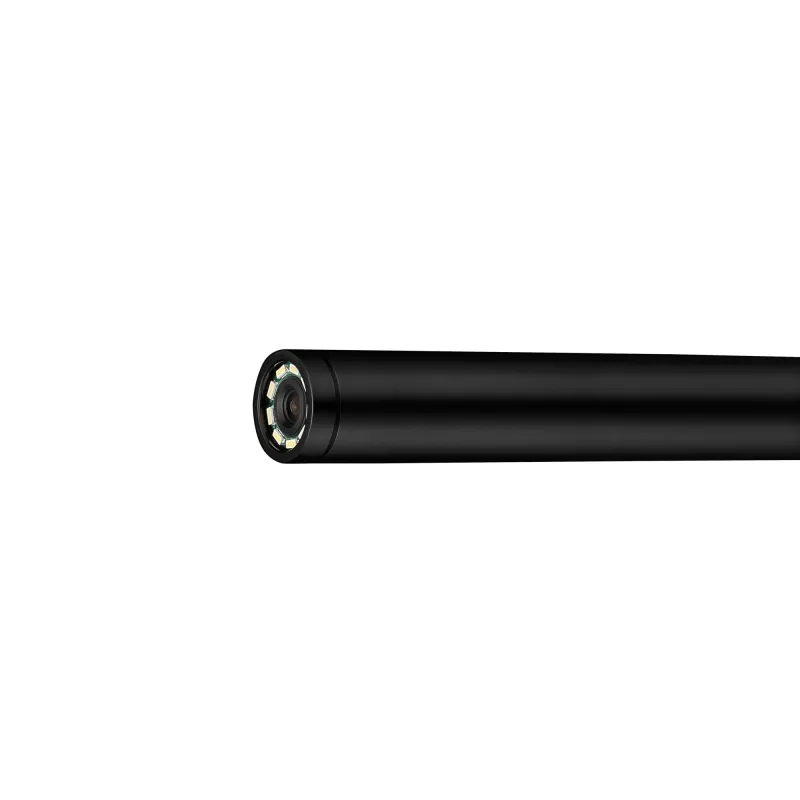

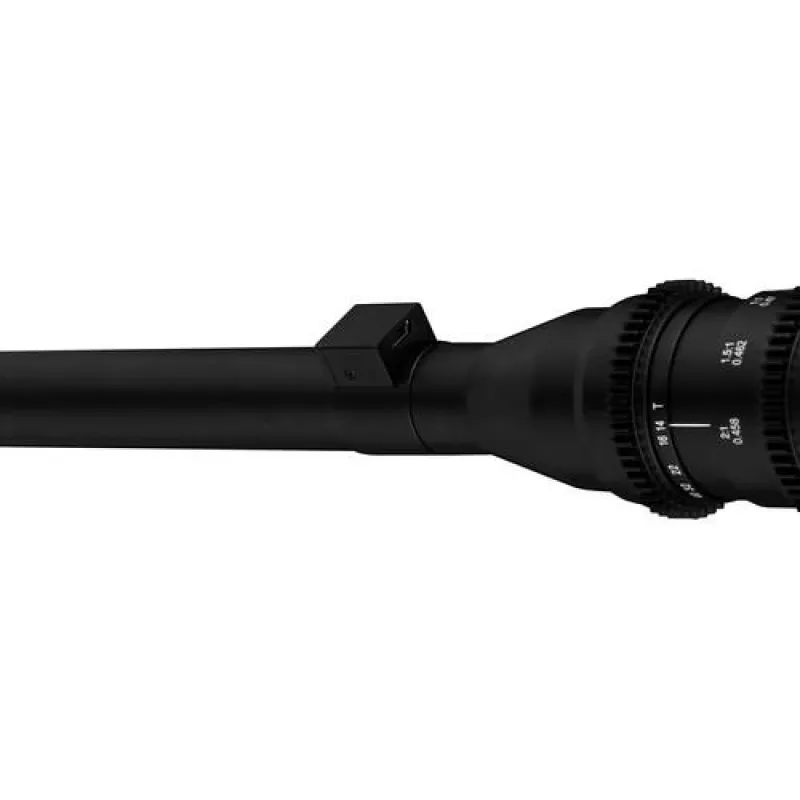

• Built-in LED ring light powered via micro-USB for close-up illumination
• Waterproof front section suitable for underwater or dusty environments

Design and Optical Performance

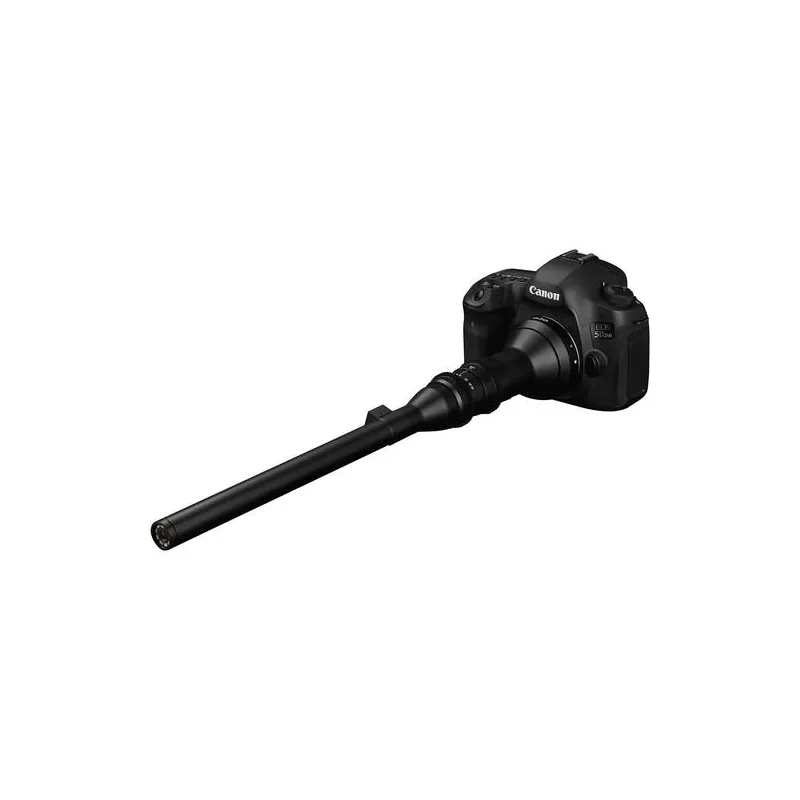

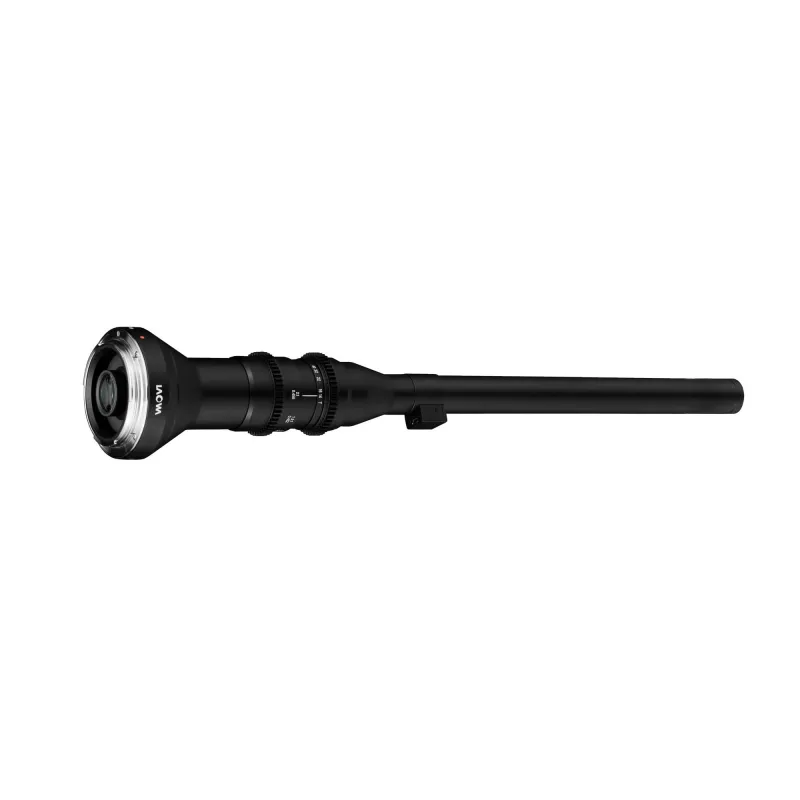

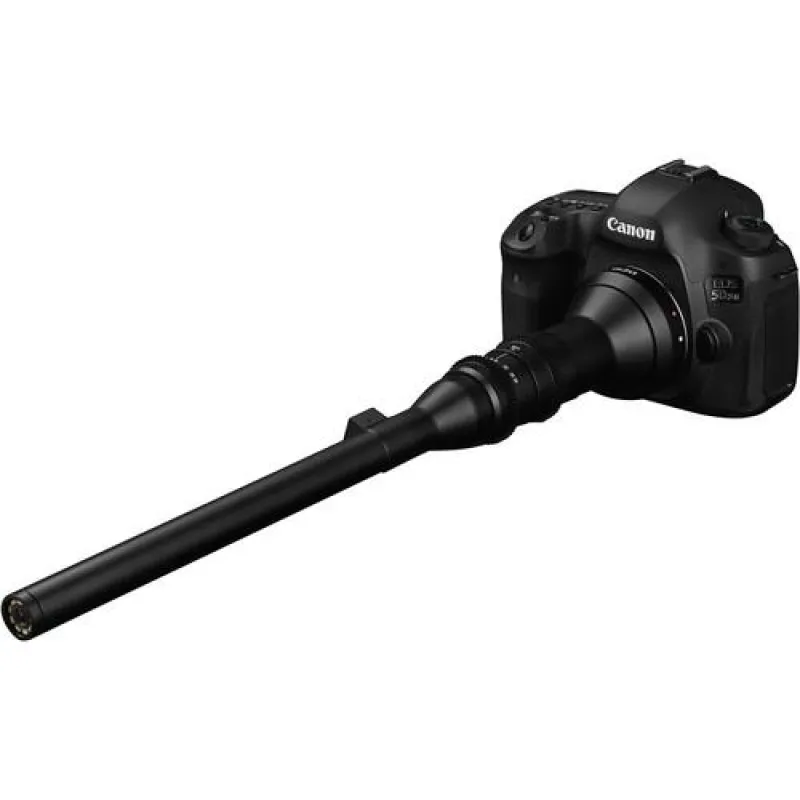

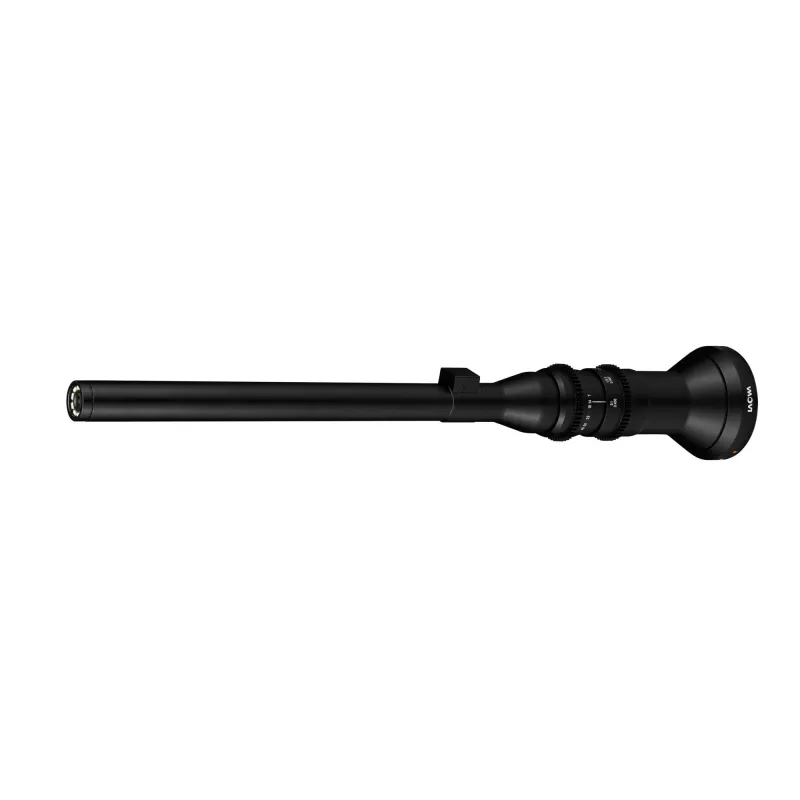

The Laowa 24mm f/14 Probe Cine lens features a unique long tubular barrel design that provides a distinctive bug-eye perspective. Despite the close working distance, the 408 mm (1.3 feet) length of the lens places the camera at a comfortable distance from the subject. The wide-angle 24mm focal length offers greater depth of field compared to traditional telephoto macro lenses, allowing more background detail and less subject isolation.

The optical construction includes 27 elements in 19 groups, incorporating two extra-low dispersion elements and one extra refractive index element to ensure high clarity, color accuracy, and sharpness by suppressing chromatic and spherical aberrations.

The front 20 mm diameter allows for unique "slide-in" shots and easier front lighting of close-up subjects. The waterproof front section enables shooting just beneath water surfaces or in challenging environments.

Video Optimization

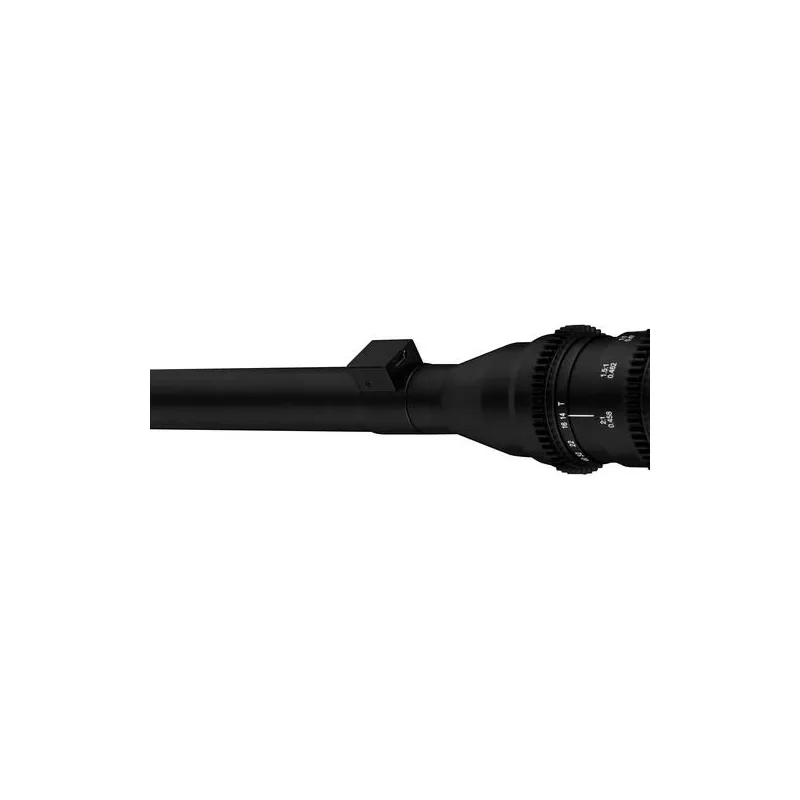

• This cine-mod version is optimized for video use with integrated gears on both aperture and focus rings, facilitating smooth iris and focus pulls using follow focus systems.
• Manual focus control allows focusing from 47 cm to infinity.
• Seven-blade diaphragm contributes to pleasing bokeh quality.

Specifications

• Focal Length: 24 mm
• Lens Mount: Canon EF
• Format Compatibility: Full Frame
• Maximum Aperture: f/14
• Minimum Aperture: f/40
• Diagonal Angle of View: 85° (Full Frame)
• Minimum Focus Distance: 47 cm (1.5 feet) from image plane
• Optical Design: 27 elements in 19 groups
• Iris Blades: 7
• Front Diameter: 20 mm
• Filter Thread: None
• Focus Scales: None
• Electronic Communication: No
• Maximum Magnification Ratio: 2:1 (greater than life-size)
• Dimensions (W x H): 60 x 60 mm
• Length: 408 mm (1.3 feet)
• Weight: 474 g (1 lb)
