JJC RF-SWA Wireless Remote Control for Canon RS-80N3

Wireless Precision Remote Control

The JJC RF-SWA is a wireless remote control designed for most DSLR and SLR cameras equipped with a remote control connector, specifically compatible with Canon RS-80N3. Operating on a 2.4GHz frequency with 16 selectable channels, it minimizes camera shake and enables capturing subjects in hard-to-reach positions.

Components and Power

This remote system includes three main parts: a transmitter, a receiver, and a connecting cable. Both the transmitter and receiver are powered by two AAA batteries each. The transmitter can trigger the receiver without requiring a direct line of sight, with an effective range of up to 50 meters when the receiver is connected to the camera.

Shooting Modes and Features

• Single shot
• 5-second delayed shot
• 3 continuous shots
• Unlimited continuous shots
• Bulb shooting mode

The transmitter can control multiple receivers simultaneously, allowing for versatile shooting setups. The receiver also functions as a cable switch and features a 1/4"-20 tripod socket on its bottom, enabling attachment to a tripod or other mounting accessories. Additionally, the removable clip can be attached to a tripod leg for convenience.

Technical Specifications

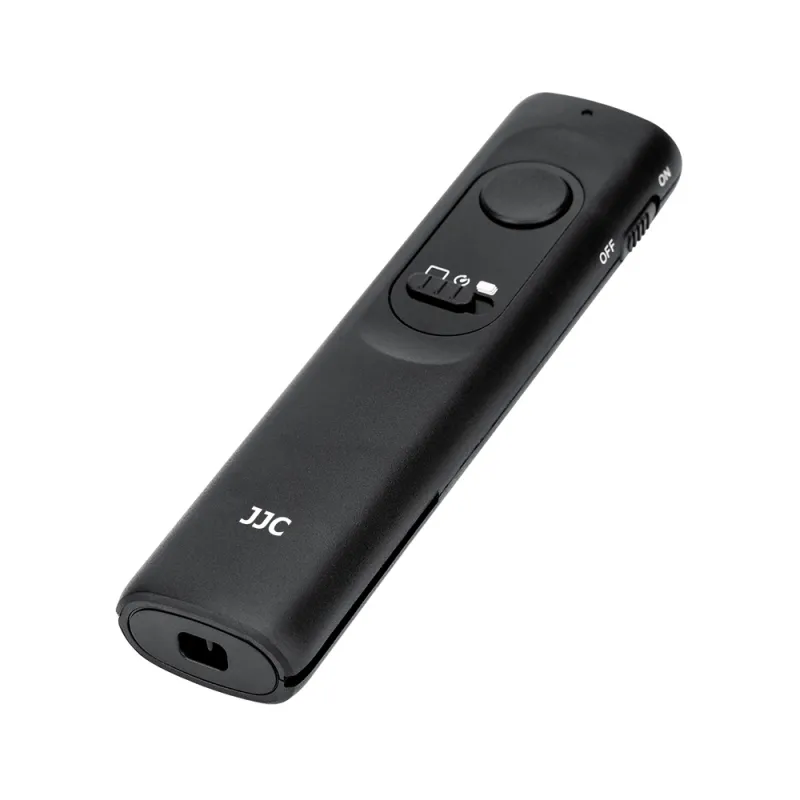

Transmitter

• Battery Type: 2 x AAA batteries
• Operating Temperature: 5°C to 40°C
• Net Weight: 24 g
• Dimensions: 29.4 x 120.2 x 16 mm

Receiver

• Battery Type: 2 x AAA batteries
• Operating Temperature: 5°C to 40°C
• Net Weight: 26 g
• Dimensions: 38 x 64.5 x 28.9 mm

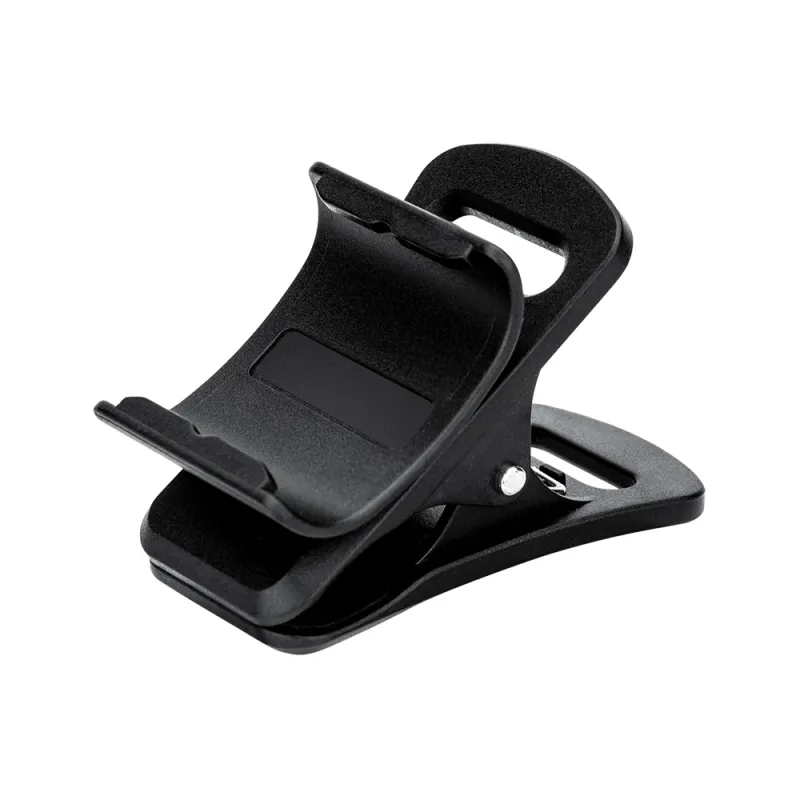

Removable Clip

• Compatible Thickness: Approximately 10 mm to 25 mm
• Net Weight: 14.2 g
• Dimensions: 53.5 x 30 x 43.7 mm

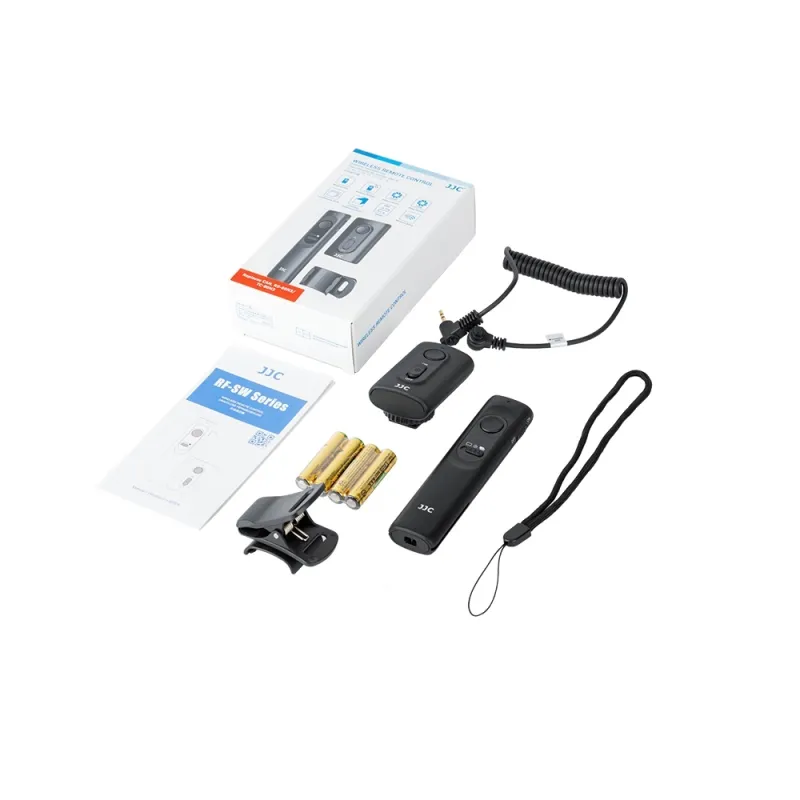

Package Contents

• 1 x Transmitter
• 1 x Receiver
• 4 x AAA Batteries
• 1 x Connecting Cable
• 1 x Removable Clip
• 1 x Lanyard
• 1 x Instruction Manual
