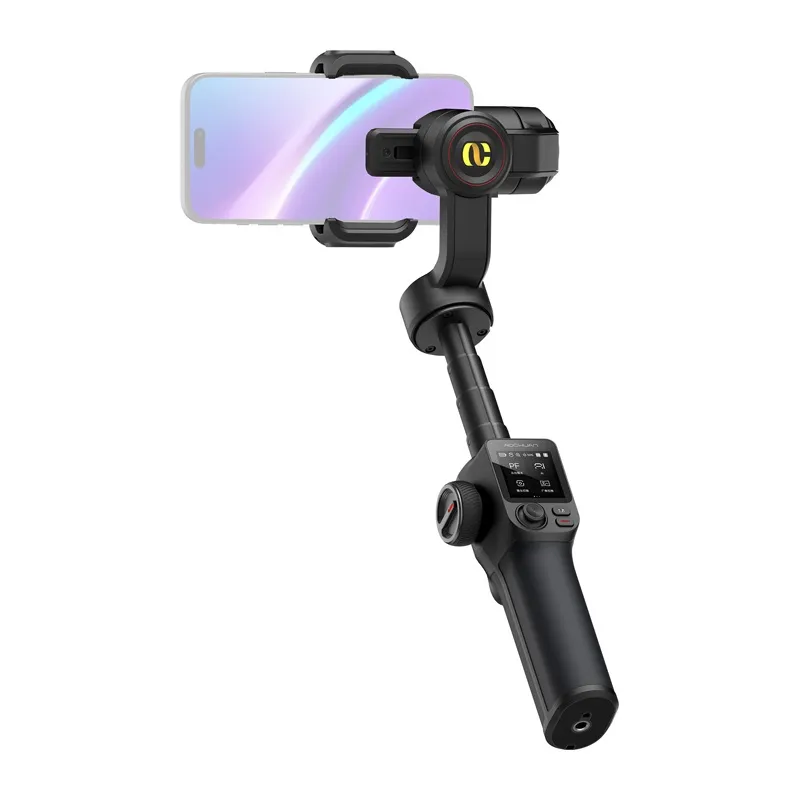

AOCHUAN S3 Gimbal with Additional Screen (Black)

AOCHUAN S3 3-Axis Smartphone Gimbal with Additional Touchscreen (Black)

The AOCHUAN S3 is a sophisticated 3-axis gimbal designed for smartphones with widths between 52 and 87 mm and thicknesses up to 12 mm. It features an additional touchscreen, a dual AI system for tracking, and a built-in 150-lumen LED light to enhance video quality in low-light conditions.

Advanced Stabilization and Movement Range

This gimbal provides professional-grade stabilization to reduce shake during walking, dynamic shots, or movement, resulting in smooth and natural-looking videos without extra editing. The pan axis offers a full 360° rotation, the tilt axis 310°, and the roll axis 90°, allowing extensive freedom in framing. It supports a maximum load capacity of up to 500 g when the telescopic arm is not extended, accommodating most modern smartphones safely.

AI Tracking and Gesture Control

Equipped with front and rear cameras, the dual AI system automatically recognizes and tracks faces or selected objects with 360° tracking capability. This is ideal for vlogging, live streaming, workout recording, and social media content creation. Gesture control enables starting or stopping tracking remotely, which is especially useful for solo creators.

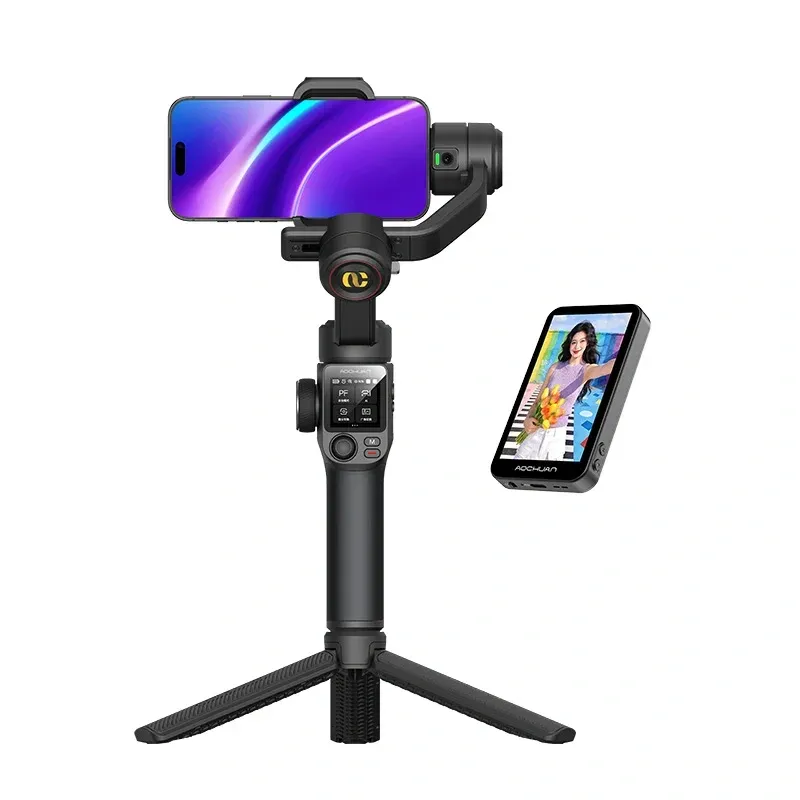

Touchscreen Interface and Precise Controls

The additional touchscreen provides quick access to gimbal settings and easy switching between five operating modes: PF (Pan Follow), F (Follow), POV (Point of View), DM (Double Mode), and GO. It also allows smooth focus and zoom adjustments, giving users enhanced control over shot composition. The intuitive interface suits both beginners and advanced users.

Built-in LED Light and Telescopic Arm

The integrated LED light delivers 150 lumens at a color temperature of 6000 K, improving illumination for indoor or nighttime recordings. The aluminum telescopic arm extends up to 128 mm, facilitating selfies and wider shots without additional equipment.

Battery and Portability

The gimbal is powered by a 2550 mAh (7.2 V) Li-ion battery, offering up to 10 hours of standby time or approximately 6.4 hours with the LED light at full brightness. Charging takes about 3 hours via a 5 V / 2 A power source. The device operates reliably in temperatures from -10°C to 55°C. When folded, it measures 155 × 61 × 305 mm, making it compact for transport and storage in the included protective case. The gimbal weighs 562.5 g without the tripod, ensuring comfortable handling.

Included Accessories

• AOCHUAN S3 Gimbal
• Tripod
• Protective case
• USB-C to USB-C cable
• USB-A to USB-C cable
• User manual

Technical Specifications

• Manufacturer: AOCHUAN
• Model: S3
• Type: 3-axis smartphone gimbal
• Color: Black
• Compatible phone width: 52–87 mm
• Maximum phone thickness: up to 12 mm
• Load capacity: up to 500 g (without extension arm)
• Panoramic rotation range: 360°
• Tilt range: 310°
• Roll rotation range: 90°
• Operating modes: PF / F / POV / DM / GO
• AI tracking: 360°
• Gesture control: Yes
• Touchscreen: Yes
• Focus and zoom adjustment: Yes
• Built-in LED light: 150 lumens
• Light color temperature: 6000 K
• Battery: Li-ion 7.2 V / 2550 mAh
• Operating time: Up to 10 hours standby, up to 6.4 hours with LED light
• Charging time: Approximately 3 hours
• Weight: 562.5 g (without tripod)
• Dimensions unfolded: 127 × 114 × 288 mm
• Dimensions folded: 155 × 61 × 305 mm
