SmallRig 5108 Power Bank Charger Case Kit for Canon LP-E6P / LP-E6NH Camera Batteries

Integrated 13,600mAh Power Bank

This charger case features a built-in 13,600mAh power bank, enabling charging of Canon LP-E6P / LP-E6NH camera batteries without an external power source. It also powers other devices such as smartphones via its USB-C port or built-in cable, providing a versatile outdoor power solution.

Dual-Channel Charging Design

The case supports simultaneous charging of two batteries or single-battery charging. It can fully charge two batteries in approximately 2.5 hours, significantly reducing charging time for improved efficiency.

High-Definition Battery Level Display

A clear display shows the battery level for both battery slots and the internal power bank, even when disconnected from power. The battery icon flashes when levels are critically low, helping to avoid low-battery issues during shoots.

Fast Charging and Versatile Recharging

The fast-charging case includes a 36W USB-C port and a built-in cable, both supporting input and output. It takes about 3.5 hours to fully charge two camera batteries and the internal power bank. Recharge options include wall adapters, car chargers, or external power banks for convenient top-ups anywhere.

Advanced Safety Features

Internal circuitry provides over-temperature and over-voltage protection by monitoring temperature and voltage to slow charging during overheating and cut off power in case of overvoltage. Trickle charging near full capacity preserves battery health for safe shooting sessions.

Certifications

• FCC
• CE
• RoHS
• ISED
• PSE
• KC
• RCM

Technical Data

• Product Weight: 429 g
• Material: PC + ABS
• Power Bank Rated Capacity: 7.27 V / 6800 mAh / 49.436 Wh

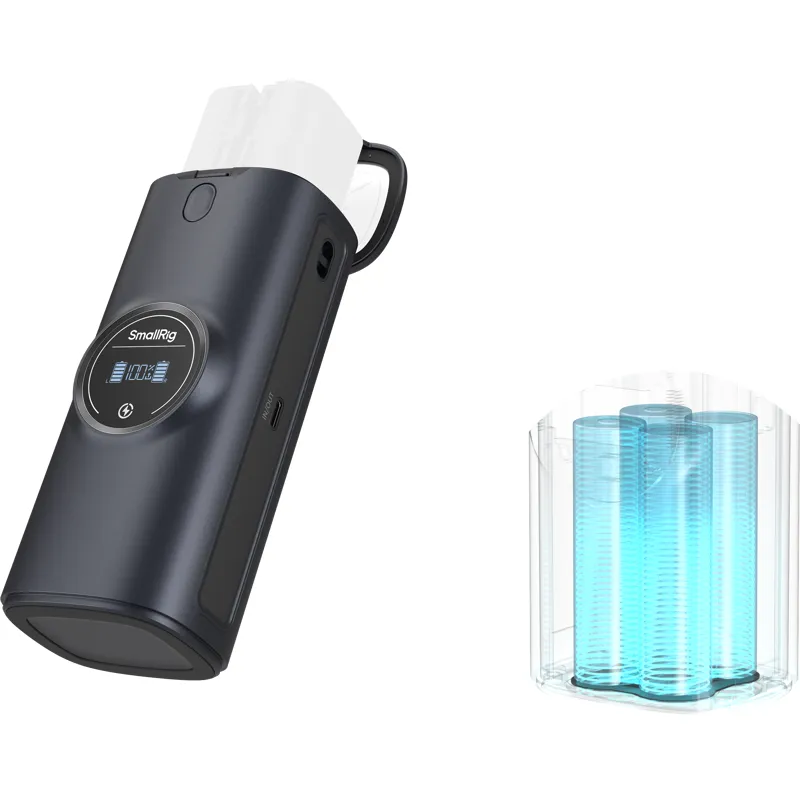

• Total Cell Capacity: 13,600 mAh (3400 mAh x 4)
• USB-C1 Port Input/Output: 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A; 36 W max
• USB-C2 Cable Input/Output: 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A; 36 W max
• C1 + C2 Output: 5 V⎓3 A; 15 W max
• C1 Input + C2 Output: C1 Input: 5 V⎓4 A; 20 W max; C2 Output: 5 V⎓1 A; 5 W max
• C1 Output + C2 Input: C1 Output: 5 V⎓1 A; 5 W max; C2 Input: 5 V⎓4 A; 20 W max
• USB-C Protocols: PD3.0, QC2.0
• Battery Bay Rated Output (Per Channel): 8.4 V⎓1 A; 8.4 W
• Charging Temperature Range: 0°C to 45°C
• Discharging Temperature Range: -18°C to 60°C

Compatibility

• Compatible with Canon LP-E6P and LP-E6NH batteries, supporting both OEM and third-party batteries

Packaging Includes

• Power Bank Charger Case Kit for Canon LP-E6P / LP-E6NH
