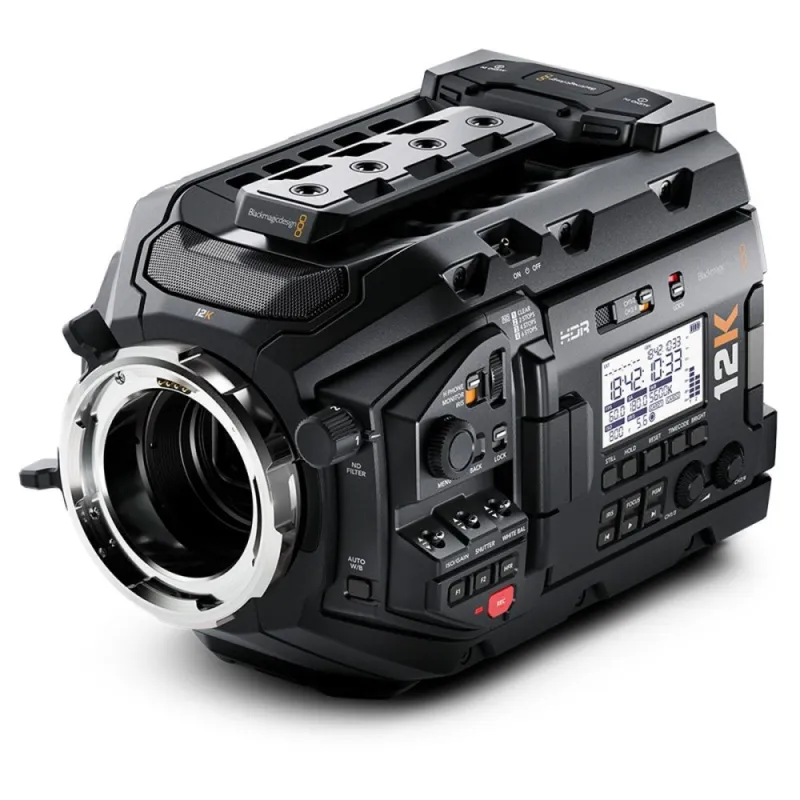

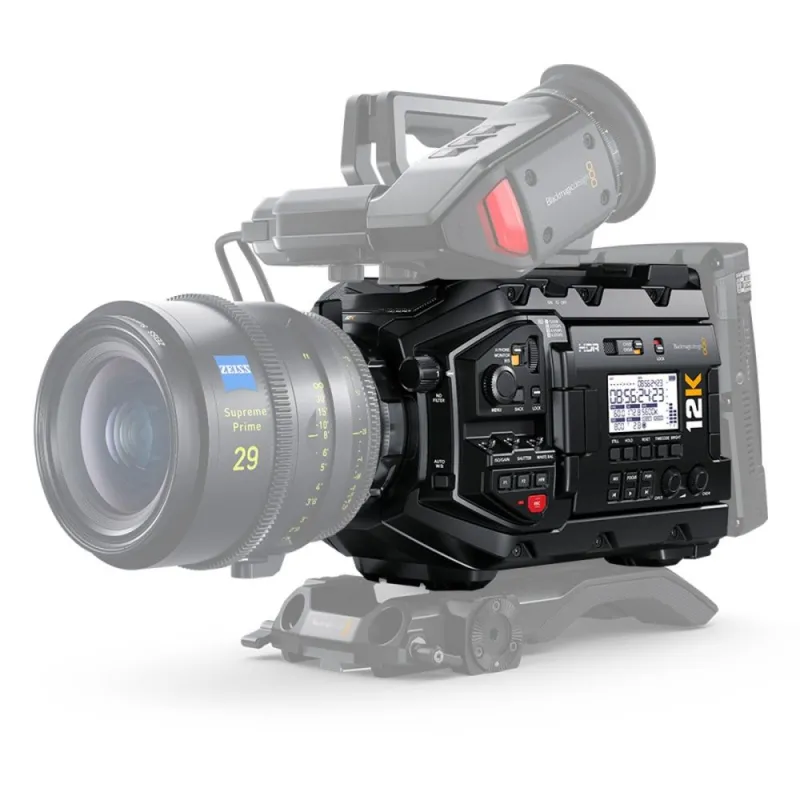

Blackmagic Design URSA Mini Pro 12K OLPF

Sensor and Image Quality

• Effective Sensor Size: 27.03 mm x 14.25 mm (Super 35)
• Resolution: 12,288 x 6,480 (12K DCI) with 80 megapixels per frame
• Dynamic Range: 14 stops for high detail in shadows and highlights
• Color Science: Third generation URSA Mini Pro with new color science for enhanced image quality

Recording and Frame Rates

• Recording Resolutions include:
• 12K DCI (12,288 x 6,480), 12K 16:9 (11,520 x 6,480), 12K 2.4:1 (12,288 x 5,112), 12K anamorphic (7,680 x 6,408)
• 8K DCI (8,192 x 4,320), 8K 16:9 (7,680 x 4,320), 8K 2.4:1 (8,192 x 3,408), 8K anamorphic (5,120 x 4,272)
• 6K Super16 (6,144 x 3,240), 4K Super16 (4,096 x 2,160), 4K DCI (4,096 x 2,160), 4K 16:9 (3,840 x 2,160), 4K 2.4:1 (4,096 x 1,704), 4K anamorphic (2,560 x 2,136)
• Supported project frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• High-speed frame rates:
• 12K 17:9 Full up to 60 fps
• 12K 2.4:1 up to 75 fps
• 8K DCI Full up to 120 fps
• 4K DCI Full up to 120 fps
• 8K 2.4:1 and 4K 2.4:1 up to 160 fps
• 6K Super16 up to 120 fps
• 4K Super16 up to 240 fps

Lens and Exposure Control

• Lens Mounts: EF and F-Mounts, user-replaceable
• Aperture Control: 12-pin broadcast connector for electronic control of compatible lenses via optional EF mounts
• Built-in ND Filter Wheel: Four IR ND filter positions - Clear (no filter), 2 stops, 4 stops, and 6 stops
• Focus: Auto-focus triggered by focus button with compatible lenses; tap and hold on LCD to select focus area
• Aperture Adjustment: Manual aperture wheel and touchscreen slider; auto aperture button to prevent clipped pixels in film mode; exposure automation based on average scene contrast in video mode

Display and Controls

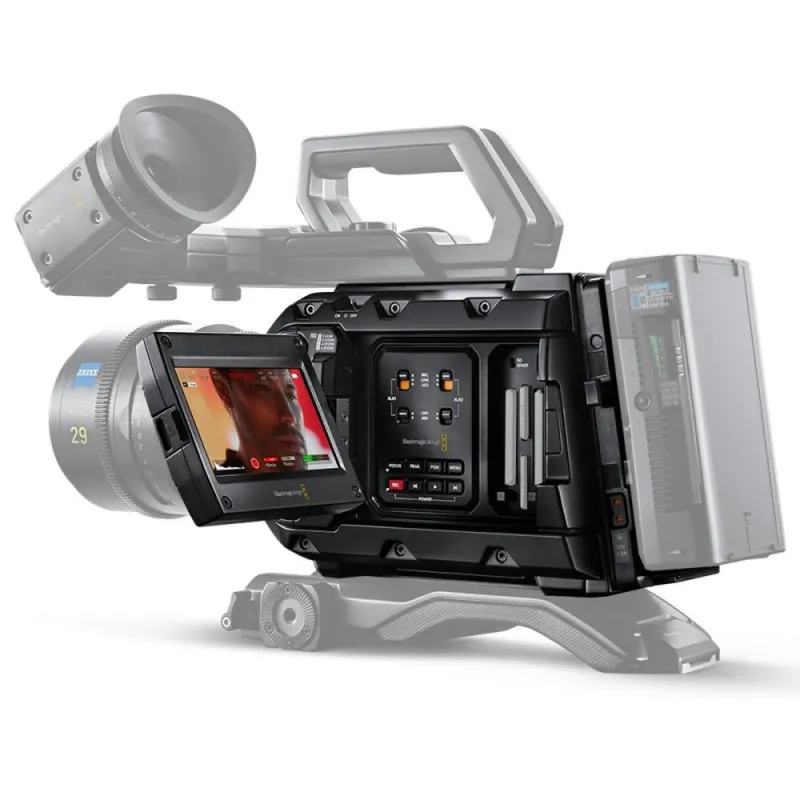

• Screen: 4-inch LCD with capacitive touchscreen
• Controls: Touchscreen menus, physical buttons for additional functions, and 3 assignable shortcut keys
• Metadata Support: Automatic lens data acquisition for compatible PL and electronic EF lenses; automatic storage of camera settings and film slate data including project, scene number, take, and notes
• Timecode Generator: Highly accurate with less than one frame deviation every 8 hours

Connectivity

• Video Inputs: 1x 12G-SDI
• Video Outputs: 1x 12G-SDI, 1x 3G-SDI for monitoring
• SDI Rates Supported: 1.5G, 3G, 6G, 12G
• Audio Inputs: 2x XLR analog inputs, switchable between microphone, line levels, and AES audio; supports phantom power
• Audio Outputs: 1x 3.5 mm headphone jack supporting iPhone microphone for talkback
• Reference Inputs: Tri-Sync, Black Burst, Timecode
• Remote Control: 1x 2.5 mm LANC jack for record start/stop, aperture, and focus adjustment with compatible lenses
• Computer Interface: 1x USB Type-C 3.1 Gen 2 port for power when recording to external drives; 1x USB Type-C port for software updates

Audio Features

• Integrated stereo microphone
• Built-in mono speaker

Standards and Compliance

• HD Video Standards: 1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps), 1080i (50, 59.94, 60 fps)
• Ultra HD Video Standards: 2160p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps)
• SDI Compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI Audio Sampling Frequency: 48 kHz, 24 bit

Media and Storage

• Media Slots: 2x CFast 2.0 card slots, 2x SD UHS-II card slots
• Expansion Port: 1x USB-C 3.1 Gen 2 expansion port for power when recording to external drives
• Alternative Media: 1x 2.5-inch slot for 7 mm and 9.5 mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder
• Media Format: Supports ExFAT (Windows/Mac) and HFS+ (Mac)

Included in Delivery

• Blackmagic URSA Mini Pro 12K OLPF Body
• Turret dust cap
• PL lens mount
• Power supply
• DaVinci Resolve Studio activation key

Note: All specifications are subject to change without notice. Please refer to the latest manufacturer information for detailed specifications.
