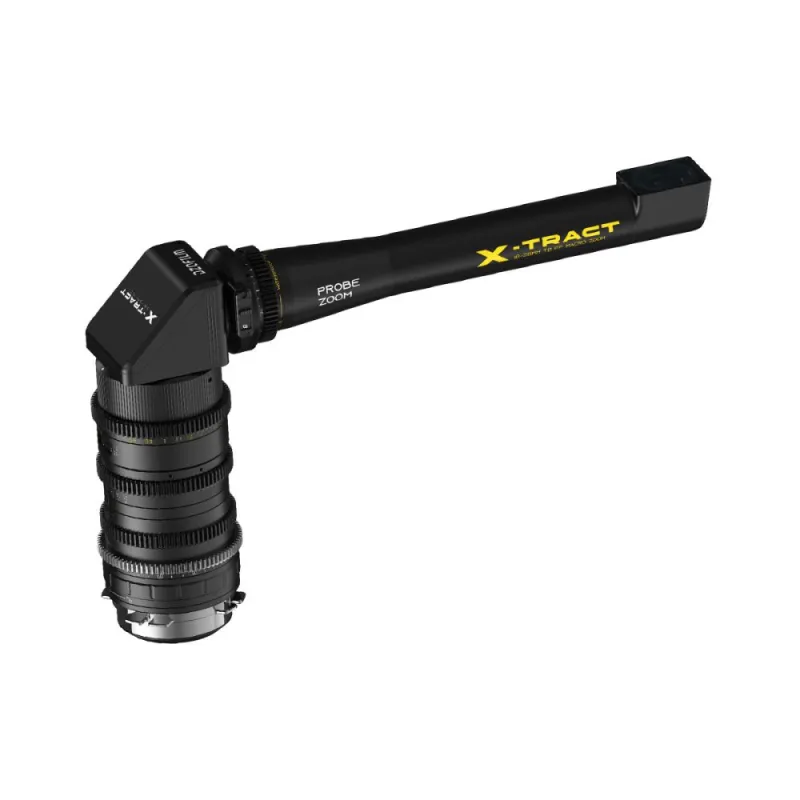

DZOFILM X-TRACT 18-28mm T.8 FF 360 Probe Macro Zoom Lens

Versatile Macro Cinematography Lens

The DZOFILM X-TRACT 18-28mm T8 wide-angle probe zoom lens redefines macro cinematography by offering interchangeable front modules with 0° (direct view) and 90° (right-angle) options. This design provides versatile shooting perspectives and extensive creative potential. It is designed for full-frame sensors and fully compatible with Super 35 formats, delivering an equivalent 22-35mm T8 range in Arri Alexa 35 Open Gate mode, making it ideal for commercial filmmaking.

Interchangeable Front Modules

• Allows seamless switching between direct-view and right-angle setups.
• Enables easy focal and angle adjustments even in confined spaces.
• Enhances spatial depth and layering in visuals for greater storytelling flexibility.

Key Features

• Zoom function with parfocal construction
• Constant maximum aperture of T8
• High-resolution film quality optics
• Waterproof, dustproof, and fogproof design
• Robust full metal housing made from aerospace-grade aluminum alloy
• Lightweight and compact form factor
• Exceptional magnification and focusing options
• Seven high refractive index lenses
• Industry standard M0.8 gear pitch
• User-friendly manual controls

Dual Lens System for Comprehensive Macro Perspectives

The 0° (direct view) and 90° (periscope) probe zoom lenses cover 95% of probe shooting angles available on the market. The 90° lens features a 360° rotating ring for flexible horizontal adjustments, enhancing camera movement and framing options. Its right-angle design unlocks endless macro creativity with adjustable focal lengths.

The 90° lens incorporates a newly designed square front element to improve relative illumination and reduce light loss. A simplified prism structure with a PET silver-coated reflective layer enhances reflectivity, maintaining a constant T8 aperture and consistent brightness across all focal lengths. Note that images captured with the 90° lens require mirror correction.

360° Periscope Shooting Modes

• Front Mode (0°): 30 cm probe shaft moves in a 55 cm arc for smooth vertical shots in tight spaces.
• Oblique Mode (0-180°): Dual rotation rings enable Dutch angles and horizon adjustments without quality loss.
• Rear Mode (180°): Foldable design with 360° rotation for dramatic "barrel roll" effects in confined areas.

Modular System for Easy Detachment

The specially designed inter-lens mount system offers exceptional flexibility for detachable kits, allowing seamless transitions from pre-production to on-location shooting. It supports diverse team requirements and expanded framing options. A modular detachable version is available, providing greater flexibility and reliable support for creative workflows.

Note: The detachable model cannot be upgraded to a complete unit, and the fixed model cannot be disassembled or interchanged.

Optical Design and Image Quality

The X-tract 18-28mm T8 0° lens features 7 high-refractive-index (HRI) lenses and 6 extra-low-dispersion (ED) lenses, balancing size and weight while minimizing chromatic aberrations, distortions, and common optical flaws in probe lenses. Its innovative differential distribution of HRI lenses delivers prime-level image quality and accurate color temperature, effectively reducing the yellowish tint often seen in other probe lenses.

Distortion is maintained within ±2% across the zoom range, with near-zero distortion and focus breathing at 24mm, ensuring precise rendering of intricate micro-details.

Enhanced Creative Control

The combination of prism structure and 360° rotating ring adds an additional dimension for creative adjustments, providing a more immersive macro experience. The lens series features a smooth 300° focus throw, tested for high-frequency durability and micron-level assembly precision, enabling precise focus shifts and flexible depth of field control.

The X-tract lenses have a parfocal design, locking focus during zooming. This ensures sharp focus when capturing subtle movements or quickly changing focal lengths, enabling the classic Hitchcock dolly zoom effect even in macro shooting.

Durability and Environmental Resistance

• Constructed from aerospace-grade aluminum alloy for lightweight robustness.
• 25 μm anodized coating enhances hardness, abrasion resistance, and corrosion protection.
• Tested for stability and durability in extreme temperatures from -30°C to 70°C.
• IP57-rated dust and water resistance; waterproof to over 28 cm.
• Front lens element features hydrophobic anti-fog coating to reduce water and fog accumulation.

Technical Specifications

• Focal Length: 18-28 mm
• Lens Type: Periscope 360°
• Mount: PL
• Aperture Range: T8 to T45
• Image Circle: 43.2 mm
• Optical Construction: 27 elements in 20 groups
• Flange Distance: 52 mm
• Close Focus Distance (from sensor plane): 0.47 m
• Close Focus Distance (from lens front): 6 mm
• Zoom Ratio: 1.55x
• Magnification Factor (at 28 mm): 2.1x
• Iris Control: Manual, 72° rotation
• Focus Control: Manual, 300° rotation
• Zoom Control: Manual, 100° rotation
• Front Diameter: 37.7 x 30.58 mm
• Length (installed on camera): Horizontal 161 mm, Vertical 302 mm
• Iris Blades: 10 pieces
• Gear Pitch: 0.8 Mod
• Material: Aluminium Alloy
• Weight: Approximately 1144 g

Included in the Box

• 1× DZOFilm X-TRACT 18-28mm T8 Probe Macro Zoom Lens 360°
• 1× Y-Bracket
• 1× UV Filter
• 1× Shim Box
• 1× Screwdriver
• 3× O-clamps
• 1× After Sales Card
• 1× Hard Case
