Lumantek EZ-SHV+ converts 3G/HD/SD-SDI to HDMI with LCD display, scaler, eye-pattern and audio level monitoring, plus automatic cable length detection.

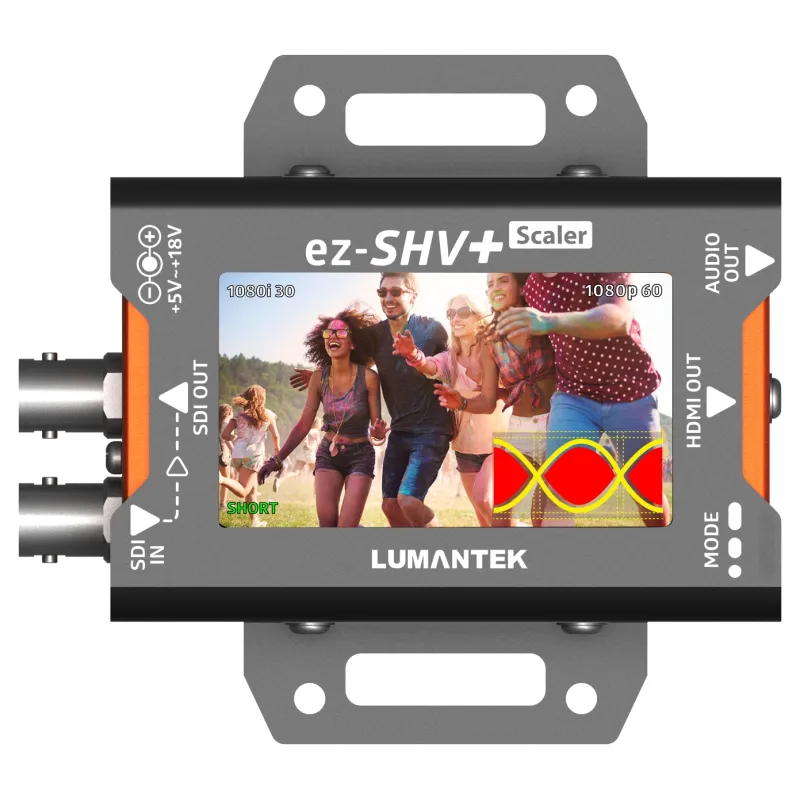

Lumantek 3G/HD/SD-SDI to HDMI Converter with LCD Display + Scaler EZ-SHV+
Product ID: 37846
SKU: 37846
Model: EZ-SHV+
Ean: 0887367000276
Condition: New product
Manufacturer: Lumantek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
24/7 Video Monitoring
2.7 inch TFT LCD Screen
- Monitors Eye-Pattern, input/output source resolution, and cable length in real time.
Audio Level Meter
- Displays audio levels on the LCD screen for easy sound monitoring.
Wall Mountable Design
- Includes side bracket for optional wall mounting installation.
Automatic Cable Length Detection
- Detects cable length automatically up to 190 meters for 3G-SDI.
- Cable length indicated as SHORT, MEDIUM, or LONG.
Low Power Consumption
- Maximum power consumption less than 3 watts.
- Accepts input voltage from 5 V to 18 V for flexible power options.
Global Power Adapter Included
- Comes with AC/DC power adapter and three interchangeable plugs for worldwide use.
Key Features
Eye-Pattern (Eye-Diagram) Monitoring
- Useful for assessing input SDI cable quality by displaying the eye-pattern.
- A thick eye-pattern indicates poor video signal quality.
Audio Level Meter
- Enables easy monitoring of audio signals on the LCD screen.
Input and Output Ports
- Input: 1 x SDI
- Output: 1 x HDMI, 1 x SDI (Loop through)
Resolution and Display Controls
- Selectable output resolution from 480i to 1080p via dip switch.
- Adjustable LCD brightness and screen ratio settings.
Product Usage
- Converts 3G/HD/SD-SDI signals to HDMI output with scaling capabilities.
- Ideal for video monitoring, signal quality checking, and audio level monitoring in professional video environments.
