- Converts 3G-SDI to 2110 IP Video Systems
- 3G-SDI Inputs, Outputs & Loop Outputs
- Integrated 2.2" LCD Display
- Resolutions up to 1080p60
- PoE+ Support

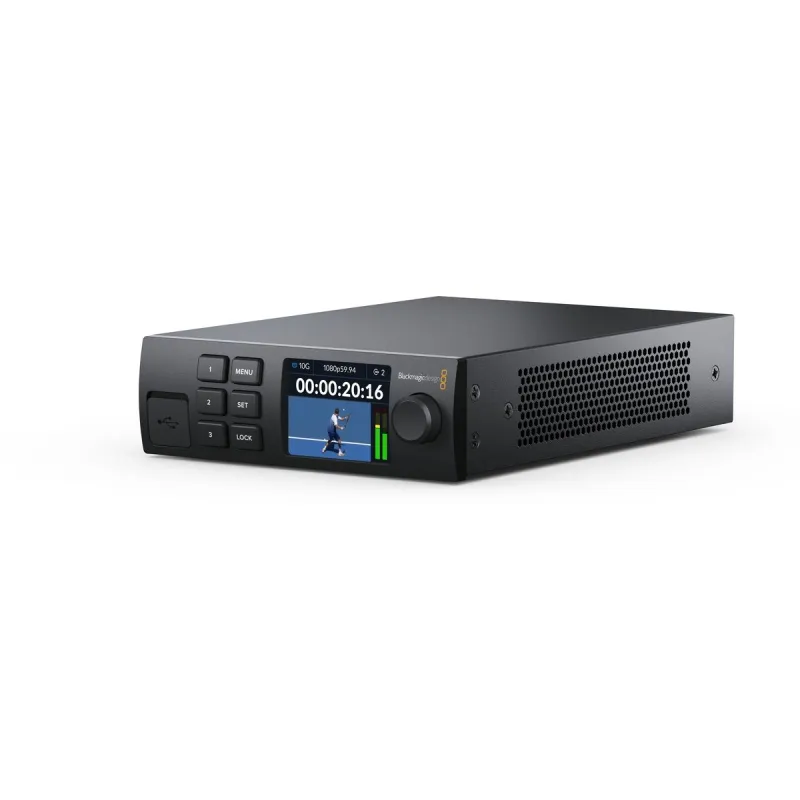

Blackmagic Design 2110 IP Converter 3x3G CONVNVIPA3/3G
Product ID: 52639
SKU: 52639
Model: CONVNVIPA3/3G
Ean: 9338716008395
Manufacturer: Blackmagic Design
Condition: New product
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers?
| Accessories for video cameras | pārveidotāji |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Convert the signals from three separate 3G-SDI devices to 2110 IP video systems with this 2110 IP Converter 3X3G from Blackmagic Design. The wide range of connectivity includes a 10G Ethernet port that handles up to three video channels simultaneously, three 3G-SDI inputs and three 3G-SDI outputs, as well as three loop outputs. The unit also handles up to 16 channels of embedded audio with their respective video signals, and the RJ45 10G Ethernet port supports 10/100/1000/10G BASE-T and can also be used for PoE+ power connectivity. The reference output is timed to the 2110 PTP clock.
A 2.2" color LCD display on the front panel provides signal monitoring, menus, and diagnostic data. IP inputs can also be routed from the panel. Designed to integrate any 3G-SDI equipment into 2110 IP broadcast systems, the rackmount design allows the unit to be installed in equipment racks right beside the equipment you're converting. Employing an active fan-based cooling system, the unit remains cool even when mounted next to other gear. In addition to the PoE+ option, the unit also features a 100 to 240V AC power port.
Multiple SMPTE 2110 IP Channels Supported
The unit conforms to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization, and description of video, audio, and ancillary data over managed IP networks for broadcast. It can also sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock. It supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data. Multicast, which is an efficient way of distributing video, audio, and data from a single source to multiple destinations, is also supported.
NMOS Protocol Support
The converter supports the NMOS interface specifications so all 2110 IP video devices can operate together as a large virtual router. Videohub Smart Control routes sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices are discovered and controlled on IP networks. IS-04 is supported for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router.
Supports All SD and HD Formats up to 1080p60
The 3G-SDI connections support both SD and HD video standards. You can connect your existing SDI broadcast equipment to new IP-based infrastructure. In standard definition, both 525i59.94 and 625i50 standards are supported. In high definition, the unit supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60, and all 1080p standards up to 1080p60, and you can run three different video standards at the same time.
True 10-Bit Broadcast Video Quality
Uncompressed 10-bit is the most commonly used television standard, allowing colors to be represented with four times the precision of 8-bit video. Working with 10-bit video will ensure that all images are a perfect pixel for pixel transmission of the original SDI source, so you're always working at the absolute highest quality possible.
Localized for 13 Popular Languages
The unit supports multiple languages in the menus so you can customize it to the language you prefer. You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian languages. Simply go into the front panel setup menu to change the language.
