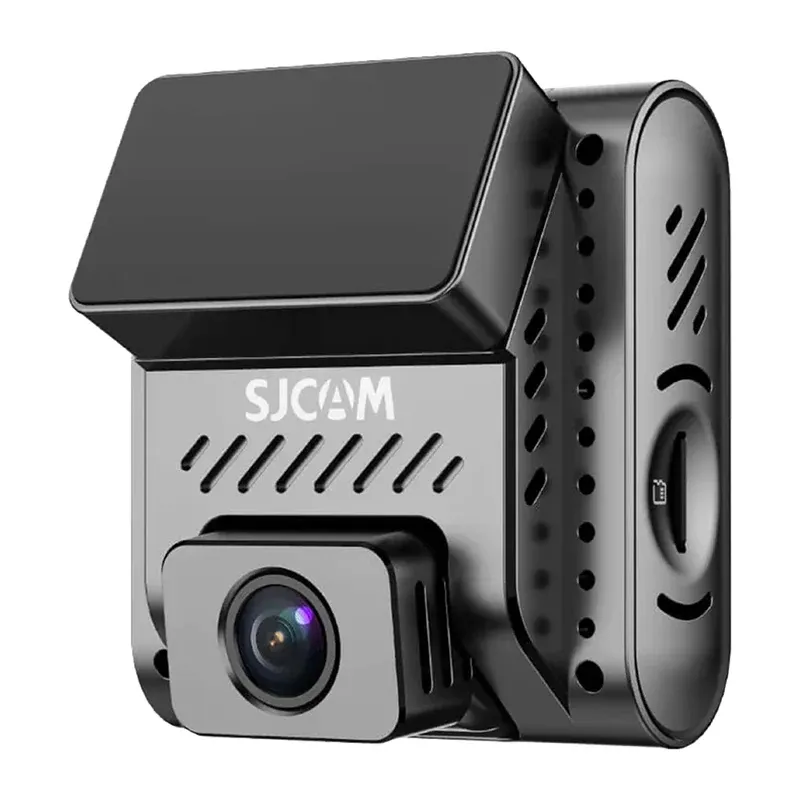

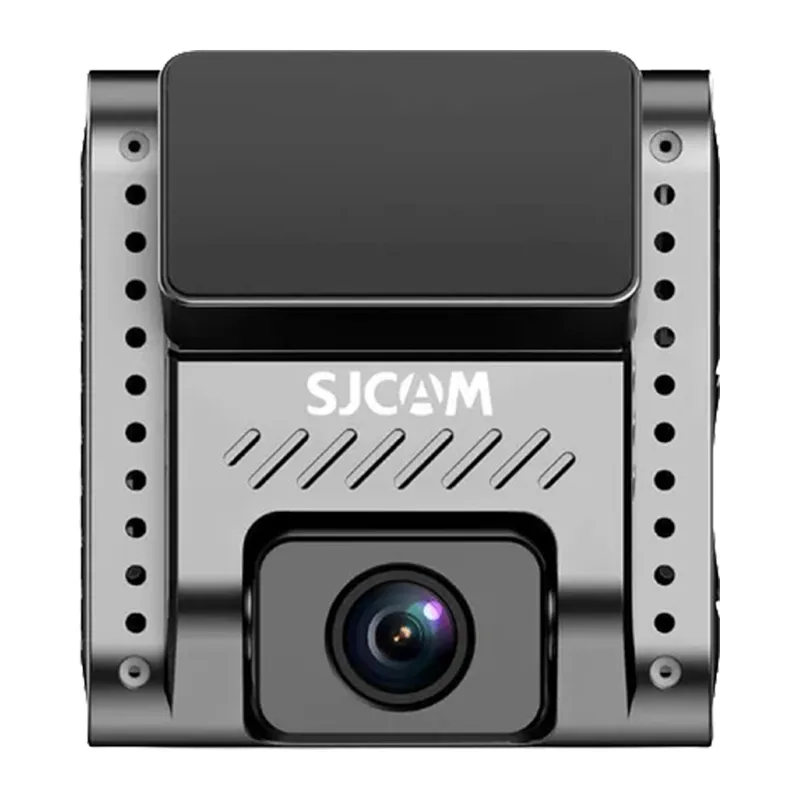

SJCAM M60 Dash Cam (black)

SJCAM M60 1CH Dash Cam

The SJCAM M60 1CH records your drive at resolutions up to 4K (3840 × 2160) at 30 fps, capturing vehicle positions, surrounding details and other important information about traffic incidents. It also supports 2K (2560 × 1440) at 60 or 30 fps and Full HD (1920 × 1080) at 30 fps, so you can select a recording mode to suit your needs. The camera features a 1/1.8-inch CMOS sensor, a wide-angle lens with a 170° field of view and an f/1.8 aperture. HDR helps capture footage in a range of lighting conditions. Collision detection responds to impacts with an audible warning. The G-sensor and parking mode, with automatic event detection and time-lapse recording, provide monitoring features while the vehicle is parked.

Route Information and Recording Management

GPS and BEIDOU support lets you record vehicle location data for later trip analysis and route playback. According to the supplied product information, GPS tracking can determine the car’s position on a map with accuracy of up to 1 metre. The M60 has dual-band Wi-Fi: 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/b/g/n/ac). Its 2-inch TFT screen has a resolution of 320 × 240 for monitoring the camera’s operation. A built-in microphone and speaker expand its recording capabilities, while separate LED indicators show power, recording, Wi-Fi, microphone and GPS status. Videos are saved in MP4 format with H.264 encoding. The camera supports microSD cards up to 256 GB. Power is supplied through a USB Type-C connector at 5 V / 2.4 A. The front module measures 75.7 × 41.75 × 64 mm and weighs 120 g.

Included in the Set

• Front camera with GPS base
• USB Type-C cable
• Car charger
• Pry tool for lifting and routing cables
• Memory card reader
• 2 static-cling stickers
• 2 mounting straps for the front mount
• 6 cable clips
• User manual

Specifications

• Manufacturer: SJCAM
• Model: M60 (1CH)
• Number of channels: 1
• 4K resolution: 3840 × 2160 at 30 fps
• 2K resolution: 2560 × 1440 at 60/30 fps
• 1080p resolution: 1920 × 1080 at 30 fps
• Sensor: 1/1.8-inch CMOS
• Field of view: 170°
• Aperture: f/1.8

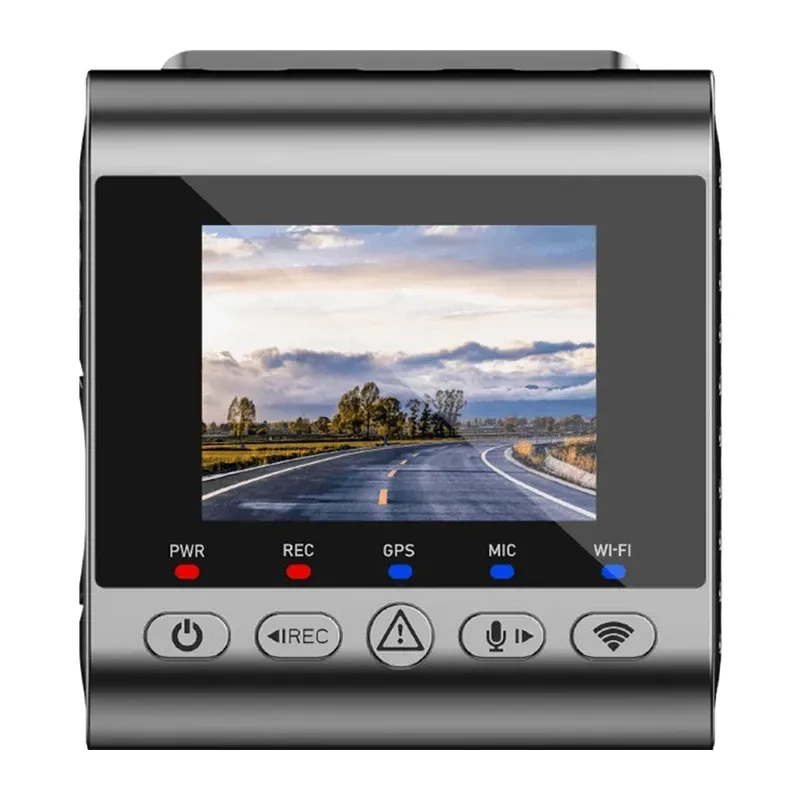

• Screen: 2.0-inch TFT
• Screen resolution: 320 × 240
• Video format: MP4
• Video codec: H.264
• HDR: Yes
• Parking mode: Automatic event detection and time-lapse recording
• G-sensor: Yes
• Positioning systems: GPS, BEIDOU
• Wi-Fi 2.4 GHz: 802.11b/g/n
• Wi-Fi 5 GHz: 802.11a/b/g/n/ac
• Microphone: Yes
• Speaker: Yes
• LED indicators: Power, recording, Wi-Fi, microphone and GPS
• Supported memory cards: microSD up to 256 GB
• Power: USB Type-C, 5 V / 2.4 A
• Weight: 120 g
• Dimensions: 75.7 × 41.75 × 64 mm
