SJCAM M60 Dash Cam, 2CH (black)

SJCAM M60 2CH Dash Cam

The SJCAM M60 2CH is a two-channel dash cam that continuously monitors the area around the vehicle. The front camera records in 4K resolution (3840 × 2160 at 30 fps), with 2K recording available at up to 60 fps and Full HD options. The rear camera records simultaneously in 1080p at 30 fps. Both cameras support HDR for clear footage in challenging lighting conditions.

Advanced Optics and Recording

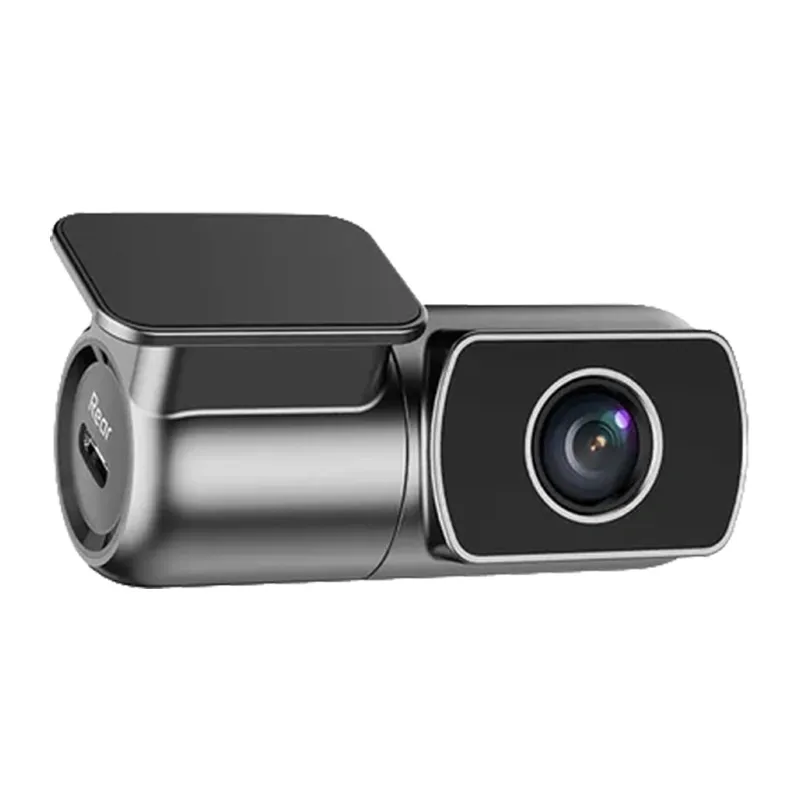

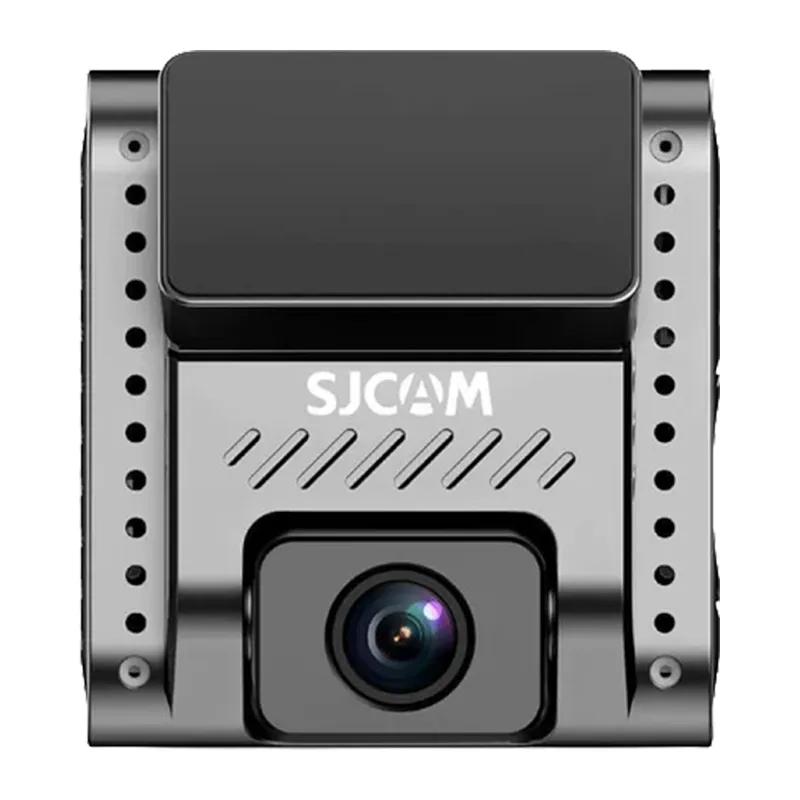

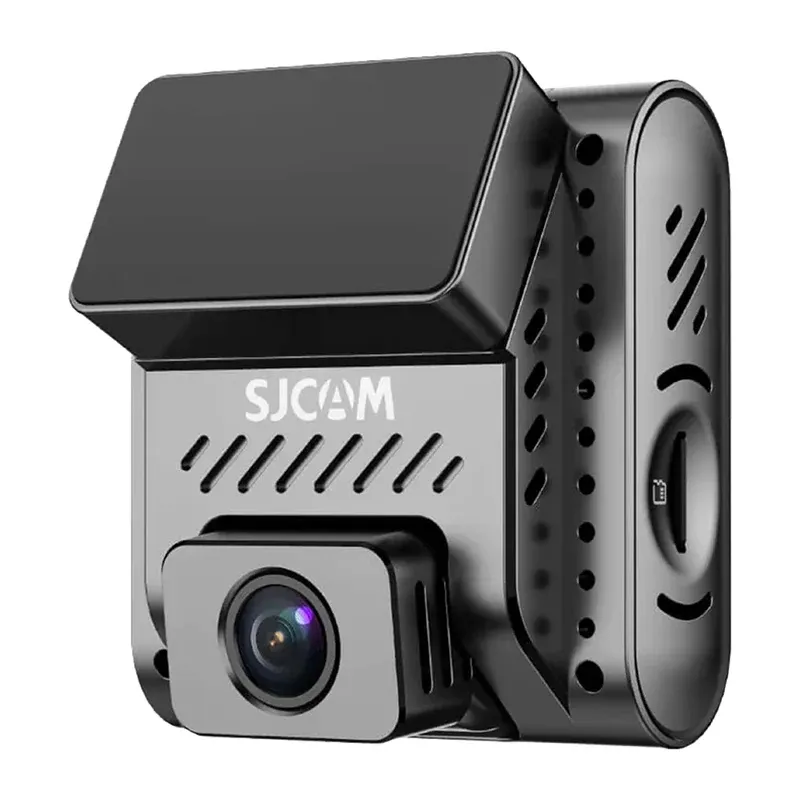

The front camera has a 1/1.8-inch CMOS sensor, a 170° field of view and an f/1.8 aperture. The rear camera features a 1/2.8-inch CMOS sensor, a 160° field of view and an f/1.8 aperture. Video is saved in MP4 format using H.264 encoding on a microSD card with a capacity of up to 256 GB. The cameras connect via a Type-C to Type-C cable, and the dash cam is powered through a Type-C port at 5 V / 2.4 A.

Collision Detection and Parking Protection

The collision detection system provides an audible alert in the event of an impact, while the built-in G-sensor protects recordings from being overwritten. Parking mode supports automatic event detection and time-lapse recording to help monitor the vehicle while parked.

Location Tracking and Wi-Fi

Built-in GPS and BEIDOU positioning record route data with accuracy of up to 1 m. Dual-band Wi-Fi supports 2.4 GHz and 5 GHz networks and the 802.11a/b/g/n/ac standards, enabling wireless connectivity and file transfer.

Design and Controls

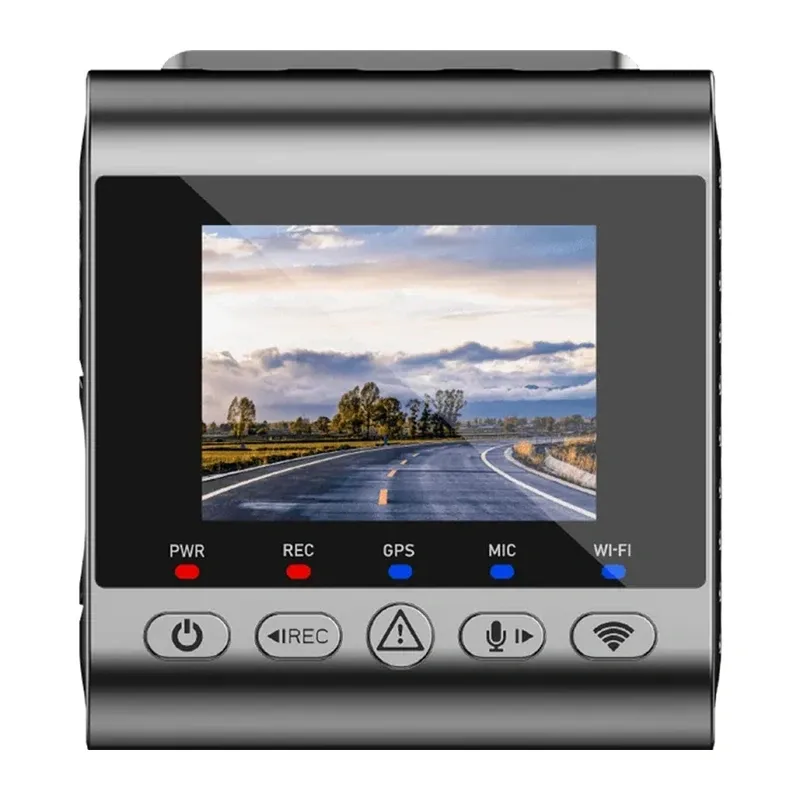

The dash cam has a 2-inch TFT screen with a resolution of 320 × 240 pixels, a microphone, a speaker and LED indicators for power, recording, Wi-Fi, microphone and GPS status. Its compact design helps keep the driver’s view clear. The front camera weighs 120 g and measures 75.7 × 41.75 × 64 mm; the rear camera weighs 44 g and measures 73.5 × 35.7 × 29 mm.

Specifications

• Manufacturer: SJCAM
• Model: M60 (2CH)
• Number of channels: 2
• Front camera resolution: 4K, 3840 × 2160 at 30 fps
• Front camera resolution: 2K, 2560 × 1440 at 60/30 fps
• Front and rear camera resolution: 1080p, 1920 × 1080 at 30 fps
• Front camera sensor: 1/1.8-inch CMOS
• Rear camera sensor: 1/2.8-inch CMOS
• Front camera field of view: 170°
• Rear camera field of view: 160°
• Front camera aperture: f/1.8
• Rear camera aperture: f/1.8
• Screen: 2.0-inch TFT
• Screen resolution: 320 × 240 pixels
• Video format: MP4
• Video encoding: H.264
• HDR: Yes, front and rear cameras
• Parking mode: Automatic event detection and time-lapse recording
• G-sensor: Yes
• Positioning systems: GPS, BEIDOU
• Wi-Fi 2.4 GHz: 802.11b/g/n
• Wi-Fi 5 GHz: 802.11a/b/g/n/ac
• Microphone: Yes
• Speaker: Yes
• LED indicators: Power, recording, Wi-Fi, microphone and GPS
• Rear camera connection: Type-C to Type-C
• Supported memory cards: microSD up to 256 GB
• Power supply: Type-C, 5 V / 2.4 A
• Front camera weight: 120 g
• Rear camera weight: 44 g
• Front camera dimensions: 75.7 × 41.75 × 64 mm
• Rear camera dimensions: 73.5 × 35.7 × 29 mm

Included in the Set

• Front camera
• Rear camera
• USB Type-C data cable
• Interior camera connection cable, 3.5 m
• Cable routing tool
• Car charger
• Electrostatic stickers, 2 pcs.
• Double-sided tape for the front camera mount, 2 pcs.
• Rear camera connection cable, 6 m
• Cable clips, 6 pcs.
• User manual
• Cleaning cloth
• SJCAM logo stickers
• Memory card reader
