Canare L-3C2VS is a very lightweight and extremely flexible 5.5 mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. Both ends have crimp-on BNC (M) connectors type BCP-A3.

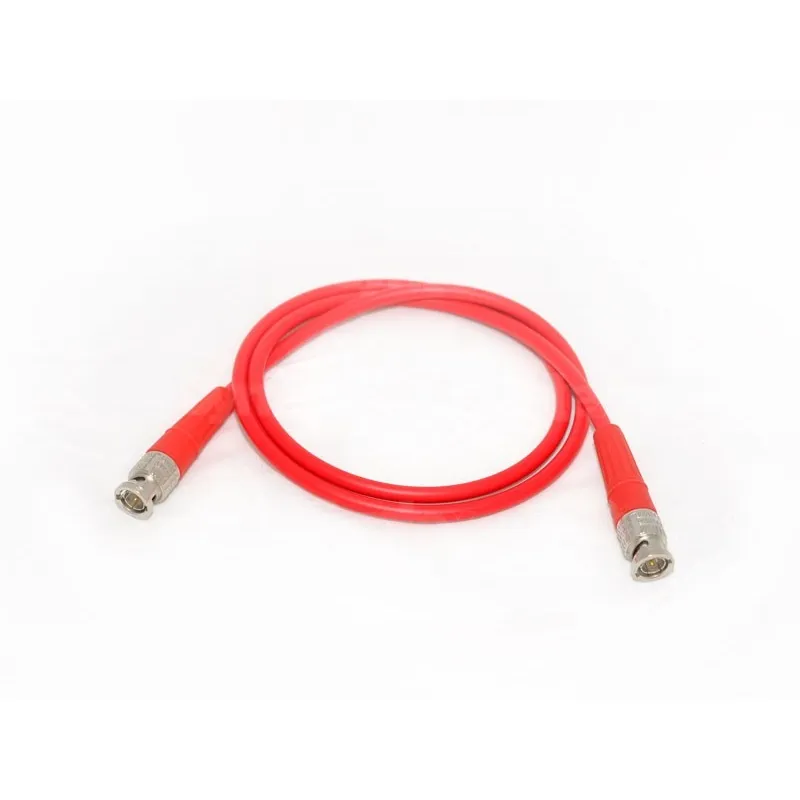

Canare L-3C2VS RED BNC 10m Video Cable

Produkta kods: 15235
SKU: 15235
Model: CV-3-M/M-RED-10
Ean: 0000000000000
Manufacturer: Canare

Condition: New product

Goods are not available at the moment

We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

AI assistant
Artificial Intelligence assistant
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers?
Discover related products
Discover related products

Applications

  • HD/SD-SDI video
  • PAL and NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Patch cables for video

Cable Specifications

  • Sheath diameter (overall diameter) in mm: 5.5
  • Cable weight in kg/100 m: 4.5
  • Medium conductor - number and diameter of cores in mm: 7/0.18
  • Total diameter of the middle conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the middle conductor in ohms/100 m: 10.5
  • Resistance of the outer conductor in Ohm/100m: 1.9
  • Static capacitance in pF/m: 67
  • Attenuation in dB/100m: 4.5
  • Impedance in ohms: 75

Connector Specifications

  • Tensile strength in kg: >24.9
  • Insulation resistance at 500 V DC in Ohms: 24.5 mm >1000M
  • Rated voltage for 1 min: 1500 V AC (effective value)
  • Center contact resistance: 1.5 mm <6m ohms
  • External contact resistance contact strength: <3m ohm
  • Impedance in ohms: 75
  • Connector body - material/surface: brass/nickel
  • Center contact - material/surface: brass/gold
  • Outer contact - material: Beryllium copper
  • Dielectric - material: Material - polytetrafluoroethylene PTFE
  • Crimp sleeve - material/surface: copper/tin
