Name: Canare RJC5ES-4P-BS CAT5e STP Cable, 50m, 100 ohm
Brand: Canare
SKU: 3050
Price: 7.45 EUR
Availability: BackOrder

Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance

Ethernet cables are being used not only for computer networking, but also recently for digital audio networking, network camera, HDBaseT transmission, and so on.
Newly - developed Flex and Rugged CAT5e Cables will meet the wide range of needs such as for temporary cabling.

Insulation: polyethylene (RJC5ES-4P-BS: Cross-linked polyethylene). Jacket: PVC. Dielectric strength: 350V AC/min. Jacket color orange and white are production by order> Please ask us for ordering lot.

RJC5ES-4P-BS

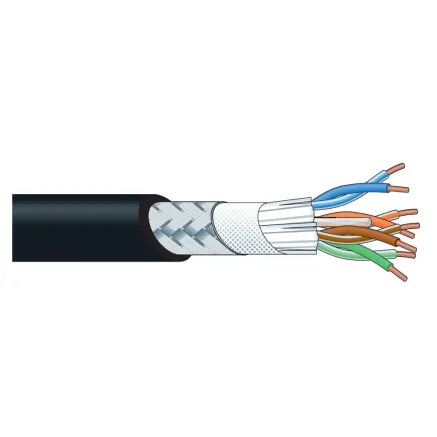

?Flexible and durable CAT5e STP cable.
?Stranded conductor and a overall braided shield.
?Superior flexibility for easy routing and repeated bending.
?Recommended maximum length for CAT5e is 50m.

(contd.) MECHANICAL SPECIFICATIONS

Model

Characteristic
Impendence
ohm

Attenuation
(Insertion Loss)

RJC5ES-4P-BS

100

2.2.0

dB/50m

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Nom. O.D. in. (mm)	Wt Std. Lng. lbs (kgs)/100m	Unit Composition Cross Sec. Area Conductor Comp. mm2/(AWG) Q'ty/mm	Unit Composition Shield Coverage & Comp. mm/ends/carriers	Electrical characteristics Cond. D.C.R. ohm/100m
RJC5ES-4P-BS	656 (200)	0.26 (6.7)	13.45 (6.1)	0.22(24) 7/0.20A	0.10TA/10/16 (90% or more)	9.5

Abbreviations
CAT5e: Enhanced Category 5.
UTP: Unshielded Twisted Pair.
STP: Shielded Twisted Pair.
