12G-SDI coaxial cable with 39.1 dB attenuation, 75 ohm impedance, and capable of 102 m signal transmission.

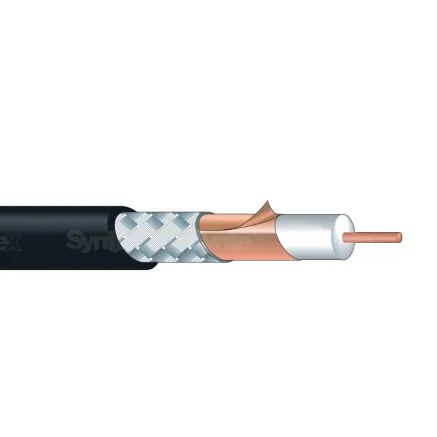

Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk CNRL55CUHD

Product ID: 52778
5,42 tax incl.

Delivery in 5 - 7 business days

SKU: 52778
Model: CNRL55CUHD
Ean: 0000000000000
Condition: New product
Manufacturer: Canare

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductWires, cables for video
Lenght, m1
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk CNRL55CUHD

Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk CNRL55CUHD

12G-SDI coaxial cable with 39.1 dB attenuation, 75 ohm impedance, and capable of 102 m signal transmission.

Write a review

Product details

Special 12G-SDI Coaxial Cabling

Special 12G-SDI coaxial cabling (SMPTE 2082-1) with an attenuation of 39.1 dB/100 m at 6 GHz. The cable has a diameter of 7.7 mm and weighs 7.1 kg/100 m. It features an impedance of 75 ohms and a capacitance of 52 pF/m, capable of carrying a 12G-SDI signal over distances up to 102 m, depending on the technology used. Price is per 1 m.

Canare L-5.5CUHD

Canare L-5.5CUHD is a 12G-SDI 75 ohm digital video coaxial cable from the high-end Ultra Coax series with an outer diameter of 7.7 mm. Price is per standard meter.

Usage

  • Compliant with ST 2082-1, SMPTE 424M, 259M, and 292M specifications
  • HDTV
  • 12G-SDI, 3G-SDI, HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications

  • Standard manufactured lengths: 100/200/500/1000 m
  • Sheath diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100 m: 7.1
  • Total diameter of central conductor in mm: 1.35 (wire)
  • Foam dielectric - diameter in mm: 5.55
  • Resistance of central conductor in /100 m: 1.3
  • Resistance of outer conductor in /100 m: 1.0
  • Static capacitance in pF/m: 52
  • Attenuation in dB/100 m at 12G-SDI 11.88 Gbps: 39.1
