Wires, cables for video - Canare 12G-SDI Ultra Coax Cable L-3.3CUHD CNRL33CUHD - quick order from manufacturer

Write a review

Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 68.5 dB/100 m @ 6 GHz at 5.5 mm diameter and 4.1 kg/100 m weight. Impedance 75 ohms, capacitance 55 pF/m. Capable of carrying 12G-SDI signal over distances up to 58 m (depending on technology used). Price per 1 m.

Canare 12G-SDI Ultra Coax Cable L-3.3CUHD CNRL33CUHD

Name: Canare 12G-SDI Ultra Coax Cable L-3.3CUHD CNRL33CUHD
Brand: Canare
SKU: 9776
Price: 4.45 EUR
Availability: BackOrder

Product ID: 52777

SKU: 52777

Model: CNRL33CUHD

Ean: 0000000000000

Condition: New product

Manufacturer: Canare

For special pre-orders with prepayment

Add to my wishlist

AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?

Type of Product	Wires, cables for video
Connections	BNC to BNC
Lenght, m	1
Weight, gr	410

Be the first to write your review !

Product details

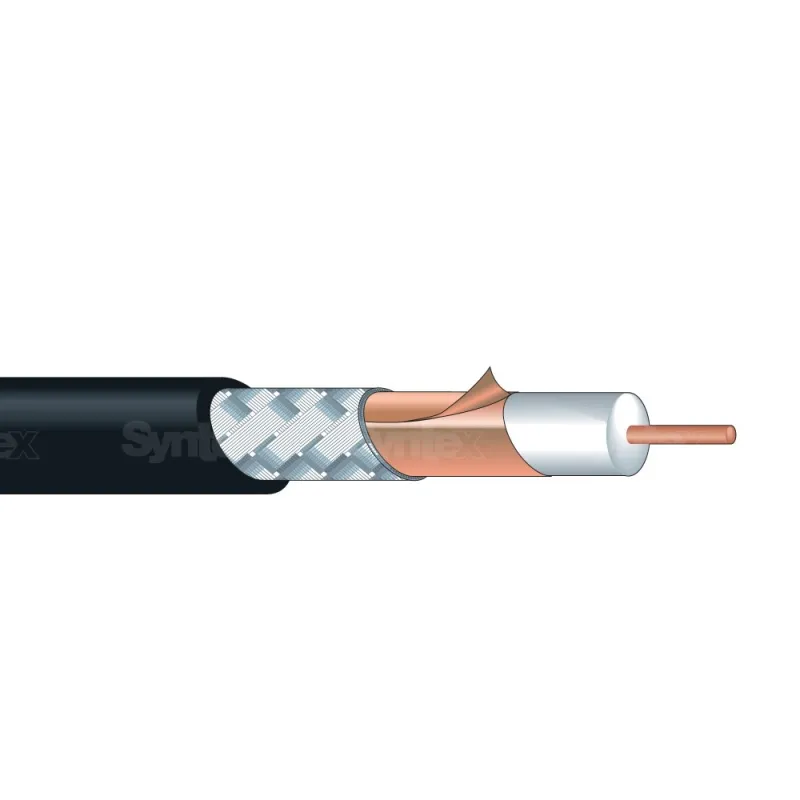

Cable Specifications

Sheath diameter (overall diameter) in mm: 5.5
Cable weight in kg/100m: 4.1
Central conductor - number/diameter in mm: 1/0.75
Total diameter of central conductor in mm:0.75
Foam dielectric - diameter in mm: 3,3
Resistance of central conductor in Ω/1000m: <= 41.4Ω/km (20°C)
Resistance of outer conductor in Ω/1000m: <= 14.9Ω/km (20°C)
Temperature range:-20°C ~ +75°C
Static Capacitance in nF/1km: 55nF/km ( 1kHz)
Attenuation in dB/100m at 6.0GHz: 68.5dB/100m 12G-SDI
