Canare L-2.5CHD 75 Ohm Coaxial Cable for 3G-SDI/HDMI

Name: Canare L-2.5CHD 75 Ohm Coaxial Cable for 3G-SDI/HDMI
Brand: Canare
SKU: 13077
Price: 2.44 EUR
Availability: BackOrder

Product ID: 26982

SKU: 26982

Model: CNRL25CHD

Ean: 8000047440205

Condition: New product

Manufacturer: Canare

Add to my wishlist

Product details

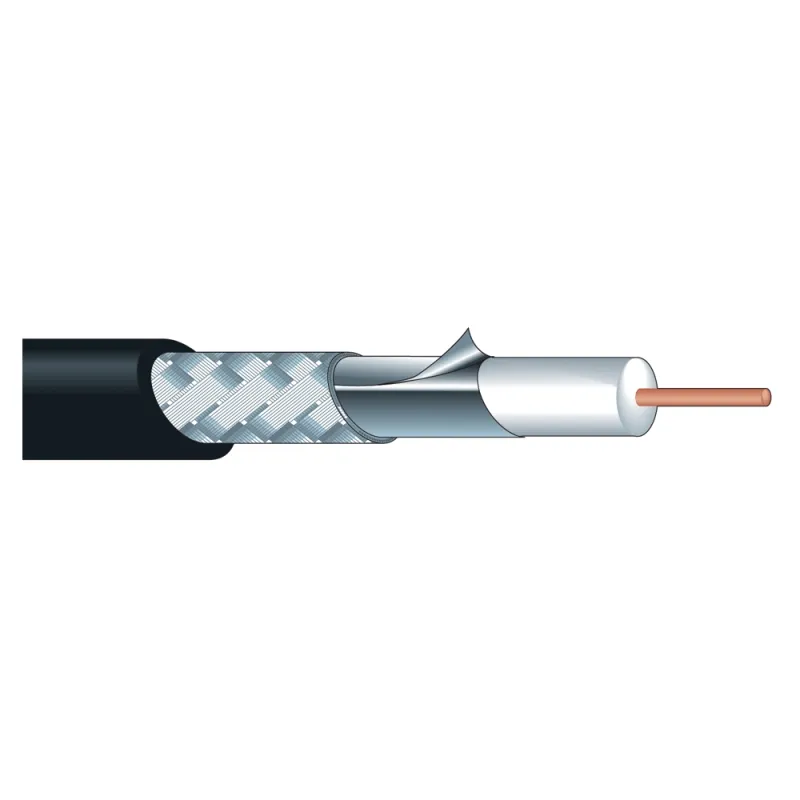

Canare L-2.5CHD -75 ohm Digital Video Coaxial Cable Super Low Loss Coax (Highly-Foamed PE Insulation)

Canare L-2.5CHD - Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Supper Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.

Applications:

HD-Serial Digital Video
Satellite Head Ends
HDTV Upgrades
Broadband Facilities
SMPTE 259M, 292M,424M

Features

Best suited to 3G-SDI / HD-SDI transmission.
Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
Tinned copper braid with aluminum foil brings excellent shielding.
L-2.5CHD is ideal for internal rack wiring.
Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD)

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Nom. O.D. in. (mm)	Wt Std. Lng. lbs (kgs)/100m	Inner Cond Conductor Comp. (AWG) Q'ty/mm	Inner Cond O.D. in. (mm	Insulation O.D. in. (mm)
L-2.5CHD	328 (100) 656 (200)	0.17 (4.2)	3.97 (1.8)	(23) 1/0.59A	0.02 (0.59)	0.10 (2.59)

(contd.) MECHANICAL SPECIFICATIONS
Model	Outer Conductors Shield Coverage & Comp.	Inner Cond. Resistance (ohm/km)	Outer Cond. Resistance (ohm/km)	Static Capacity (pF/m)	Characteristic Impendence ohm	Attenuation dB/100m(328ft) 750MHz)
L-2.5CHD	0.14TCCA/6/16 (95% or more)	(66.9)	(21.5)	53	75	30.2

Type of Product	Wires, cables for video
LCD monitors	HDMI adapter
Connections	HDMI to HDMI
