The Canare L-5.5CUHWS is a low loss 75 ohm coaxial cable designed for 12G-SDI mobile applications.
Canare L-5.5CUHWS BLK flexible 12G-SDI bulk cable CNRL55CUHWS
Product ID: 1826
SKU: 1826
Model: CNRL55CUHWS
Ean: 0000000000000
Condition: New product
Manufacturer: Canare
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 100 |
| Weight, gr | 8900 |
Product details

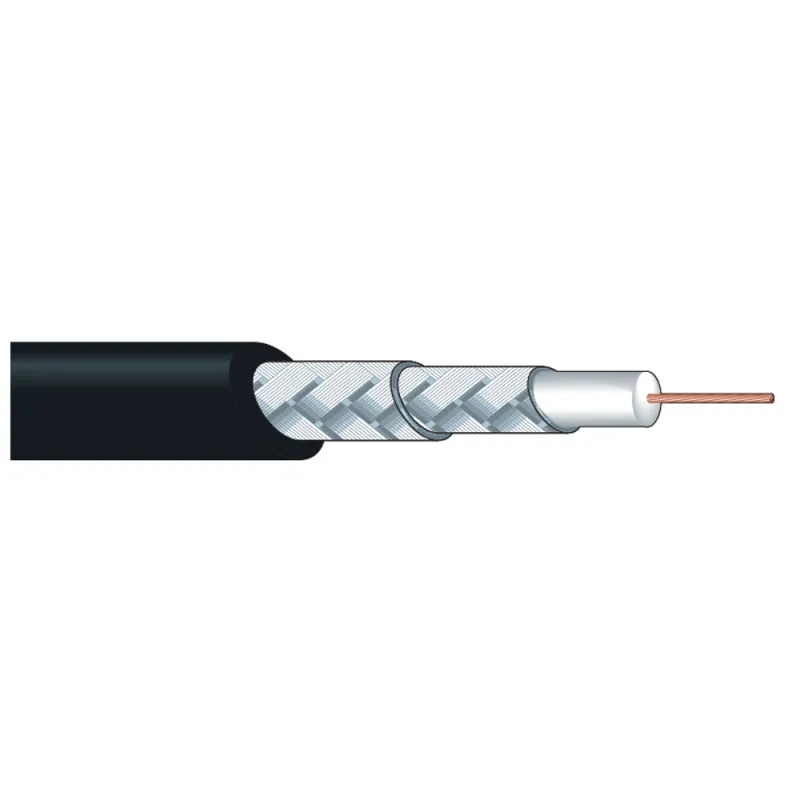

Canare L-5.5CUHWS - 75 ohm 4K UHD, 12G-SDI Coaxial Cable
Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulation).
Applications
- Specially designed for 12G-SDI mobile applications
- Flexible and low loss structure
- Stranded center conductor
- High-density double-braided shield
- Highly-foamed insulation
Mechanical Specifications
- Model L-5.5CUHWS
- Standard Length 328 ft (100 m) / 656 ft (200 m)
- Nominal O.D 0.35 in (8.1 mm)
- Weight (Standard Length) 19.62 lbs (8.9 kgs) / 100m
- Inner Conductor Composition (16) 7/NA
- Inner Conductor O.D 0.05 in (1.3 mm)
- Insulation O.D 0.22 in (5.56 mm)
