Vaxis ATOM 600 KV Wireless Transmitter

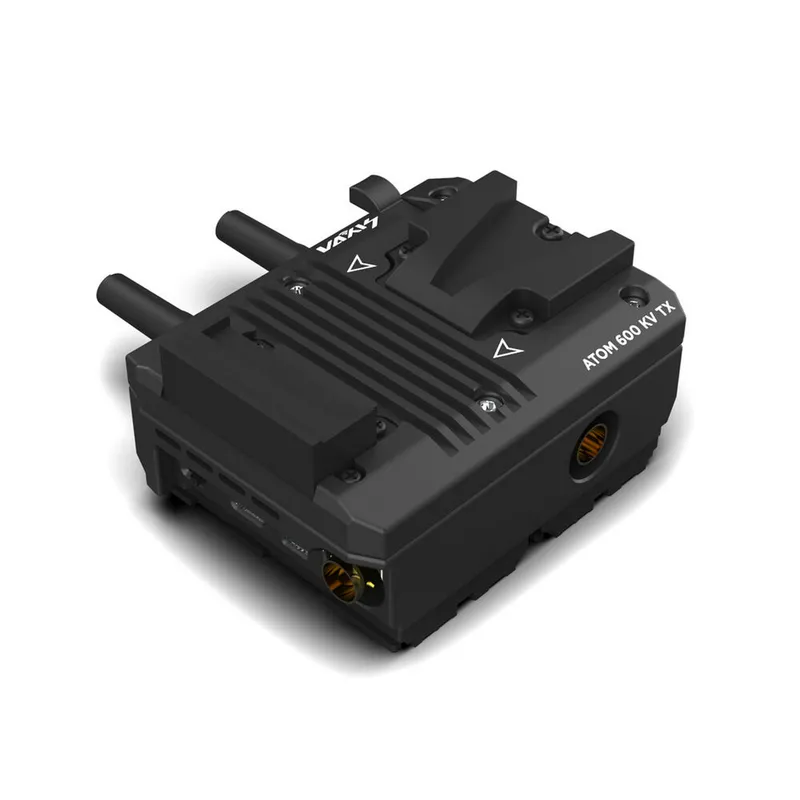

The Vaxis ATOM 600 KV Wireless Transmitter mounts directly onto the RED KOMODO, transmitting 1080p60 video up to 600 line-of-sight with <80 ms latency via SDI/HDMI, powered by V-mount with pass-through to camera and Wi-Fi multicast to iOS devices.

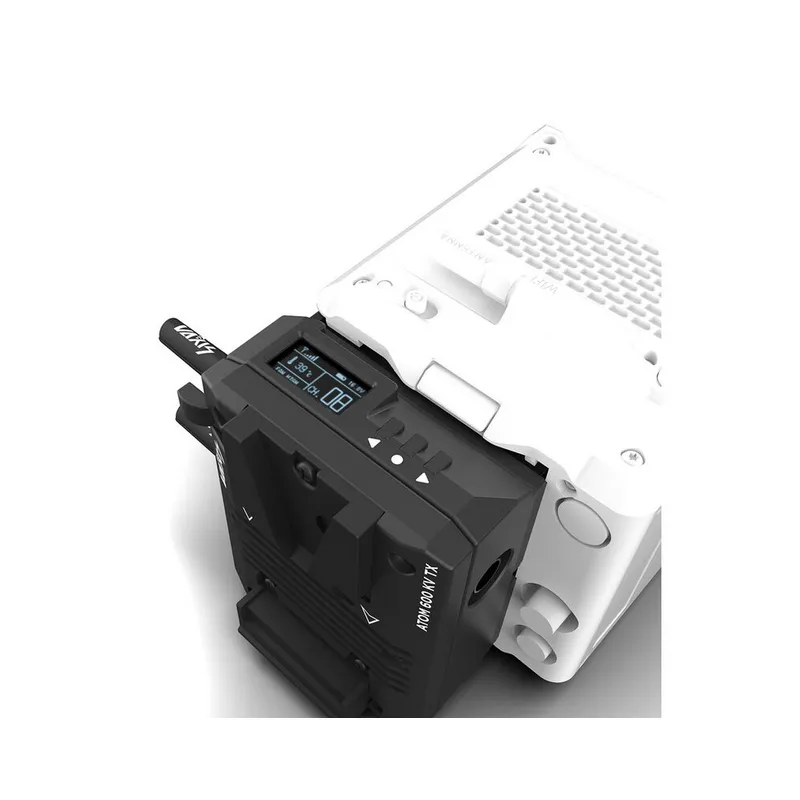

The Vaxis ATOM 600 KV Wireless Transmitter is a dedicated wireless video solution for the RED KOMODO camera, mounting seamlessly onto the camera's dual-battery plate in either horizontal or vertical orientation. It transmits 1080p60 video up to 600 line-of-sight with ultra-low latency under 80 ms through one SDI input and SDI/HDMI loop outputs. Powered by a single high-capacity V-mount battery (sold separately), it passes power directly to the camera while maintaining stable operation. The unit features a bright OLED display, adjustable cooling fan (on/off switchable), and multicast Wi-Fi transmission to up to three iOS devices via the Vaxis Vision app. With 13 channels in the 4.95-5.8 GHz band and 17 dBm RF power, it ensures reliable performance in professional production environments.
Key Features
- Transmits 1080p60 video up to 600 line-of-sight
- <80 ms latency with SDI input and SDI/HDMI loop outputs
- Mounts on RED KOMODO dual-battery plate (horizontal/vertical)
- V-mount battery power with pass-through to camera
- Multicast Wi-Fi to up to 3 iOS devices via Vaxis Vision app
- Adjustable cooling fan (on/off)
- Bright OLED display
- 1 Vaxis ATOM 600 KV Wireless Transmitter for RED KOMODO
- 2 Antennas
- Model: Vaxis ATOM 600 KV
- Compatibility: RED KOMODO camera
- Video Resolution: Up to 1080p60
- Wireless Range: 600 / 182.9 m (line-of-sight)
- Latency: <80 ms
- Video I/O: 1 SDI input, 1 SDI loop, 1 HDMI loop
- Antenna: 2 RP-SMA female
- Embedded Audio: HDMI 2-channel
- Frequency Range: 4.95-5.8 GHz (13 channels)
- RF Power: 17 dBm
- Power: V-mount battery (pass-through to camera)
- Display: OLED
- Cooling: Smart fan (on/off switchable)
- Package Weight: 1.6 lb
- Box Dimensions (LxWxH): 8.4 x 6.1 x 2.5 inches
