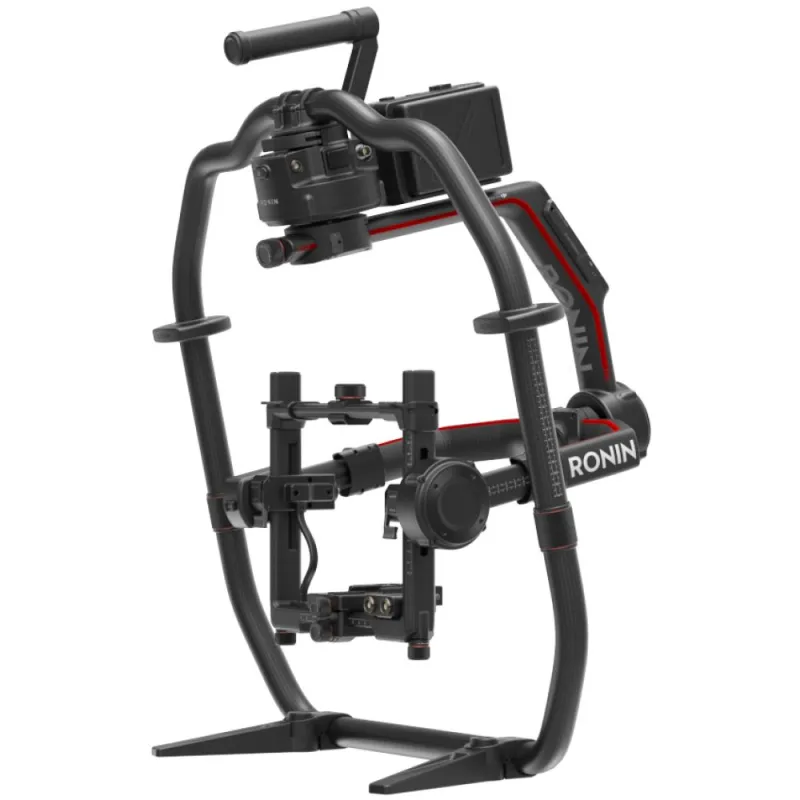

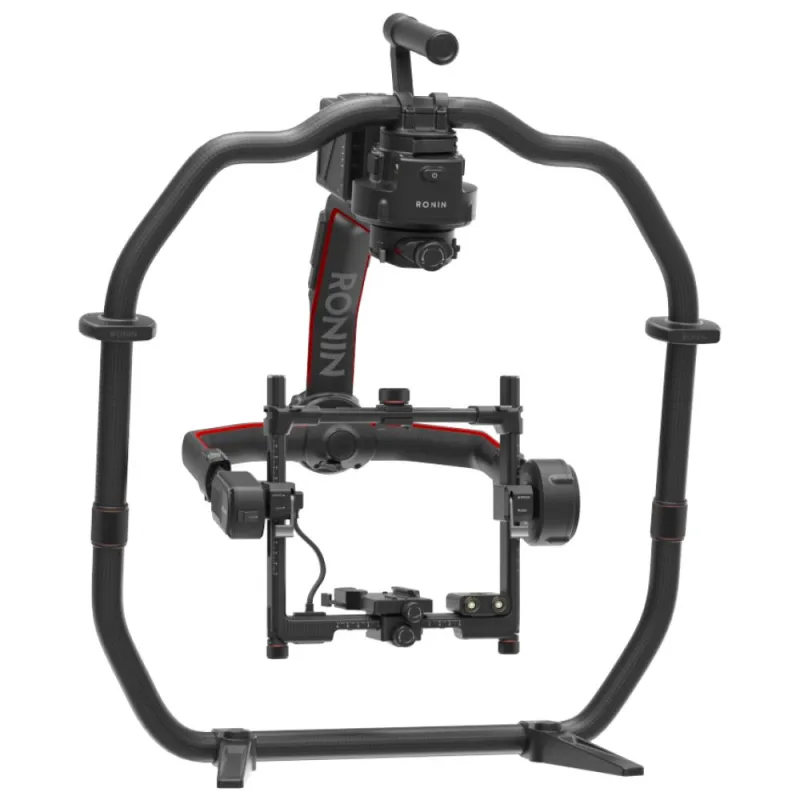

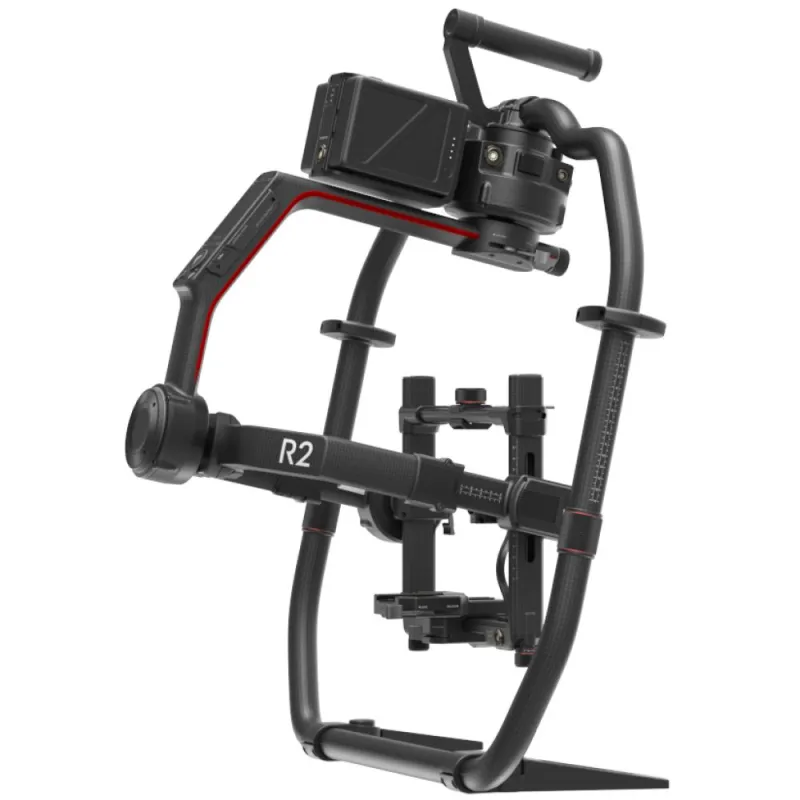

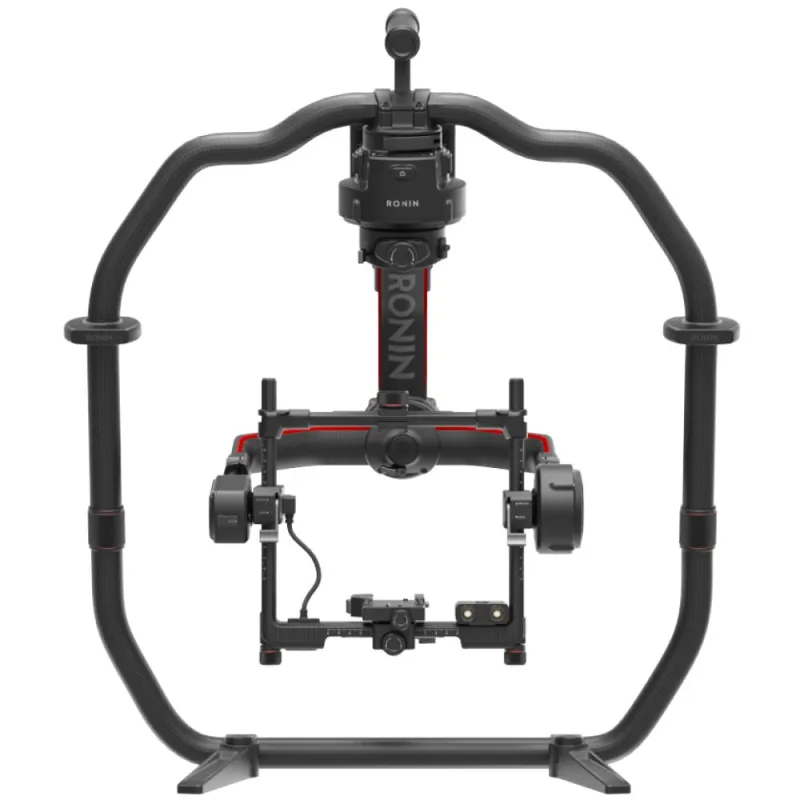

DJI Ronin 2 Professional Combo

Powerful Camera Stabilisation Platform

The DJI Ronin 2 is a three-axis camera stabiliser designed to provide filmmakers with the freedom to capture any scene with precision and stability. It supports payloads up to 13.5 kg, accommodating everything from DSLRs to full cinematic cameras and lenses. The gimbal motors deliver high torque and precision, aided by onboard GPS, allowing speeds up to 120 km/h (75 mph) with sub-pixel level accuracy of 0.02 degrees.

Versatile Mounting and Operation Modes

• Supports multiple operation modes: Underslung, Upright, Briefcase, Handheld, Car Mount, Aerial, Tripod, and Steadicam.
• Detachable grip and quick release mount enable seamless transitions between handheld, jib, Ready Rig, cable cams, vehicles, and drones.
• New two-axis operation mode for Steadicam mounting allows unique camera movements previously impossible.
• Dual band 2.4/5.8 GHz remote control supports two-person operation with minimal interference up to 1.5 km range.

Enhanced Usability and Setup

• Axis locking levers and fine tuning knobs enable faster and more precise balancing.
• Auto Tune Stability feature automatically adjusts motor parameters for optimal performance within seconds.
• Integrated 1,000-nit brightness touchscreen allows direct configuration and full control of mounted RED cameras.

Robust and Lightweight Design

• Redesigned carbon fibre monocoque frame offers durability, lightweight handling, and high manufacturing quality.
• Fold-away feet allow the rig to be set down during handheld filming without a separate stand.
• Splash-proof enclosed motor design with internally routed power, SDI, and data cabling ensures reliable operation in demanding environments.

Centralised Power System

• Integrated power and data ports eliminate the need for multiple power systems.
• Includes four 14.4 V (8 A total) ports near the camera cage, two 12.6 V (4 A total) ports near the pan motor, and one P-Tap 12.6 V (4 A) outlet on the battery mount.
• Dual hot-swappable TB50 intelligent batteries provide continuous operation without powering down, delivering 2.5 hours runtime powering the gimbal and a RED Dragon camera simultaneously.
• Batteries support ultra-fast charging, self-heating for reliable power in temperatures down to -20 °C, and are compatible with DJI Inspire 2 systems.
• Detachable battery system can power any 12 V P-Tap accessory or camera.

Advanced Intelligent Features

• Updated DJI gimbal assistant mobile app offers intuitive control and studio-oriented functions.
• Panorama mode automatically creates still image panoramas considering sensor type, lens focal length, and overlap rate.
• Timelapse mode programs multiple movements and camera actions along routes with real-time progress monitoring.
• CamAnchor mode records and revisits preferred gimbal orientations at specific locations for repeatable shots.
• Enhanced SmoothTrack system with updated algorithms maintains sync with operator movements, allowing fine-tuning across all three axes.

Included in the Box

• Gimbal
• Grip
• Remote Controller
• 2x TB50 Intelligent Batteries
• Dual TB50 Battery Mount
• Battery Charger and Quad Charging Hub
• Battery Charger Power Cable
• Ronin 2 Power Hub
• Camera Top Cross Bar and Base Plate
• Accessory Mount
• 2x 15mm Rods and 15mm Focus Rod Mount
• Universal Mount and Top Mounting Block
• MotionBlock
• Water Tight Protective Case
• Cable Package including RED Power Cable, ARRI Power Cable, 2-pin Power Cable, DC-Cable, Triple P-TAP breakout box, USB Type-C Data Cable, Control Cable for RED and ARRI, Ronin 2 Power Cable, S-Bus Receiver Cable
• Hex Tool

Technical Specifications

General

• Operation Modes: Underslung, Upright, Briefcase, Handheld, Car Mount, Aerial, Tripod, Steadicam
• Built-in independent IMU module
• DJI Advanced 32-bit ARM Processor
• DJI Specialized Gimbal Drive Motors with Encoders
• Dual Battery System
• Bluetooth Module
• D-Bus Receiver Supported
• 2.4 GHz/5.8 GHz Receiver
• Temperature Sensors
• Built-in Touch Panel
• Built-in GPS
• USB Type-C Connection
• Power and Video Signal through Slip Ring

Mechanical & Electrical Characteristics

• Working Current: Static 300 mA (@22.8 V), Dynamic 500 mA (@22.8 V), Locked motor max 15 A (@22.8 V)
• Run Time: 8 hours; 2.5 hours when powering gimbal, camera, and accessories simultaneously
• Operating Temperature: -20 °C to 50 °C
• Weight: 5.5 kg including handle bar; 4.2 kg excluding handle bar
• Gimbal Dimensions: Excluding handle bar 350 mm (W) x 416 mm (D) x 530 mm (H); Including handle bar 630 mm (W) x 416 mm (D) x 720 mm (H)
