OWC Thunderbolt 3 Dock 14-Port Space Gray

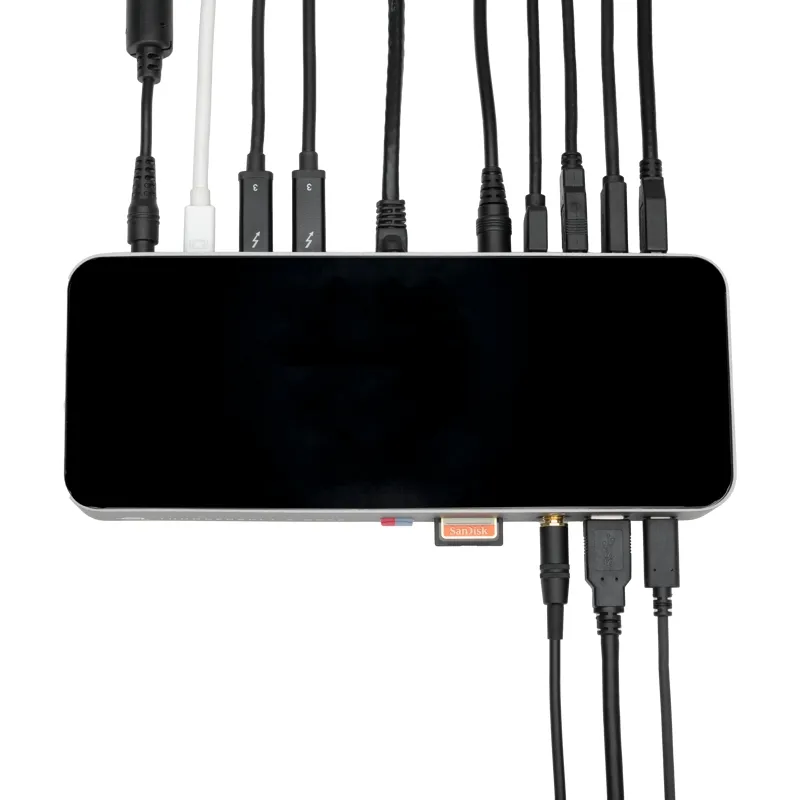

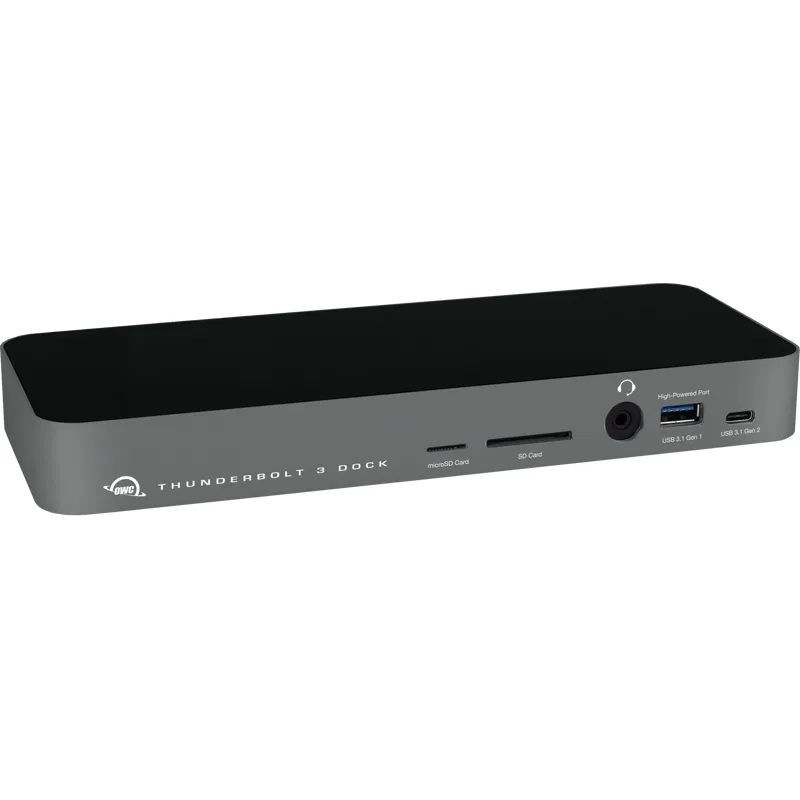

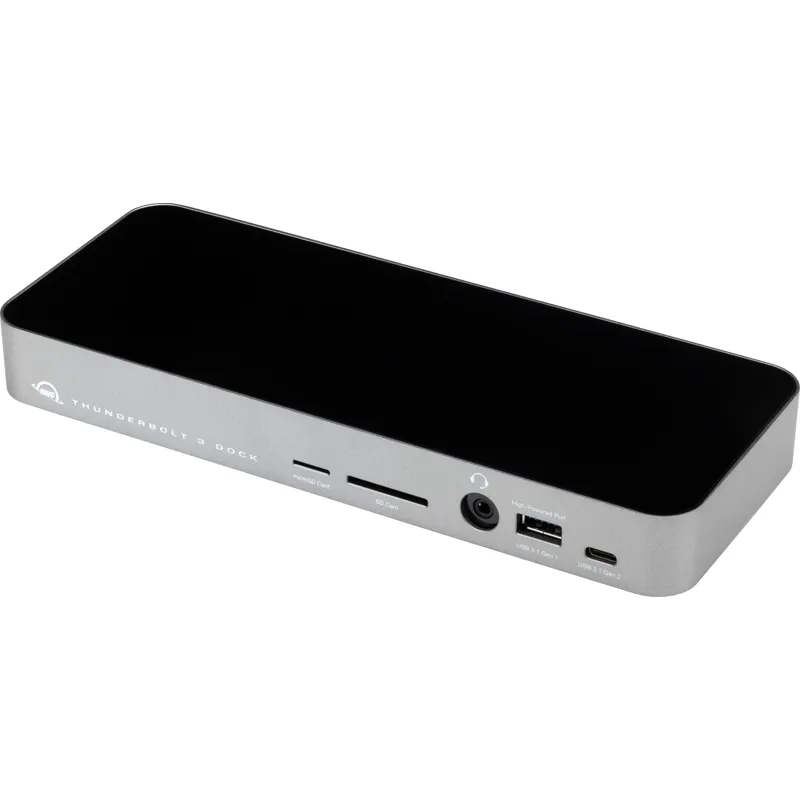

Connectivity and Port Layout

The OWC Thunderbolt 3 Dock offers a thoughtfully designed 14-port layout to provide convenience and keep your workspace organized. The front panel is optimized for easy connection of portable devices, headphones, and media cards, while the rear hosts multiple ports for stationary devices, keeping cables out of sight.

• (2) Thunderbolt 3 (USB-C) ports, backward compatible with Thunderbolt 2 and Thunderbolt 1
• (1) USB-C (USB 3.1 Gen 2) port
• (5) USB-A (USB 3.1 Gen 1) ports
• (1) Mini DisplayPort
• (1) Gigabit Ethernet (GbE) RJ-45 port
• (1) S/PDIF digital audio output port
• (1) 3.5 mm stereo audio combo input/output port
• (1) microSD card slot
• (1) Secure Digital (SD) card slot

Power Delivery

The dock provides up to 85 watts of power to your host computer via the Thunderbolt 3 connection, eliminating the need for separate power adapters. It also features multiple high-power USB ports for charging mobile devices.

Display Support

• Supports one 5K display at 60 Hz or two 4K displays at 60 Hz
• Thunderbolt 3 port supports up to 5K @ 60 Hz with native Thunderbolt 3 displays or 4K @ 60 Hz with Thunderbolt or USB-C display adapters
• Mini DisplayPort 1.2 supports up to 4K @ 60 Hz

Network and Audio

• Gigabit Ethernet supports 10/100/1000 Mbps speeds with jumbo frame support
• S/PDIF digital audio output and 3.5 mm stereo audio combo input/output port for audio connectivity

Design and Build

The dock features a unibody aluminum chassis with polycarbonate covers, providing durability and a sleek, professional look that complements any workspace.

Compatibility

• Compatible with macOS versions 10.12 Sierra through 13.x Ventura
• Compatible with Windows 10 (32 and 64 bit), Windows 11, and Windows Server 2016
• Requires driver installation for full functionality, including high-power USB support for Apple devices

Additional Features

• Includes OWC Dock Ejector software for safe one-click disconnection of all connected drives, preventing data loss
• Thunderbolt 3 cable (0.7 m) included; longer cables available separately
• External universal power supply with automatic switching (120-240 V, 50-60 Hz, 2.5 A input; 20 V, 9 A DC output; 180 W power)
• Dimensions: 2.5 cm (H) x 8.9 cm (L) x 23.0 cm (W); Weight: 500 g
• Certifications: CE, FCC, RoHS compliant
• Operating altitude: -305 m to 3048 m; Storage altitude: -305 m to 12,192 m

Notes and Limitations

• Thunderbolt 2 compatibility requires certified Thunderbolt 3 to Thunderbolt 2 adapter and cable (sold separately), with data transfer speeds up to 20 Gb/s but no laptop charging support
• Only one of the SD or microSD card readers can be used at a time due to shared chipset
• Dual display support depends on host hardware and drivers; Apple silicon M1 and M2 Macs support only one external display via Thunderbolt
• OWC Dock Ejector software is designed for OWC products and does not support third-party hubs or docks
• After safe removal of SD cards, Windows may not recognize the card until the dock is powered off and on again
