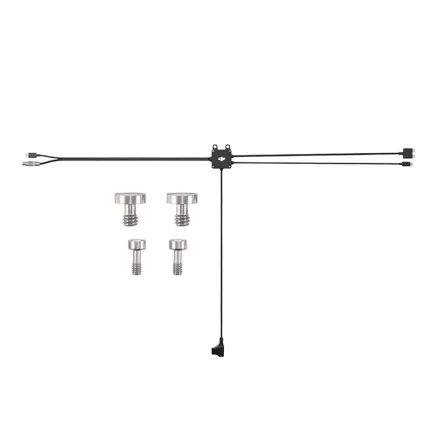

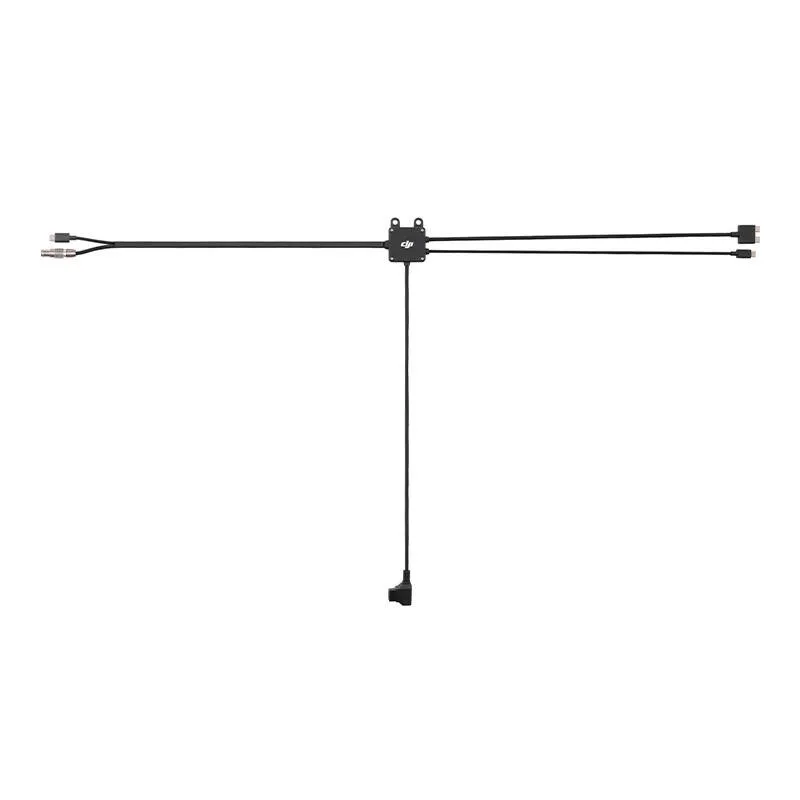

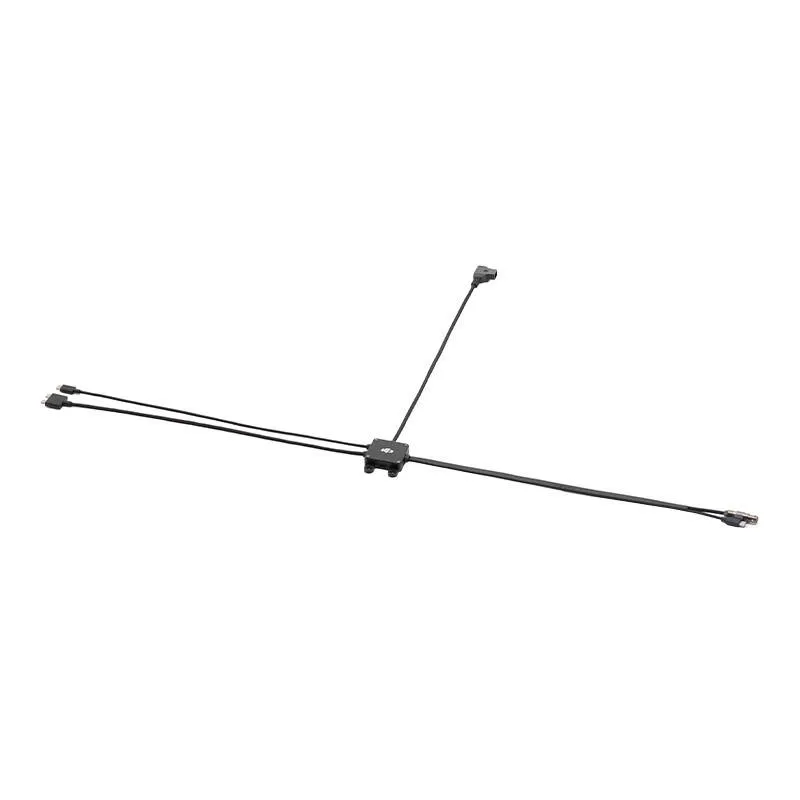

DJI LiDAR Range Finder (RS) Transmission Cable Hub

DJI LiDAR Range Finder (RS) to Transmission Cable Hub

The DJI LiDAR Range Finder (RS) to Transmission Cable Hub is a versatile accessory comprising four cables designed to connect the DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power source efficiently. This setup enables the creation of a comprehensive focus and monitoring system suitable for any camera and manual lens configuration. Note: An external power source with an operating voltage of 12-17 V is required.

Extensive Connectivity and Applications

This product is ideal for professional filmmakers and creators working on film sets. It facilitates automatic focus adjustment when using manual lenses and supports calibration. By connecting the USB-C communication port of the hub to the DJI RS 3 Pro stabilizer via the DJI R MCC (USB-C) cable, users can establish seamless communication between the DJI RS 3 Pro, DJI Transmission system, and the LiDAR Range Finder (RS). This integration delivers exceptional stability, remote monitoring and control, and automatic focus adjustment capabilities.

Included in the Package

• DJI LiDAR Range Finder (RS) to Transmission Cable Hub

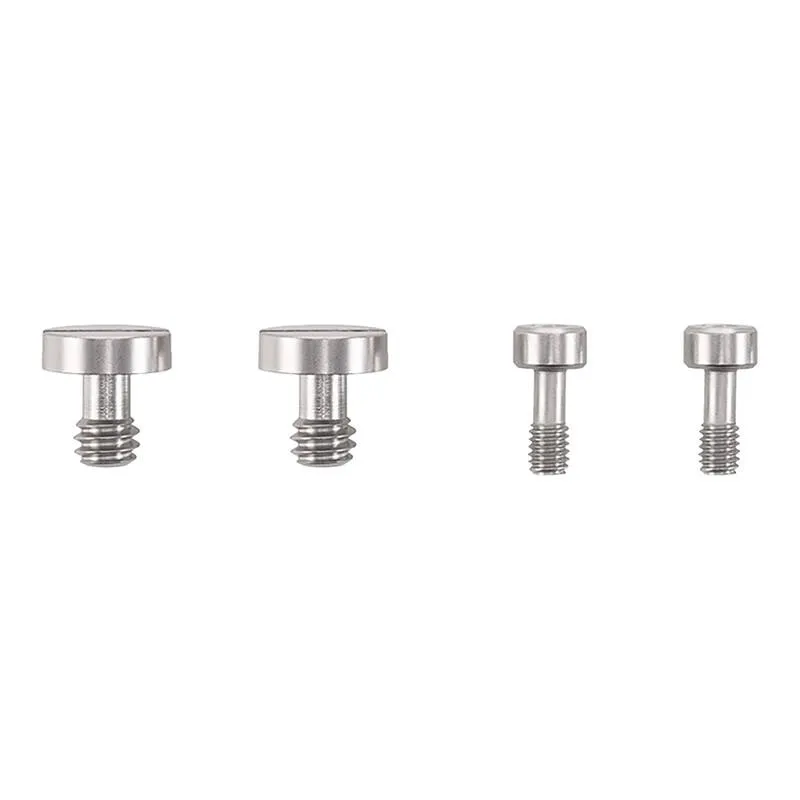

• Two 1/4-20 screws
• Two M4 screws (10 mm)

Technical Specifications

• Brand: DJI
• Model: CP.RN.00000313.01

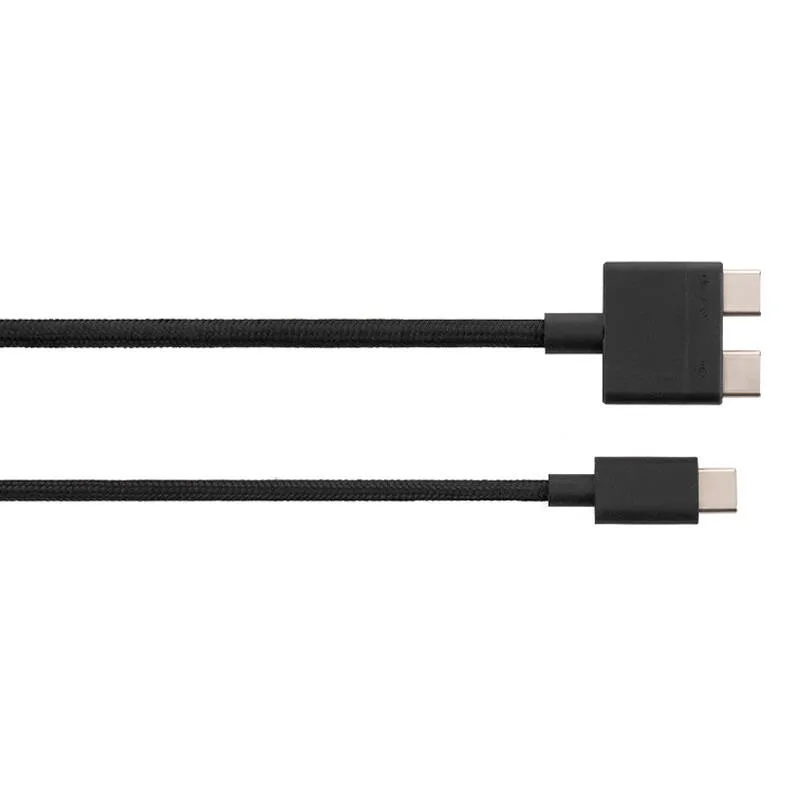

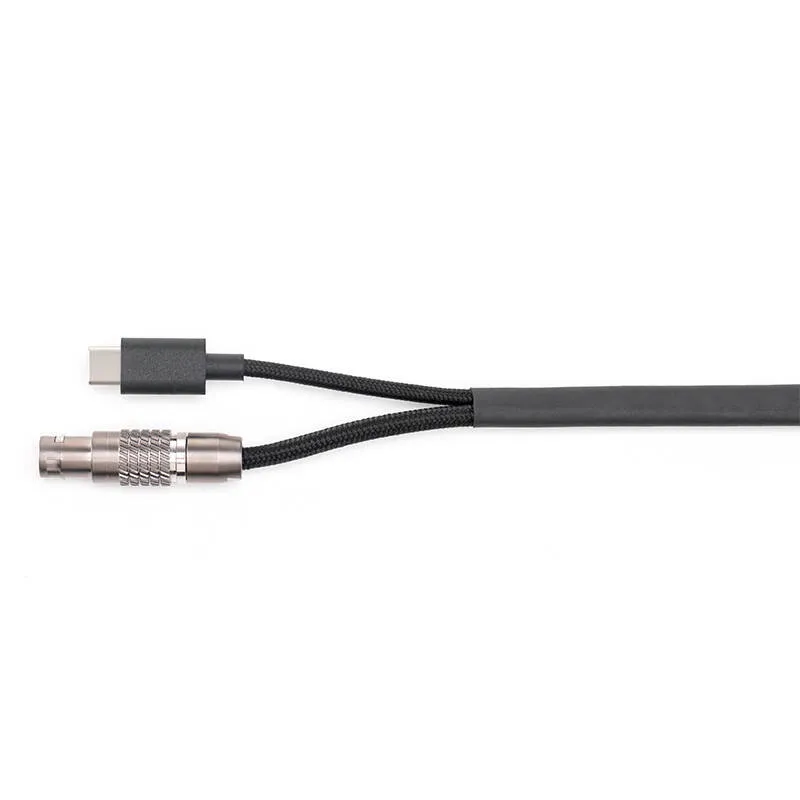

• Available Cables and Ports: Double USB-C LiDAR connection cable (40 cm), USB-C Focus Motor connection cable (40 cm), P-Tap power cable (40 cm), DC-OUT and USB-C branching cable (40 cm), USB-C communication port
• Operating Voltage: 12-17 V
• Compatibility: DJI LiDAR Range Finder (RS), DJI Focus Motor (2022), DJI Video Transmitter, DJI RS 3 Pro, DJI Ronin 4D Hand Grips Combo
