DJI RoboMaster TT Expansion Kit (GL)

The RoboMaster TT Expansion Kit (GL) unlocks advanced DIY flight and programming possibilities by upgrading TELLO EDU to RoboMaster TT. It includes an open-source controller, a dot-matrix display with distance sensing, and an extension board, supporting Arduino, MicroPython, Scratch, and SDK-based development.

This kit is designed for learners, educators, and developers who want to explore advanced drone programming and hardware expansion. By adding this kit, you can upgrade a TELLO EDU into a RoboMaster TT and gain access to open-source hardware that supports both online and offline programming.

At the core of the kit is the open-source controller powered by an ESP32 dual-core MCU, offering strong performance, dual-band Wi-Fi, Bluetooth connectivity, and broad programming compatibility. The included dot-matrix display and TOF distance-sensing module enable interactive visual output and obstacle or distance detection, making it ideal for STEM education and creative projects.

The extension board provides flexible DIY connections and supports third-party sensors, allowing users to expand functionality even further. With support for Arduino, MicroPython, Scratch, and DJI SDK, this kit is perfect for hands-on learning, robotics education, and experimentation with autonomous flight logic.

Key Features

• Upgrades TELLO EDU to RoboMaster TT
• Open-source controller with ESP32 dual-core MCU
• Dual-band Wi-Fi (2.4 GHz & 5.8 GHz) and Bluetooth
• Supports SDK, Arduino, Scratch, and MicroPython
• Offline programming support
• Programmable full-color LED indicator
• 88 red/blue programmable dot-matrix display
• TOF distance sensing module (up to 1.2 m indoors)
• Supports third-party sensors and DIY extensions

• Open-Source Controller

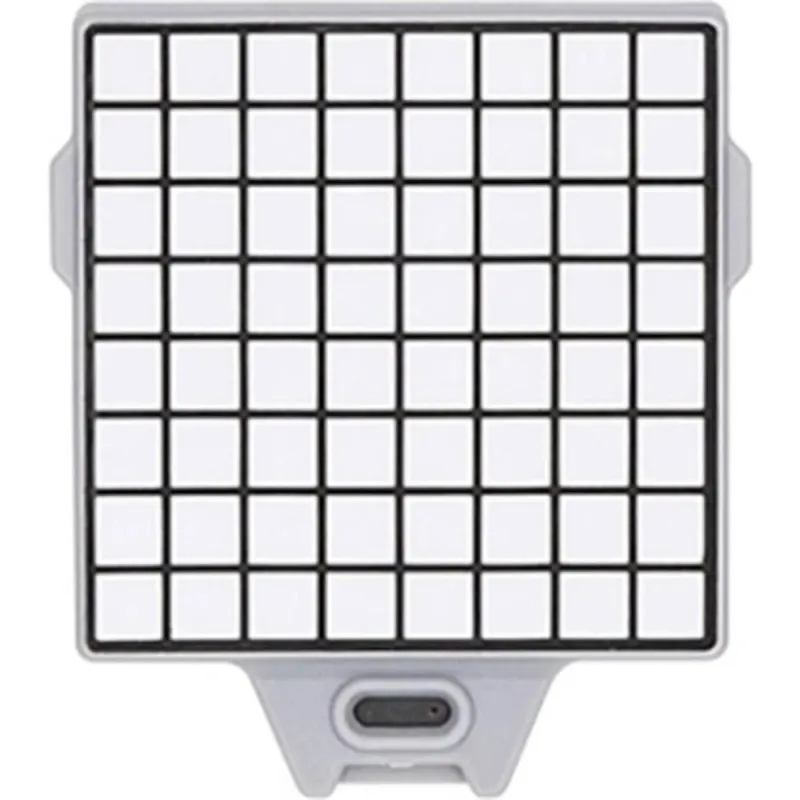

• Dot-Matrix Display & Distance Sensing Module
• Extension Board
• Micro USB Cable
• TT Snap-On Top Cover

• Controller Module Open-source design with compact 49.5 x 32 x 15.2 mm form factor
• Processor ESP32-D2WD MCU, dual-core 160 MHz, up to 400 MIPS performance
• Wireless Connectivity Wi-Fi 2.4 GHz & 5.8 GHz plus Bluetooth 2.4 GHz
• Indicators Programmable full-color RGB status LED
• Expansion Interface 14-pin port supporting I2C, UART, SPI, GPIO, PWM, and power
• Display Module Size 35.3 x 31.5 x 8.6 mm
• Dot-Matrix Display 8 x 8 red & blue LEDs
• Brightness Control 256-level global brightness and per-pixel control
• Distance Sensor Integrated TOF (Time-of-Flight) sensor
• Sensing Range Up to 1.2 m indoors (white wall reference)

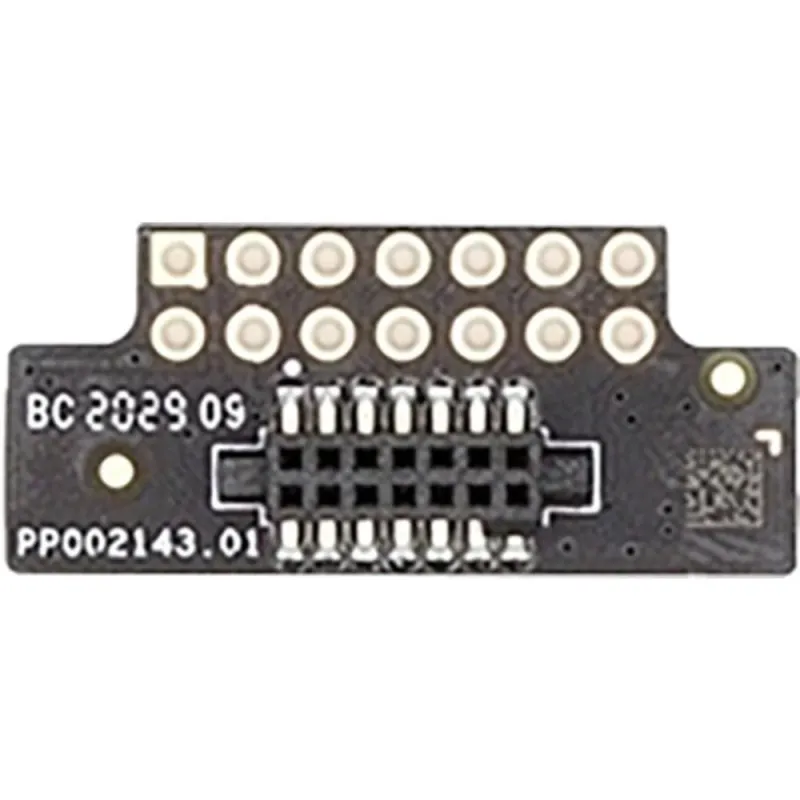

• Extension Board 14-pin expansion converted to dual 7-pin headers (2.54 mm pitch)
• Power Indicators Dedicated LEDs for 5 V and 3.3 V rails
• Testing Support Reserved test points for debugging and validation
• Use Cases Robotics, IoT projects, education, prototyping, and interactive systems
