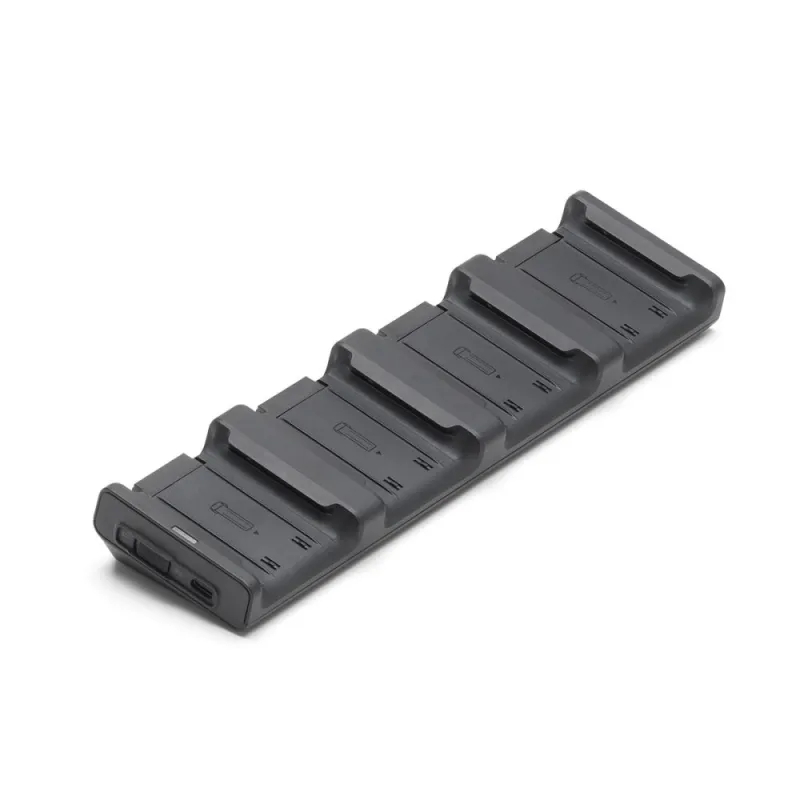

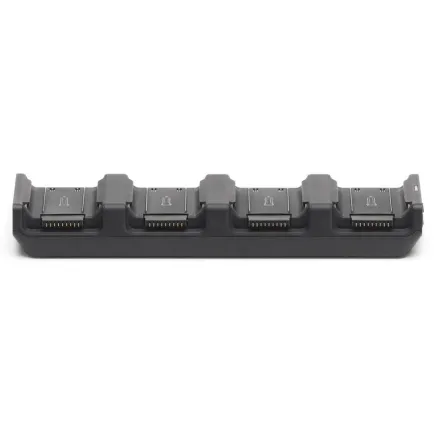

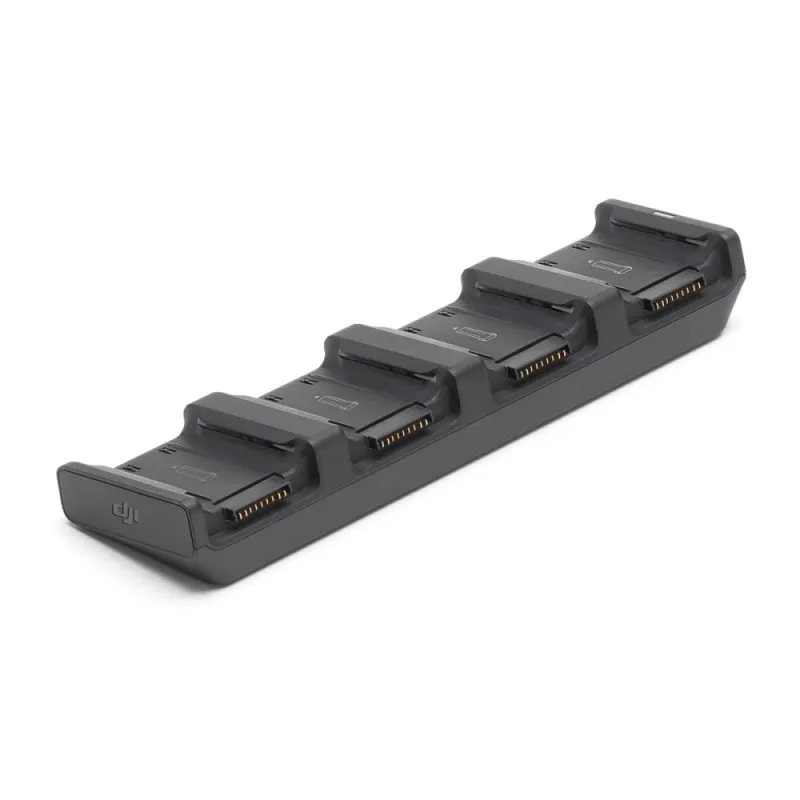

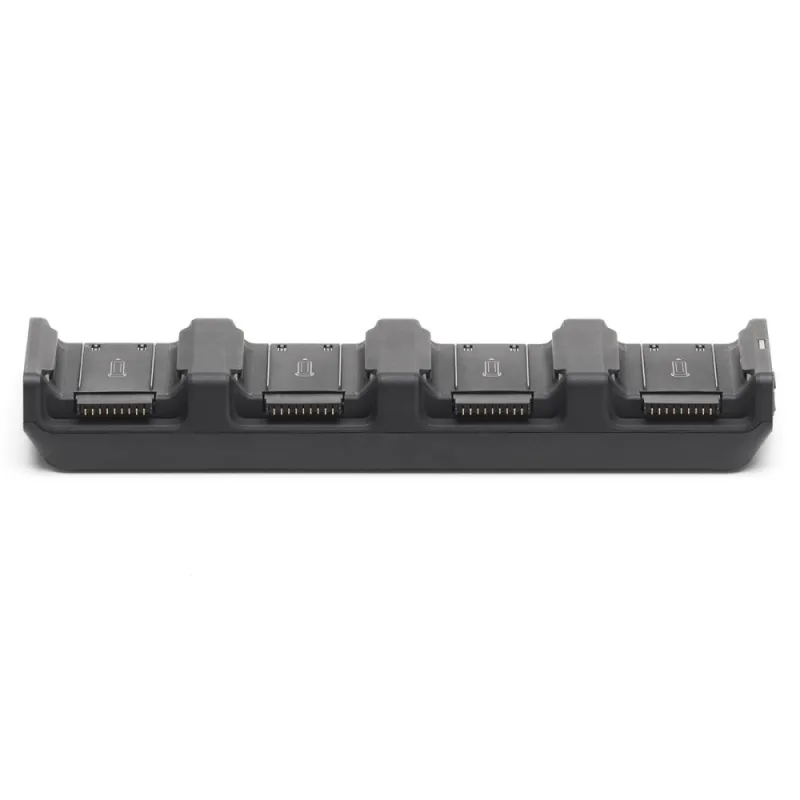

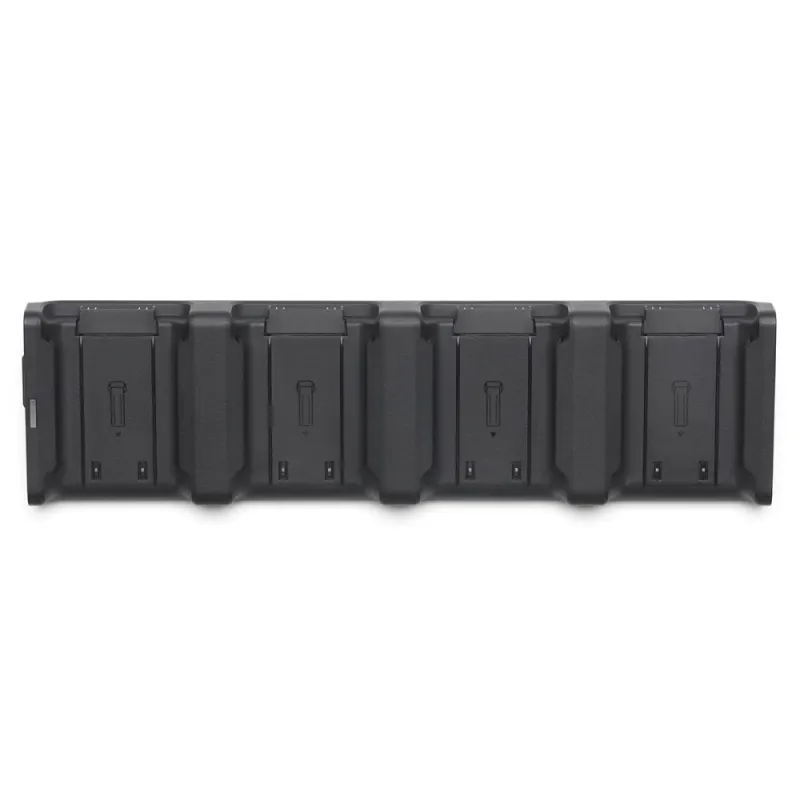

DJI Matrice 4 Series Charging Hub

DJI Matrice 4 Series Charging Hub

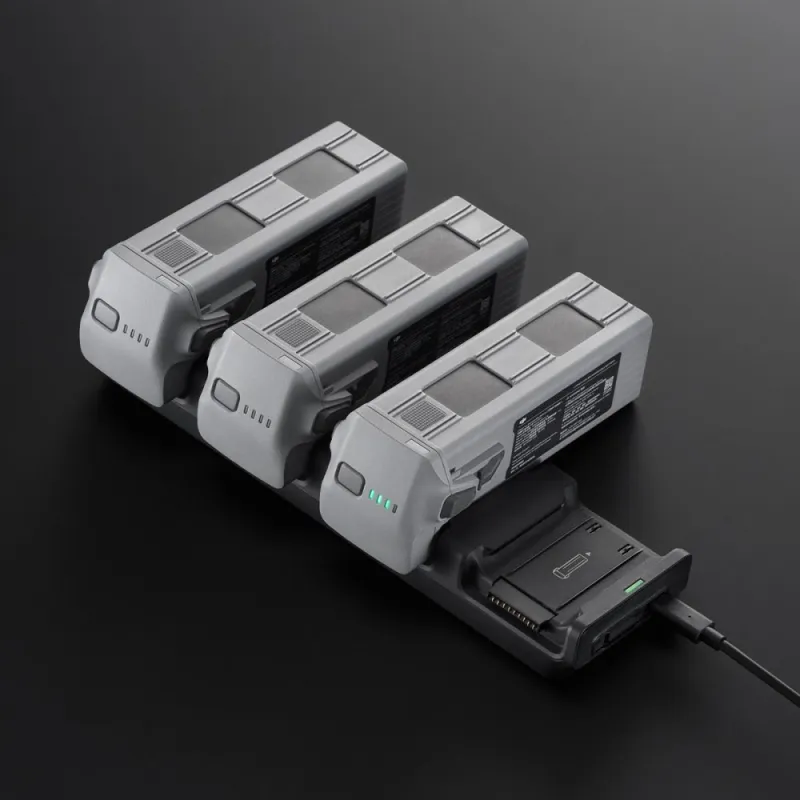

The DJI Matrice 4 Series Charging Hub is designed for use with Matrice 4 Intelligent Flight Batteries. It can charge up to four Intelligent Flight Batteries in sequence from high to low power levels. The battery charging hub supports both Standard Mode and Ready-to-Fly Mode. In Standard Mode, it charges each battery to 100% sequentially. In Ready-to-Fly Mode, it charges each battery to 90% sequentially and maintains that level for quick deployment.

Key Features

• Designed for Matrice 4 Intelligent Flight Batteries.
• Charges up to four batteries sequentially from high to low power levels.

Important Notes

• The DJI 100W USB-C Power Adapter is required when using the charging hub to charge Intelligent Flight Batteries.
• The charging hub is only compatible with the BPX345-6741-14.76 Intelligent Flight Battery. DO NOT use the charging hub with other battery models.
• Place the charging hub on a flat and stable surface when in use. Ensure the device is properly insulated to prevent fire hazards.
• DO NOT attempt to touch the metal terminals on the battery ports. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.

Compatibility

DJI Matrice 4 Series

In the Box

• 1 Battery Charging Hub

Specifications

• Model: CHX345-100
• Compatibility: DJI Matrice 4 Series Battery (battery model BPX345-6741-14.76), DJI 100W Portable Charger
• Operating Temperature: 5 to 40C (41 to 104F)
• Input: 5-20 V, max 5 A
