SmallRig 6655 Dummy Battery Power Cable for D-tap for Sony NP-FZ100

Product ID: 63200
€ 59,96 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 63200
Model: 6655
Ean: 6941590033709
Condition: New product
Manufacturer: SmallRig
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductCamera battery (dummy)
Battery typeExternal dummy battery
Battery compatibleSony NP-FZ100
BarošanaPowered from external battery or mains
ConnectionsD-tap
Lenght, m0.80
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

SmallRig 6655 Dummy Battery Power Cable for D-tap for Sony NP-FZ100

SmallRig 6655 Dummy Battery Power Cable for D-tap for Sony NP-FZ100

Powers compatible Sony NP-FZ100 cameras from a D-Tap source for extended recording, with real-time voltage display and multiple safety protections.

Write a review

Product details

Power and monitoring

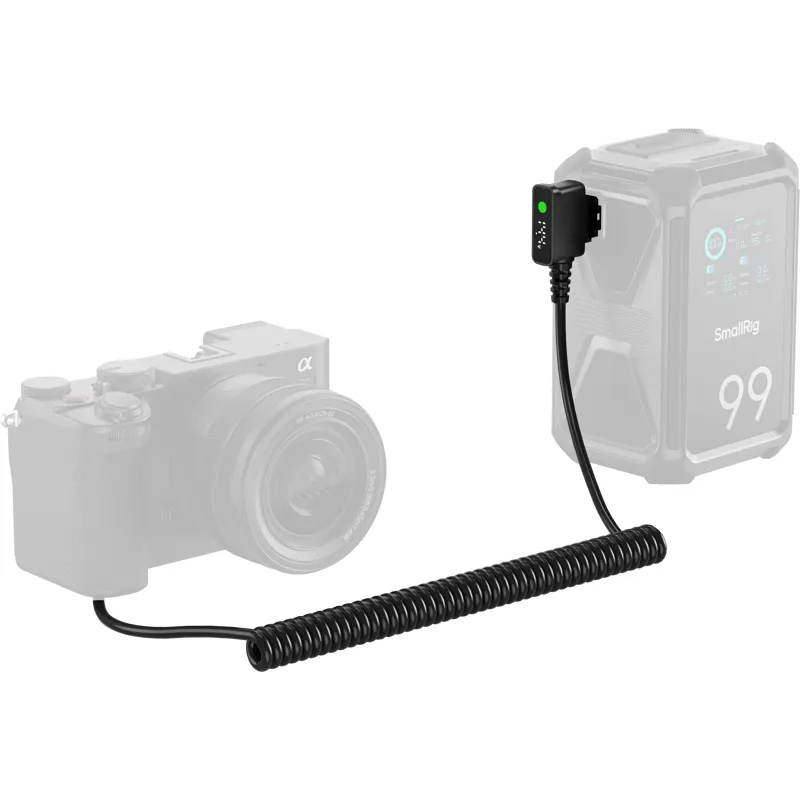

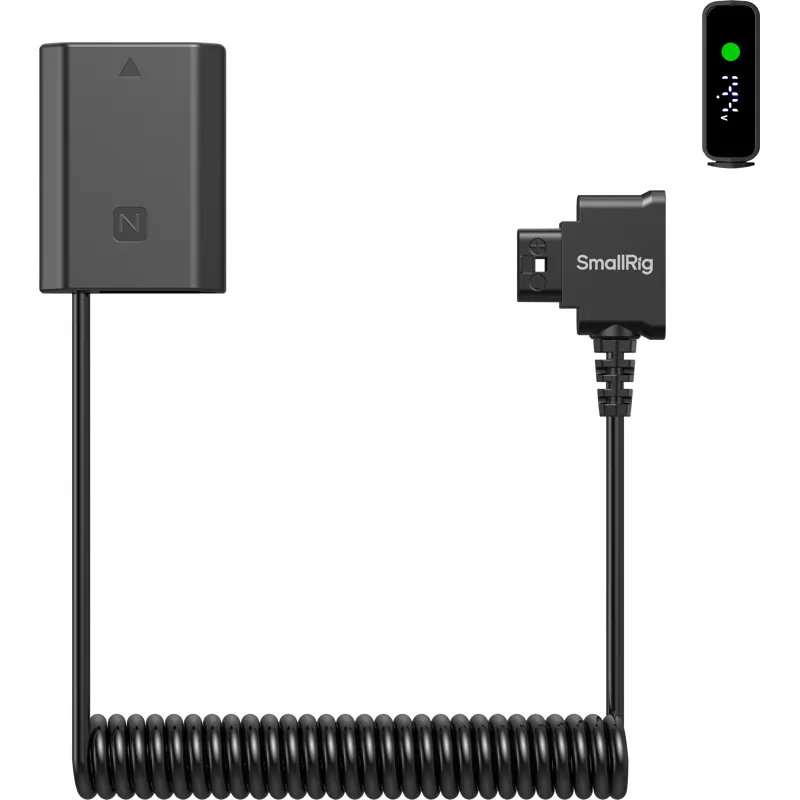

The SmallRig 6655 D-Tap dummy battery power cable supplies continuous power to compatible Sony cameras using an external power source, such as a V-mount battery. Its built-in display shows the input voltage and power status in real time.

  • Above 13.0 V: the green indicator stays on to show sufficient power.
  • Below 13.0 V: the red indicator lights or flashes to warn of low power.
  • If the D-Tap connector is inserted in reverse, the display shows no voltage and reverse-connection protection is triggered. Reconnect it in the correct direction to resume normal operation.

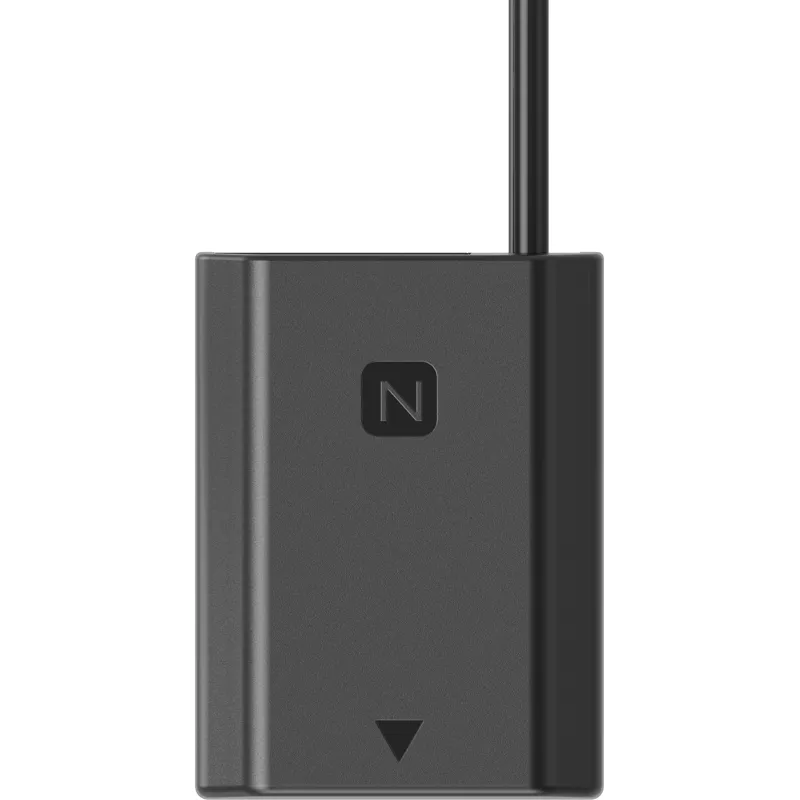

An upgraded chip supports camera compatibility without warning messages. The dummy battery is moulded to the dimensions of the original battery for smooth installation and removal. Safety features include overvoltage, overheating, overcharge, short-circuit and reverse-connection protection. The battery housing is made from flame-retardant ABS.

Technical specifications

  • Maximum output voltage: 8.4 V
  • Minimum output voltage: 7.8 V
  • Input voltage: 9.0–17.0 V
  • Input current: 2.0 A
  • Continuous output current: 2.0 A
  • Output protection current: 4.5–5.5 A
  • Operating temperature: −20°C to 50°C
  • Storage temperature: −20°C to 60°C
  • Battery housing material: ABS

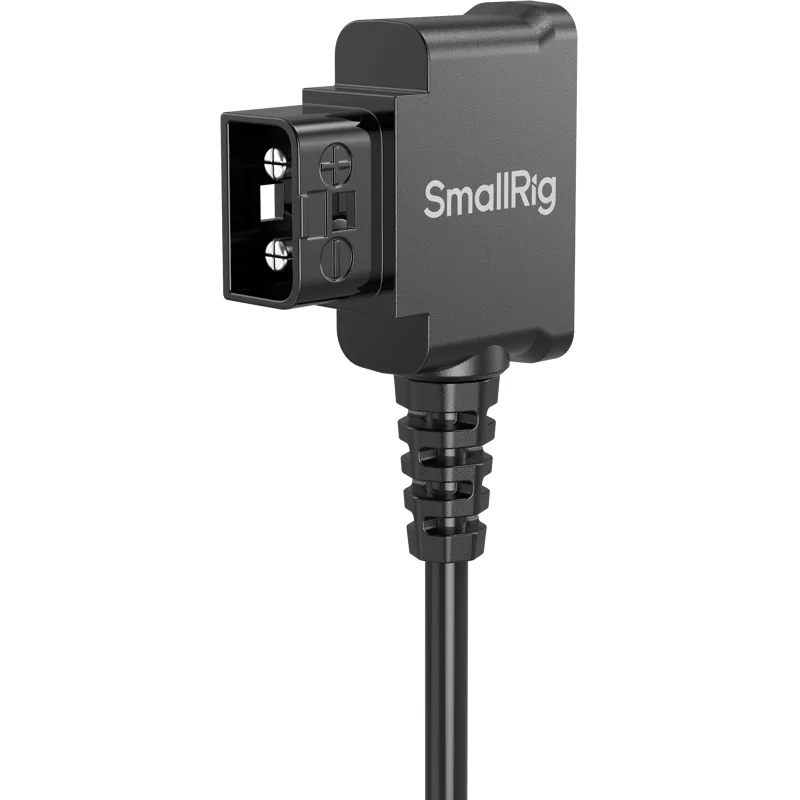

  • Input: D-Tap male connector with coiled cable, extendable from 80 cm to 100 cm

Compatibility

Compatible with Sony ZV-E1, α1, α7 IV, α7 V, α7C II, α7R IV, α7R V, α7S III, α9, α6600, α6700, FX3 and FX30.

Certifications

FCC, CE, RoHS, ISED and RCM; Quality Inspection Report and Structural Analysis Report.

Packaging includes

  • D-Tap to NP-FZ100 dummy battery power cable
  • User manual
