SmallRig 6656 Dummy Battery Power Cable for D-tap for Canon LP-E6P

Product ID: 63201
€ 59,96 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 63201
Model: 6656
Ean: 6941590033716
Condition: New product
Manufacturer: SmallRig
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductCamera battery (dummy)
Battery typeExternal dummy battery
ConnectionsD-tap male and DC male
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

SmallRig 6656 Dummy Battery Power Cable for D-tap for Canon LP-E6P

SmallRig 6656 Dummy Battery Power Cable for D-tap for Canon LP-E6P

Powers compatible Canon cameras continuously from a D-Tap source for extended recording. Features a real-time voltage display, safety protections and an extend

Write a review

Product details

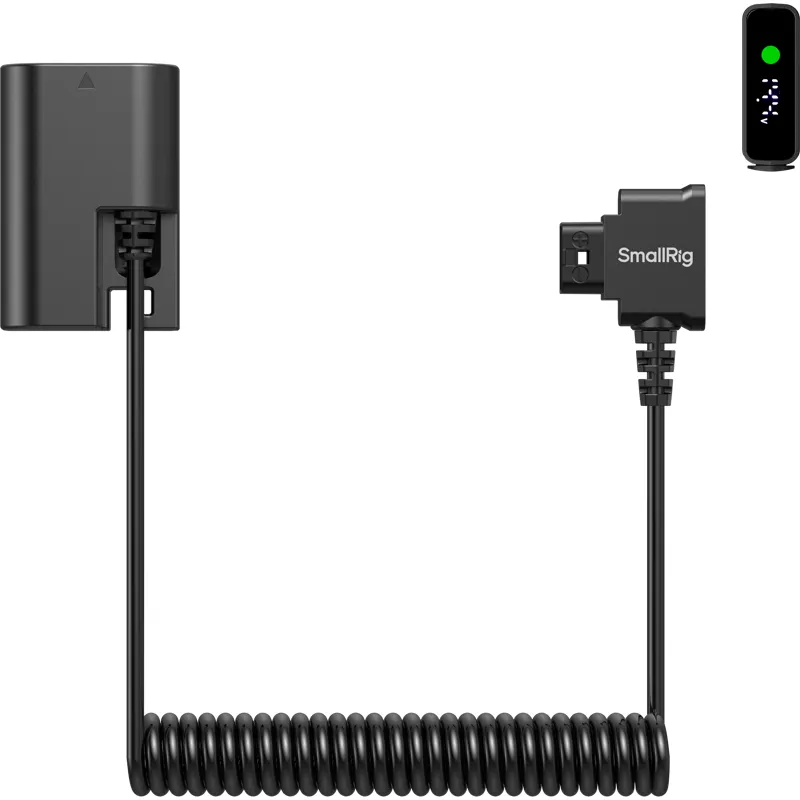

SmallRig 6656 Dummy Battery Power Cable for D-Tap for Canon LP-E6P

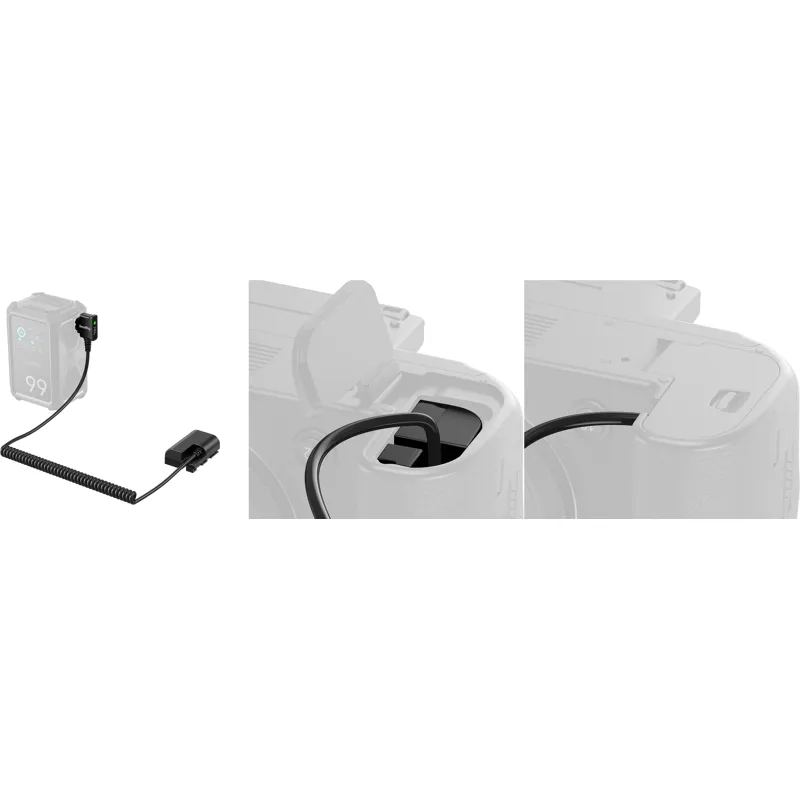

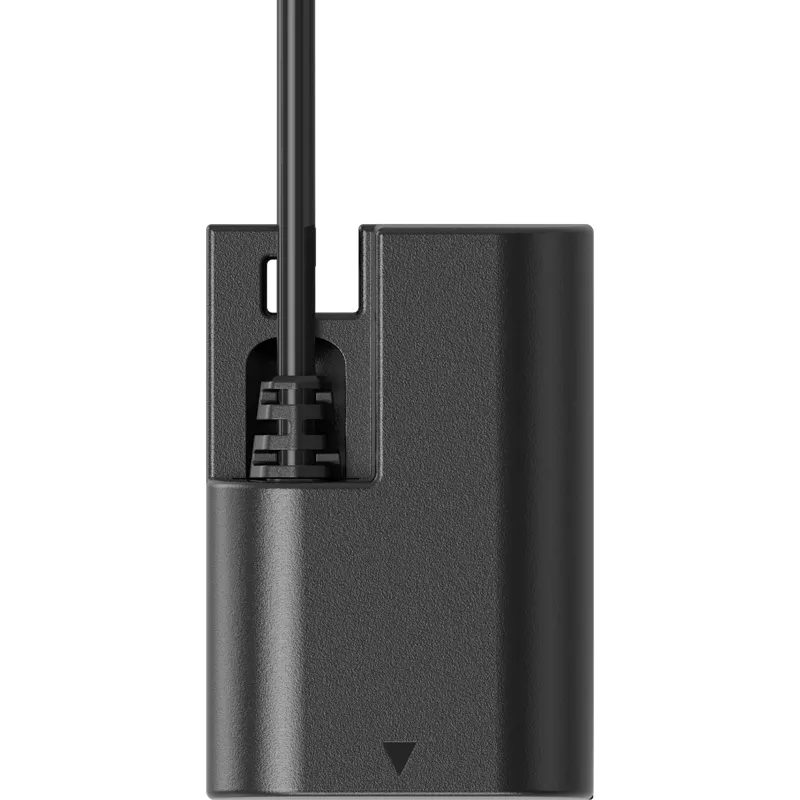

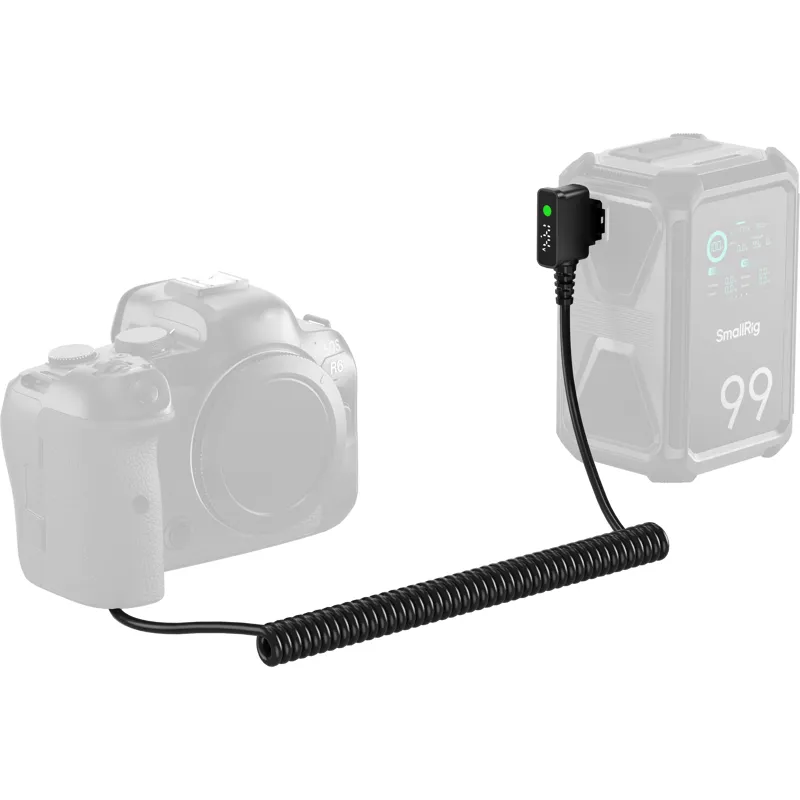

This power cable connects a D-Tap power source to a Canon LP-E6P-compatible camera, providing continuous external power for extended video recording, livestreaming and other long shooting sessions. The dummy battery is moulded to the dimensions of the original battery for smooth installation and removal.

Power and status display

A built-in display shows the input voltage and power status in real time. When the input voltage is above 13.0 V, the indicator stays green to show sufficient power. Below 13.0 V, the indicator turns red or flashes red to warn that the power level is low.

If the D-Tap connector is inserted in reverse, no voltage is displayed and reverse-connection protection is triggered. Reconnect the cable in the correct direction to restore normal operation.

Compatibility and protection

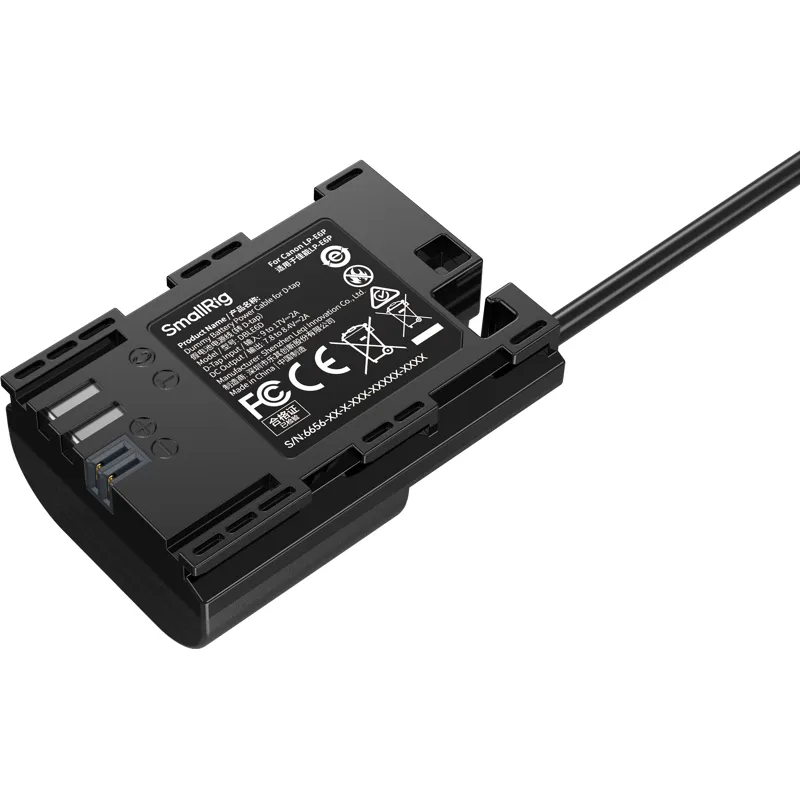

An upgraded chip provides camera compatibility without warning messages. The cable includes overvoltage, overheating, overcharge, short-circuit and reverse-connection protection. Its battery housing is made from flame-retardant ABS for reliable long-term use.

Technical specifications

  • Maximum output voltage: 8.4 V
  • Minimum output voltage: 7.8 V
  • Input voltage: 9.0–17.0 V
  • Input current: 2.0 A
  • Continuous output current: 2.0 A
  • Output protection current: 4.5–5.5 A
  • Operating temperature: −20 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Battery housing material: ABS

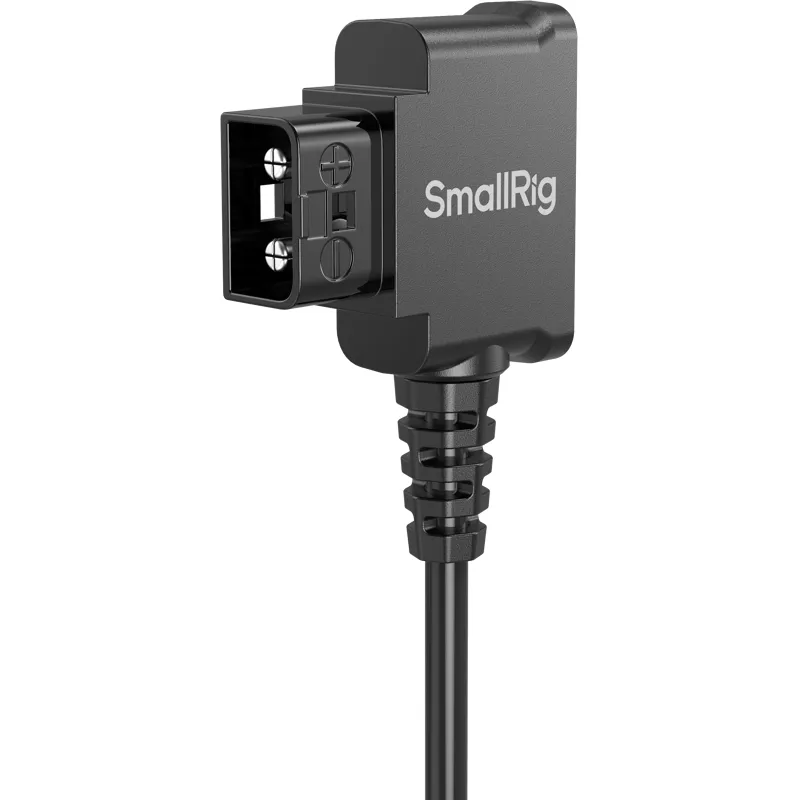

  • Input: D-Tap male connector with coiled cable, extendable from 80 to 100 cm

Display status

  • Steady green light with voltage displayed: input voltage is above 13.0 V and power is sufficient.
  • Steady or flashing red light with voltage displayed: input voltage is below 13.0 V and power is low.
  • Steady red light with no voltage displayed: the D-Tap input is connected in reverse and reverse-connection protection is active. Reconnect it in the correct direction.

Compatibility

  • Canon R5, R5 Mark II, R6, R6 Mark II, R6 Mark III, R7, 5D Mark IV, R and Ra

Certifications and included items

Certifications: FCC, CE, RoHS, ISED and RCM. A quality inspection report and structural analysis report are also listed.

  • D-Tap to LP-E6P dummy battery power cable
  • User manual
