Integrated Wireless Monitor with Transmitter and Receiver

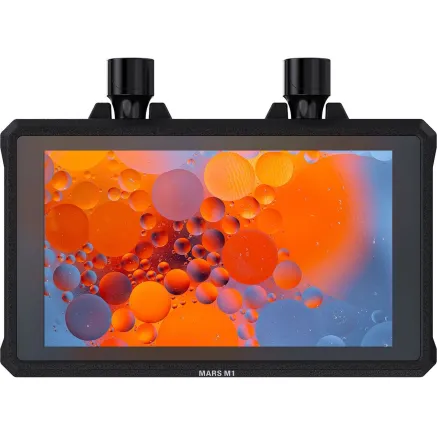

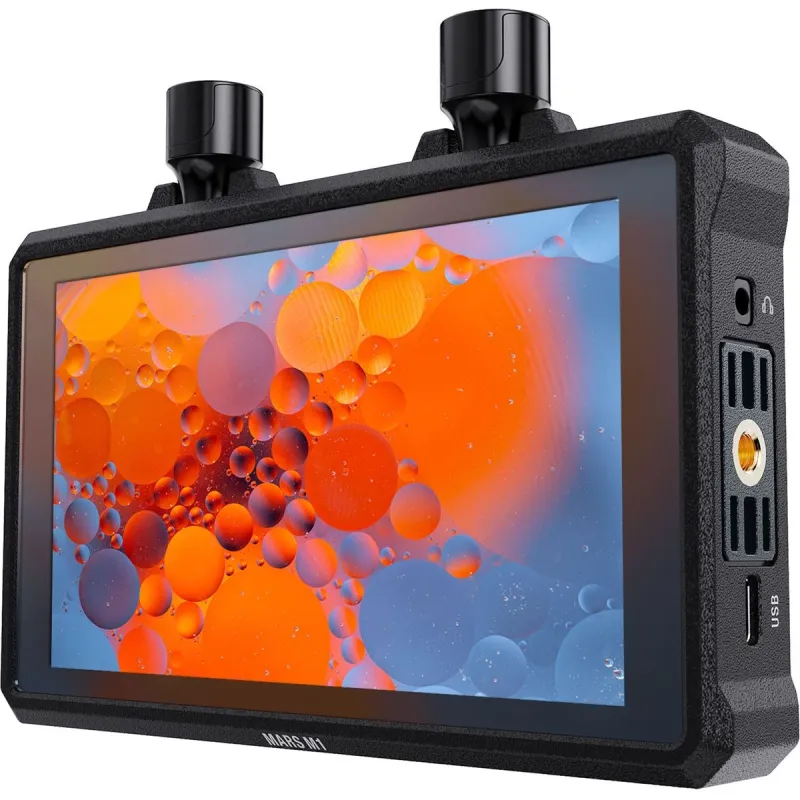

The Hollyland Mars M1 Enhanced is a versatile wireless monitor that combines transmitter, receiver, and monitoring functions into a single compact device. Featuring a 5.5-inch touchscreen display with precise color calibration and Rec.709 color gamut, it delivers accurate professional image analysis and monitoring.
Wireless Performance and Compatibility
It offers an impressive line-of-sight wireless range of up to 150 meters and a low latency of approximately 0.08 seconds, ensuring seamless real-time monitoring. The device can operate as either a transmitter or receiver, easily switchable via the menu, and supports connection of one transmitter to up to two receivers or four mobile apps. It is compatible with Hollyland Mars 4K, 300 Pro, and 400 Pro video transmission systems. The HollyView app for iOS and Android enables video viewing on smartphones or tablets.
Display and Color Accuracy
The Mars M1 Enhanced features a high-end 5.5-inch LCD touchscreen with 1920x1080 resolution at 403 ppi and a 16:9 aspect ratio. It delivers up to 1000 cd/m² brightness and a 1000:1 contrast ratio, suitable for both indoor and outdoor use. The monitor undergoes factory color calibration for maximum accuracy, with user-adjustable RGB components for fine-tuning color balance.

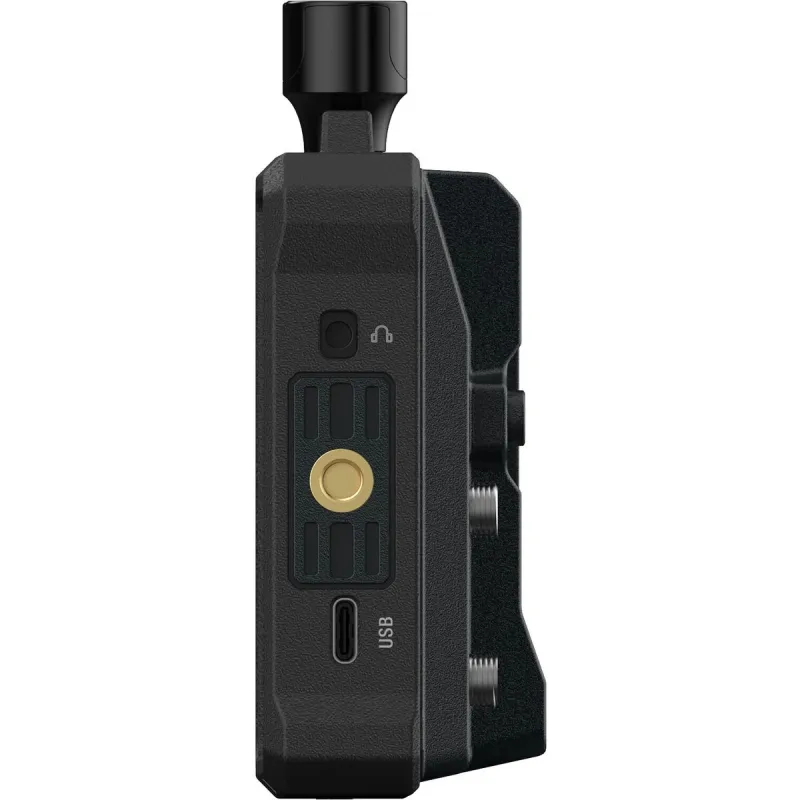

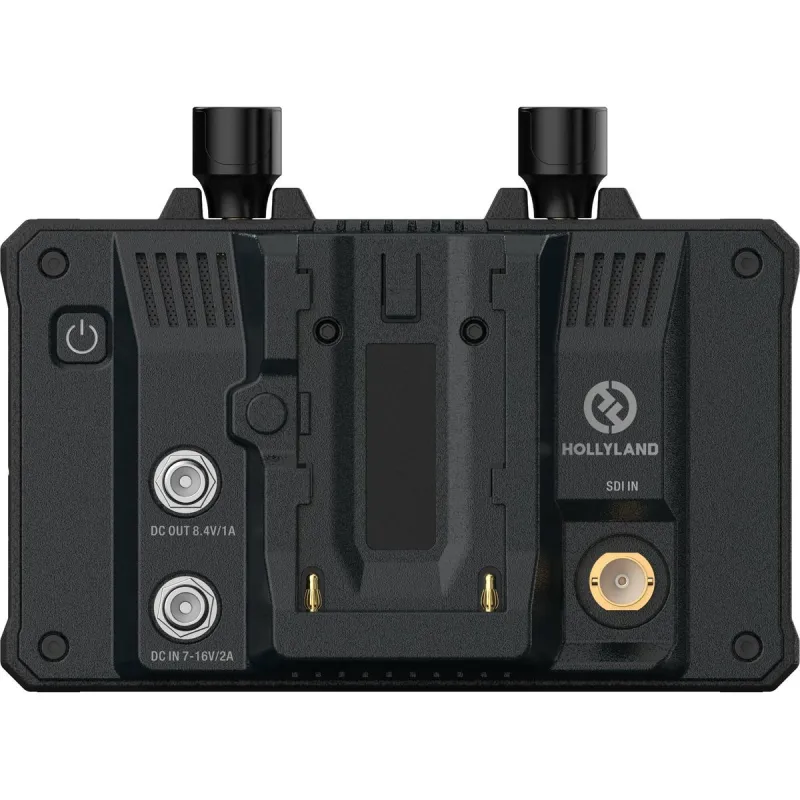

Connectivity and Operating System
- Inputs: HDMI 1.4b (female type A), 3G-SDI (female BNC)
- Outputs: HDMI 1.4b Loop Out (female type A)
- Antennas: 2x RP-SMA male connectors
- Power Input/Output: 2mm sockets
- Headphone Output: 3.5mm TRS jack
- USB-C: USB 2.0 OTG
The device runs on the HollyOS operating system, providing advanced monitoring tools and supports decimal frame rates. It accepts HDMI 4K/30fps input and output and SDI input for broad professional video production compatibility.
Advanced Features and Build
- Intelligent channel scanning to identify free channels and avoid interference
- New compact capsule antennas for quick setup without repeated disassembly
- Lightweight design at approximately 400 grams (without external antennas)
- Durable high-impact resistant body shell for harsh environments
Technical Specifications
- Display: 5.5" touchscreen, 1920x1080 resolution, 403 ppi, 16:9 aspect ratio
- Brightness: 1000 cd/m²
- Contrast Ratio: 1000:1
- Input Voltage: DC 7-16 V, 2.5 A (nominal 12 V), NP-F battery 6.8-8.4 V
- Output Voltage: 8.4 V ±5%
- Power Consumption: <16 W
- Dimensions: 152 x 96 x 40 mm (without external antennas)
- Weight: approx. 400 g (without external antennas)
- Input Resolutions:
- HDMI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz
- SDI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30 Hz, 1080p50/59.94/60 Hz (3G-SDI level A and B)
- Output Resolutions:
- HDMI Loop Out (HDMI IN): same as HDMI IN input resolutions
- HDMI Loop Out (SDI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
- Note: When connected to a Mars 4K transmitter in receiver mode with 3840x2160p24/25/30 Hz input, HDMI output resolution is downscaled to 1920x1080p24/25/30 Hz
- Operating Frequencies: 5.150-5.250 GHz, 5.250-5.350 GHz, 5.470-5.725 GHz, 5.725-5.850 GHz
- Video Codec: H.264
- Bit Rate: 12 Mbps
- Transmit Power: 21 ±1.5 dBm
- Transmission Delay: approx. 0.08 seconds (1080p60 signal in lab environment)
- Wireless Range: up to 150 meters line-of-sight in undisturbed outdoor environment
- Bandwidth: 20 MHz
- Audio Format: 8 audio channels for HDMI 1.4b
- Operating Temperature: -10 to 60 °C
