Ikan Delta 7" High Bright Monitor with 3D-LUTs (DH7-V2)

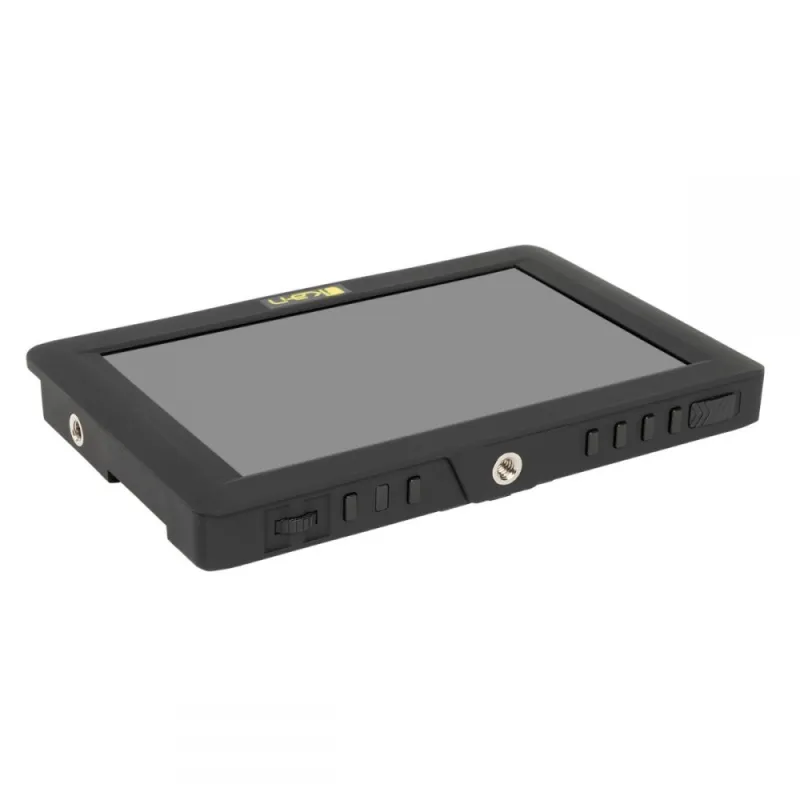

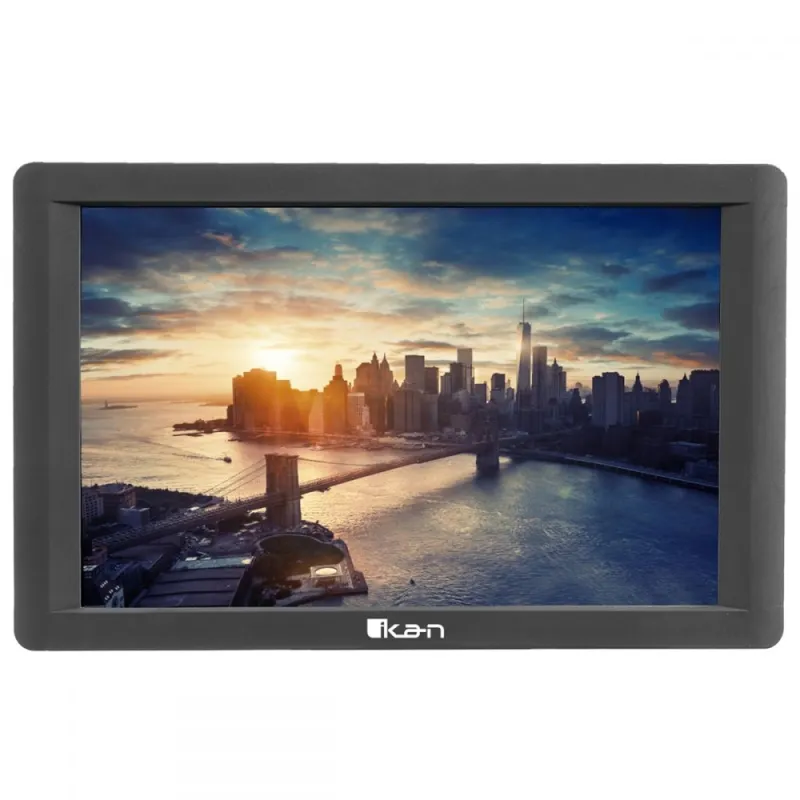

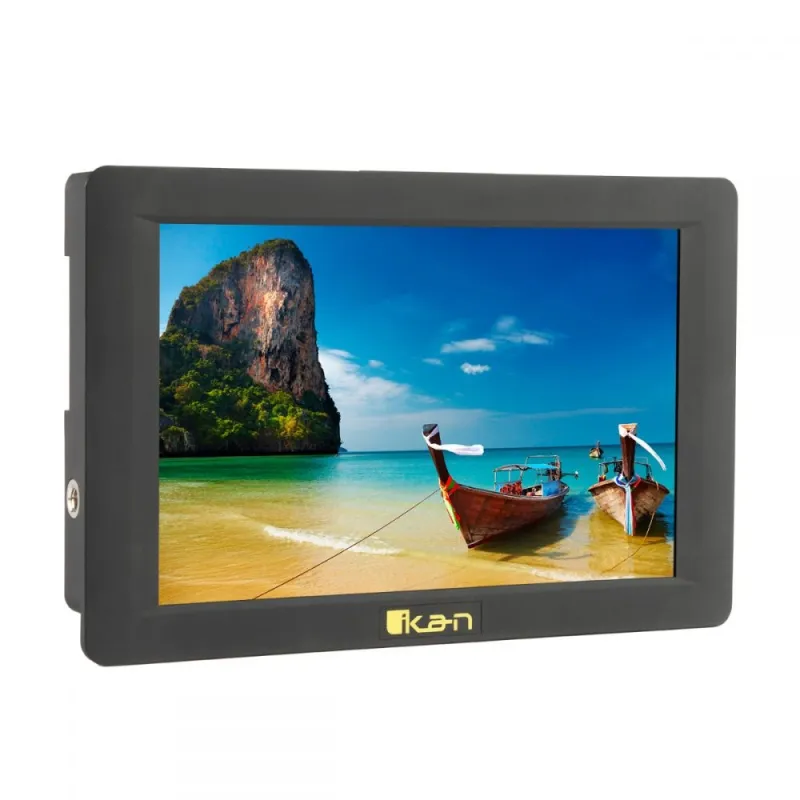

Ikan Delta DH7-V2 7" High Bright Monitor

The Ikan Delta DH7-V2 is a 7-inch high bright monitor designed for professional video and photography applications. It features a 1920 x 1200 resolution LCD panel with a 16:10 aspect ratio, delivering sharp and vibrant images with excellent color accuracy.

Display and Brightness

• 7-inch LCD screen with 1920 x 1200 resolution
• High brightness of 1200 cd/m² for clear visibility even in bright outdoor environments
• Contrast ratio of 1200:1
• Wide viewing angles of 178° horizontal and 178° vertical

Color and LUT Support

• Supports 3D LUTs via USB port, allowing users to load cube files for accurate color preview and grading
• Ensures that footage is displayed with precise color representation for professional monitoring

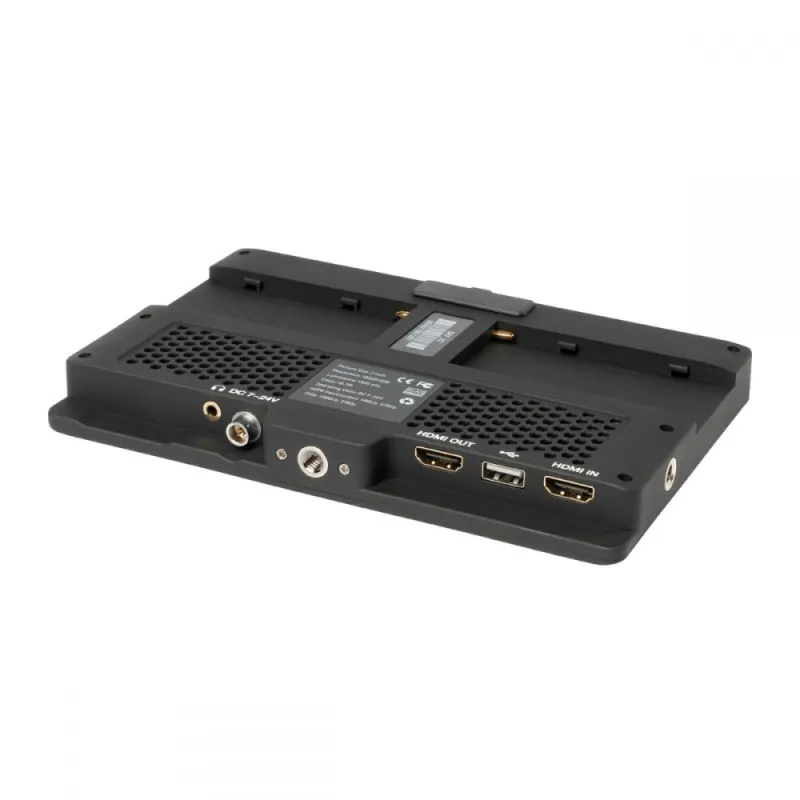

Connectivity and Features

• 4K Ultra HD support through HDMI input and output
• Additional 3.5mm audio output for monitoring sound
• Includes advanced monitoring tools such as histogram, peaking, false color, pixel-to-pixel display, clip guides, image flip, and audiometer

Power Options

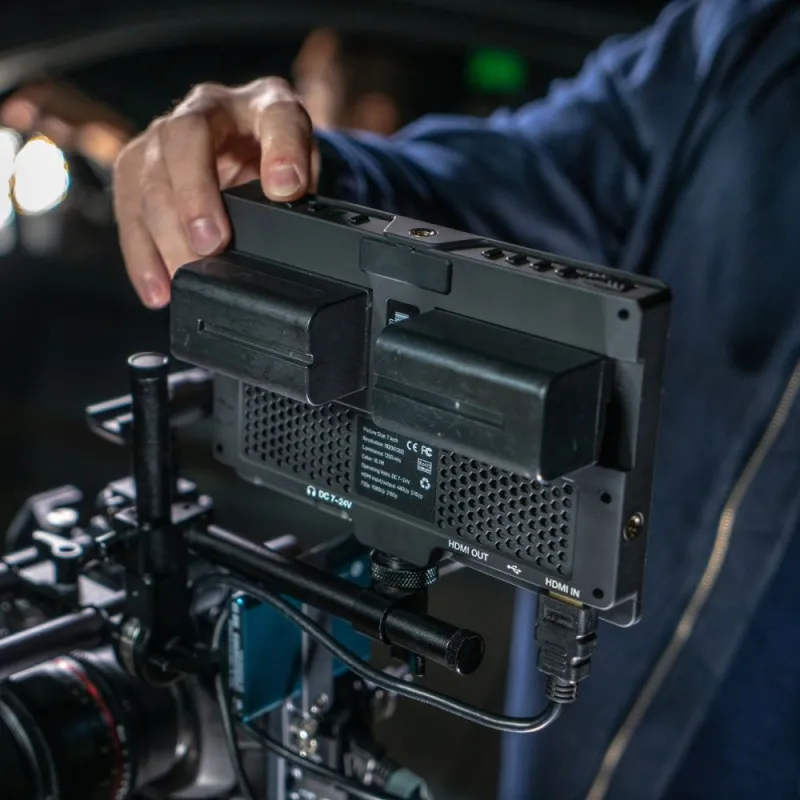

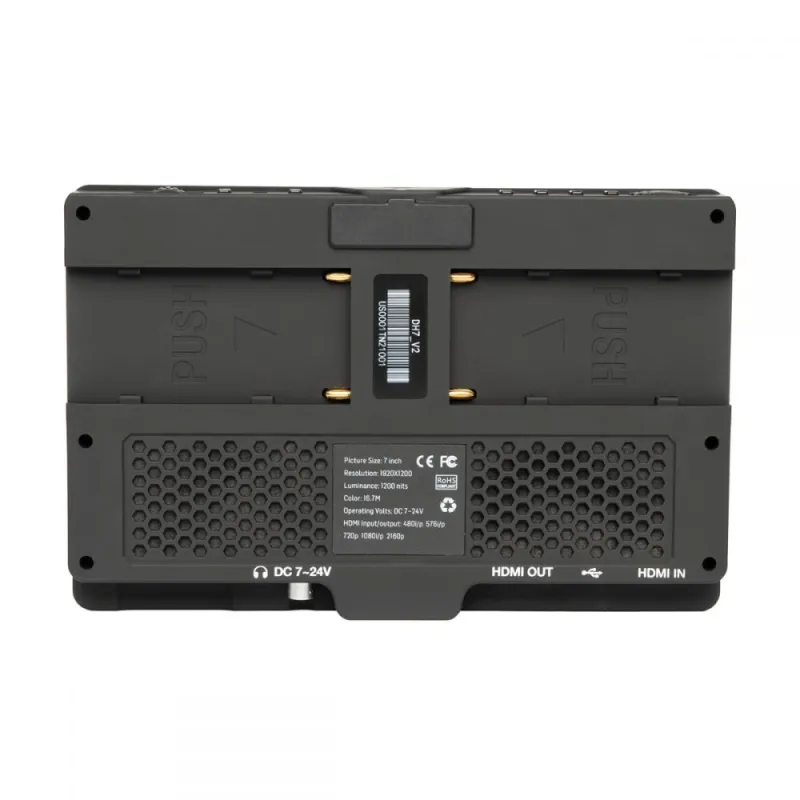

• Dual L series battery mounts for flexible power solutions
• Can operate with one or two L series batteries for extended use

Build and Included Items

• Constructed with durable ABS plastic housing
• Includes 1 x DH7-V2 monitor and 1 x D-Tap cable

Technical Specifications

• Aspect Ratio: 16:10
• Battery Type: L Series Battery
• Brightness: 1200 cd/m²
• Contrast Ratio: 1200:1
• Inputs: HDMI
• Outputs: HDMI
• Resolution: 1920 x 1200
• Screen Size: 7 inches
• Viewing Angle: 178° horizontal / 178° vertical
• Build Material: ABS Plastic
• UPC Code: 847983025985
