Viltrox DC T1 VLOG Monitor

Viltrox DC T1 VLOG Monitor

The Viltrox DC T1 VLOG Monitor is a compact 5-inch external monitor designed for smartphones, ideal for vlogging and lightweight handheld content creation.

Highlights

• 5-inch full view screen with 1080 x 1920 resolution
• Brightness of 400 cd/m²
• Mounting via the supplied magnetic bracket
• All connections via Type C: signal, power, and audio
• Supports wired and wireless microphones, speakers, and headphones
• Light and compact: approximately 112 g

Connecting

The monitor operates entirely via Type C. Connect one end of the supplied Type C cable to the signal input of the monitor and the other end to the smartphone; the phone image then appears on the screen. The Type C port of the phone must support DisplayPort (DP) signal output.


The 5-inch full view screen features a resolution of 1080 x 1920 and a brightness of 400 cd/m², providing a clear image for framing and exposure adjustment.

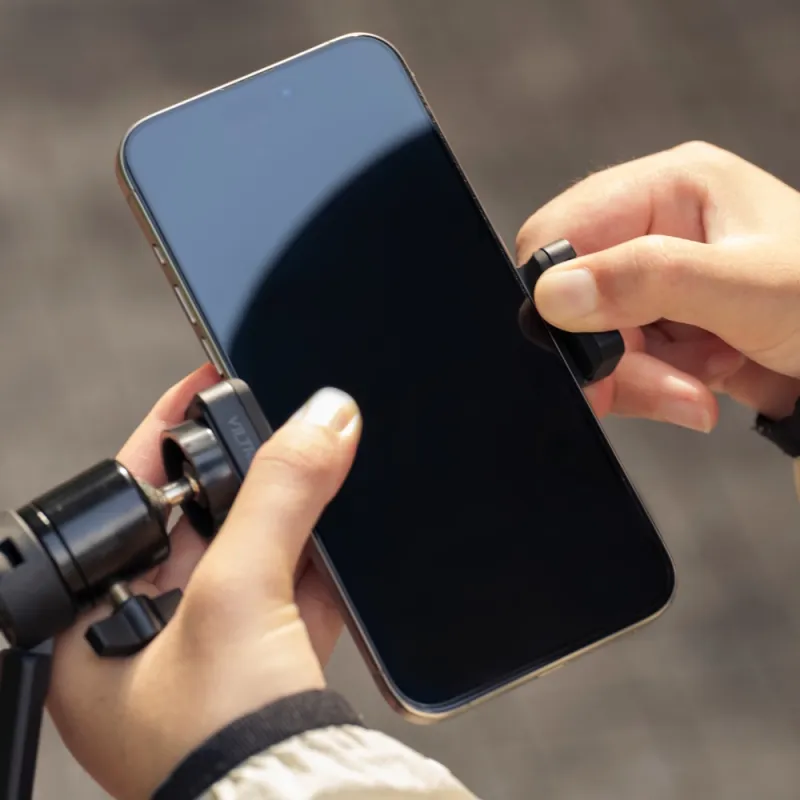

Mounting

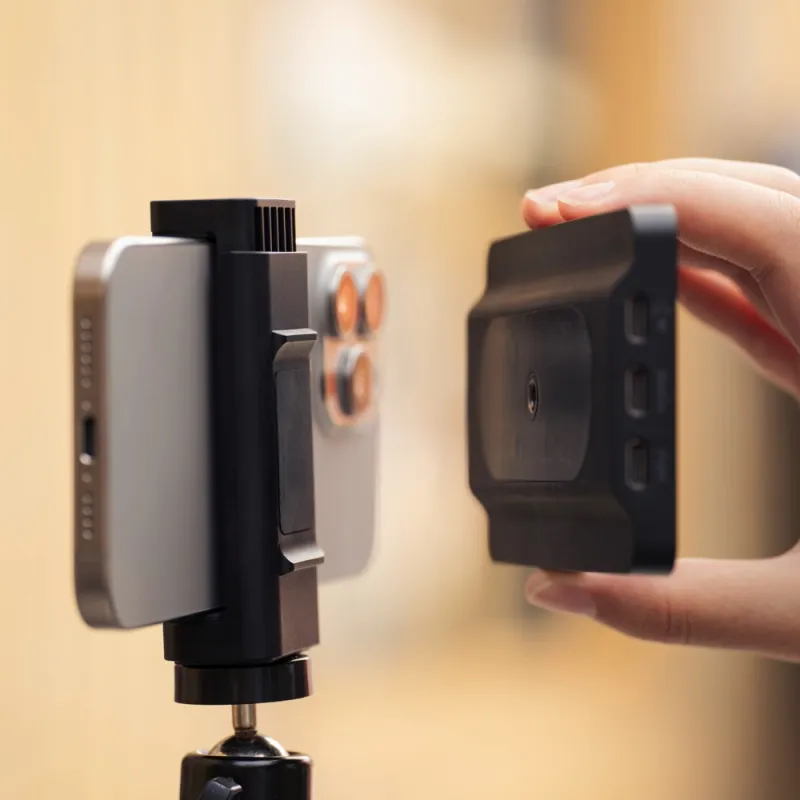

The supplied magnetic bracket includes a cold shoe, an extension range of 63 to 88 mm, and a 1/4" screw port with an ARRI positioning hole. The monitor attaches magnetically to the bracket.

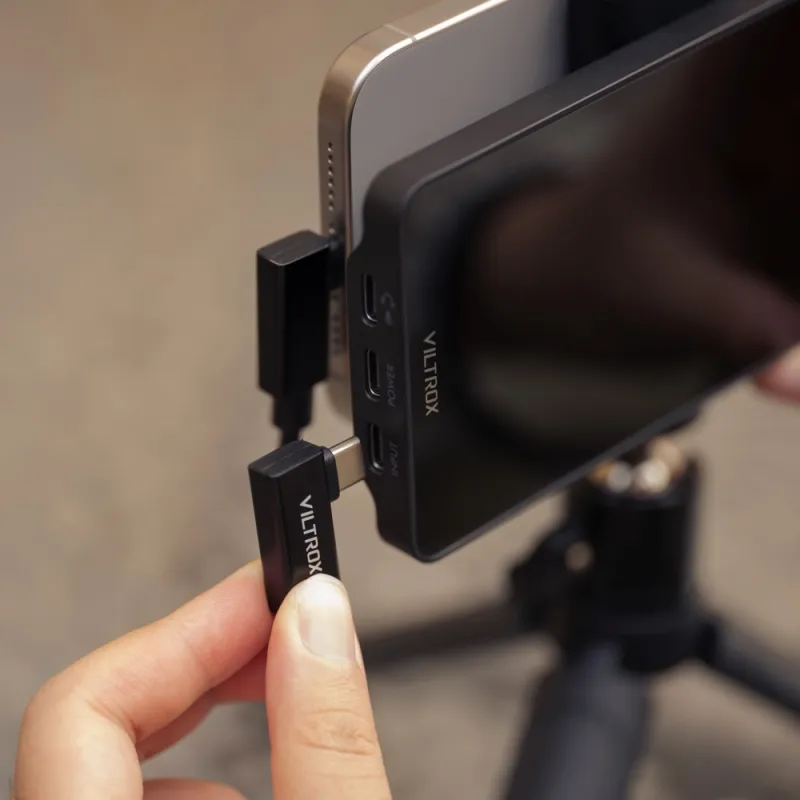

Audio

The headphone/microphone output works via Type C and supports wired and wireless microphones, speakers, and headphones. An adapter is required for 3.5 mm analog devices. Connect audio equipment before powering on the monitor.

Power

The separate Type C power input allows the smartphone to be charged during use.

Specifications

• Screen size: 5 inches
• Resolution: 1080 x 1920
• Brightness: 400 cd/m²
• Viewing angle: full view
• Signal input: Type C
• Power input: Type C
• Headphone/microphone output: Type C
• Working temperature: up to 50 °C
• Material: ABS+PC
• Dimensions: 127.6 x 72.8 x 13.5 mm
• Weight: approx. 112 g
• Bracket extension range: 63–88 mm
• Bracket tripod mount: 1/4" screw port with ARRI positioning hole
• Warranty: 2 years

Package Contents

• 1 x Viltrox DC T1 VLOG Monitor
• 1 x Magnetic bracket
• 1 x Type C cable
