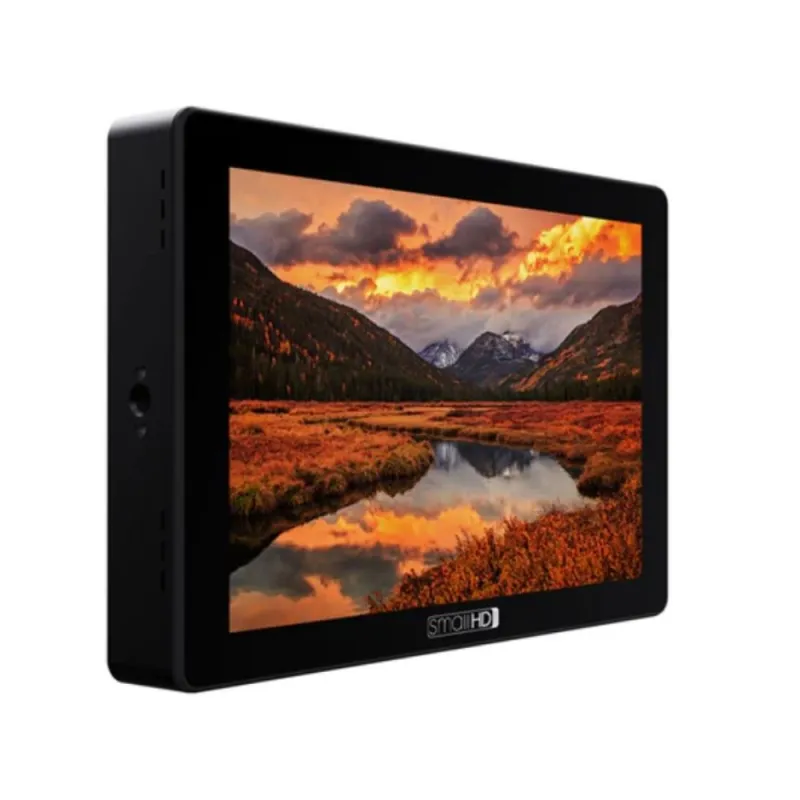

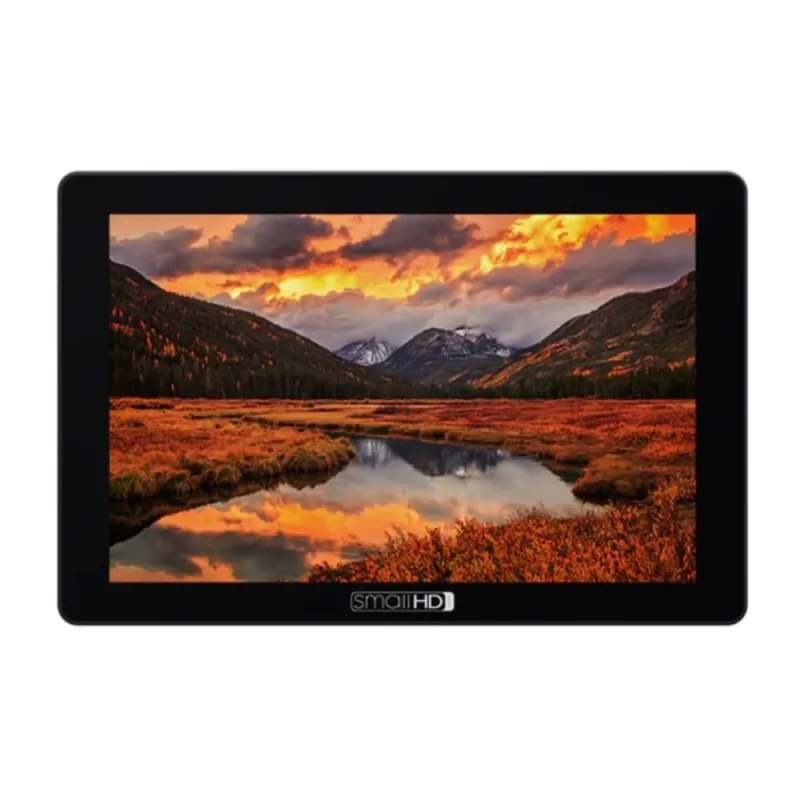

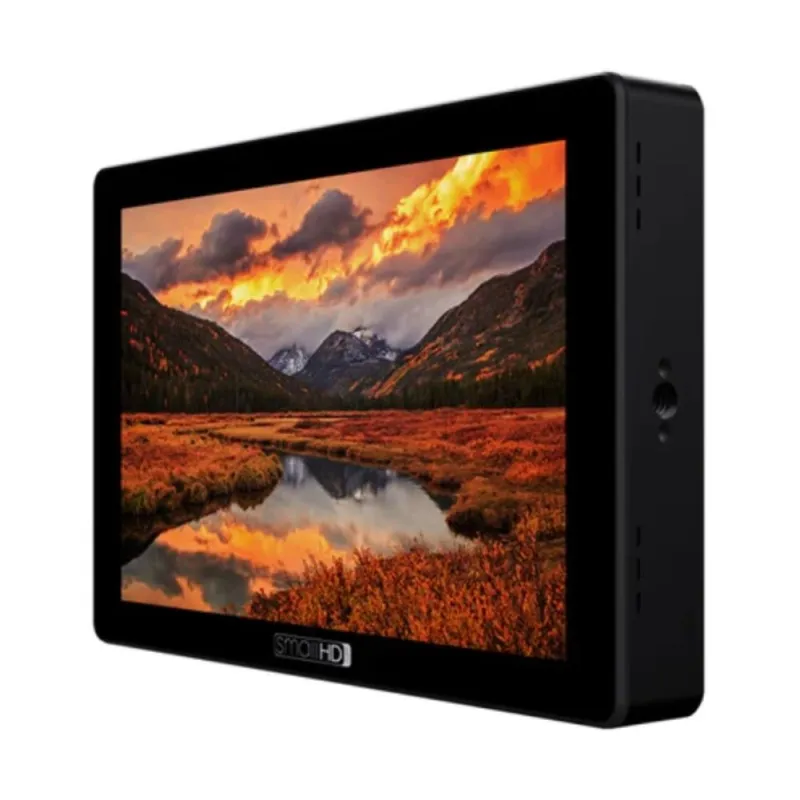

SmallHD Cine 7 ARRI Kit is a 7-inch on-camera HD monitor with 1800 nits brightness, 100% DCI-P3 color, ARRI camera control, and 4K/HDR support.

SmallHD Cine 7 ARRI Kit

Product ID: 60697
€ 2955,95 tax incl.

Delivery in 8 - 14 business days

Available from supplier: 1 Item

SKU: 60697
Ean: 0811786031979
Condition: New product
Manufacturer: SmallHD
2955.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsmonitor
ConnectorHDMI
ConnectorSDI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

SmallHD Cine 7 ARRI Kit

SmallHD Cine 7 ARRI Kit

SmallHD Cine 7 ARRI Kit is a 7-inch on-camera HD monitor with 1800 nits brightness, 100% DCI-P3 color, ARRI camera control, and 4K/HDR support.

Write a review

Product details

Display Features

  • 7.02-inch Full HD IPS LCD panel with 1920x1200 resolution and 322 ppi pixel density
  • 16:9 aspect ratio with an active area of 5.95 x 3.72 inches
  • 10-bit color processing on an 8-bit panel with 100% DCI-P3 color gamut coverage
  • Maximum brightness of 1800 nits for clear visibility in full sunlight
  • Contrast ratio of 1000:1 and 160° viewing angle
  • LED backlight with adjustable brightness

Inputs and Outputs

  • Two 3G-SDI inputs (one BNC 3G input and one selectable input/output loop out)
  • HDMI input and output (Type-D full size connectors)
  • Audio input via HDMI and SDI with monitoring through front bezel speakers or 3.5mm stereo headphone jack (up to 8 channels metering)

Power and Battery

  • Power input via 2-pin locking connector (LEMO)
  • Voltage range: DC 10V to 34V; battery terminals 6.0V to 16.8V
  • Supports Sony L-Series batteries (included), with optional Gold Mount or V-Mount battery plate attachments
  • Recommended power supply: DC 12-15V at approximately 2.5 amps or greater
  • Li-ion battery chemistry; monitor does not support battery charging
  • Overload protection with reverse polarity protection on DC input

Software and Controls

  • SmallHD PageOS 4 software with customizable Page Profiles
  • Touch screen primary control interface
  • Features include personalized frame guides, focus and exposure assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, RGB parade, false color, zebra, and audio meters
  • Pixel zoom from 1.1x to 8.0x with pinch and swipe gestures
  • Image rotate and flip with automatic or manual control
  • Cross conversion between HDMI and SDI signals
  • Image capture and custom LUT import via SD card or USB storage

Camera Control for ARRI (Software License)

This digital software license unlocks camera control functionality for ARRI cameras on the Cine 7 monitor, providing intuitive access to essential camera settings.

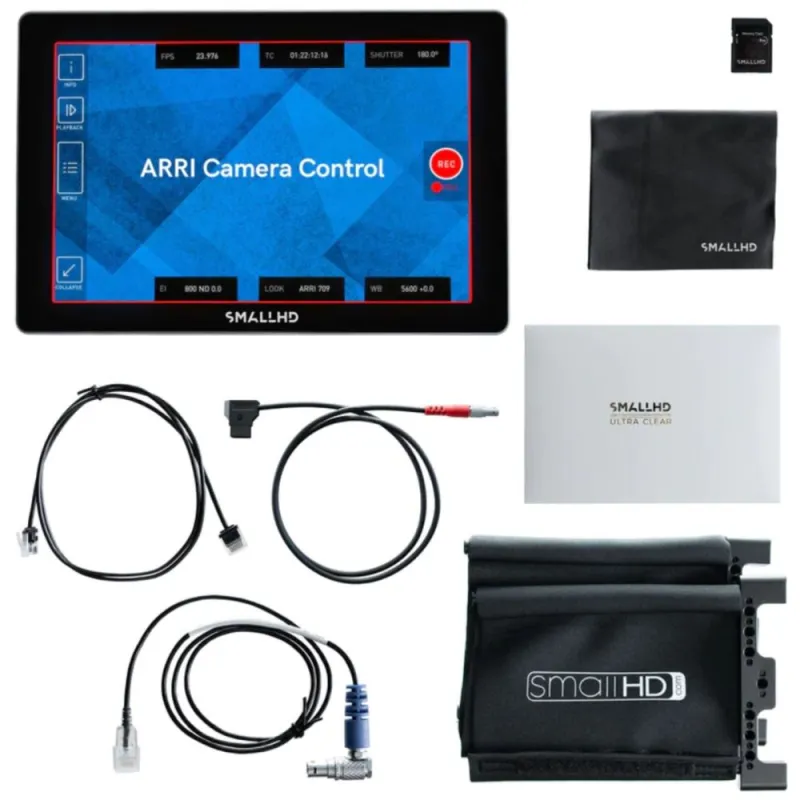

Included Accessories

  • 36-inch Slim Ethernet Cable with RJ45 connectors
  • D-Tap to 2-pin power cable wired to ARRI standard, 36 inches long
  • ARRI Alexa Camera Control Cable with right-angle LEMO-type 10-pin connector and Ethernet plug
  • SmallHD Cleaning Cloth (approx. 18 x 18 cm) made from non-abrasive material for safe cleaning of glass surfaces
  • Smart 7 Sunhood: rugged, easy to attach, convertible from 3-sided to 4-sided with snaps, includes ¼-20 mounting points for accessories
  • UltraClear Screen Protector for scratch resistance and polarization
  • 8GB SD Card for storing 3D LUTs and captured images

Physical and Environmental Specifications

  • Item weight: 567 grams; package weight: 907 grams
  • Dimensions: 11.87 cm (height) x 3.35 cm (width) x 18.01 cm (length/depth)
  • Construction: anodized aluminum chassis
  • Operating temperature range: -1°C to 38°C
  • Storage temperature range: -18°C to 49°C
  • Mount points: four ¼-20 threaded mounts on left, right, bottom, and back
  • Compliance: FCC, IC, CE, RoHS
