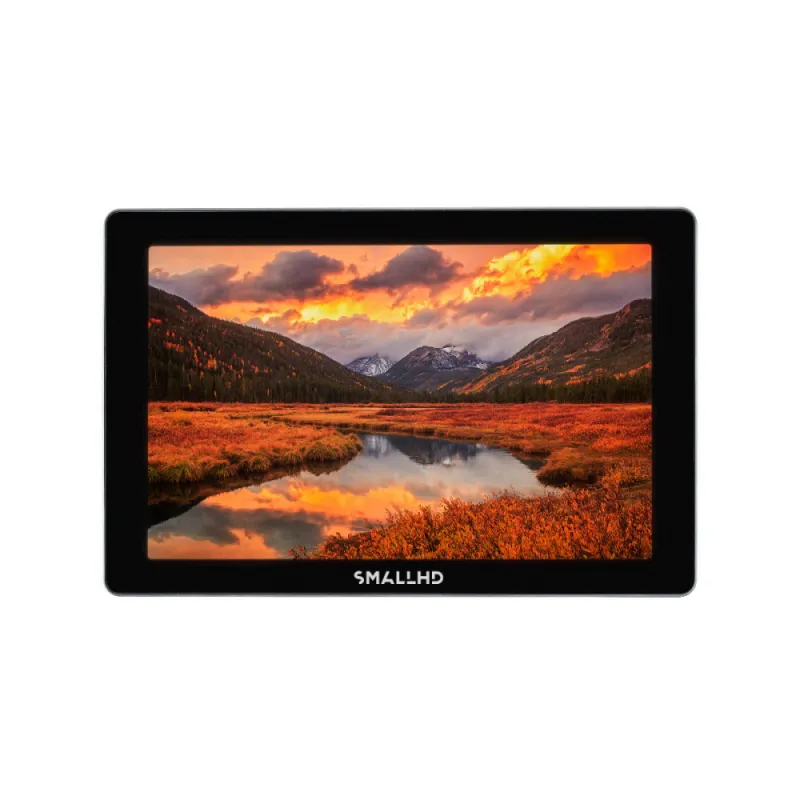

SmallHD Cine 7 RED DSMC2 Kit is a 7-inch on-camera HD monitor with 1800 nits brightness, 100% DCI-P3 color, RED DSMC2 camera control, and 4K/HDR support.
SmallHD Cine 7 RED DSMC2 Kit
Product ID: 60698
SKU: 60698
Ean: 0811786031986
Condition: New product
Manufacturer: SmallHD
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | LCD Monitor |
| LCD monitors | accessory kit |
| LCD monitors | monitor |
| Connector | HDMI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Display Features
- 7.02-inch Full HD IPS LCD panel with 1920x1200 resolution and 322 ppi pixel density
- 10-bit color processing with 100% DCI-P3 wide-gamut coverage for accurate color representation
- Maximum brightness of 1800 nits for clear visibility in full sunlight
- Contrast ratio of 1000:1 and 160° viewing angle
- LED backlight with adjustable brightness
Inputs and Outputs
- Two 3G-SDI inputs (one BNC 3G input and one selectable input/output) supporting YCC 4:2:2 10-bit signals up to 1080p60
- HDMI input and output (Type-D full size) supporting up to 2160p30 with 12-bit color and various frame rates
- Audio monitoring via front bezel speakers or 3.5mm stereo headphone jack with metering up to 8 channels
Camera Control for RED DSMC2
- Software license enables camera control for RED DSMC2 cameras via touchscreen interface
- Includes RED CTRL 4-pin to SmallHD 5-pin USB cable for camera control connectivity
Power and Battery
- Sony L-Series dual battery bracket included, with optional Gold Mount or V-Mount battery plate attachments
- Power input via 2-pin locking connector or battery terminals
- Voltage range: DC 10V to 34V (power input), 6.0V to 16.8V (battery terminals)
- Recommended power supply: DC 12-15V at approximately 2.5 amps or greater
- Li-ion battery chemistry; monitor does not support battery charging
Software and Monitoring Tools
- SmallHD PageOS 4 software with customizable Page Profiles
- Features include personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, RGB parade, false color, zebra, and audio meters
- Pixel zoom from 1.1x to 8.0x with pinch and swipe gestures
- Supports custom LUT import via SD card or USB storage
- Image capture and overlay with opacity and blink settings

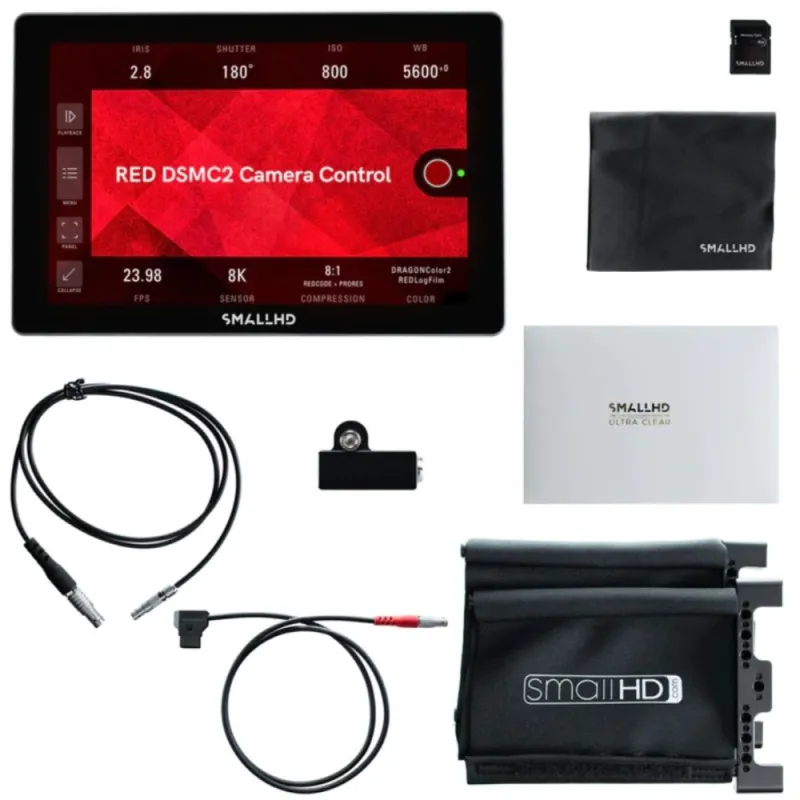

Included Accessories
- D-Tap to 2-pin power cable (91 cm)
- UltraClear screen protector for scratch resistance and polarization
- Micro USB to 5-pin Lemo adapter for camera control installation
- 8GB SD card for storing 3D LUTs and captured images
- SmallHD cleaning cloth (approx. 18 x 18 cm) for safe cleaning of glass surfaces
- Smart 7 sunhood with quick conversion from 3-sided to 4-sided and ¼-20 mounting points for accessories
Physical and Environmental Specifications
- Item weight: 0.5 kg; package weight: 0.9 kg
- Dimensions: 18 cm (length) x 11.86 cm (height) x 3.35 cm (width)
- Construction: anodized aluminum chassis
- Operating temperature range: -1°C to 38°C (30°F to 100°F)
- Storage temperature range: -18°C to 49°C (0°F to 120°F)
- Mount points: four ¼-20 threaded mounts on left, right, bottom, and back
- Compliance: FCC, IC, CE, RoHS
